3803612
Water Pump Repair Kit
Cummins®

Introduction

The Cummins 3803612 Water Pump Repair Kit is designed to maintain the cooling system of heavy-duty trucks. This kit is integral to ensuring the engine operates within optimal temperature ranges, thereby contributing to the overall efficiency and longevity of the vehicle ¹.

Purpose and Function

This Cummins part plays a role in the engine cooling system by facilitating the circulation of coolant. This circulation is vital for dissipating heat generated by the engine, preventing overheating which can lead to engine damage. The kit ensures that the water pump functions correctly, maintaining a consistent flow of coolant through the engine ².

Key Features

The Water Pump Repair Kit includes several components, each designed to enhance the functionality of the water pump. These components typically include gaskets, seals, and impellers. Gaskets and seals are crucial for preventing coolant leaks, while the impeller ensures efficient coolant flow. Each part is engineered to work together, providing a comprehensive solution for water pump maintenance.

Benefits of Using the 3803612 Water Pump Repair Kit

Utilizing this part offers several advantages. It contributes to improved engine performance by ensuring the cooling system operates efficiently. This efficiency can extend the engine’s life by preventing overheating-related damage. Additionally, the kit can reduce maintenance costs by providing a comprehensive set of parts needed for water pump repair, minimizing the need for frequent replacements.

Installation Process

Installing the 3803612 requires careful attention to detail. Begin by ensuring the engine is cool and the cooling system is drained. Remove the old water pump components and clean the mating surfaces. Install the new gaskets and seals according to the manufacturer’s instructions, followed by the impeller. Reassemble the water pump and refill the cooling system with the appropriate coolant mixture. It is advisable to follow best practices such as torque specifications for bolts and ensuring all components are properly seated to avoid leaks.

Troubleshooting Common Issues

Water pump failures can manifest in several ways, including coolant leaks, overheating, and unusual noises from the pump. This Cummins part addresses these issues by providing replacement parts that can restore the pump’s functionality. Diagnostic tips include checking for visible leaks, monitoring engine temperature, and listening for abnormal sounds during operation. Solutions often involve replacing worn or damaged components within the kit.

Maintenance Tips

Regular maintenance of the water pump and the use of the 3803612 can prolong their effectiveness. It is recommended to inspect the water pump and its components during routine engine maintenance. Look for signs of wear, leaks, or corrosion. Following a maintenance schedule that includes checking the coolant level and condition, as well as inspecting the water pump for any issues, can help prevent unexpected failures.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality and innovation in the automotive industry. The company’s commitment to excellence is evident in its wide range of products, including the 3803612, which is designed to meet the demanding requirements of heavy-duty applications.

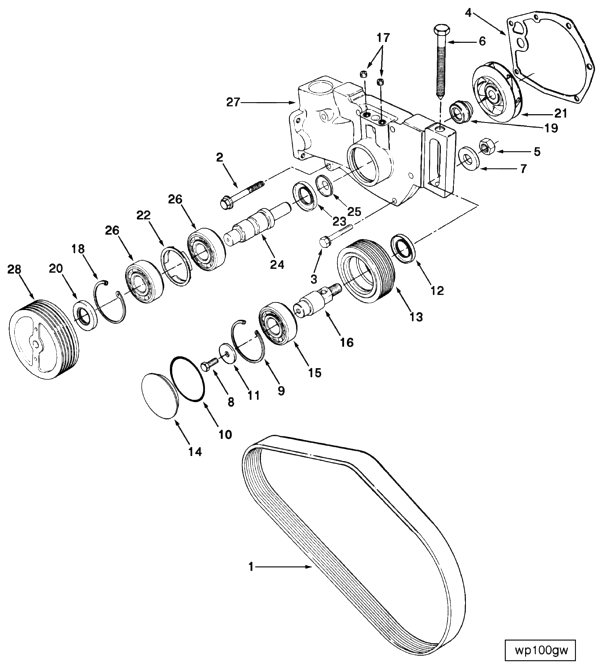

Components of Cummins Water Pump Repair Kit 3803612

Retaining Ring (S16255)

The retaining ring, identified by the part number S16255, is a critical component in the Cummins Water Pump Repair Kit 3803612. It is used to secure various parts within the water pump assembly, ensuring that components remain in place during operation. This ring plays a vital role in maintaining the integrity of the pump’s internal structure, preventing parts from dislodging or moving out of alignment, which could lead to leaks or pump failure.

O Ring Seal (43463A)

The O Ring Seal, with the part number 43463A, is essential for creating a watertight seal within the water pump. Positioned in areas where different components meet, such as between the pump housing and the impeller, the O ring seal prevents coolant from leaking out and air from entering the system. Its flexibility allows it to conform to the surfaces it seals, ensuring a consistent and reliable barrier against fluid leakage.

Connection Gasket (3024960)

The Connection Gasket, identified by part number 3024960, serves as a barrier between the water pump and the engine block or other mating surfaces. This gasket is crucial for preventing coolant leaks at the connection points. It is designed to withstand the pressures and temperatures of the cooling system, ensuring a secure and leak-free seal that maintains the efficiency of the cooling system.

Water Pump Seal (3071085)

The Water Pump Seal, with part number 3071085, is a vital component that prevents coolant from leaking out of the water pump while it is in operation. This seal is typically located around the shaft where the impeller is attached. It must be durable enough to handle the rotational speeds and pressures within the pump, ensuring that coolant remains contained within the system and does not mix with engine oil or escape into the environment.

Water Pump Gasket (5264668)

The Water Pump Gasket, identified by part number 5264668, is used to seal the water pump to the engine block or cylinder head. This gasket is critical for maintaining the integrity of the cooling system by preventing coolant from leaking out of the pump housing. It must be made from materials that can withstand high temperatures and pressures, ensuring a reliable seal that contributes to the overall efficiency and longevity of the water pump.

Conclusion

The Cummins 3803612 Water Pump Repair Kit is a comprehensive solution for maintaining the cooling system of heavy-duty trucks. By ensuring the water pump operates efficiently, this kit contributes to the overall performance and longevity of the engine. Regular maintenance and proper installation of the kit’s components are essential for preventing common issues such as coolant leaks and overheating. Cummins’ commitment to quality and innovation is reflected in the design and functionality of this repair kit, making it a valuable asset for any heavy-duty vehicle maintenance program.
