4003966

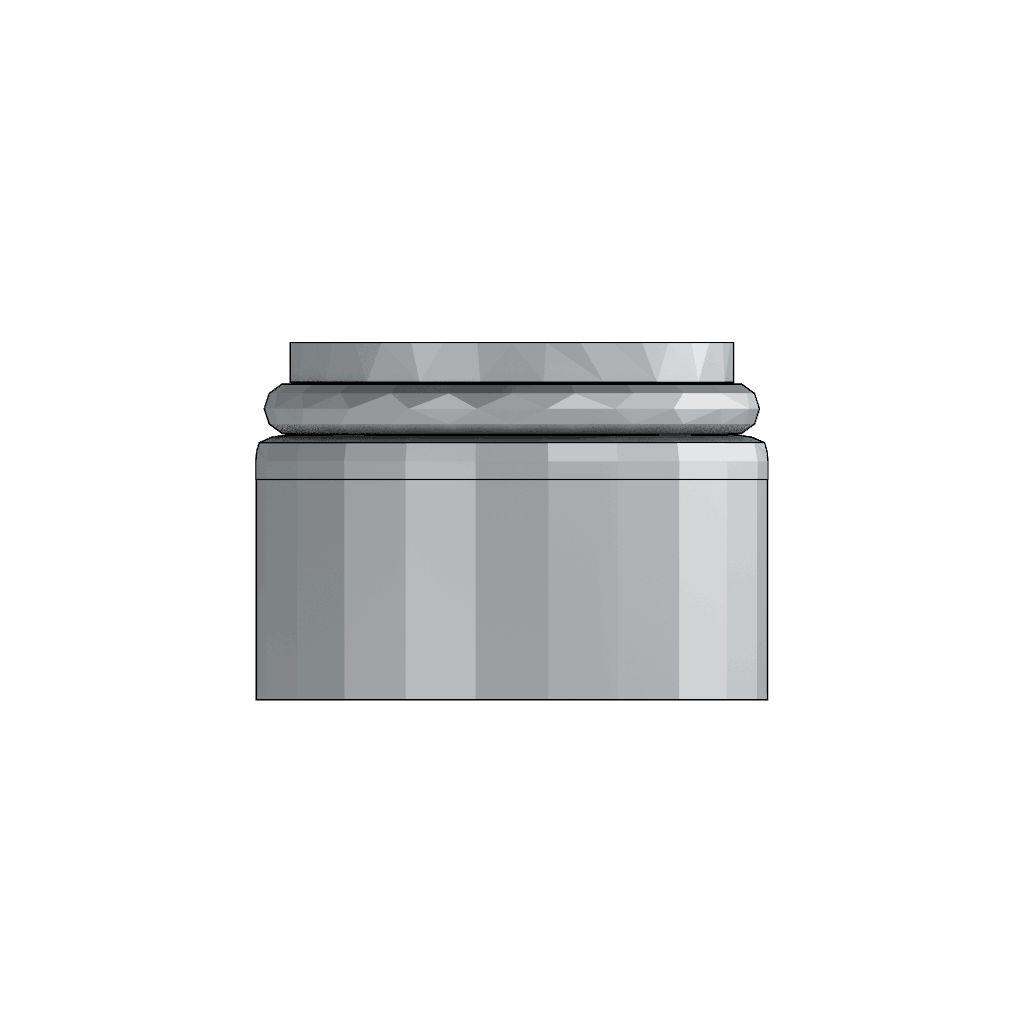

Valve Stem Seal
Cummins®

Introduction

The Valve Stem Seal 4003966, manufactured by Cummins, is a critical component designed to ensure the efficient operation of commercial trucks. This seal is essential for maintaining the integrity of the engine’s valve system by preventing oil leakage into the combustion chamber. Cummins, a renowned name in the engine manufacturing industry, produces this seal as part of its commitment to quality and performance in commercial vehicle applications.

Basic Concepts of Valve Stem Seals

Valve stem seals are integral components in internal combustion engines, designed to contain oil within the valve train. They create a barrier that prevents oil from the lubrication system from entering the combustion chamber via the valve stem. The proper function of these seals is crucial for maintaining engine efficiency and performance, as they help reduce oil consumption and ensure that the combustion process is not contaminated by excess lubrication ¹.

Role of the Valve Stem Seal 4003966 in Truck Operation

In the engine system of a truck, the Valve Stem Seal 4003966 ensures that the valve stem is properly sealed against oil leakage. This seal contributes to the overall performance and efficiency of the vehicle by maintaining the correct oil levels within the valve train and preventing oil from entering the combustion chamber, which could lead to increased emissions and decreased engine performance ².

Key Features of the Valve Stem Seal 4003966

The Valve Stem Seal 4003966 is characterized by its material composition and design elements that are tailored to enhance performance and durability. It is constructed from materials resistant to the high temperatures and pressures found within an engine environment. The design of the seal includes features that allow it to maintain a tight fit around the valve stem, ensuring effective sealing even under dynamic engine conditions.

Benefits of Using the Valve Stem Seal 4003966

Incorporating the Valve Stem Seal 4003966 into truck engines can lead to several benefits. These include improved engine performance due to reduced oil leakage, increased durability of the seal under harsh operating conditions, and enhanced fuel efficiency as a result of the engine operating within optimal parameters. The seal’s design also contributes to lower emissions, aligning with environmental regulations and standards ³.

Troubleshooting and Maintenance

Common issues associated with valve stem seals may include oil leaks or seal wear, which can affect engine performance. Troubleshooting these problems typically involves inspecting the seal for signs of damage or wear and addressing any issues promptly to prevent further engine damage. Maintenance tips for the Valve Stem Seal 4003966 include regular inspection during engine service intervals and replacement as necessary to ensure the longevity and optimal performance of the seal.

About Cummins

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history of innovation and quality, Cummins has established a strong reputation in the commercial truck industry. The company’s product range includes a variety of engine components and systems, all of which are designed with a focus on reliability, performance, and efficiency. Cummins’ commitment to quality is evident in its manufacturing processes and the durability of its products, such as the Valve Stem Seal 4003966.

Valve Stem Seal Compatibility with Cummins Engines

The Valve Stem Seal part number 4003966, manufactured by Cummins, is designed to fit a range of Cummins engines. This seal is crucial for maintaining the integrity of the engine’s valve system by preventing oil from leaking past the valve stems.

ISM Series Engines

The ISM series engines, including the ISM CM570, ISM CM570/870, ISM CM876, ISM11 CM876 SN, and QSM11 CM570, QSM11 CM876, are compatible with the 4003966 Valve Stem Seal. These engines are known for their robust performance and reliability in various applications.

ISX Series Engines

The ISX series engines, such as the ISX12 CM2350 X102, ISX12 G CM2180 EJ, ISX12/ISX11.9 CM2250, and QSX11.9 CM2250 ECF, are also compatible with the 4003966 Valve Stem Seal. These engines are designed for heavy-duty applications and are widely used in the transportation industry.

ISZ Series Engines

The ISZ13 CM2150 Z101 and ISZ13 CM2150 Z102 engines are compatible with the 4003966 Valve Stem Seal. These engines are engineered for high-performance and are often used in demanding environments.

L10 GAS Engine

The L10 GAS engine is compatible with the 4003966 Valve Stem Seal. This engine is designed for use with natural gas and is known for its efficiency and low emissions.

M11 Series Engines

The M11 CELECT PLUS and M11 MECHANICAL engines are compatible with the 4003966 Valve Stem Seal. These engines are designed for medium-duty applications and are known for their reliability and performance.

Z13 Series Engines

The Z13 Z108G engine is compatible with the 4003966 Valve Stem Seal. This engine is designed for use in construction and industrial applications and is known for its durability and power.

Role of Part 4003966 Valve Stem Seal in Engine Systems

The Valve Stem Seal, identified by part number 4003966, is an essential component in maintaining the integrity and efficiency of various engine systems. Its primary function is to ensure a proper seal between the valve stem and the cylinder head, preventing oil leakage into the combustion chamber and maintaining optimal valve operation.

Integration with Engine Components

1. Cylinder Head and Valve Train: The Valve Stem Seal is positioned around the valve stem within the cylinder head. It works in conjunction with the intake and exhaust valves, ensuring that the valves operate smoothly without oil contamination.

2. Cylinder Block and Piston Assembly: By preventing oil from entering the combustion chamber, the Valve Stem Seal indirectly supports the performance of the piston and connecting rod. Clean combustion leads to more efficient power delivery and reduced carbon deposits on the piston and cylinder walls.

3. Camshaft and Valve Operation: The seal ensures that the camshaft-driven valves open and close precisely without interference from oil, which could lead to valve train noise, increased wear, and potential failure.

4. Exhaust and Intake Valve Kits: When integrated with exhaust and intake valve kits, the Valve Stem Seal helps maintain the performance and longevity of these components by ensuring a clean operating environment free from oil contamination.

5. Cylinder Head Kit and Overhaul Kit: During engine overhauls, the Valve Stem Seal is a key component in the cylinder head kit and overhaul kit. It ensures that the refurbished engine maintains sealing integrity, leading to improved performance and reliability.

6. Injectors and Fuel System: By keeping the combustion chamber clean, the Valve Stem Seal supports the efficient operation of injectors and the overall fuel system, contributing to better fuel economy and reduced emissions.

7. Piston Cooling Nozzle: Efficient valve operation supported by the Valve Stem Seal allows the piston cooling nozzle to function optimally, enhancing the overall cooling efficiency of the engine.

8. Lower Engine Gasket Kit: The seal works in harmony with the lower engine gasket kit to ensure that all engine compartments remain properly sealed, preventing oil migration and maintaining engine performance.

9. Oil Manifold: Proper sealing by the Valve Stem Seal ensures that the oil manifold distributes lubrication effectively without contamination from combustion byproducts.

Conclusion

In summary, the Valve Stem Seal (part 4003966) plays a significant role in the seamless operation of various engine components, ensuring efficient and reliable performance across the engine system. Its integration with key engine components highlights its importance in maintaining engine efficiency, performance, and longevity.
