$399.95
$475.94
This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
A Valve Repair Kit with part number 3803767 is an essential component for repairing and maintaining the engine's valves. This kit typically includes all necessary components for repairing a single valve, including springs, retainers, locks, and seals. Valves play a critical role in regulating the flow of air and fuel into the engine cylinders and expelling exhaust gases. Over time, valves can become worn or damaged, resulting in poor engine performance or even complete failure. A Valve Repair Kit allows mechanics to quickly replace worn or damaged components and restore proper valve function, ensuring that the engine runs smoothly and efficiently.
SPECIFICATIONS
Hazard Description
Non-Hazardous (NOI, ICE/Auto)
Package Dimensions
7.7 x 1.3 x 7.7 in
Weight
0.043 lbs

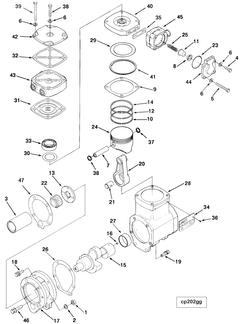

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Rectangular Ring Seal | 1 | 127936 |
| Unloader Valve Cap | 1 | 184240 |
| O Ring Seal | 1 | 3043995 |
| Air Compressor Gasket | 1 | 3058952 |
| Pressure Relief Valve | 1 | 3403479 |
| Compressor Intake Valve | 1 | 3558664 |
| Compressor Exhaust Valve | 1 | 3558665 |
| Valve Disc Retainer | 1 | 3558690 |
| Spring Washer | 2 | 3558691 |
| Connection Gasket | 1 | 3558723 |
| Compressor Intake Valve Retainer | 1 | 3558899 |
| Air Compressor Gasket | 1 | 3559049 |
| Air Compressor Gasket | 1 | 3559133 |
RECOMMENDED PARTS
