$279.95
$333.14
This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
A turbocharger repair kit is a set of replacement parts used to restore the performance of a vehicle's turbocharger. The kit typically includes components such as bearings, seals, gaskets, and bolts that are prone to wear or damage over time. The part number 4027309 corresponds to a specific repair kit designed for use with certain makes and models of trucks. By replacing worn or damaged components with high-quality replacements included in the kit, drivers can improve fuel efficiency, increase horsepower output, and extend the life of their turbocharger.
RELATED PARTS
SPECIFICATIONS
Package Dimensions
25.0 x 20.0 x 2.0 in
Weight
0.383 lb

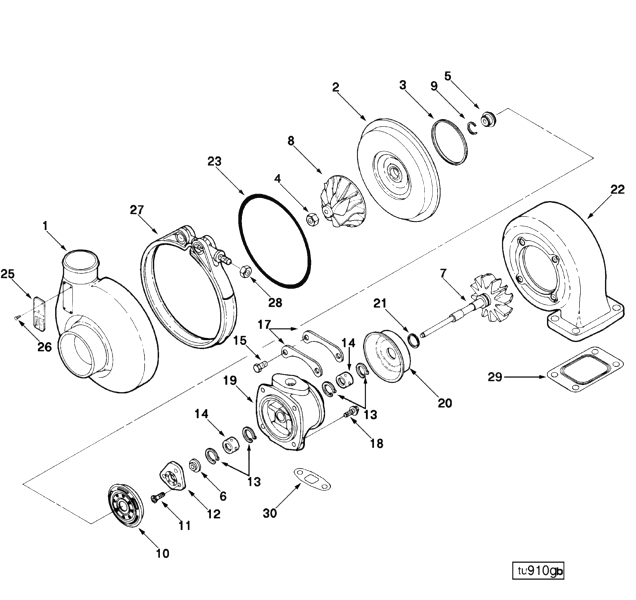

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Clamping Plate | 2 | 2839879 |
| Hexagon Head Set Screw | 4 | 2840781 |
| Lockplate | 2 | 3501102 |
| Rectangular Ring Seal | 1 | 3502449 |
| Turbocharger Bearing | 2 | 3503100 |
| Flat Head Cap Screw | 3 | 3503347 |
| Turbocharger Gasket | 1 | 3519807 |
| O Ring Seal | 1 | 3523958 |
| Turbocharger Thrust Bearing | 1 | 3525739 |
| Hexagon Flange Head Cap Screw | 4 | 3527184 |
| Retaining Ring | 1 | 3528221 |
| Regular Hexagon Nut | 1 | 3529372 |
| Hexagon Head Set Screw | 8 | 3592892 |
| Turbocharger Gasket | 1 | 3709861 |
| Turbocharger Gasket | 1 | 3755843 |
| Split Ring Seal | 1 | 3756754 |
| Split Ring Seal | 1 | 3758848 |
| Retaining Ring | 4 | 3762259 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
