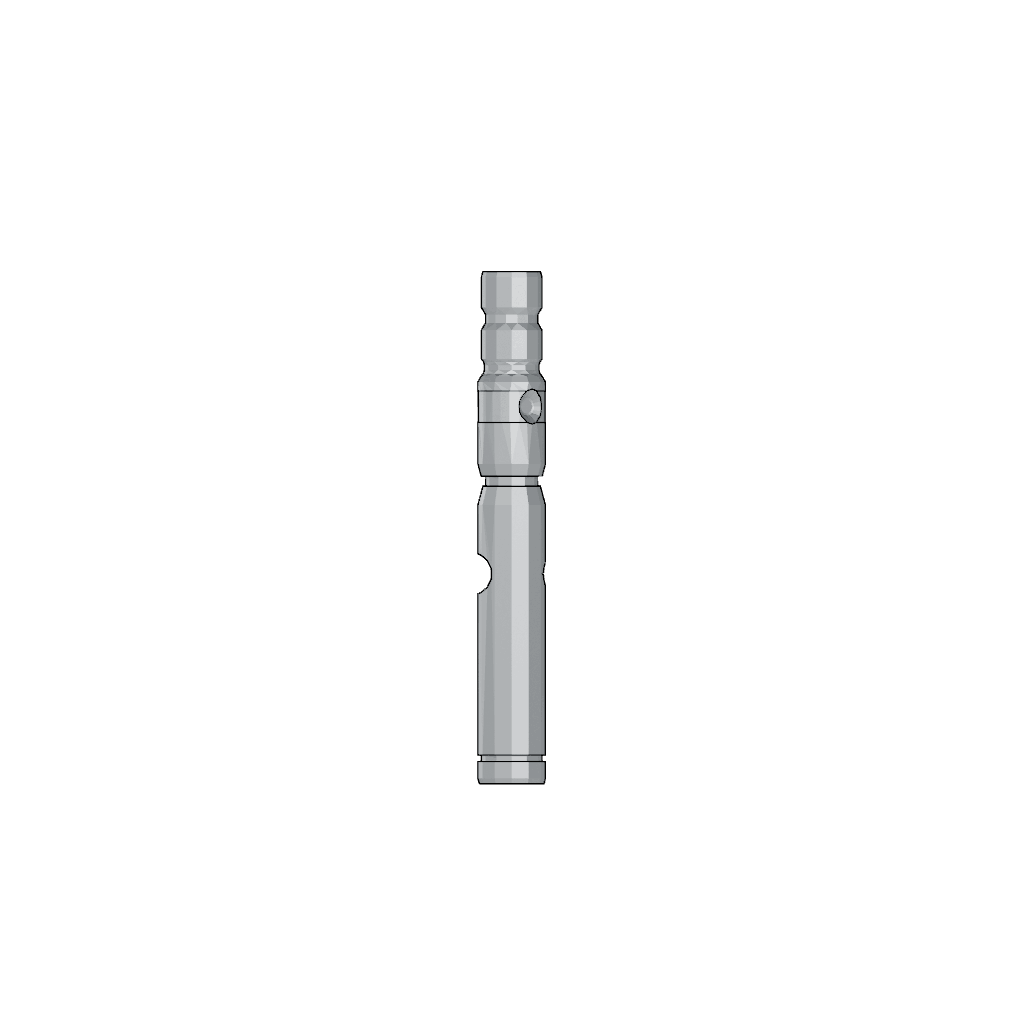

Throttle Shaft
Cummins®

Introduction

The Cummins 3046683 Throttle Shaft is a critical component in commercial trucks, designed to regulate airflow within the engine. This regulation directly impacts engine performance and efficiency. Understanding its function and significance is essential for maintaining optimal truck operation.

Basic Concepts of Throttle Shafts

A throttle shaft is a mechanical component that controls the airflow into the engine’s combustion chamber by adjusting the throttle plate’s position. This adjustment regulates the air and fuel mixture entering the engine, which is vital for managing engine speed and power output, ensuring the engine operates within its designed parameters ¹.

Purpose of the 3046683 Throttle Shaft

This Cummins part specifically adjusts airflow in commercial trucks by interacting with the throttle mechanism. This adjustment is essential for maintaining desired engine performance under varying load conditions. It works with other engine components, such as the fuel injection system, to ensure efficient power delivery ².

Key Features

The 3046683 is characterized by its robust design and high-quality materials, contributing to its durability and reliability. It features precision-machined surfaces for smooth operation and accurate throttle control. Additionally, it may have coatings or treatments that enhance wear and corrosion resistance, extending its service life.

Benefits of Using the 3046683 Throttle Shaft

Utilizing this part offers several advantages. It ensures precise airflow control, leading to improved engine performance, better fuel efficiency, and reduced emissions. Its reliable design enhances engine reliability, reducing the likelihood of unexpected failures and contributing to lower maintenance costs over time.

Installation Process

Installing the Throttle Shaft requires careful attention to detail. The process involves removing the old throttle shaft, cleaning the throttle body, and installing the new shaft. Tools required may include torque wrenches and screwdrivers. It is important to follow the manufacturer’s instructions closely to avoid damage to the component or the engine.

Common Issues and Troubleshooting

Throttle shafts can encounter issues such as sticking or uneven operation, which may be caused by dirt accumulation, wear, or improper installation. Troubleshooting steps include cleaning the throttle body and shaft, checking for proper alignment, and ensuring that all connections are secure. In some cases, replacement may be necessary if wear is significant.

Maintenance Tips

Regular maintenance of the 3046683 is key to ensuring its longevity and optimal performance. This includes periodic inspection for signs of wear or damage, cleaning to remove any dirt or debris, and ensuring that all moving parts operate smoothly. Adhering to recommended maintenance schedules can help prevent issues and extend the component’s service life.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emission solutions. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the commercial truck industry. Its product range is designed to meet the demanding requirements of commercial applications, ensuring high performance and durability.

Role of 3046683 Throttle Shaft in Engine Systems

The Throttle Shaft is an integral component within the engine’s fuel and air management system. It operates in conjunction with several key components to ensure optimal engine performance.

Interaction with the Throttle Body

The Throttle Shaft is pivotal in the operation of the throttle body. As the shaft rotates, it adjusts the position of the throttle plate, which controls the amount of air entering the engine. This direct mechanical linkage ensures precise airflow regulation, which is essential for maintaining the correct air-fuel mixture.

Connection to the Accelerator Pedal

Through a series of linkages or cables, the Throttle Shaft is connected to the accelerator pedal. When the driver presses the pedal, the shaft rotates, opening the throttle plate. This action increases the airflow into the engine, allowing for more fuel to be burned and thus increasing engine power.

Integration with the Throttle Position Sensor (TPS)

The Throttle Shaft also interacts with the Throttle Position Sensor. As the shaft rotates, the TPS detects the position of the throttle plate and sends this information to the engine control unit (ECU). The ECU uses this data to adjust fuel delivery and ignition timing, ensuring efficient and smooth engine operation.

Role in Idle Control

At idle, the Throttle Shaft works with the idle air control valve (IACV) to maintain a stable engine speed. The shaft’s position allows for fine adjustments in airflow, which the IACV uses to keep the engine running smoothly without stalling.

Contribution to Throttle Response

The responsiveness of the engine to accelerator input is significantly influenced by the Throttle Shaft. A well-maintained shaft ensures smooth and immediate throttle response, which is vital for both performance and drivability.

Coordination with Electronic Throttle Control (ETC) Systems

In modern engines equipped with Electronic Throttle Control, the Throttle Shaft is part of a closed-loop system. The ECU commands the throttle actuator to move the shaft to the desired position, based on driver input and various sensor readings. This setup allows for more precise control over engine performance and fuel efficiency.

Support for Cruise Control

When cruise control is engaged, the Throttle Shaft plays a role in maintaining a consistent vehicle speed. The system adjusts the shaft’s position to keep the engine at the set RPM, ensuring a steady cruising experience.

Conclusion

In summary, the 3046683 Throttle Shaft is a key player in the intricate dance of components that make up an engine’s air and fuel management system. Its interactions with the throttle body, accelerator pedal, TPS, IACV, and ETC system highlight its importance in achieving optimal engine performance and efficiency.
