5270035

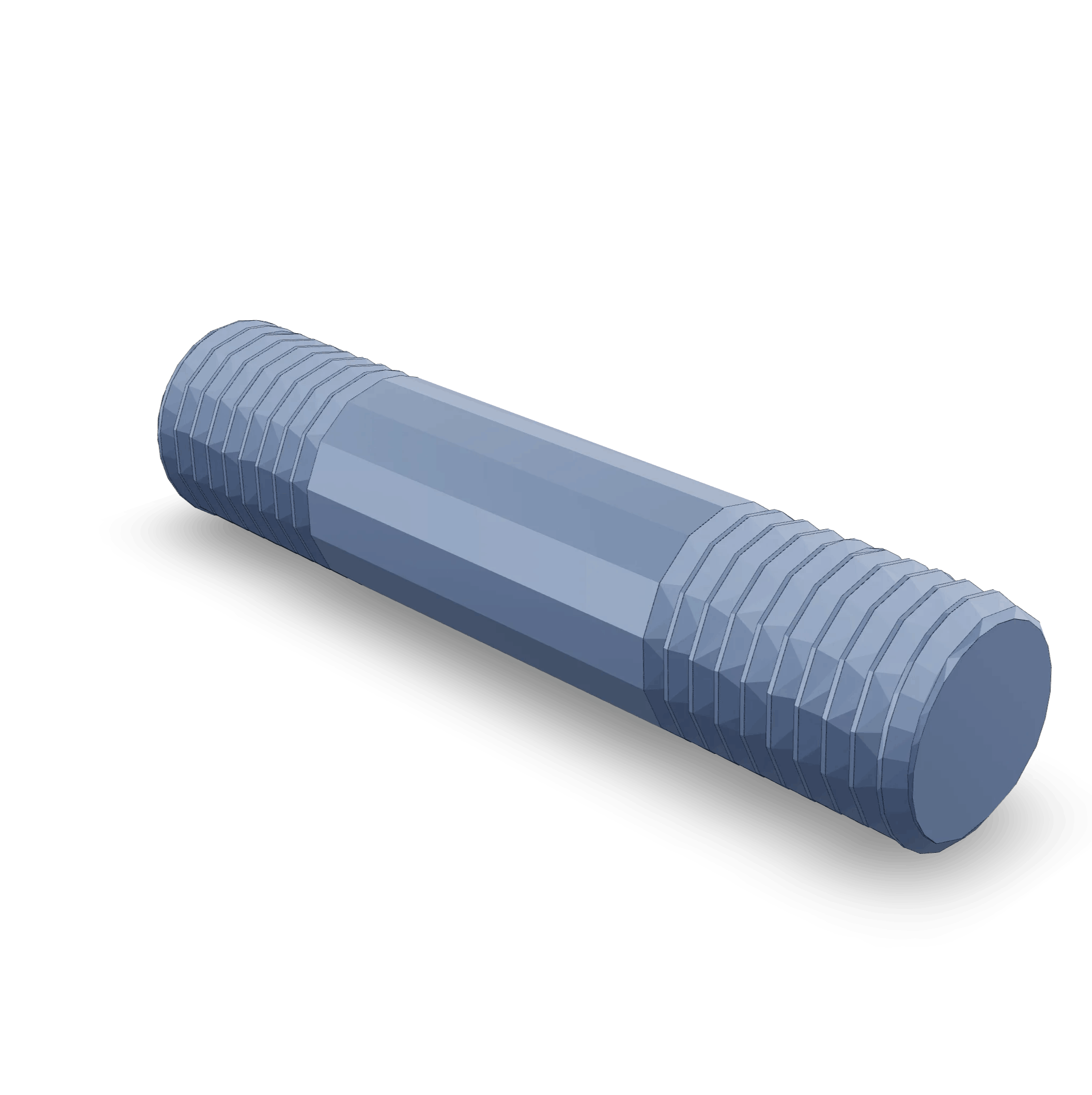

Double End Plain Stud
Cummins®

The Cummins 5270035 Double Ended Plain Stud is a specialized fastener designed for use in heavy-duty truck components. Its purpose is to provide a secure and reliable connection in various mechanical assemblies. This stud is significant due to its robust construction and precise engineering, which contribute to the overall performance and durability of heavy-duty trucks ¹.

Basic Concepts of Double Ended Plain Studs

A Double Ended Plain Stud is a type of fastener that features threads on both ends, allowing it to be used in applications where a traditional bolt and nut combination may not be feasible. These studs are commonly employed in mechanical systems to join components securely. They function by being inserted through holes in the parts to be joined and then secured with nuts on each end, providing a strong and stable connection ².

Purpose of the Cummins 5270035 Double Ended Plain Stud

The Cummins 5270035 Double Ended Plain Stud plays a role in the operation of a truck by ensuring secure connections in critical components. It is specifically designed to support systems that require high strength and durability, such as engine mounts, transmission housings, and other heavy-duty applications. Its precise design and material composition make it suitable for withstanding significant stress and vibration ³.

Key Features

The primary characteristics of the Cummins 5270035 Double Ended Plain Stud include its material composition, which is typically high-grade steel, ensuring durability and resistance to wear. The threading on both ends is designed to provide a tight and secure fit, while the overall design specifications ensure compatibility with various truck components. These features contribute to the stud’s functionality and reliability in demanding applications ⁴.

Benefits

Using the Cummins 5270035 Double Ended Plain Stud offers several advantages. Its durable construction ensures long-lasting performance, while its reliable design enhances the overall stability of the connected components. Additionally, the stud’s high-quality material and precise engineering contribute to improved performance and efficiency in truck operations ¹.

Installation Process

Proper installation of the Cummins 5270035 Double Ended Plain Stud involves several steps to ensure optimal performance and longevity. Begin by aligning the stud with the designated holes in the components to be joined. Insert the stud through the holes and secure it with nuts on each end, tightening them to the recommended torque specifications. This process ensures a strong and stable connection that can withstand the rigors of heavy-duty truck operation ².

Common Applications

The Cummins 5270035 Double Ended Plain Stud is utilized in various scenarios and components within heavy-duty trucks. Typical applications include engine mounts, transmission housings, and other critical assemblies where secure and durable connections are required. Its versatility and importance in these applications highlight the stud’s role in maintaining the integrity and performance of the truck’s mechanical systems ³.

Troubleshooting and Maintenance

To identify potential issues with the Cummins 5270035 Double Ended Plain Stud, regularly inspect the stud and surrounding components for signs of wear, corrosion, or looseness. Maintenance practices such as cleaning and lubricating the stud can help prolong its lifespan. If replacement or repair is necessary, follow the manufacturer’s guidelines to ensure proper installation and functionality ⁴.

Compatibility

The Cummins Double Ended Plain Stud part number 5270035 is a versatile component that fits into various Cummins engine models. This part is designed to provide robust support and stability in engine assemblies, ensuring reliable performance and longevity.

B6.7 CM2670 B153B

The B6.7 CM2670 B153B engine benefits from the Double Ended Plain Stud 5270035, which is integral to its structural integrity. This part is used in critical areas where dual-ended support is necessary to maintain alignment and reduce wear.

F3.8 CM2620 F137B and F4.5 CM2620 F139B

Both the F3.8 CM2620 F137B and F4.5 CM2620 F139B engines utilize the Double Ended Plain Stud 5270035. This part is essential in these models for its ability to withstand high loads and stresses, ensuring the engine’s components remain securely fastened and properly aligned.

F4.5 CM2620 F141C

The F4.5 CM2620 F141C engine also incorporates the Double Ended Plain Stud 5270035. This component is crucial in maintaining the engine’s structural integrity, particularly in areas where dual-ended support is required to prevent misalignment and reduce wear.

ISD4.5 CM2220 D108

The Double Ended Plain Stud 5270035 is a key component in the ISD4.5 CM2220 D108 engine. Its design allows for effective load distribution and support, ensuring the engine operates smoothly and efficiently.

ISF3.8 CM2220 AN and ISF4.5 CM2220 F123

The ISF3.8 CM2220 AN and ISF4.5 CM2220 F123 engines both rely on the Double Ended Plain Stud 5270035. This part is essential for maintaining the alignment and stability of various engine components, contributing to the overall reliability and performance of these engines.

Component Usage

The Part 5270035 Double Ended Plain Stud is integral to the secure assembly and operation of various engine components. Its role is particularly significant in the following areas:

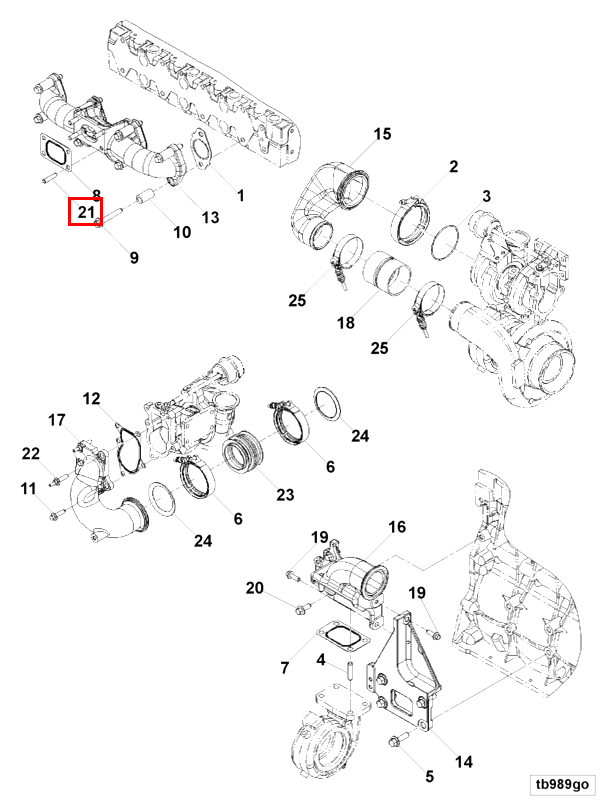

Turbocharger Arrangement

In the turbocharger arrangement, the Double Ended Plain Stud ensures a robust connection between the turbocharger and the engine block. This secure fastening is essential for maintaining the turbocharger’s alignment and operational integrity, which is vital for efficient air compression and overall engine performance.

Turbocharger Connection

When connecting the turbocharger to other components, such as the exhaust manifold or the compressor housing, the Double Ended Plain Stud provides a reliable and durable link. This connection is crucial for withstanding the high temperatures and pressures generated during engine operation, ensuring the turbocharger functions correctly without risk of detachment or failure.

Air Intake System

Within the air intake system, the Double Ended Plain Stud is used to secure components such as the air filter housing or intercooler to the engine block or other structural elements. This ensures that the air intake system remains intact under varying engine loads and environmental conditions, contributing to consistent airflow and engine performance.

General Engine Arrangement

Across the engine arrangement, the Double Ended Plain Stud plays a key role in maintaining the structural integrity of various components. Whether securing manifolds, brackets, or other engine parts, it provides the necessary strength and stability to ensure that all elements work in harmony, supporting the engine’s overall efficiency and reliability.

Conclusion

The Cummins 5270035 Double Ended Plain Stud is a critical component in heavy-duty truck applications, providing secure and durable connections in various engine components. Its robust construction, precise engineering, and compatibility with multiple Cummins engine models make it an essential part for maintaining the performance and reliability of heavy-duty trucks.
