3976947

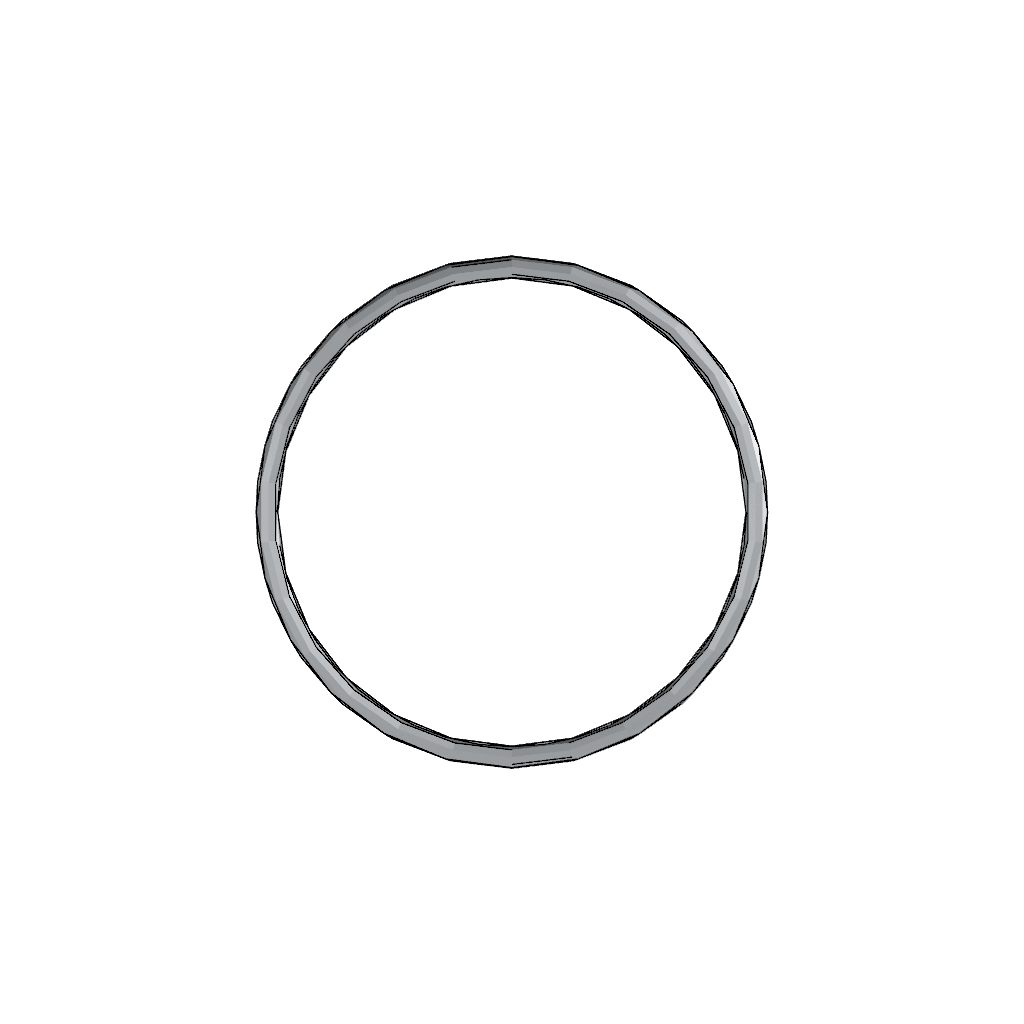

O Ring Seal
Cummins®

The Cummins 3976947 O-Ring Seal is a component designed to ensure the integrity of seals within heavy-duty truck engines. Its role is significant in maintaining the operational efficiency and reliability of these vehicles. By preventing leaks and ensuring proper system function, this O-Ring Seal contributes to the overall performance and longevity of heavy-duty trucks.

Basic Concepts of O-Ring Seals

An O-Ring Seal is a toroidal (ring-shaped) elastomer with a circular cross-section, used to create seals in various mechanical systems. It operates by being compressed between two surfaces, forming a barrier that prevents the passage of fluids or gases. O-Ring Seals are widely utilized due to their simplicity, effectiveness, and versatility in sealing applications ¹.

Purpose of the 3976947 O-Ring Seal in Truck Operation

The 3976947 O-Ring Seal plays a specific role in the operation of heavy-duty trucks by ensuring the integrity of seals in critical engine components. It is applied in areas where fluid or gas containment is necessary to maintain engine performance. This includes sealing connections in fuel systems, coolant passages, and other areas where leaks could lead to decreased efficiency or operational failures ².

Key Features of the 3976947 O-Ring Seal

The design and material characteristics of the 3976947 O-Ring Seal contribute to its effectiveness in Cummins engines. Crafted from durable materials, it exhibits resistance to a range of chemicals and temperatures encountered in heavy-duty truck operations. Its precise fit within Cummins engines ensures compatibility and optimal sealing performance, enhancing the engine’s reliability and efficiency ³.

Benefits of Using the 3976947 O-Ring Seal

Utilizing the 3976947 O-Ring Seal offers several advantages. It contributes to improved engine performance by maintaining proper seals, which prevents leaks that could otherwise lead to inefficiencies. Additionally, its durability reduces the need for frequent replacements, lowering maintenance requirements. The seal’s ability to withstand harsh operating conditions enhances the reliability of heavy-duty trucks, ensuring consistent performance over time.

Installation and Maintenance Guidelines

Proper installation of the 3976947 O-Ring Seal involves preparing the sealing surfaces to ensure a clean and smooth contact area. This preparation is crucial for the seal to function effectively. Torque specifications should be followed during installation to avoid over-tightening, which could damage the seal, or under-tightening, which could lead to leaks. Regular maintenance, including inspection for wear or damage, ensures the longevity and optimal performance of the seal.

Troubleshooting Common Issues

Common problems associated with O-Ring Seals, such as leaks or failures, can often be traced back to installation errors or environmental factors. Troubleshooting these issues involves checking the seal for proper fit and condition, ensuring the mating surfaces are clean and undamaged, and verifying that installation torque specifications were correctly applied. Addressing these factors can help diagnose and resolve sealing issues effectively.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emission solutions. With a strong reputation in the heavy-duty truck industry, Cummins is known for its commitment to quality, innovation, and customer satisfaction. The company’s extensive product range and technological advancements contribute to its leadership position in the market, providing reliable and efficient power solutions for various applications.

O-Ring Seal 3976947 Compatibility with Cummins Engines

The O-Ring Seal part number 3976947, manufactured by Cummins, is a critical component designed to ensure a secure seal in various engine applications. This seal is engineered to fit seamlessly within the specified engine models, providing essential sealing properties to prevent leaks and maintain system integrity.

C GAS PLUS CM556 and L GAS PLUS CM556

The O-Ring Seal 3976947 is compatible with both the C GAS PLUS CM556 and L GAS PLUS CM556 engines. These engines are part of Cummins’ lineup, known for their reliability and performance in various applications. The seal fits into specific areas where it is crucial to maintain a tight seal, ensuring that the engine operates efficiently and safely.

L8.9G CMOH2.0 L125B

The O-Ring Seal 3976947 also fits the L8.9G CMOH2.0 L125B engine. This engine is another robust model in Cummins’ portfolio, designed for heavy-duty applications. The seal is integral to the engine’s sealing system, providing a reliable barrier against fluid and gas leaks, which is essential for the engine’s longevity and performance.

Role of Part 3976947 O-Ring Seal in Engine Systems

The O-Ring Seal, identified by part number 3976947, is an essential component in ensuring the integrity and efficiency of various engine systems. Its primary function is to create a reliable seal between mating parts, preventing leaks and ensuring optimal performance.

Air Fuel Mixer

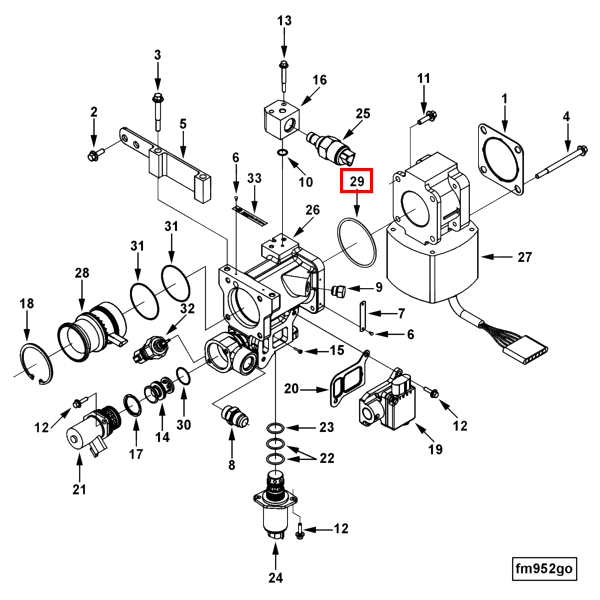

In the Air Fuel Mixer, the O-Ring Seal is positioned to seal the interface between the mixer body and its cover. This seal is vital for maintaining the precise mixture of air and fuel, which is necessary for efficient combustion. Without a proper seal, air or fuel leaks could occur, leading to inefficient engine performance and potential safety hazards.

Fuel Control Module

Within the Fuel Control Module, the O-Ring Seal is used to seal connections between the module housing and its internal components. This ensures that fuel is delivered accurately and consistently to the engine. A compromised seal in this area could result in fuel leaks or inconsistent fuel delivery, affecting engine performance and efficiency.

Upper Engine Gasket Kit

In the Upper Engine Gasket Kit, the O-Ring Seal is often utilized to seal critical connections such as those between the intake manifold and the cylinder head. This seal is important for maintaining the integrity of the combustion chamber, ensuring that air and fuel are properly contained during the combustion process. A failed seal here could lead to performance issues and potential engine damage.

Conclusion

Overall, the O-Ring Seal (part 3976947) plays a significant role in maintaining the efficiency and reliability of these engine components by ensuring that seals are intact and leaks are prevented. Its compatibility with various Cummins engines, including the C GAS PLUS CM556, L GAS PLUS CM556, and L8.9G CMOH2.0 L125B, underscores its importance in the heavy-duty truck industry. Proper installation, maintenance, and troubleshooting of this part are essential for the optimal performance and longevity of heavy-duty trucks.
