3973553
Radiator
Cummins®

Introduction

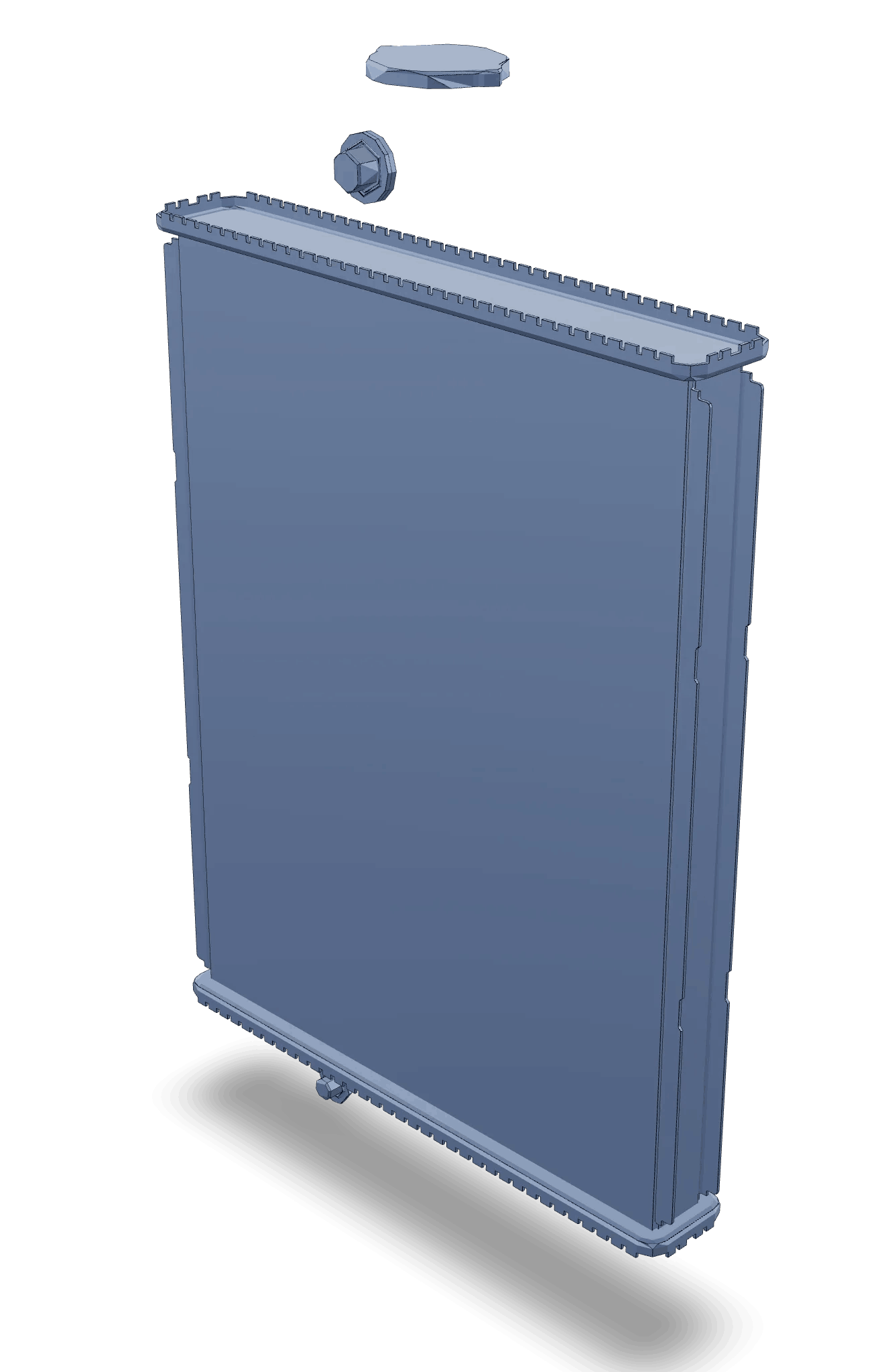

The Cummins 3973553 Radiator is a component designed for use in commercial trucks. It plays a role in the engine cooling system by maintaining optimal engine temperature and performance. Understanding its function and importance can contribute to better maintenance practices and overall truck efficiency.

Basic Concepts of Radiators

A radiator is a heat exchanger used to transfer thermal energy from one medium to another for the purpose of cooling and heating. In the context of an engine cooling system, the radiator’s role is to dissipate heat generated by the engine. It does this by circulating coolant through a series of fins and tubes, where the heat is transferred to the air passing through, thus cooling the coolant before it returns to the engine ¹.

Purpose and Role of the 3973553 Radiator

This Cummins part is specifically engineered to maintain the engine at an optimal operating temperature. This is achieved through the circulation of coolant, which absorbs heat from the engine and releases it as it passes through the radiator. By keeping the engine within its ideal temperature range, the radiator contributes to the engine’s efficiency, performance, and longevity ².

Key Features

The 3973553 Radiator is characterized by its robust design and the use of high-quality materials. Its construction includes a combination of aluminum and copper, which offers a balance of lightweight and efficient heat transfer properties. The radiator features a large core area and dense fin spacing, which enhances its heat dissipation capabilities. Additionally, it is designed with durability in mind, featuring corrosion-resistant coatings and a sturdy construction to withstand the rigors of commercial truck operation ³.

Benefits

The use of the 3973553 Radiator in commercial trucks offers several benefits. It contributes to improved engine efficiency by ensuring the engine operates within its optimal temperature range. This can lead to better fuel economy and reduced emissions. The radiator’s durable construction and efficient design also contribute to its longevity and reliability, even under demanding operating conditions ⁴.

Troubleshooting and Maintenance

Common issues with radiators can include leaks, clogging, or reduced efficiency due to corrosion or debris buildup. Regular maintenance, such as flushing the cooling system and inspecting for leaks, can help prevent these issues. If a problem is detected, it is important to address it promptly to avoid potential engine damage. Troubleshooting steps may include checking the coolant level, inspecting hoses and connections for leaks, and ensuring the radiator is free from obstructions.

Installation Considerations

Proper installation of the 3973553 Radiator is important to ensure its effectiveness and compatibility with the truck’s engine system. Installation should follow manufacturer guidelines to ensure proper fitment and function. This includes securing the radiator in place, ensuring all connections are tight and leak-free, and verifying that the cooling system is properly bled to remove any air pockets.

Performance in Various Conditions

The 3973553 Radiator is designed to perform effectively under a range of operating conditions. Its efficient heat exchange capabilities allow it to maintain engine temperature even in extreme temperatures or during heavy-duty usage. The radiator’s durable construction also ensures it can withstand the physical demands of commercial truck operation, contributing to its reliable performance over time.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history of innovation and a commitment to quality, Cummins has established a reputation for producing reliable and high-performance automotive components. The company’s focus on research and development ensures that its products, including the 3973553 Radiator, meet the evolving needs of the commercial trucking industry.

Compatibility with Cummins Engines

The Radiator part 3973553, manufactured by Cummins, is designed to fit seamlessly with a range of engines, including the A1400, A1700, A2000, and A2300. This radiator is engineered to provide optimal cooling efficiency, ensuring that these engines operate within their ideal temperature range.

For the A1400 and A1700 engines, the radiator’s design allows for effective heat dissipation, maintaining engine performance and longevity. Similarly, the A2000 and A2300 engines benefit from this radiator’s robust construction, which is tailored to handle the increased thermal demands of these higher-capacity engines.

The compatibility of the radiator with these engines is achieved through precise engineering and adherence to stringent quality standards. This ensures that the radiator not only fits physically but also integrates smoothly with the engine’s cooling system, enhancing overall efficiency and reliability.

Role of Part 3973553 Radiator in Engine Systems

The radiator, identified by part number 3973553, is integral to maintaining the optimal operating temperature of an engine. It works in conjunction with several key components to ensure efficient heat dissipation and engine performance.

Interaction with the Cooling System

1. Thermostat: The thermostat regulates the flow of coolant between the engine and the radiator. When the engine reaches operating temperature, the thermostat opens, allowing coolant to flow into the radiator where it is cooled before returning to the engine.
2. Water Pump: Driven by a belt connected to the engine, the water pump circulates coolant through the engine block, absorbing heat, and then directs it to the radiator for cooling.
3. Coolant Hoses: These hoses connect the radiator to the engine and thermostat housing, facilitating the continuous flow of coolant. The radiator’s design ensures that coolant is evenly distributed across its surface for maximum heat exchange.

Heat Exchange Process

• Core Design: The radiator’s core consists of a network of fine tubes and fins. As coolant passes through the tubes, ambient air flows over the fins, dissipating heat away from the coolant.
• Fan System: In many engine systems, an electric or mechanically driven fan is positioned behind the radiator. This fan enhances airflow across the radiator’s fins, especially at low speeds or when the vehicle is stationary, improving heat exchange efficiency.

Integration with Other Systems

• Condenser: In vehicles with air conditioning, the condenser is often positioned in front of the radiator. The radiator helps cool the refrigerant in the condenser, ensuring the air conditioning system operates effectively.
• Overflow Tank: Connected to the radiator, the overflow tank accommodates the expansion of coolant as it heats up, preventing overflow and maintaining system pressure.

Performance and Maintenance

Regular maintenance of the radiator, including checking for leaks, ensuring proper coolant levels, and cleaning fins and tubes, is essential for sustained engine performance. The radiator’s efficient operation directly influences the engine’s longevity and reliability.

Conclusion

The Cummins 3973553 Radiator is a critical component in the engine cooling system of commercial trucks. Its design, featuring a combination of aluminum and copper, ensures efficient heat dissipation and durability. Regular maintenance and proper installation are essential for its optimal performance, contributing to the engine’s efficiency, longevity, and reliability.
