3092407
Rivet
Cummins®

The Cummins Part #3092407 Rivet is a specialized component designed for use in commercial trucks and various Cummins engines. Its primary function is to provide a secure and durable fastening solution in various engine and truck components. This overview will explore the purpose and application of the 3092407 Rivet, along with its role in the broader context of engine and truck operation and maintenance.

Basic Concepts of Rivets

A rivet is a mechanical fastener consisting of a cylindrical body with a head on one end. It is inserted into holes drilled through materials to be joined and then deformed on the opposite end to create a second head, effectively clamping the materials together. Rivets are widely used in the automotive industry due to their ability to provide strong, permanent joints. The mechanical principle behind riveting involves the deformation of the rivet, which creates compressive forces that hold the joined materials in place. This method offers several advantages over other fastening techniques, such as screws or welds, including resistance to vibration, simplicity of installation, and the ability to join dissimilar materials ¹.

Purpose of the 3092407 Rivet in Truck and Engine Operation

The 3092407 Rivet plays a specific role in the operation and maintenance of commercial trucks and Cummins engines by securing critical components that are subject to significant stress and vibration. It contributes to the structural integrity of truck and engine parts by providing a robust and permanent fastening solution. This rivet is often used in applications where high strength and durability are required, ensuring that components remain securely attached under demanding conditions.

Key Features of the 3092407 Rivet

The 3092407 Rivet is characterized by several distinctive features that enhance its functionality and durability in heavy-duty applications. It is composed of high-strength materials, typically steel or aluminum alloys, which provide excellent resistance to corrosion and mechanical stress. The design of the rivet includes a cylindrical body and a formed head that ensures a tight and secure fit. Additionally, the rivet may feature unique attributes such as a serrated shank or specialized coatings to further improve its performance in challenging environments ².

Benefits of Using the 3092407 Rivet

Incorporating the 3092407 Rivet in truck and engine manufacturing and repair offers several advantages. These include improved strength and reliability, as the rivet provides a permanent and robust joint. The ease of installation is another benefit, as riveting requires minimal preparation and can be performed quickly using standard tools. Compared to alternative fastening solutions, such as screws or welds, rivets offer superior resistance to vibration and are less likely to loosen over time ³.

Installation and Usage Guidelines

Proper installation of the 3092407 Rivet is critical to ensure optimal performance and longevity. The process involves several steps: first, drill holes through the materials to be joined, ensuring they are aligned and of the correct size. Next, insert the rivet into the hole and use a riveting tool to deform the opposite end, creating a second head. It is important to follow best practices, such as using the correct amount of force to avoid over or under-driving the rivet, and ensuring that the joined materials are held firmly in place during the riveting process.

Troubleshooting and Maintenance

Common issues associated with rivets include improper installation, which can lead to weak joints, and corrosion, particularly in exposed or moist environments. To troubleshoot these problems, inspect the rivets regularly for signs of damage or loosening. If issues are detected, the affected rivets should be removed and replaced with new ones. Maintenance tips to prolong the lifespan of the 3092407 Rivet include applying protective coatings to prevent corrosion and ensuring that all rivets are installed correctly.

Safety Considerations

When working with rivets, it is important to observe several safety guidelines and precautions. This includes wearing appropriate personal protective equipment (PPE) such as gloves and safety glasses to protect against flying debris and sharp edges. Additionally, use the correct tools and follow manufacturer recommendations to ensure safe and effective riveting. Proper handling practices, such as securing workpieces and maintaining a clean work area, are also important to prevent accidents.

Cummins Corporation Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins is committed to innovation and quality in the automotive and engine manufacturing industry. The company offers a wide range of products and services designed to meet the needs of commercial vehicle operators, providing reliable and high-performance solutions for a variety of applications.

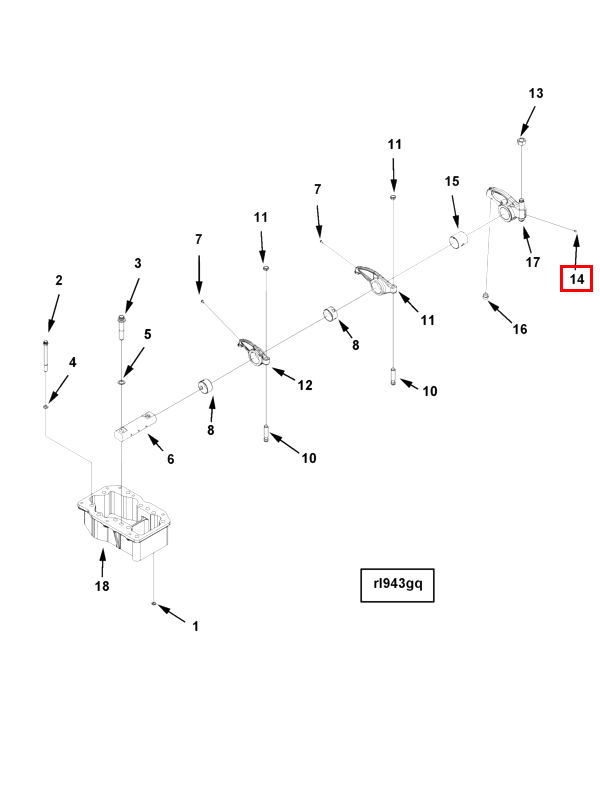

Role of Part 3092407 Rivet in Engine Systems

The 3092407 Rivet is instrumental in securing various components within engine systems, ensuring their stability and proper function. In the context of the provided components, this rivet plays a significant role in the assembly and operation of the following parts:

• Lever: The 3092407 Rivet is used to fasten the lever, providing a secure attachment point that allows for smooth and reliable operation. This is essential for the lever’s function in transmitting motion and force within the engine system.

• Rocker: Within the rocker mechanism, the rivet ensures that the rocker remains firmly in place. This is important for maintaining the precise movement required for the rocker to interact effectively with other engine components.

• Rocker (Top Level Assembly) Lever: In the top-level assembly of the rocker, the 3092407 Rivet helps in binding the lever to the assembly, ensuring that the entire unit operates as a cohesive system. This contributes to the consistent performance of the rocker in managing valve operation.

• Rocker Lever: The rivet is employed to secure the rocker lever, guaranteeing that it can withstand the stresses and movements inherent in its role. This attachment is vital for the lever’s ability to modulate valve timing and lift.

• Rocker Lever Shaft: By riveting the rocker lever to the shaft, the 3092407 Rivet ensures that the shaft can transmit motion efficiently without undue wear or misalignment. This is key to the shaft’s role in coordinating the movement of the rocker lever.

• Rocker Top Level Assembly Lever: Finally, in the top-level assembly of the rocker, the rivet plays a part in securing the lever, which is critical for the overall integrity and function of the assembly. This ensures that the lever can perform its role in the valve train system with precision and reliability.

Conclusion

The 3092407 Rivet is a critical component in the assembly and maintenance of several Cummins engines and commercial trucks. Its role in securing various components ensures the structural integrity and reliable operation of these systems. Proper installation, regular maintenance, and adherence to safety guidelines are essential to maximize the performance and longevity of this Cummins part.
