Magnetic Pickup
Cummins®

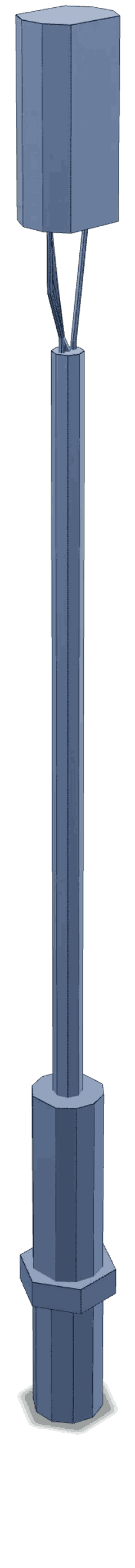

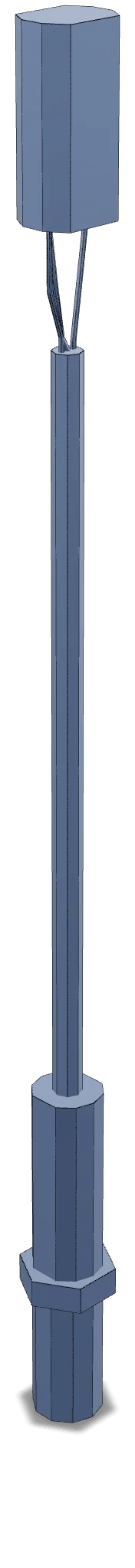

The Cummins 3034572 Magnetic Pickup is a component designed for use in heavy-duty trucks. It serves a specific function within the engine management system, contributing to the overall performance and reliability of the vehicle. Understanding its role and operation is important for maintaining and optimizing truck performance.

Basic Concepts of Magnetic Pickups

A magnetic pickup is a sensor that detects changes in a magnetic field. It operates by generating an electrical signal in response to variations in the magnetic field caused by the movement of ferrous metal components, such as gears or shafts. This technology is widely used in automotive systems for applications like engine speed sensing, position detection, and timing ¹.

Purpose of the Cummins 3034572 Magnetic Pickup

The Cummins 3034572 Magnetic Pickup plays a role in the engine management system by monitoring the rotational speed and position of the engine’s components. It provides data to the engine control unit (ECU), which uses this information to manage fuel injection, ignition timing, and other parameters. This ensures efficient and reliable engine operation ².

Key Features

The Cummins 3034572 Magnetic Pickup is characterized by its robust design and the use of high-quality materials. It incorporates advanced technology to ensure accurate and reliable signal transmission. Its construction is tailored to withstand the harsh conditions typical of heavy-duty truck environments, including high temperatures and vibrations.

Benefits

The use of the Cummins 3034572 Magnetic Pickup offers several advantages. It contributes to improved engine performance by providing precise data to the ECU. This leads to optimized fuel injection and ignition timing, enhancing overall efficiency. Additionally, its reliable operation supports the durability and longevity of the engine system ³.

Installation Process

Installing the Cummins 3034572 Magnetic Pickup involves several steps. First, ensure the engine is cool and the ignition is off. Locate the appropriate mounting position as per the vehicle’s service manual. Use the specified tools to secure the pickup in place, ensuring it is properly aligned with the target component. Finally, connect the electrical harness to the sensor and verify the installation by checking for proper operation.

Common Issues and Troubleshooting

Frequent problems with the Cummins 3034572 Magnetic Pickup may include signal interference, physical damage, or electrical issues. Troubleshooting involves checking the sensor’s alignment, inspecting for physical damage, and ensuring the electrical connections are secure and free from corrosion. If issues persist, consulting the vehicle’s service manual or seeking professional assistance is recommended.

Maintenance Tips

To ensure the longevity and optimal performance of the Cummins 3034572 Magnetic Pickup, regular maintenance is important. This includes inspecting the sensor for signs of wear or damage, cleaning the sensor and its surroundings to prevent contamination, and checking the electrical connections for corrosion or looseness. Adhering to the manufacturer’s recommended maintenance schedule will help maintain the sensor’s performance.

Cummins Corporation Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins is committed to innovation and sustainability in the automotive and industrial sectors. The company’s extensive product range includes diesel and natural gas engines, as well as related technologies that enhance performance, efficiency, and reliability across various applications ⁴.

Magnetic Pickup Part 3034572 Compatibility with Cummins Engines

The Magnetic Pickup part 3034572, manufactured by Cummins, is designed to interface seamlessly with a variety of Cummins engines. This part plays a role in the engine’s operation by providing data to the engine control unit (ECU). Here is a detailed look at its compatibility with the listed engines:

• K19, K38, K50: These engines, known for their robust performance and reliability, are compatible with the Magnetic Pickup part 3034572. This compatibility ensures accurate timing and rotational data, which is important for optimal engine performance.

• M11 CELECT PLUS, M11 MECHANICAL: Both variants of the M11 engine benefit from the precision and reliability of the Magnetic Pickup part 3034572. This component ensures that the ECU receives accurate information, which is important for the advanced electronic controls of the CELECT PLUS variant and the mechanical operation of the M11 MECHANICAL.

• N14 MECHANICAL: The N14 MECHANICAL engine, known for its durability and power, is also compatible with the Magnetic Pickup part 3034572. This compatibility ensures that the engine’s ECU can accurately monitor and control engine timing and rotational speed.

• NH/NT 855: These engines, part of the Cummins 855 series, are designed for heavy-duty applications. The Magnetic Pickup part 3034572 ensures that the ECU receives precise data, which is vital for maintaining engine performance and efficiency in demanding conditions.

• QSK19 CM500: This engine, part of the QSK series, is designed for high-performance applications. The Magnetic Pickup part 3034572 ensures that the ECU can accurately monitor and control the engine’s timing and rotational speed, which is important for maintaining optimal performance.

• V28: The V28 engine, known for its versatility and power, is also compatible with the Magnetic Pickup part 3034572. This compatibility ensures that the ECU can accurately monitor and control the engine’s timing and rotational speed, which is essential for maintaining optimal performance.

Each of these engines relies on the Magnetic Pickup part 3034572 to provide accurate and reliable data to the ECU. This ensures that the engine operates efficiently and reliably, meeting the demands of various applications.

Role of Part 3034572 Magnetic Pickup in Engine Systems

The Magnetic Pickup, identified by part number 3034572, is a component in various engine systems, facilitating the seamless operation of multiple subsystems. Its primary function is to generate signals based on the rotational position of the engine’s components, which are then utilized by several critical systems.

Integration with Accessories and Electrical Systems

In the context of accessories and electrical systems, the Magnetic Pickup plays a role by providing precise timing signals. These signals are vital for the synchronization of accessory drives, such as the fuel pump and other peripheral devices. The accurate timing ensures that these accessories operate in harmony with the engine’s cycles, enhancing overall efficiency and performance.

Signal Generation for Engine Control

The Magnetic Pickup is a key element in signal-generating systems. It produces signals that are essential for the Engine Control Unit (ECU) to manage fuel injection timing, ignition timing, and other critical parameters. The ECU relies on these signals to make real-time adjustments, ensuring optimal engine performance under varying conditions.

Fuel Pump and EFC Coordination

Coordination with the fuel pump and Engine Fuel Control (EFC) systems is another area where the Magnetic Pickup proves invaluable. By providing accurate rotational speed data, it allows the fuel pump to deliver the correct amount of fuel at the right time. This precision is essential for maintaining the correct air-fuel ratio, which is important for combustion efficiency and emissions control.

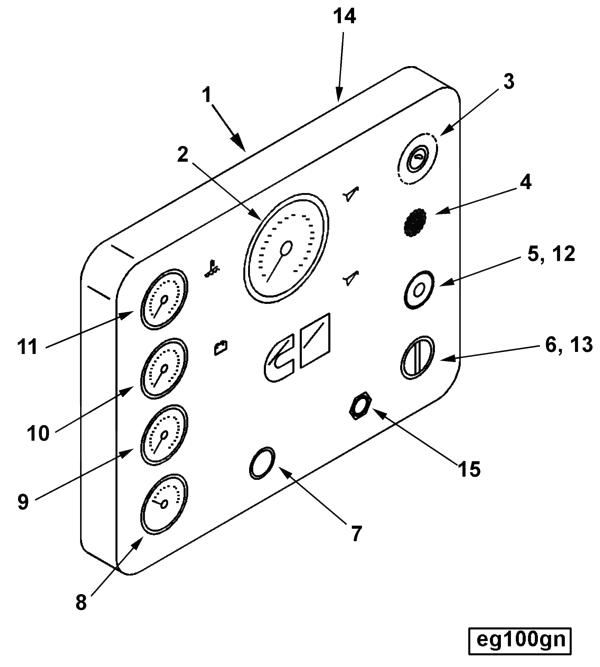

Instrument Panel and Engine Instrument Feedback

The signals generated by the Magnetic Pickup are also integral to the instrument panel and engine instruments. These signals provide data on engine speed (RPM) and other parameters, which are displayed on the instrument panel. This feedback loop is essential for both the driver and the ECU to monitor engine health and performance, allowing for timely interventions if anomalies are detected.

Overall System Harmony

In summary, the Magnetic Pickup (part 3034572) ensures that various engine systems—from accessories and electrical components to fuel delivery and instrument panels—operate in unison. Its role in signal generation and timing accuracy is fundamental to the efficient and reliable performance of modern engine systems.

Conclusion

The Cummins 3034572 Magnetic Pickup is a vital component in the engine management system of heavy-duty trucks. Its role in providing accurate data to the ECU ensures efficient and reliable engine operation. Understanding its function, installation, maintenance, and compatibility with various Cummins engines is essential for optimizing truck performance and reliability.
