3019152
Barring Drive Gear
Cummins®

Introduction

The Cummins 3019152 Barring Drive Gear is a component designed for use in commercial trucks. It serves a specific function within the engine system, contributing to the overall efficiency and reliability of the vehicle. Understanding its purpose and significance is key to maintaining and optimizing the performance of commercial trucks.

Basic Concepts of Barring Drive Gear

A Barring Drive Gear is a mechanical component used in the engine system of trucks. Its primary function is to facilitate the rotation of the engine’s crankshaft without the use of the engine’s power. This is particularly useful during engine start-up and maintenance procedures, allowing for the manual turning of the crankshaft to ensure proper lubrication and to prevent damage to internal components ¹.

Purpose of the 3019152 Barring Drive Gear

This Cummins part plays a role in the operation of a truck by enabling the manual rotation of the crankshaft. This is important during engine start-up, as it allows for the proper circulation of oil before the engine begins to run on its own. Additionally, it is used in maintenance procedures to turn the engine over without starting it, which can be necessary for various diagnostic and repair tasks ².

Key Features

The 3019152 Barring Drive Gear is characterized by several key features that enhance its performance and durability. It is constructed from high-quality materials that are resistant to wear and corrosion. The design includes precise engineering to ensure a secure fit and smooth operation within the engine system. Unique characteristics may include specific tooth profiles or coatings that improve engagement with the crankshaft and reduce friction ³.

Benefits

Using this part offers several benefits. It contributes to improved engine start-up performance by ensuring that the crankshaft rotates smoothly and that oil is properly distributed throughout the engine. This can lead to reduced wear on engine components and enhanced reliability over time. The gear’s durable construction and precise design also contribute to its longevity and effectiveness in various operating conditions.

Installation Process

Installing the 3019152 Barring Drive Gear requires careful attention to detail and the use of appropriate tools. The process involves securing the gear to the crankshaft and ensuring that it is properly aligned with other engine components. Safety precautions should be observed, including disconnecting the battery and ensuring that the engine is cool before beginning the installation. Detailed instructions and diagrams are typically provided with the component to guide the installation process.

Troubleshooting and Maintenance

Common issues with the 3019152 Barring Drive Gear may include difficulty in engagement, unusual noises during operation, or signs of wear. Diagnostic procedures can involve visual inspections, listening for abnormal sounds, and checking for proper alignment and fit. Maintenance tips include regular inspections for signs of wear, ensuring that the gear is properly lubricated, and addressing any issues promptly to prevent further damage.

Manufacturer - Cummins

Cummins is a well-established manufacturer in the automotive and heavy-duty truck industry. With a history of innovation and commitment to quality, Cummins has built a reputation for producing reliable and high-performance components. The company’s focus on research and development ensures that its products, including the 3019152 Barring Drive Gear, meet the demanding requirements of commercial truck applications.

Compatibility with Cummins Engines

The Barring Drive Gear 3019152, manufactured by Cummins, is compatible with several of their engine models. This part is essential for the proper operation of the engine’s barring mechanism, which is used to manually rotate the engine when it is not running on fuel.

• K19 Series: Compatible with the K19 engine, known for its robust design and reliability, often used in heavy-duty applications.
• KTA19 Series: Fits the KTA19GC engine, designed for applications requiring high power output and efficiency.
• KTA19GC CM558: Suitable for the KTA19GC CM558 engine, often used in marine and industrial applications.
• QSK19 Series: Compatible with the QSK19 CM2350 series engines, including the K105, K114, and K144G models.
• QSK19 CM500 and QSK19 CM850 MCRS: Fits these models, designed for heavy-duty applications.
• QSK19G: Compatible with the QSK19G engine, known for its high power output and efficiency.
• QSK45 Series: Fits the QSK45 CM500 engine, part of the QSK45 series, designed for heavy-duty applications requiring high power and reliability.

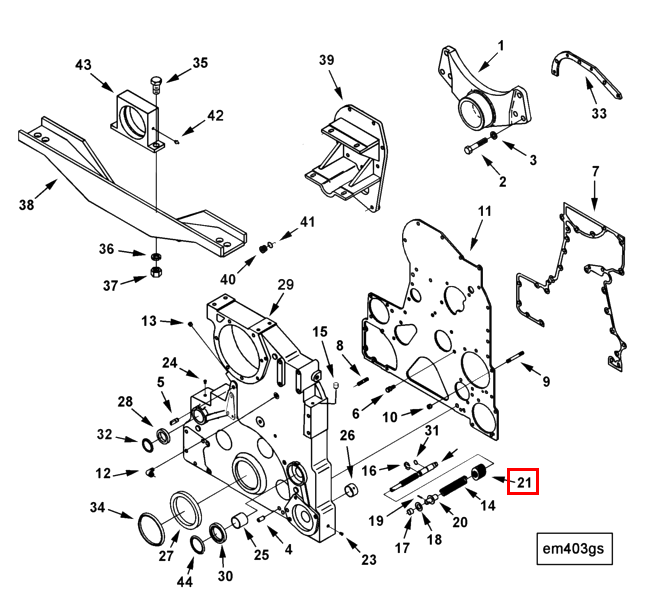

Role of Part 3019152 Barring Drive Gear in Engine Systems

The Barring Drive Gear, identified by part number 3019152, is an integral component in the operation of various engine systems. Its primary function is to engage with the front gear, facilitating smooth rotation of the engine barring mechanism. This mechanism is essential for turning the engine over without ignition, a process necessary during maintenance or when the engine is being started manually.

The Barring Drive Gear is housed within the gear cover, which protects the internal components from debris and contaminants. The gear mounting cover provides additional security and stability to the assembly, ensuring that the Barring Drive Gear remains firmly in place during operation.

Connected to the front engine mounting and front engine support, the Barring Drive Gear plays a significant role in maintaining the alignment and stability of the engine. The front engine mounting secures the engine to the vehicle’s frame, while the front engine support absorbs vibrations and reduces stress on the engine components.

The gear top level assembly cover further encapsulates the Barring Drive Gear, offering an additional layer of protection and ensuring that the gear operates within a controlled environment. This cover also aids in maintaining the precise alignment of the gear with other components, which is vital for the efficient functioning of the engine barring mechanism.

Conclusion

In summary, the Barring Drive Gear (part 3019152) works in concert with the front gear, engine barring mechanism, gear cover, gear mounting cover, gear top level assembly cover, front engine mounting, and front engine support to ensure the engine can be turned over smoothly and securely, facilitating easier maintenance and manual starting procedures.
