4946283

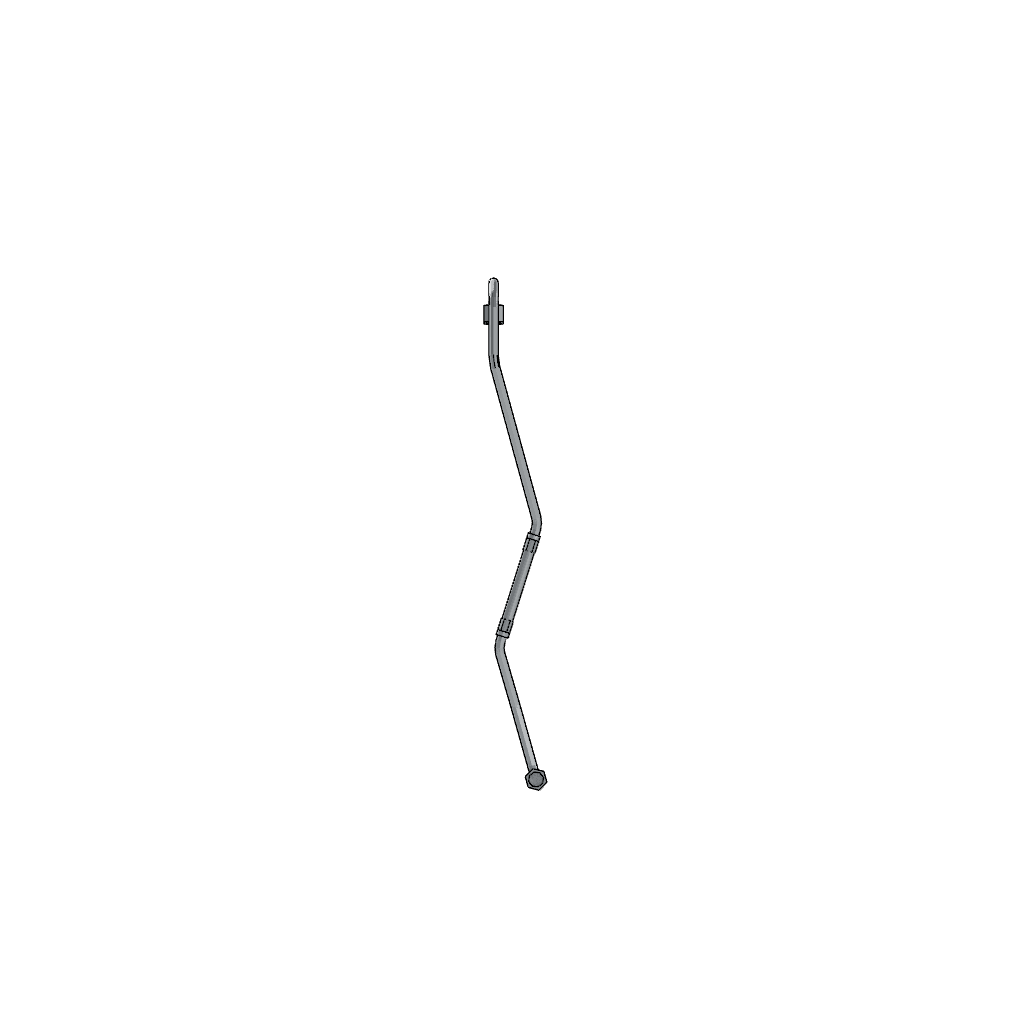

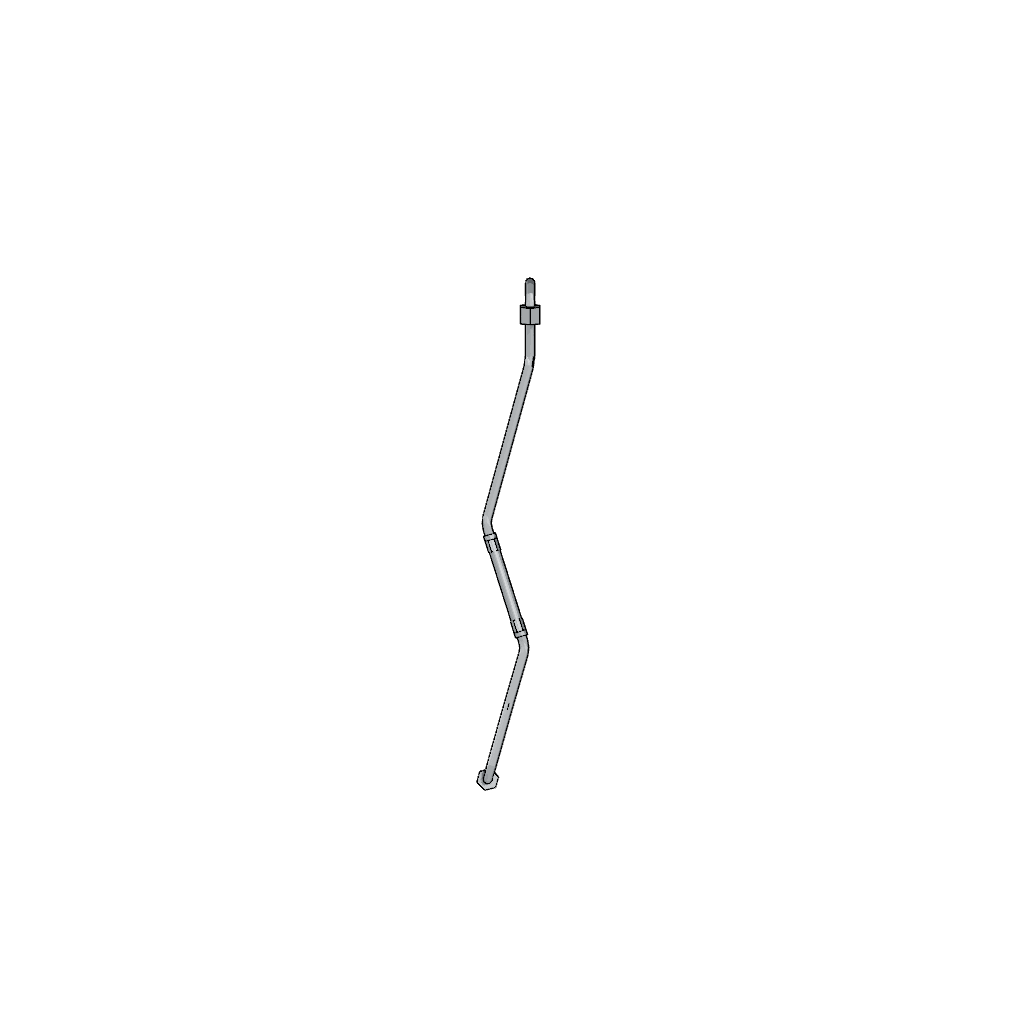

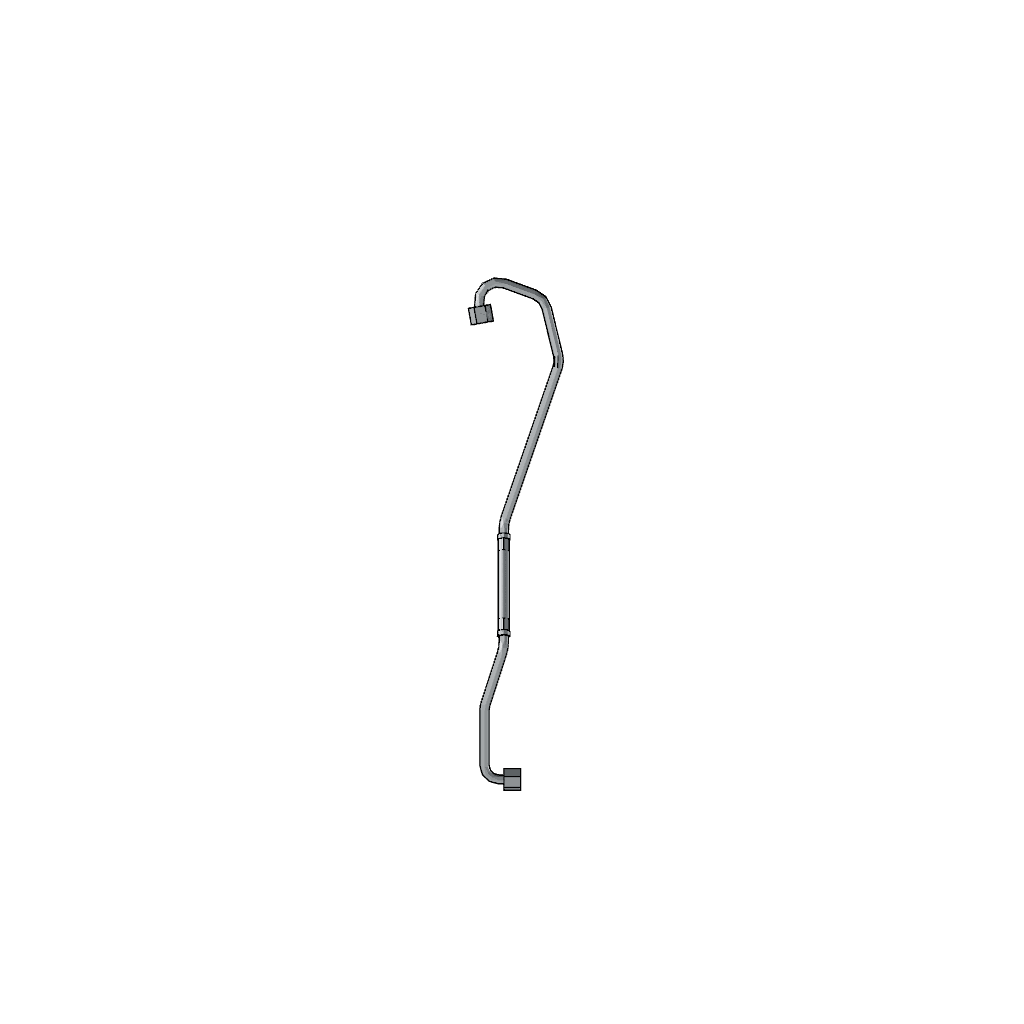

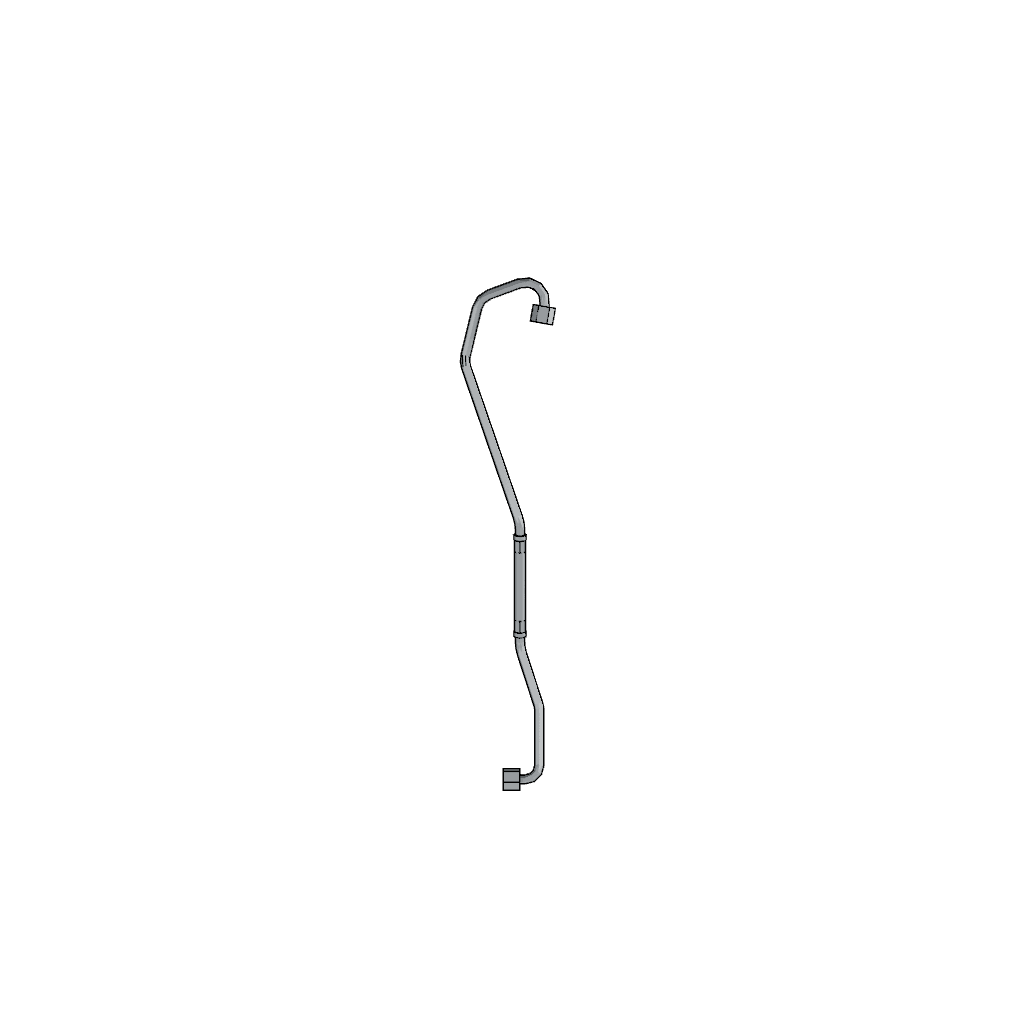

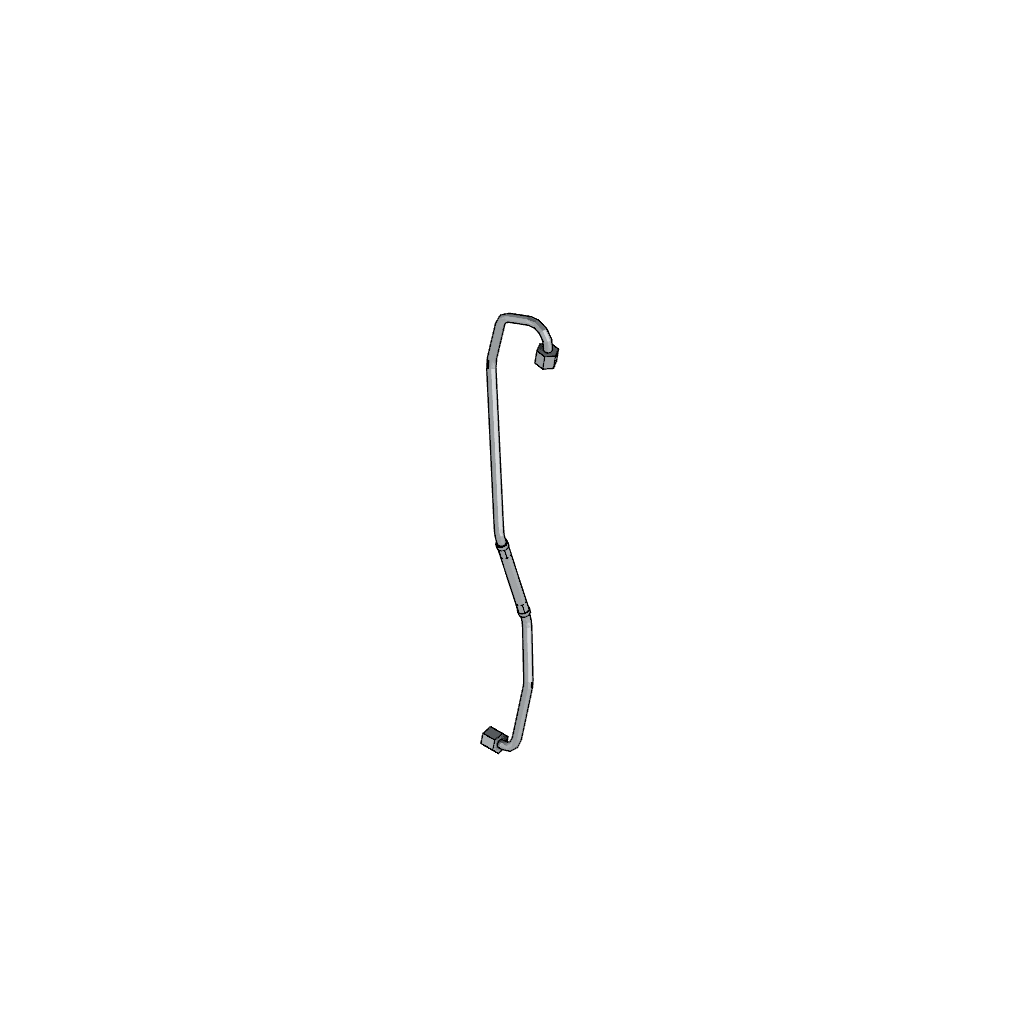

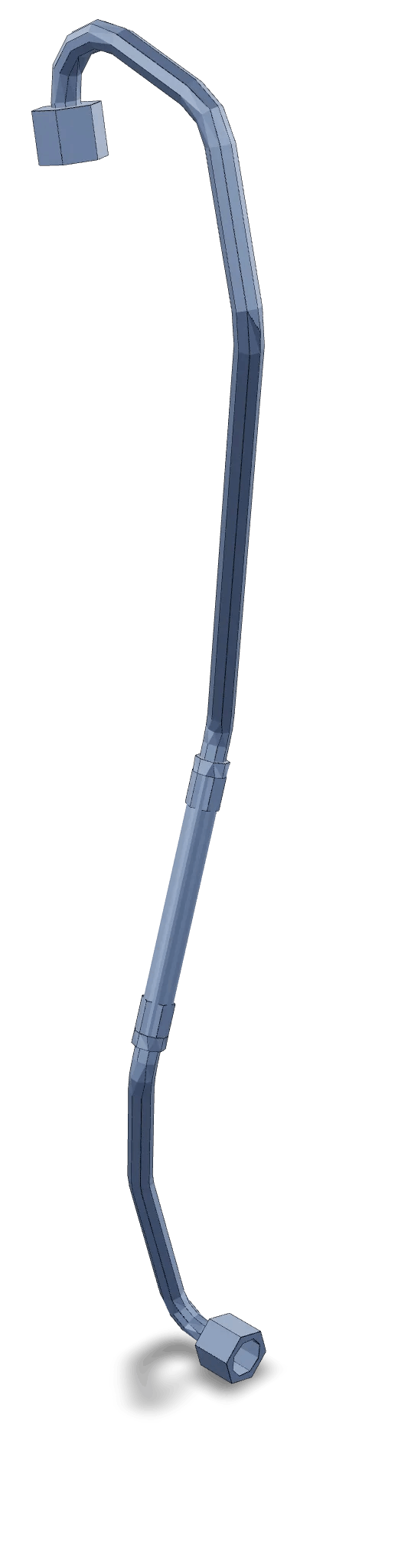

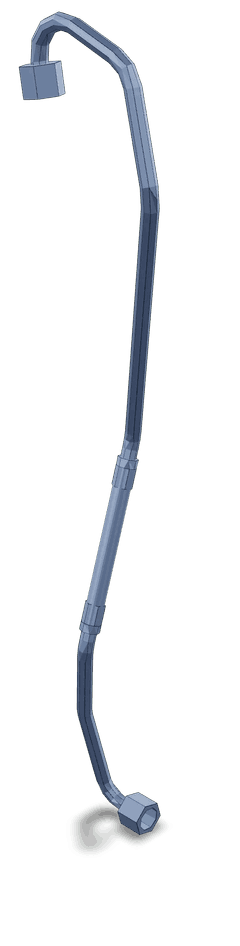

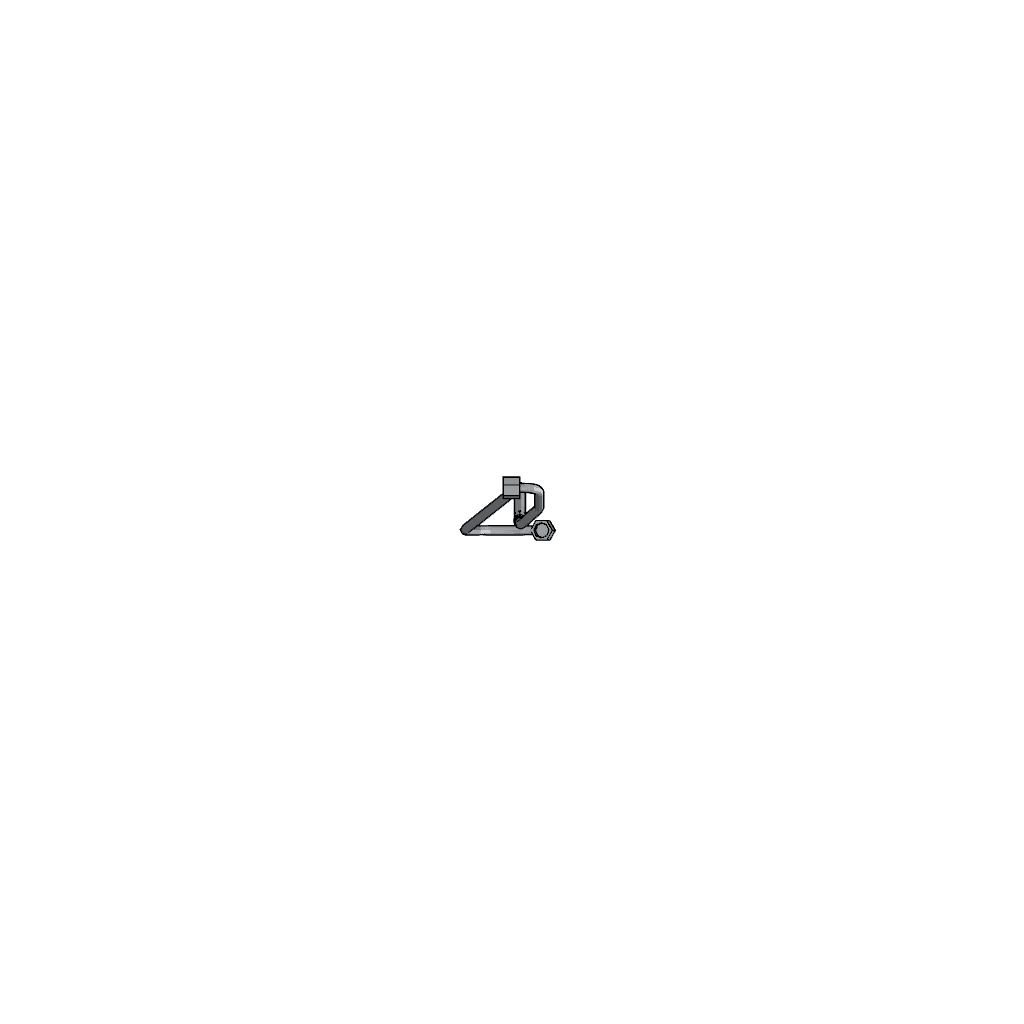

Turbo Oil Supply Tube
Cummins®

Introduction

The Turbo Oil Supply Tube, identified by part number 4946283, is a component manufactured by Cummins, a prominent entity in the automotive and heavy-duty truck industry. This tube is integral to the lubrication system of heavy-duty truck engines, particularly concerning the turbocharger. Understanding its function, features, and benefits is essential for maintaining engine efficiency and reliability.

Function and Operation

The Turbo Oil Supply Tube operates within the engine system by facilitating the delivery of oil to the turbocharger. This component ensures that the turbocharger receives a consistent supply of lubricant, which is vital for its operation. The tube connects to the engine’s lubrication system and directs oil flow to the turbocharger, helping to reduce friction, dissipate heat, and prevent wear on moving parts. Proper lubrication is key to maintaining the turbocharger’s performance and longevity ¹.

Key Features

The design and construction of the Turbo Oil Supply Tube are tailored to enhance its performance and durability. The tube is typically made from high-quality materials that can withstand the high pressures and temperatures within the engine compartment. It features secure connection points, often utilizing O-ring seals or threaded fittings, to ensure a leak-free interface with other components. The tube’s robust construction helps it endure the demanding conditions of heavy-duty truck operations ².

Benefits

The Turbo Oil Supply Tube offers several advantages that contribute to the overall efficiency and reliability of the engine. By ensuring consistent oil supply to the turbocharger, it enhances lubrication, which in turn improves the turbocharger’s performance. This leads to better engine efficiency and power output. Additionally, proper lubrication reduces the risk of turbocharger failure, thereby increasing the engine’s reliability and lifespan ³.

Installation and Compatibility

When installing the Turbo Oil Supply Tube, it is important to follow manufacturer guidelines to ensure proper fit and function. This may involve specific torque settings for connections and careful alignment to prevent leaks. The tube is designed to be compatible with various Cummins engine models, though it is advisable to consult the manufacturer’s specifications to confirm compatibility with a specific engine variant.

Maintenance and Troubleshooting

Routine maintenance of the Turbo Oil Supply Tube involves checking for leaks, ensuring connections are secure, and verifying that oil flow is consistent. Regular inspections can help identify potential issues before they become significant problems. Common issues may include leaks at connection points or blockages within the tube. Troubleshooting steps may involve tightening connections, cleaning or replacing O-rings, or, in more severe cases, replacing the tube itself.

Safety Considerations

When working with the Turbo Oil Supply Tube, it is important to observe several safety guidelines. Ensure the engine is cool before beginning any work to avoid burns from hot components. Use appropriate personal protective equipment, such as gloves and safety glasses, to protect against oil spills and debris. Additionally, be mindful of the high-pressure oil system and take care to avoid spills, which can create slippery surfaces and pose a fire hazard.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration systems, and related technologies. With a history spanning over a century, Cummins has established a reputation for innovation, quality, and reliability in the automotive industry. Their product range includes engines for on-highway and off-highway applications, as well as power generation equipment and component parts like the Turbo Oil Supply Tube.

Compatibility

The Turbo Oil Supply Tube (4946283) is compatible with various Cummins engine models, including the B3.3 engine series and other groups that utilize similar turbocharger designs and lubrication systems. This compatibility ensures that the part can be used across multiple models without modification, contributing to the efficiency and reliability of the turbocharger and, by extension, the overall performance of the engine.

Role in Engine Systems

This Cummins part is an essential component in the efficient operation of engine systems, particularly in those equipped with turbochargers. It facilitates the delivery of oil to the turbocharger, ensuring it receives the necessary lubrication for optimal performance and longevity.

Integration with Turbocharger

In turbocharged engine systems, the Turbo Oil Supply Tube connects the engine’s lubrication system to the turbocharger. It supplies oil under pressure to the turbocharger’s bearings and other moving parts. This lubrication is vital for reducing friction, dissipating heat, and preventing wear on the turbocharger components. The tube’s design ensures a consistent and reliable oil flow, which is essential for the turbocharger’s efficient operation at high speeds and under varying load conditions.

Interaction with Plumbing

The Turbo Oil Supply Tube is part of the engine’s oil plumbing system. It interfaces with other components such as oil filters, pressure relief valves, and the oil pump. The tube’s precise fitting and sealing are important for maintaining oil pressure and preventing leaks. Its role in the plumbing system ensures that oil is distributed effectively throughout the engine, supporting not only the turbocharger but also other critical components such as the crankshaft, camshaft, and valve train.

Enhanced Engine Performance

By ensuring the turbocharger receives a steady supply of oil, the Turbo Oil Supply Tube contributes to enhanced engine performance. Proper lubrication allows the turbocharger to spin at high speeds without excessive wear, leading to improved throttle response, increased power output, and better fuel efficiency. The tube’s reliable performance is important for maintaining the overall health and efficiency of the engine system.

Maintenance and Reliability

The Turbo Oil Supply Tube’s durability and reliability are important for the maintenance of turbocharged engine systems. Regular inspection and maintenance of the tube can prevent issues such as oil starvation, which can lead to turbocharger failure. Ensuring the tube is free from blockages and leaks is important for the continued efficient operation of the engine.

Conclusion

In summary, the Turbo Oil Supply Tube (4946283) plays a significant role in the lubrication and performance of turbocharged engine systems. Its integration with the turbocharger and the engine’s oil plumbing system ensures that all moving parts receive the necessary oil for efficient and reliable operation. Regular maintenance and adherence to safety guidelines are essential for maximizing the benefits of this component.
