4101377

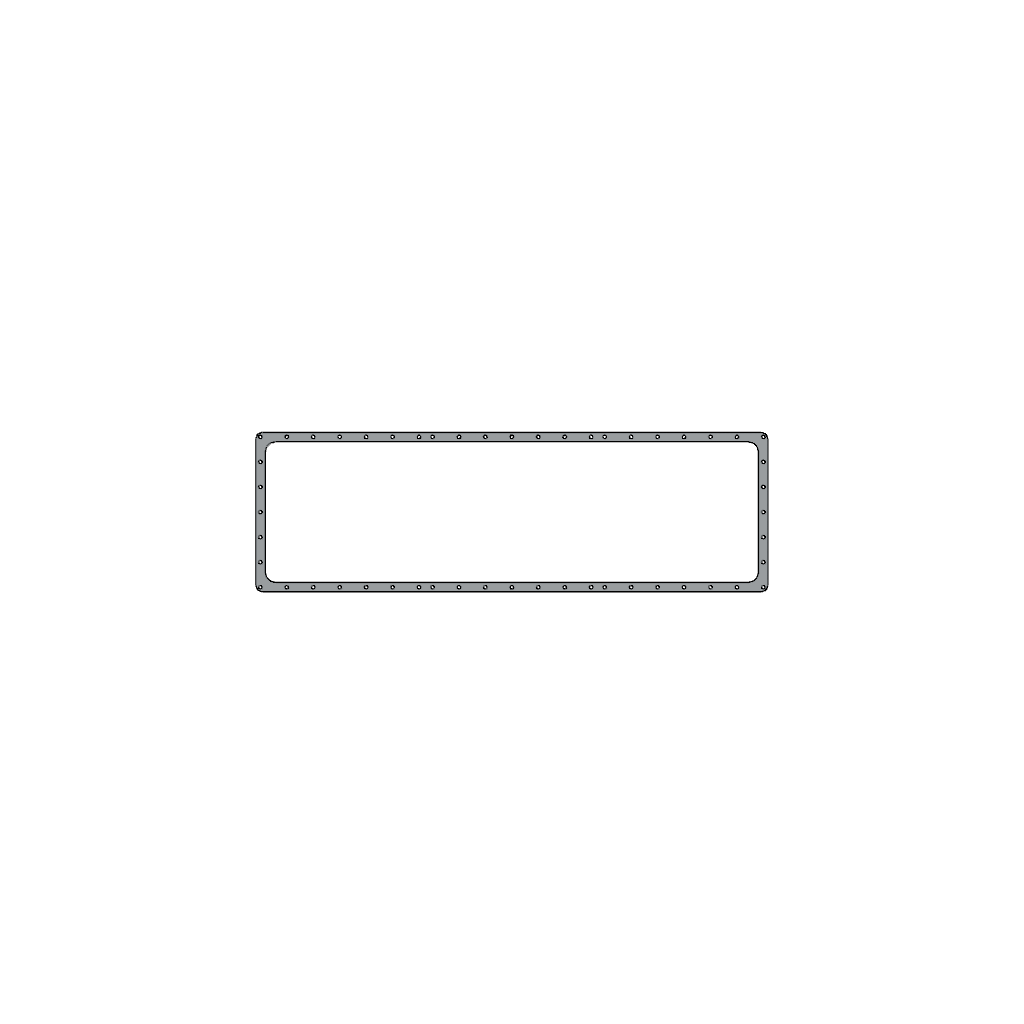

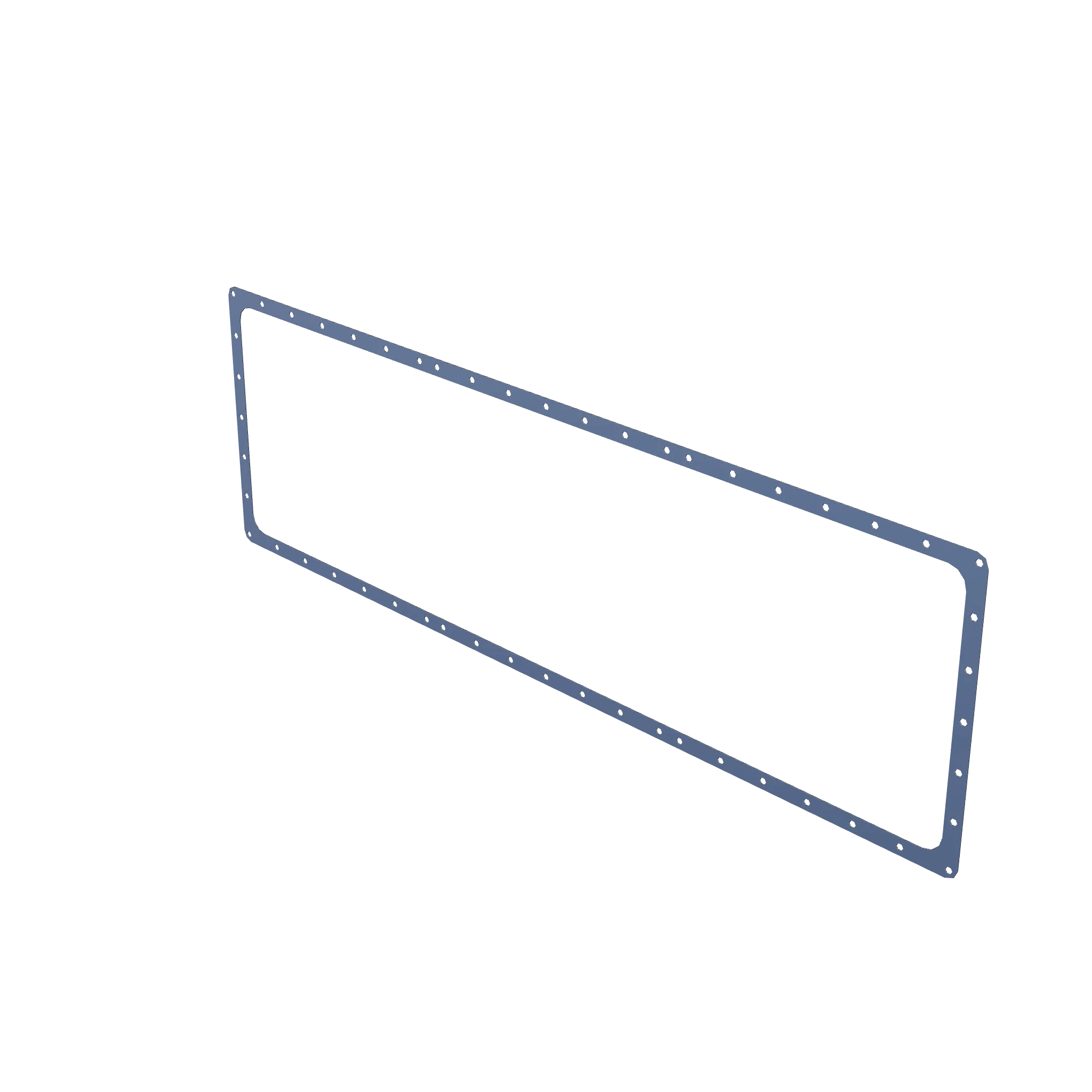

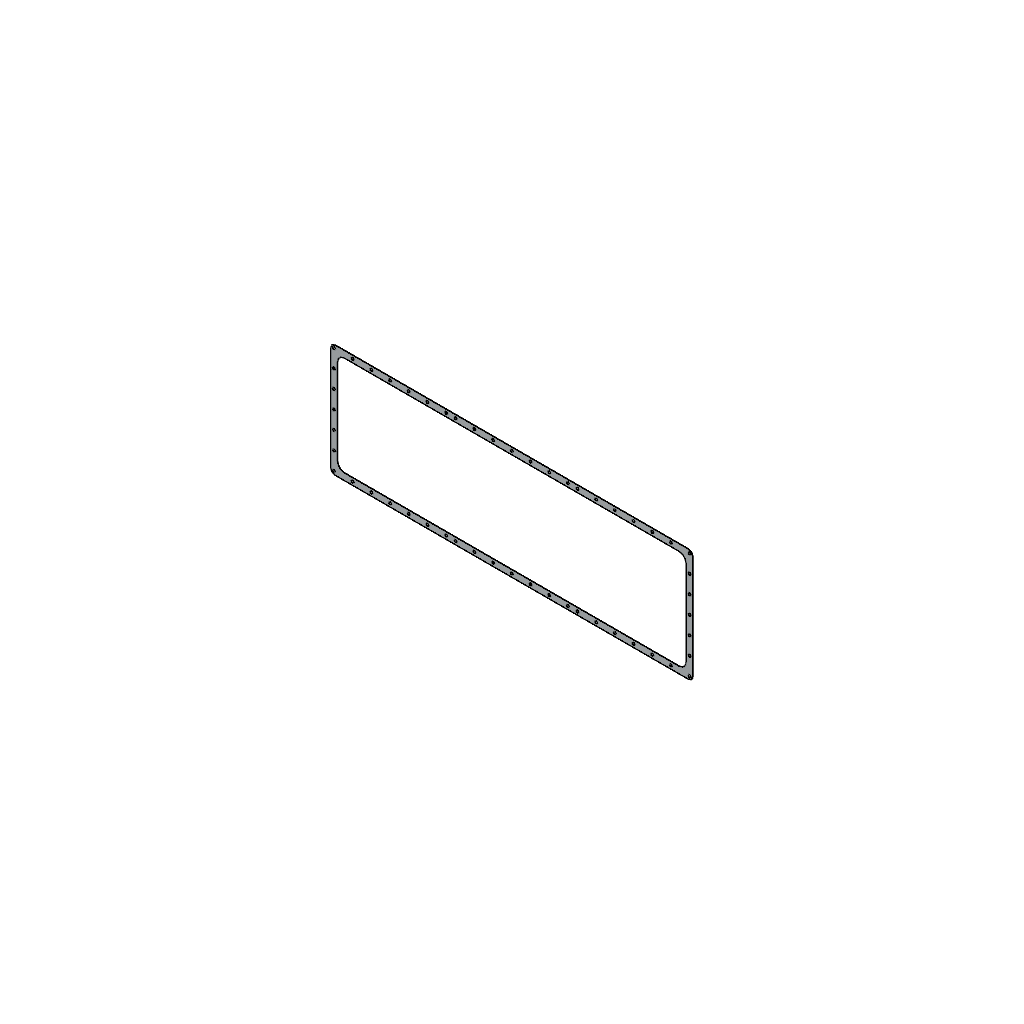

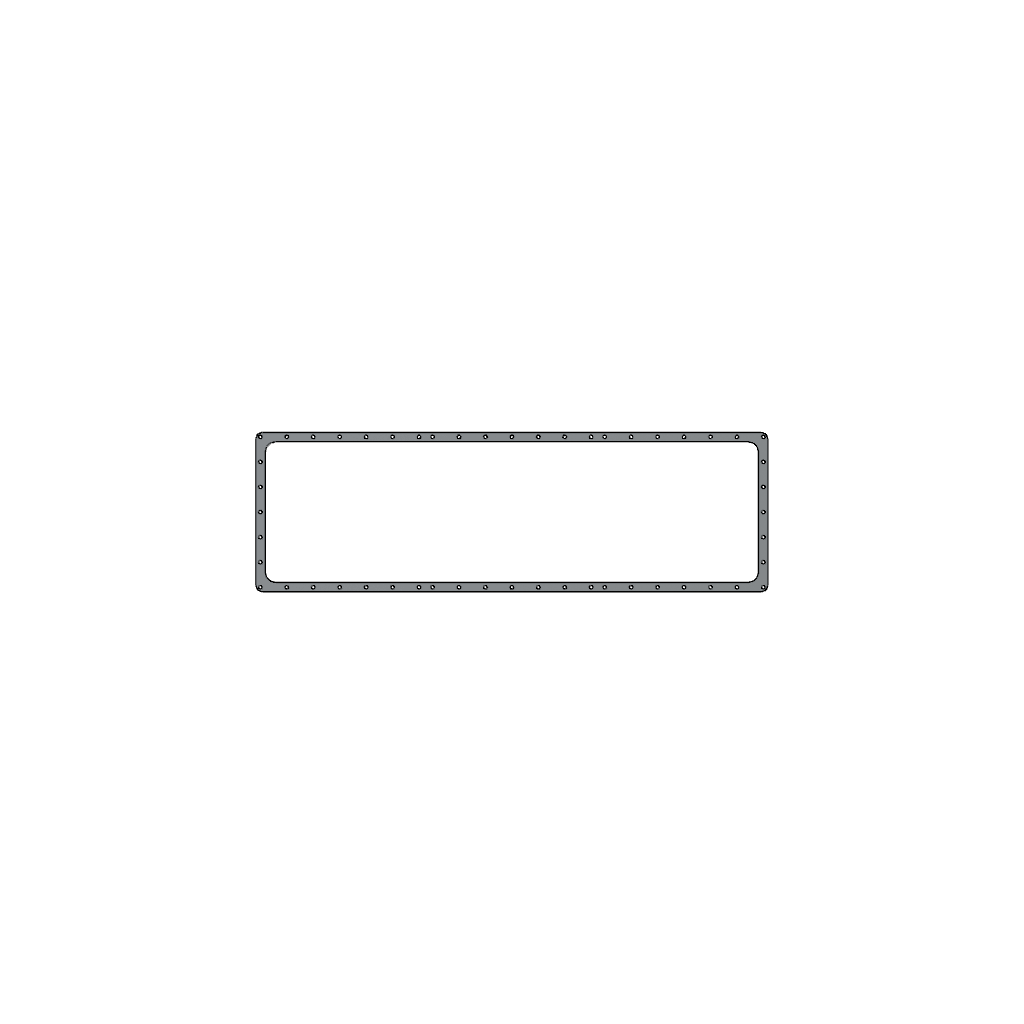

Oil Pan Gasket
Cummins®

The 4101377 Oil Pan Gasket, manufactured by Cummins, is a component designed specifically for heavy-duty truck engines. Cummins, a well-established name in the heavy-duty truck industry, produces a range of parts and engines known for their reliability and performance. This Cummins part is significant in the context of heavy-duty truck engines as it plays a role in maintaining the integrity of the engine’s oil system.

Basic Concepts of Oil Pan Gaskets

An oil pan gasket is a sealing component positioned between the oil pan and the engine block. Its function is to create a seal that prevents engine oil from leaking out of the oil pan. This seal is vital for maintaining the proper oil level within the engine, which is necessary for lubrication, cooling, and cleaning ¹. Oil pan gaskets are commonly constructed from materials such as rubber, cork, paper, or a combination of these materials, chosen for their sealing properties and ability to withstand the engine environment.

Purpose of the 4101377 Oil Pan Gasket

The 4101377 Oil Pan Gasket serves to seal the oil pan to the engine block in Cummins engines. By doing so, it contributes to maintaining the integrity of the engine’s oil system. This seal is important for ensuring that the engine receives adequate lubrication, which is necessary for reducing friction between moving parts, dissipating heat, and carrying away contaminants ². A properly sealed oil pan also helps in maintaining the correct oil pressure, which is crucial for the engine’s performance and longevity.

Key Features

The 4101377 Oil Pan Gasket is engineered with specific features that make it suitable for heavy-duty applications. These include durability to withstand the harsh conditions of heavy-duty truck engines, resistance to high temperatures that can degrade lesser materials, and compatibility with Cummins engines. These features ensure that the gasket can perform reliably under the demanding conditions typical of heavy-duty truck operations.

Benefits

Using the 4101377 Oil Pan Gasket offers several advantages. It contributes to improved engine reliability by ensuring a secure seal that prevents oil leaks. This reduces the risk of oil loss, which can lead to engine damage due to insufficient lubrication. Additionally, by maintaining the integrity of the oil system, the gasket helps enhance overall engine performance and efficiency.

Installation Considerations

When installing the 4101377 Oil Pan Gasket, it is important to follow guidelines and best practices to ensure a proper seal. This includes preparing the oil pan and engine block surfaces to be clean and free of old gasket material, applying the correct torque specifications when securing the oil pan to the engine block, and ensuring that the gasket is properly positioned to achieve a complete seal.

Troubleshooting Common Issues

Common problems associated with oil pan gaskets include leaks and failures. These issues can often be identified through visual inspection or by noticing symptoms such as oil spots under the vehicle or a decrease in oil level. Diagnostic steps may involve inspecting the gasket for signs of wear or damage and ensuring that the oil pan is properly torqued. Solutions may range from replacing the gasket to addressing any underlying issues that could be contributing to the problem.

Maintenance Tips

To ensure the longevity and optimal performance of the 4101377 Oil Pan Gasket, regular inspections are recommended. This includes checking for signs of wear, damage, or oil leaks. Replacement intervals may vary depending on the operating conditions and the manufacturer’s recommendations. Adhering to these maintenance practices can help prevent unexpected failures and ensure the gasket continues to perform its intended function effectively.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and performance in the heavy-duty truck industry. The company’s product range includes engines, powertrain components, and aftermarket parts, all designed to meet the demanding requirements of heavy-duty applications.

Cummins Oil Pan Gasket 4101377 Compatibility

The Cummins Oil Pan Gasket 4101377 is designed to fit a variety of Cummins engines, ensuring a secure seal between the oil pan and the engine block. This gasket is crucial for maintaining the integrity of the engine’s lubrication system by preventing oil leaks.

QSK45 CM500 and QSK60 CM500

The Oil Pan Gasket 4101377 is compatible with the QSK45 CM500 and QSK60 CM500 engines. These engines are part of Cummins’ QSK series, which are known for their robust performance and reliability in various applications. The gasket ensures that the oil pan is properly sealed, preventing any oil from leaking out and maintaining the engine’s lubrication system.

QSK60 CM850 MCRS and QSK60G

The Oil Pan Gasket 4101377 also fits the QSK60 CM850 MCRS and QSK60G engines. These engines are part of the QSK60 series, which are designed for heavy-duty applications. The gasket’s compatibility with these engines ensures that the oil pan is securely sealed, which is essential for maintaining the engine’s performance and longevity.

QSK78 CM500

Lastly, the Oil Pan Gasket 4101377 is suitable for the QSK78 CM500 engine. This engine is part of the QSK series and is known for its high power output and efficiency. The gasket’s fitment with this engine ensures that the oil pan is properly sealed, preventing oil leaks and maintaining the engine’s lubrication system.

By ensuring a proper seal, the Oil Pan Gasket 4101377 helps maintain the engine’s performance and longevity across these various models.

Role of Part 4101377 Oil Pan Gasket in Engine Systems

The part 4101377 Oil Pan Gasket is an essential component in maintaining the integrity of the oil pan system within an engine. It is specifically designed to create a secure seal between the oil pan and the engine block, preventing oil leaks and ensuring that the lubrication system functions efficiently.

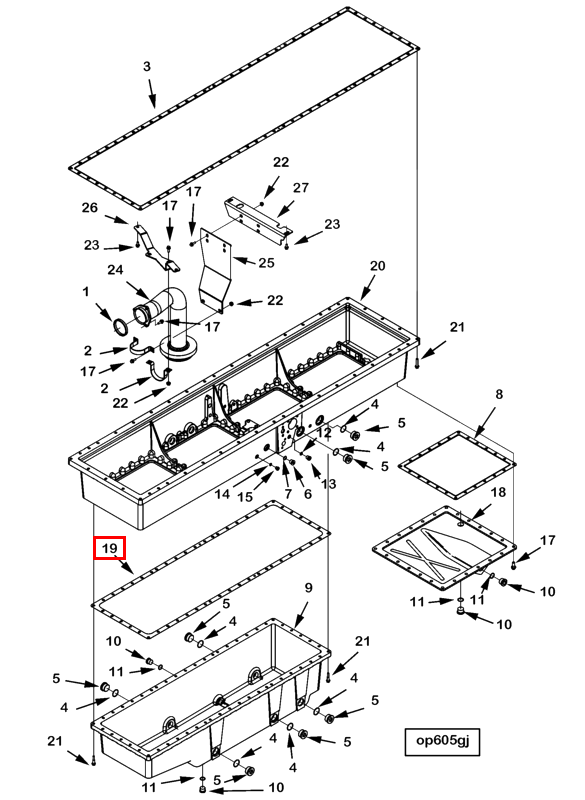

Integration with Key Components

1. Oil Pan: The primary role of the oil pan gasket is to seal the oil pan to the engine block. This ensures that engine oil remains contained within the pan and is available for circulation through the lubrication system. A properly sealed oil pan is vital for maintaining oil pressure and preventing contamination of the oil.

2. Oil Pan Adapter: In engines where an oil pan adapter is used, the oil pan gasket also interfaces with this component. The adapter may be used for various purposes, such as facilitating easier oil changes or accommodating different oil pan designs. The gasket ensures that the adapter is sealed to both the oil pan and the engine block, maintaining the overall integrity of the oil system.

3. Oil Pan Top Level Assembly Adapter: In more complex engine designs, an oil pan top level assembly adapter might be employed. This adapter could be part of a multi-piece oil pan system or used to interface with other engine components. The oil pan gasket must seal effectively around this adapter to prevent any oil leakage at this junction.

4. Pan: Generically referred to as the oil pan, this component stores the engine oil when the engine is not running. The gasket ensures that the pan is tightly sealed against the engine block, which is essential for maintaining oil levels and pressure.

5. Oil System: Beyond the physical components, the oil pan gasket plays a significant role in the overall oil system of the engine. By ensuring a tight seal, it helps maintain consistent oil pressure, which is necessary for the proper lubrication of moving parts, cooling, and cleaning within the engine.

Conclusion

In summary, the 4101377 Oil Pan Gasket is a fundamental element in the engine’s oil management system, ensuring that all interconnected components—oil pan, oil pan adapter, oil pan top level assembly adapter, and the pan itself—function seamlessly together. Its role in maintaining the integrity of the oil system is crucial for the overall performance and longevity of heavy-duty truck engines.
