4065554
Oil Pan Gasket
Cummins®

Introduction

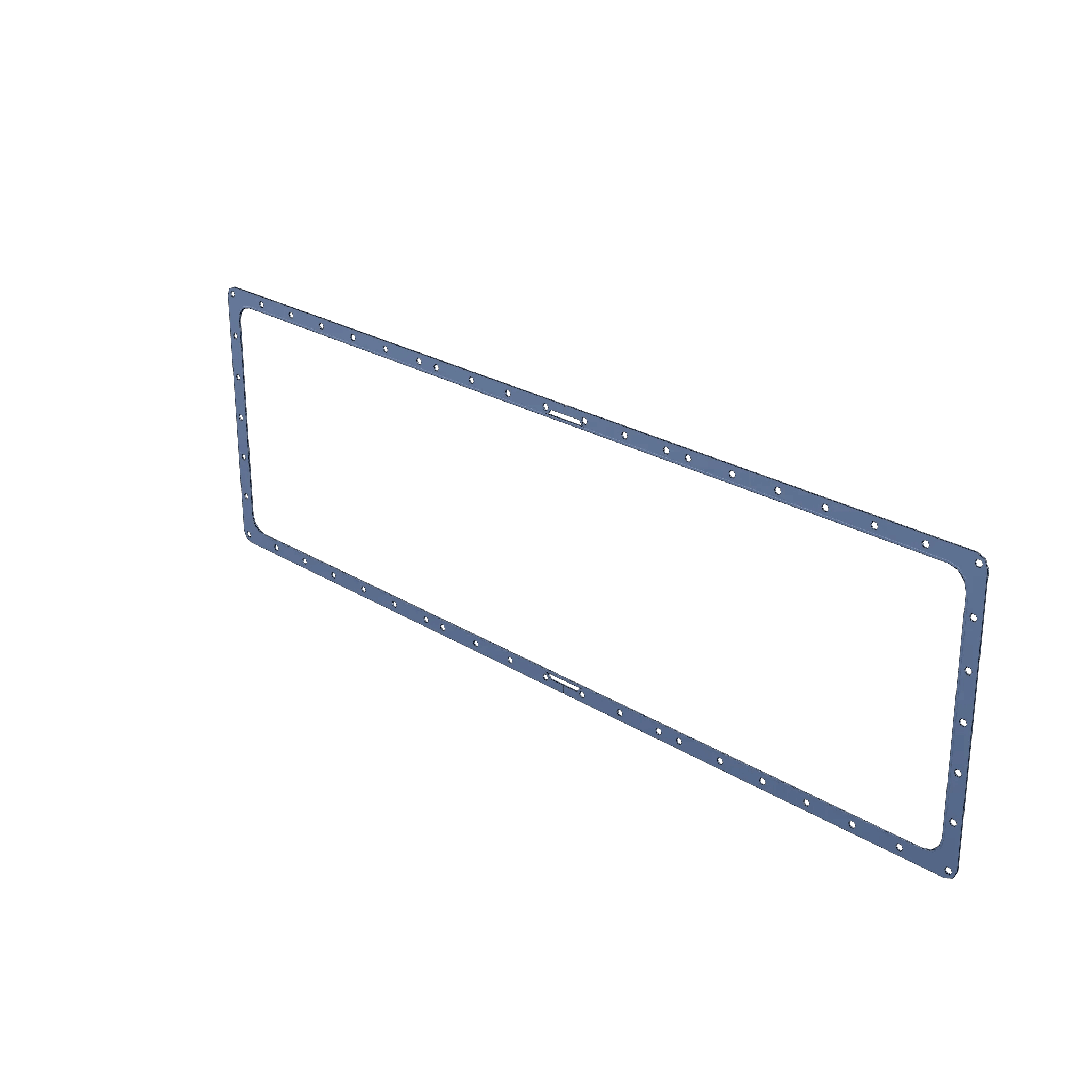

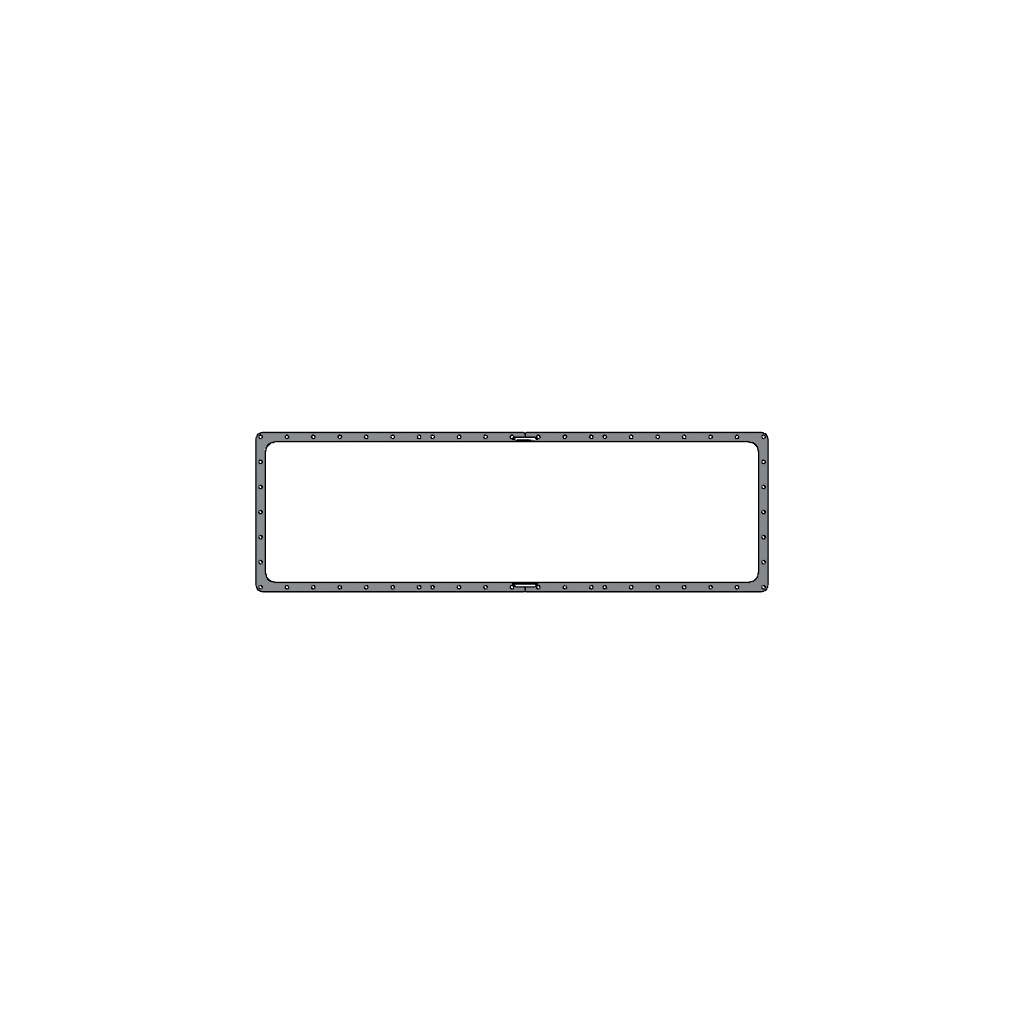

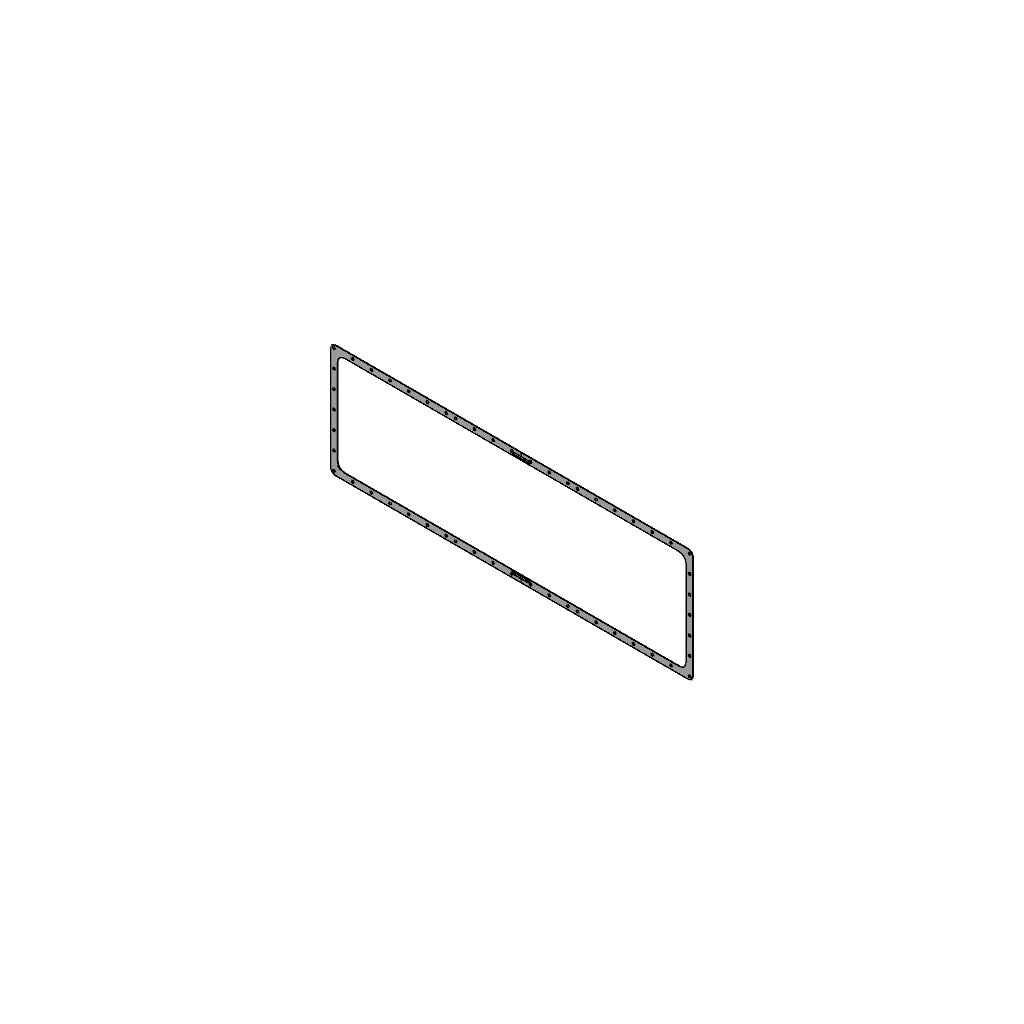

The Cummins 4065554 Oil Pan Sealing Gasket is a component designed to ensure the integrity of the oil system in heavy-duty trucks. Its role is to create a secure seal between the oil pan and the engine block, preventing oil leaks and maintaining the necessary oil levels for engine lubrication and cooling ².

Basic Concepts of Oil Pan Sealing Gaskets

An oil pan sealing gasket is a component in the engine’s oil system. It functions by providing a barrier that keeps engine oil contained within the oil pan. This containment is vital for the engine’s performance and reliability, as it ensures that the oil circulates properly, lubricating moving parts and helping to dissipate heat ¹.

Purpose of the Cummins 4065554 Oil Pan Sealing Gasket

This Cummins part plays a role in the operation of a truck by maintaining the integrity of the oil within the engine. It ensures that oil does not leak from the oil pan, which could lead to insufficient lubrication, increased friction, and potential engine damage. By keeping the oil contained, the gasket contributes to the engine’s efficiency, longevity, and overall performance ².

Key Features

The 4065554 is characterized by its material composition, which is designed to withstand the high temperatures and pressures within the engine compartment. Its design is tailored to fit precisely between the oil pan and the engine block, ensuring a tight seal. Additionally, the gasket may feature unique attributes such as reinforced edges or specialized coatings to enhance its durability and performance under demanding conditions ².

Benefits

Utilizing this part offers several advantages. It contributes to improved engine efficiency by ensuring that oil remains within the system, reducing the need for frequent top-ups. The gasket’s reliable seal helps extend the engine’s lifespan by preventing oil leaks that could lead to engine wear or damage. Furthermore, its design and material composition enhance the overall reliability of the truck’s engine, supporting consistent performance over time ².

Installation Process

Installing the Oil Pan Sealing Gasket requires careful attention to detail. The process involves cleaning the mating surfaces of the oil pan and engine block to ensure a proper seal. The gasket should be positioned correctly, aligning with any dowel pins or guide marks. It is important to avoid over-tightening the oil pan bolts, as this can distort the gasket and compromise the seal. Following the manufacturer’s torque specifications is recommended to achieve the best results ².

Troubleshooting Common Issues

Common problems with oil pan sealing gaskets include leaks and failures, which can arise from improper installation, wear and tear, or exposure to extreme conditions. To troubleshoot these issues, inspect the gasket for signs of damage or wear. Ensure that the mating surfaces are clean and free from debris. If a leak is detected, the gasket may need to be replaced, and the installation process should be reviewed to identify any errors ².

Maintenance Tips

Regular maintenance practices can help ensure the longevity and effectiveness of the 4065554. This includes monitoring oil levels and checking for any signs of leaks during routine inspections. Keeping the engine compartment clean and free from debris can also prevent contaminants from affecting the gasket’s performance. Following the manufacturer’s recommended service intervals for oil changes and inspections can further support the gasket’s durability ².

About Cummins

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for innovation, quality, and reliability in the automotive industry. The company’s product range includes engines for on-highway and off-highway applications, as well as filtration and emission solutions designed to meet the diverse needs of its customers ².

Compatibility

This part is compatible with several Cummins engine models, including:

• QSK45 CM500
• QSK60 CM500
• QSK60G

These engines are part of Cummins’ QSK series, which is known for its robust performance and reliability in various industrial and power generation applications. The gasket’s design ensures a perfect fit and effective sealing, contributing to the overall efficiency and longevity of these engines ².

Role in Engine Systems

This part is instrumental in maintaining the integrity of the oil system within an engine. It is specifically designed to create a secure seal between the oil pan and the engine block, preventing oil leaks and ensuring that the lubrication system functions efficiently.

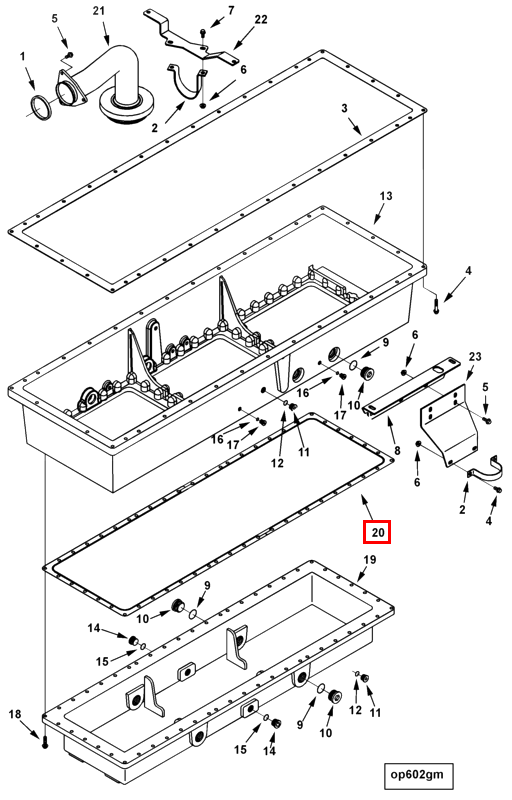

When the oil pan is installed, the gasket is positioned between the oil pan and the mating surface of the engine block. This placement is vital as it ensures that the oil contained within the pan does not escape, which could lead to insufficient lubrication and subsequent engine damage.

In conjunction with the Oil Adapter, the sealing gasket plays a role in maintaining the pressure within the oil system. The oil adapter is often connected to the oil pan, and a proper seal is necessary to prevent any oil from seeping out, which could affect the performance of the adapter and the overall oil circulation.

The Oil Pan Top Level Assembly Adapter also benefits from the presence of the sealing gasket. This adapter is typically used to monitor the oil level within the pan. A leak-free seal ensures accurate oil level readings, which is essential for maintaining proper lubrication and avoiding overfilling or underfilling scenarios.

The integration of the sealing gasket with the Pan itself is straightforward yet significant. The pan collects and stores the engine oil, and the gasket ensures that this oil remains contained. Any compromise in this seal could result in oil loss, leading to potential engine wear and reduced efficiency.

Lastly, the relationship between the sealing gasket and the Oil itself cannot be overstated. The gasket’s primary function is to keep the oil within the system, ensuring that it is available for lubrication, cooling, and cleaning purposes. Without a reliable seal, the oil’s effectiveness in these roles would be compromised, leading to increased friction, higher operating temperatures, and accelerated wear on engine components ².

Conclusion

The Cummins 4065554 Oil Pan Sealing Gasket is a vital component in maintaining the efficiency and reliability of heavy-duty truck engines. Its proper installation, maintenance, and understanding of its role within the engine system are crucial for ensuring optimal engine performance and longevity.
