4009241

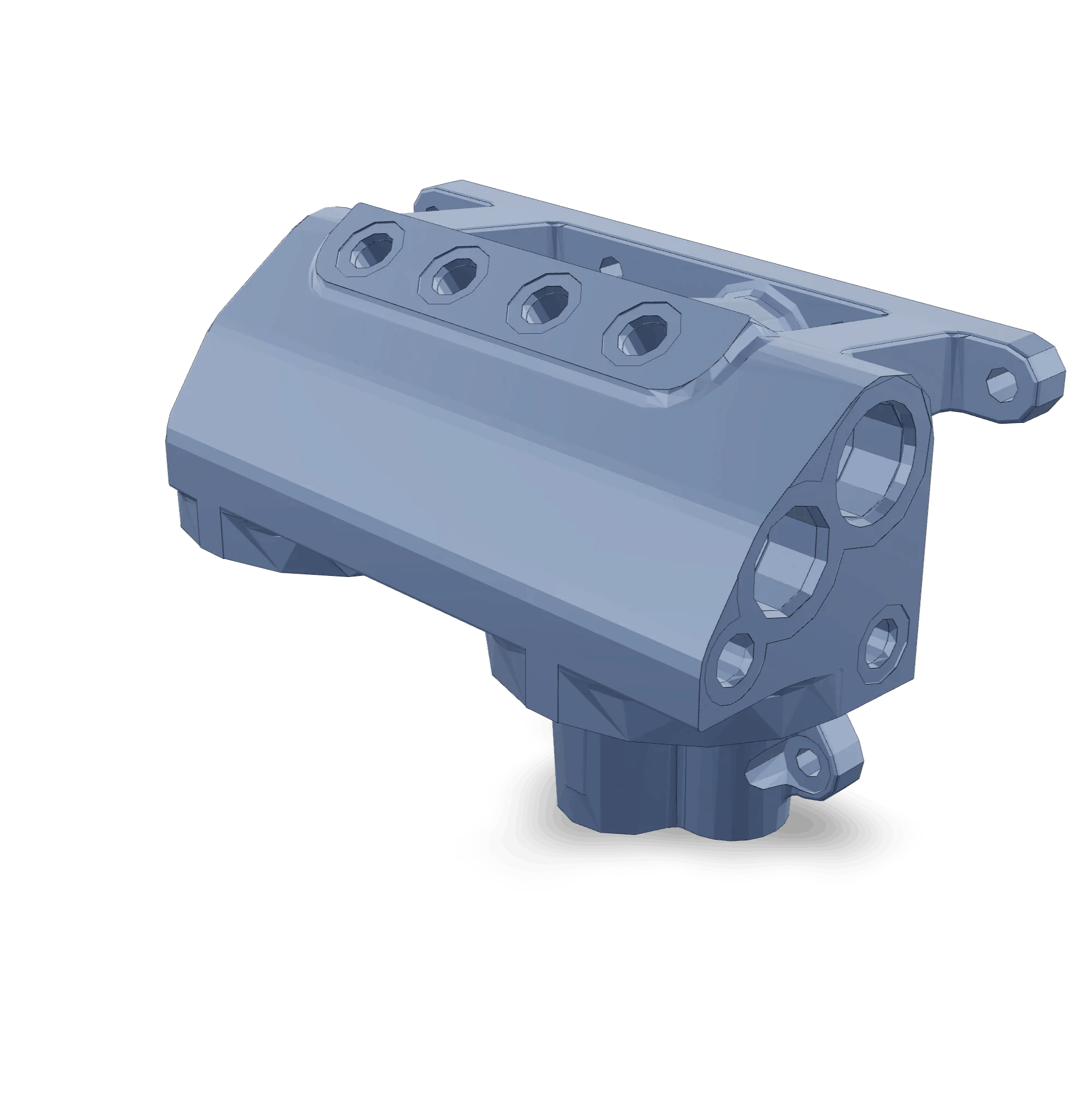

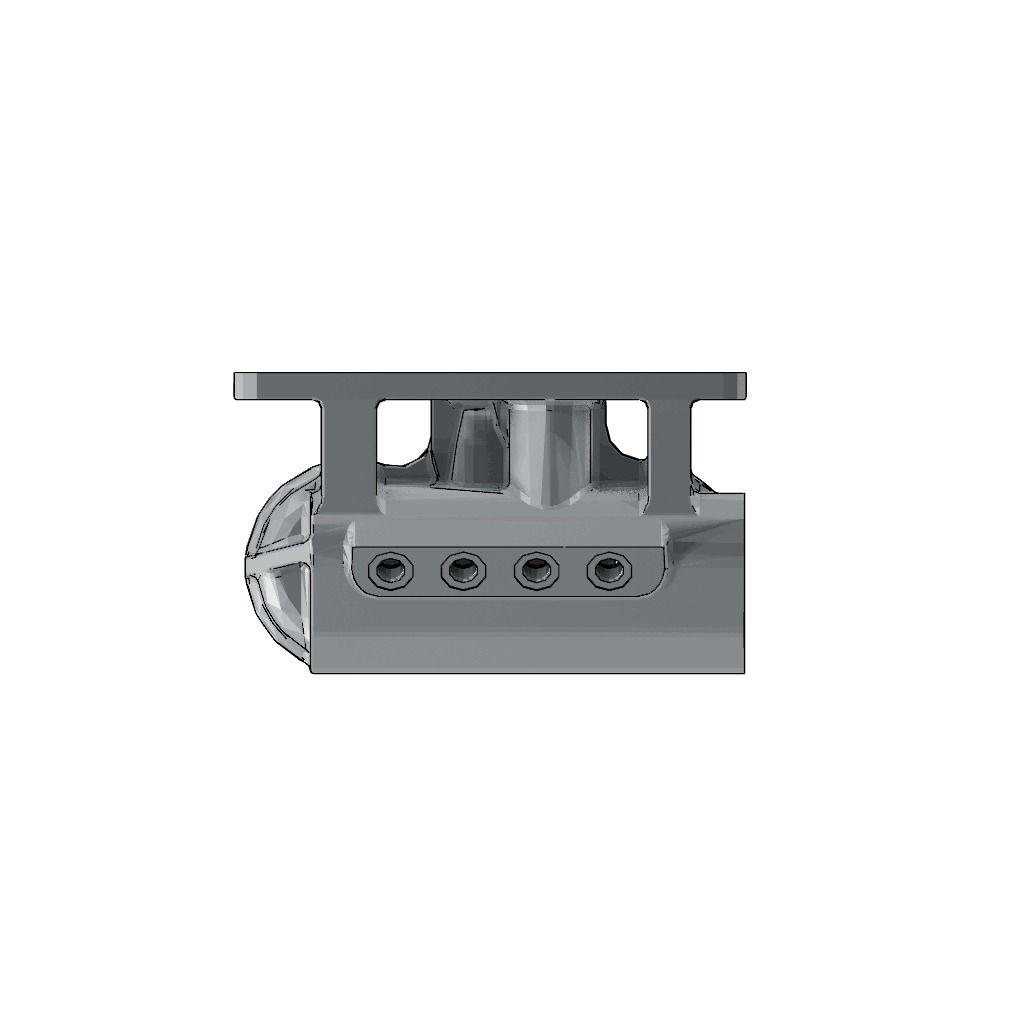

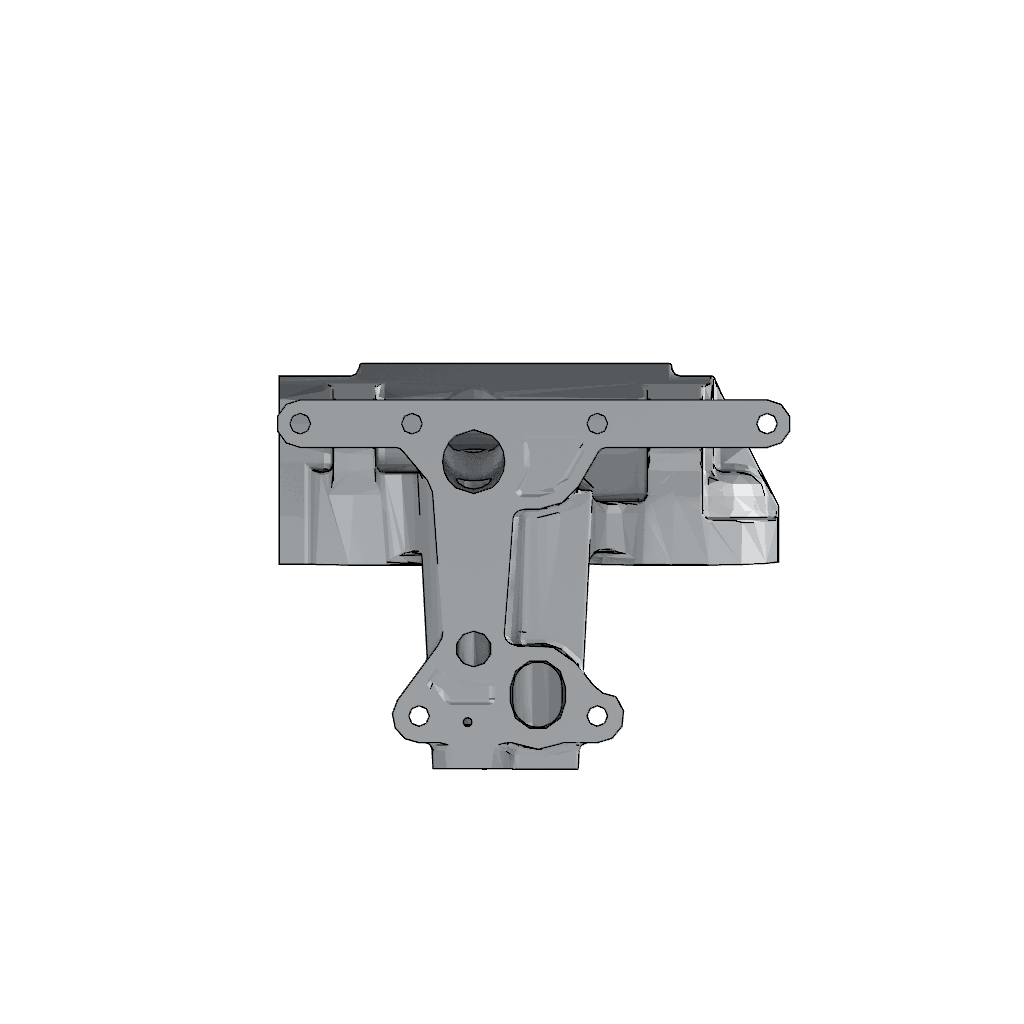

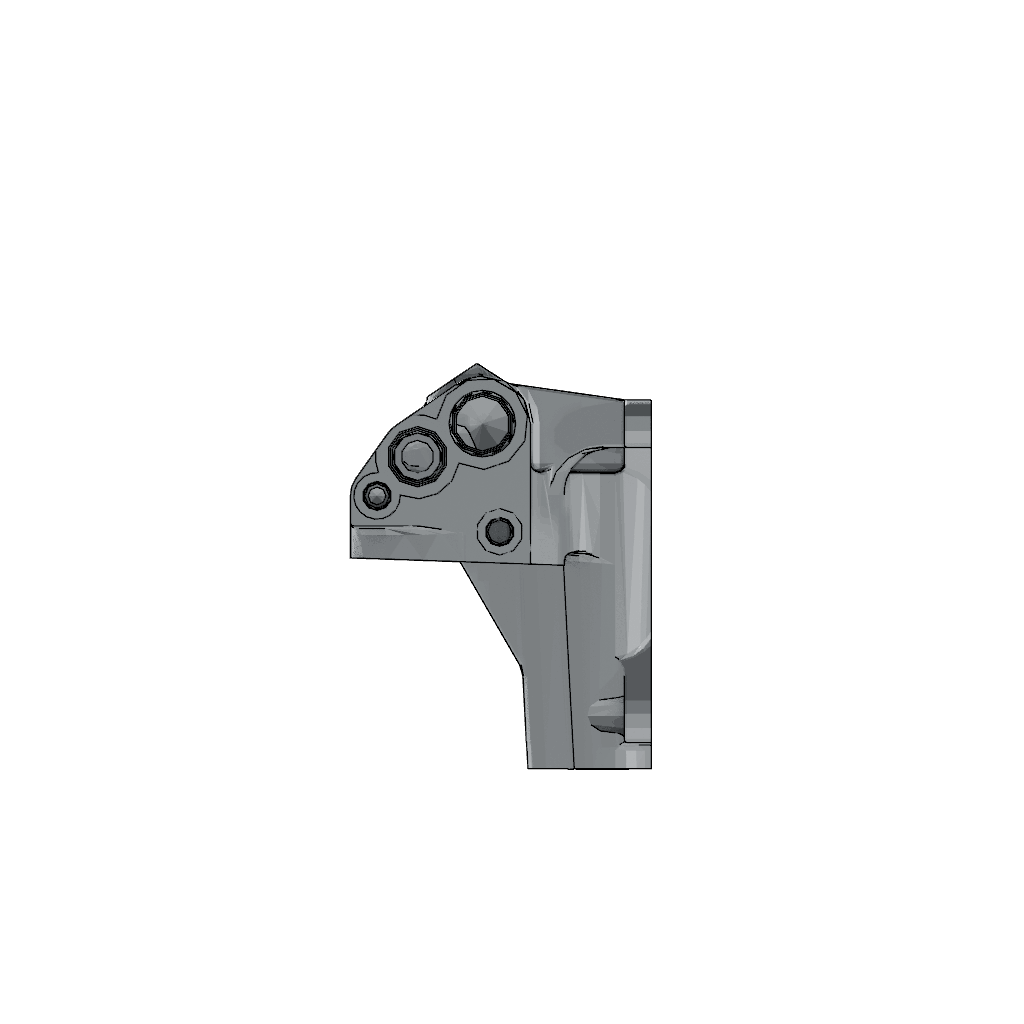

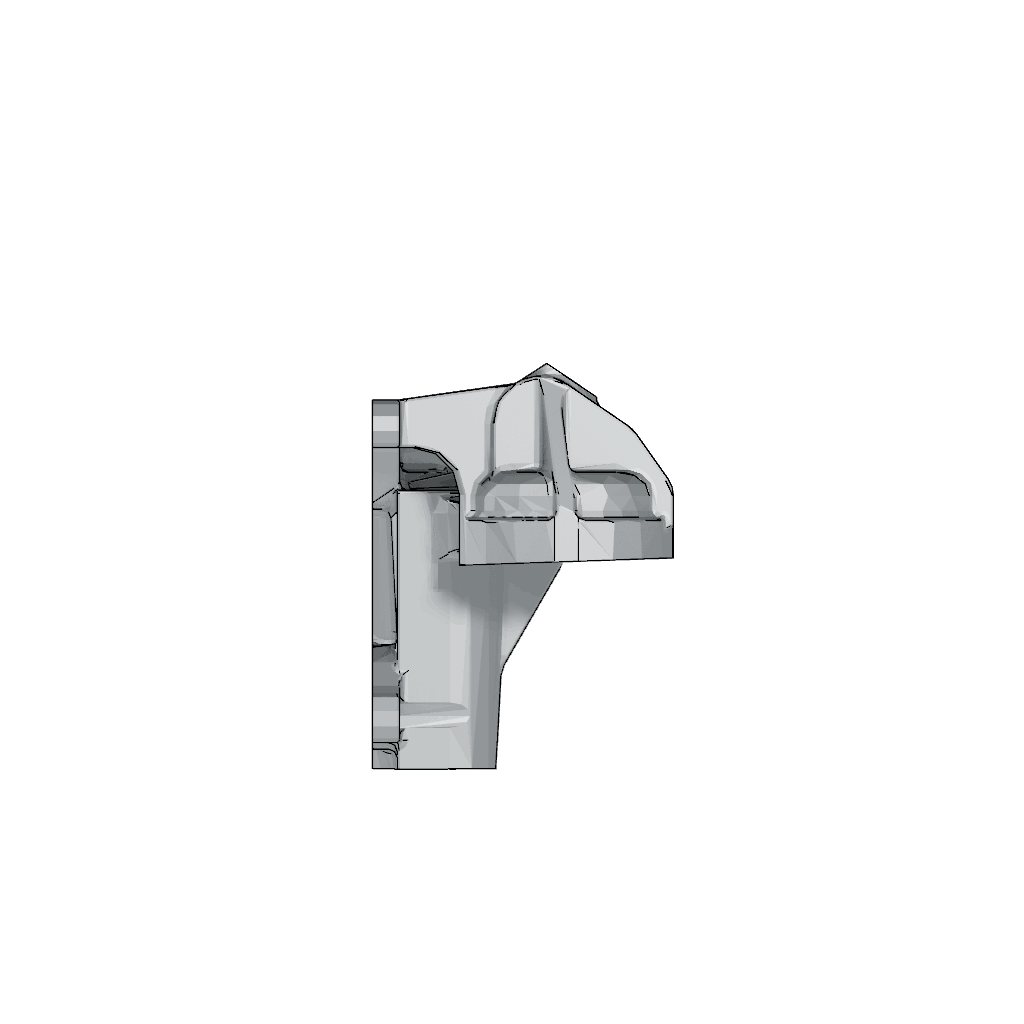

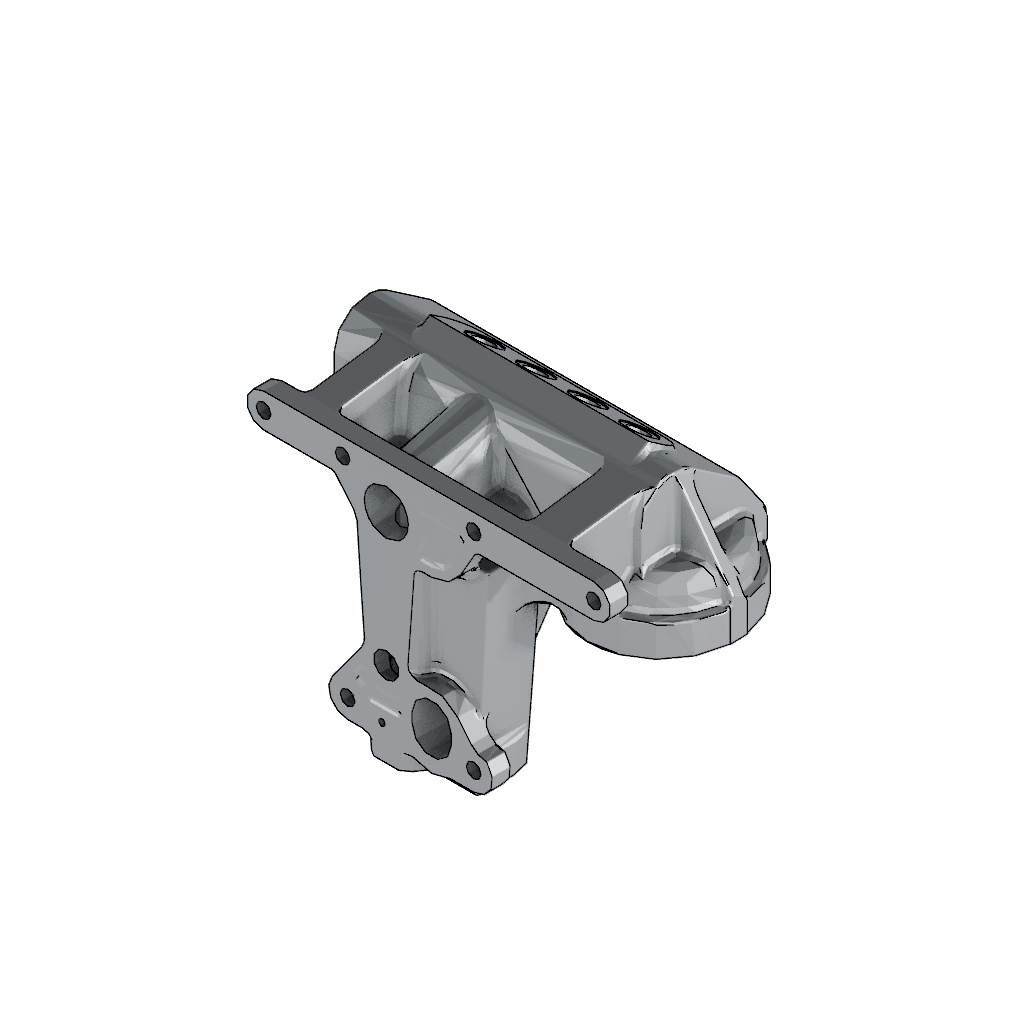

Lubricating Oil Filter Head
Cummins®

Introduction

The Lubricating Oil Filter Head 4009241, designed by Cummins, is a vital component for heavy-duty truck engines. It ensures the filtration of engine oil, removing contaminants to maintain engine performance and longevity. This part is essential for the engine’s lubrication system, enhancing the vehicle’s efficiency and reliability.

Function and Operation

The Lubricating Oil Filter Head serves as a crucial junction in the engine’s lubrication system. It connects the oil filter to the engine block, allowing oil to flow from the sump through the filter media where contaminants are trapped. Clean oil then circulates back into the engine, lubricating moving parts and reducing wear. This process is essential for maintaining the engine’s operational integrity and performance ¹.

Key Features

The Lubricating Oil Filter Head 4009241 is known for its robust design and high-quality materials, ensuring durability and reliability. It features a secure connection mechanism that prevents leaks and maintains consistent oil flow. The design also incorporates ease of installation and removal, facilitating maintenance procedures. Additionally, the filter head is engineered to withstand the high pressures and temperatures typical of heavy-duty engine environments ².

Benefits

Incorporating the Lubricating Oil Filter Head 4009241 into an engine’s lubrication system offers several advantages. It contributes to improved engine performance by ensuring that oil remains clean and free of contaminants. This cleanliness leads to reduced friction between moving parts, which can extend engine life. Furthermore, the reliable operation of the filter head enhances the overall reliability of the engine, reducing the likelihood of unexpected downtimes ³.

Installation and Maintenance

Proper installation of the Lubricating Oil Filter Head involves ensuring a tight seal with the engine block to prevent oil leaks. It is recommended to use the appropriate tools for tightening and to follow manufacturer guidelines for torque specifications. Regular maintenance includes checking for signs of wear or damage and replacing the oil filter as per the manufacturer’s schedule. Keeping the filter head and associated components clean and free of debris is also important for optimal performance.

Troubleshooting

Common issues with the Lubricating Oil Filter Head may include oil leaks, difficulty in installation or removal, and contamination of the oil due to a faulty filter. To address these problems, it is important to inspect the connections for tightness and integrity, ensure that the filter is correctly seated, and replace the filter if contamination is suspected. Following manufacturer guidelines for maintenance and replacement can help prevent many of these issues.

Safety Considerations

When working with the Lubricating Oil Filter Head, it is important to observe safety guidelines to prevent injury and ensure proper operation. This includes wearing appropriate personal protective equipment, ensuring the engine is cool before attempting any work, and following all manufacturer instructions for installation and maintenance. Additionally, disposing of used oil filters and contaminated oil in accordance with environmental regulations is crucial.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the automotive and heavy-duty truck industries. The company’s extensive product range includes engines, powertrains, and related components, all designed to meet the demanding requirements of various applications.

Cummins Engine Compatibility with Lubricating Oil Filter Head Part 4009241

The Cummins part 4009241, a Lubricating Oil Filter Head, is designed to fit seamlessly with several of Cummins’ engine models. This part is integral to the engine’s lubrication system, ensuring that the oil is filtered properly before it circulates through the engine. Below is a detailed description of how this part fits with the specified engines:

KTA19GC and KTA19GC CM558

The KTA19GC and KTA19GC CM558 engines are part of Cummins’ KTA series, which are known for their reliability and efficiency in marine and industrial applications. The 4009241 Lubricating Oil Filter Head is engineered to fit these engines, ensuring that the oil filtration process is efficient and reliable. The design of this part allows for easy installation and maintenance, which is crucial for the operational longevity of these engines.

QSK19 CM500 and QSK19 CM850 MCRS

The QSK19 series engines, including the QSK19 CM500 and QSK19 CM850 MCRS, are designed for heavy-duty applications. These engines benefit from the 4009241 Lubricating Oil Filter Head due to its robust design and ability to handle high-pressure oil systems. The part is engineered to provide a secure fit, ensuring that the oil filtration system operates efficiently under demanding conditions. This is particularly important for the QSK19 CM850 MCRS, which is equipped with Marine Compliance Ready System (MCRS), requiring stringent filtration standards.

QSK19G

The QSK19G engine is another variant in Cummins’ QSK19 series, known for its versatility and power. The 4009241 Lubricating Oil Filter Head is compatible with this engine, providing the necessary filtration to maintain engine performance and longevity. The design of this part ensures that it can withstand the operational stresses of the QSK19G engine, making it a reliable choice for users.

Each of these engines, despite their different applications and specifications, benefits from the 4009241 Lubricating Oil Filter Head in terms of ensuring clean and efficient oil circulation. This part is a critical component in maintaining the overall health and performance of the engines, making it a valuable part for Cummins engine users.

Role of Part 4009241 Lubricating Oil Filter Head in Engine Systems

The lubricating oil filter head, identified as part 4009241, is an integral component in the efficient operation of engine systems. This part interfaces directly with the full-flow oil filter and the lubricating oil system, ensuring optimal performance and longevity of the engine.

Integration with Full-Flow Oil Filter

The full-flow oil filter is responsible for removing contaminants from the engine oil as it circulates through the system. Part 4009241, the lubricating oil filter head, plays a significant role in this process by providing a secure and leak-proof connection to the full-flow oil filter. This ensures that the oil passes through the filter media without any bypass, maintaining the cleanliness of the lubricating oil.

Function within the Lubricating Oil System

In the lubricating oil system, the filter head is essential for maintaining the pressure and flow of oil to various engine components. It acts as a junction point where the oil, after being filtered, is directed towards the engine bearings, pistons, and other moving parts. The design of part 4009241 allows for efficient oil distribution, reducing the risk of oil starvation in critical areas of the engine.

Ensuring System Integrity

The lubricating oil filter head also contributes to the overall integrity of the oil system. By providing a robust connection between the filter and the engine, it prevents oil leaks that could lead to decreased oil levels and potential engine damage. Additionally, the filter head often includes features such as gaskets and seals that enhance the system’s reliability under varying operating conditions.

Enhanced Filtration Efficiency

With part 4009241 in place, the filtration efficiency of the full-flow oil filter is maximized. The secure attachment ensures that all oil passing through the system is adequately filtered, removing particulate matter and impurities that could otherwise cause wear and tear on engine components. This results in smoother engine operation and extended maintenance intervals.

Support for Engine Longevity

By ensuring clean and pressurized oil reaches all necessary engine parts, the lubricating oil filter head supports the overall longevity of the engine. Proper lubrication reduces friction and heat, which are common causes of engine wear. The consistent performance of part 4009241 is therefore vital for maintaining engine health over time.

Conclusion

The Lubricating Oil Filter Head 4009241 by Cummins is a critical component in the maintenance and performance of heavy-duty truck engines. Its robust design, ease of installation, and reliable operation contribute to the efficient filtration of engine oil, ensuring clean and pressurized oil reaches all engine parts. This not only enhances engine performance but also extends its longevity, making it an essential part for Cummins engine users.
