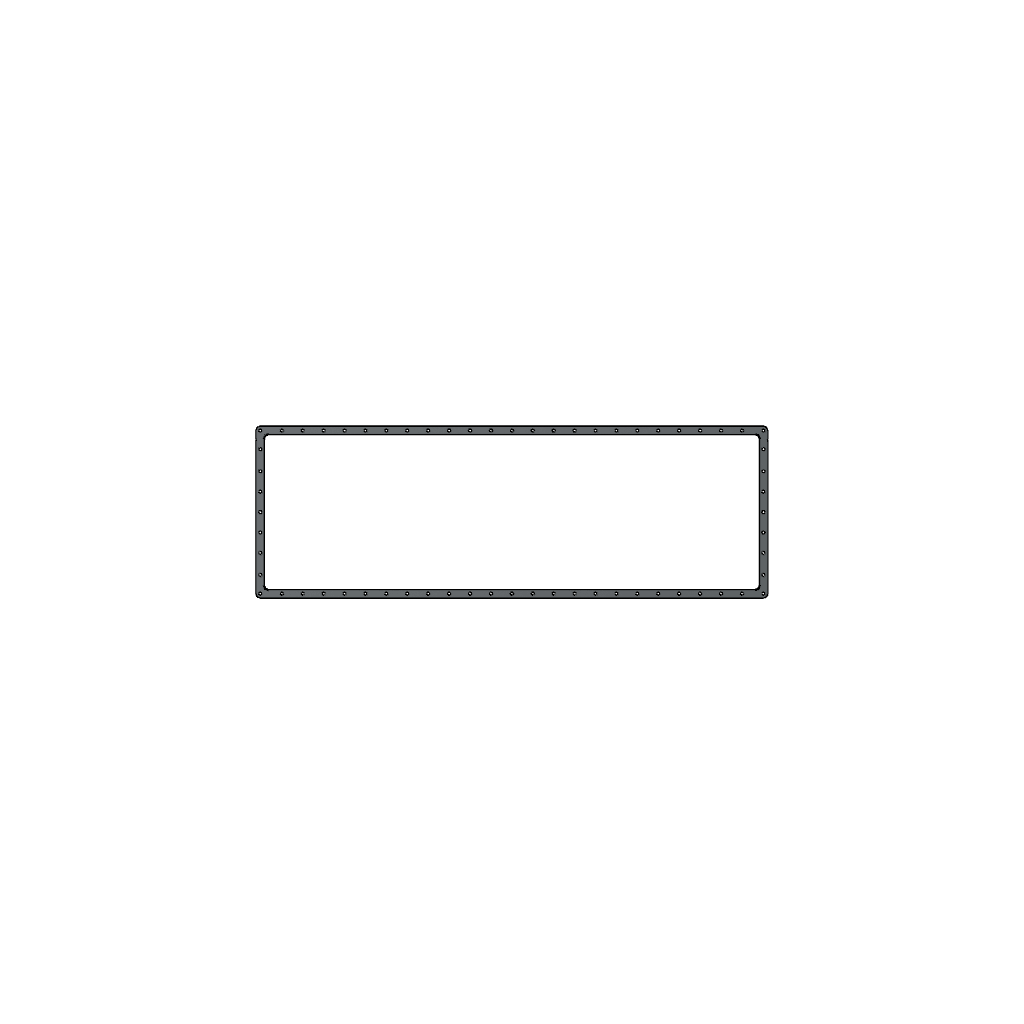

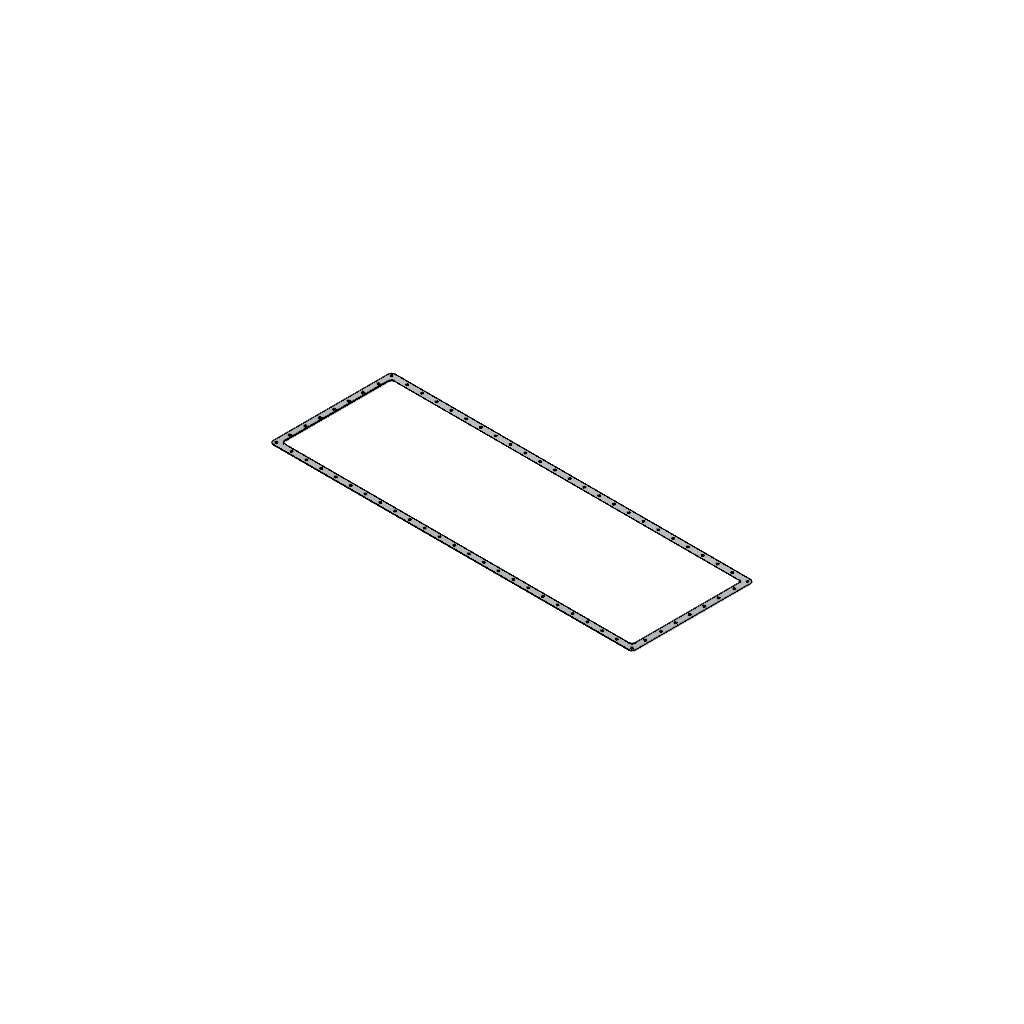

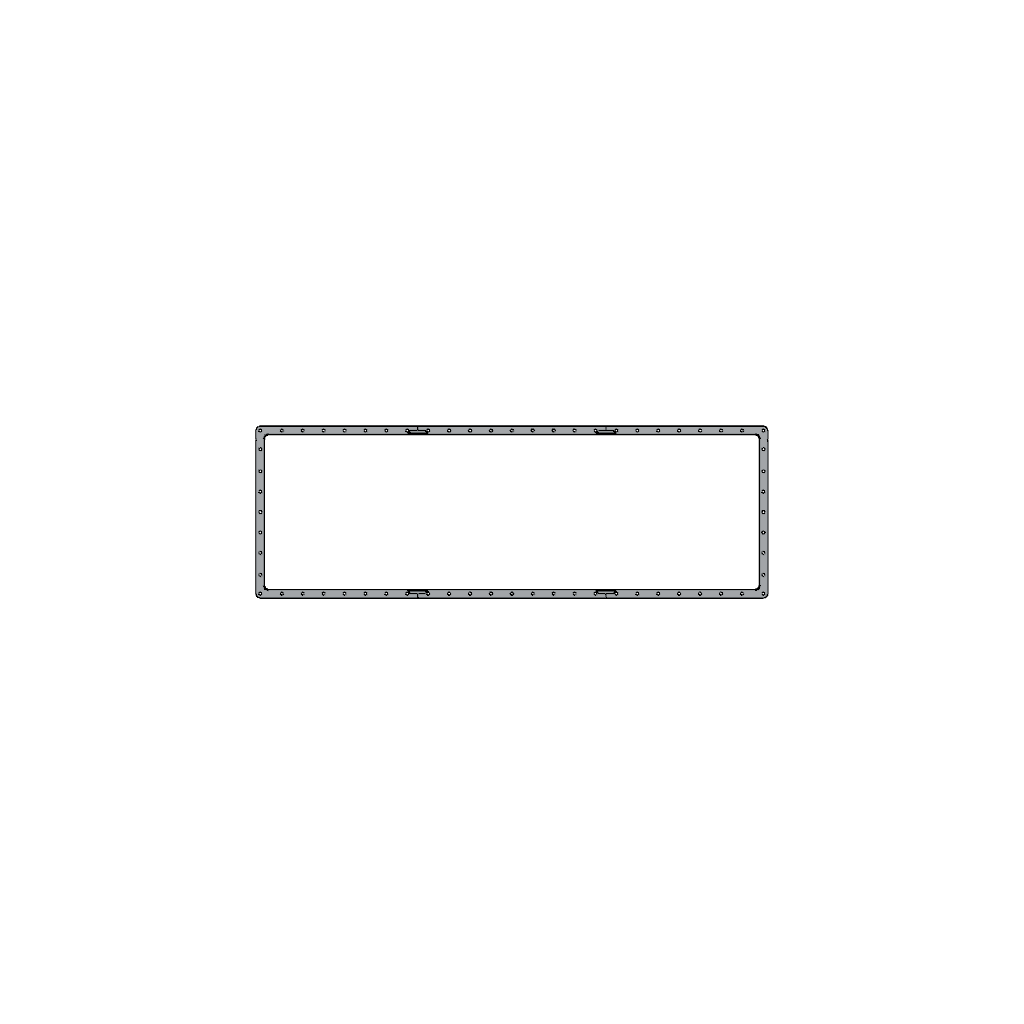

3332083
Oil Pan Adapter Gasket
Cummins®

Introduction

The Cummins 3332083 Oil Pan Adapter Gasket is a critical component for the efficient operation of heavy-duty trucks. It ensures a secure seal between the oil pan and the engine block, which is essential for maintaining the integrity of the engine’s lubrication system. This gasket prevents oil leaks, which can lead to engine damage and reduced performance.

Basic Concepts of Oil Pan Adapter Gaskets

An Oil Pan Adapter Gasket acts as a barrier to prevent oil from escaping the oil pan while allowing it to flow into the engine’s lubrication system. Positioned between the oil pan and the engine block, this gasket ensures that oil remains contained within the system, maintaining a consistent oil level and contributing to the overall health and efficiency of the engine ¹.

Purpose of the Cummins 3332083 Oil Pan Adapter Gasket

The Cummins 3332083 Oil Pan Adapter Gasket is engineered to seal the oil pan to the engine block in Cummins engines. This sealing function is vital for preventing oil leaks, which can cause a drop in oil pressure and lead to engine wear. The gasket ensures that the oil remains within the system, providing consistent lubrication to the engine’s moving parts ².

Key Features

The Cummins 3332083 Oil Pan Adapter Gasket is constructed from high-quality materials that offer durability and resistance to the harsh conditions within an engine. Its design specifications are tailored to fit precisely within the engine block and oil pan interface, ensuring a secure and reliable seal. The gasket’s flexibility and resistance to oil and heat enhance its performance and longevity ³.

Benefits

Utilizing the Cummins 3332083 Oil Pan Adapter Gasket offers several advantages. It contributes to improved engine performance by maintaining optimal oil levels and pressure. The gasket’s durable construction ensures enhanced longevity, reducing the need for frequent replacements. Additionally, its reliable sealing capabilities help prevent oil leaks, which can lead to engine damage and increased maintenance costs.

Installation Process

Installing the Cummins 3332083 Oil Pan Adapter Gasket requires careful attention to detail to ensure a secure fit. Begin by cleaning the mating surfaces of the oil pan and engine block to remove any debris or old gasket material. Place the gasket onto the oil pan, ensuring it is correctly aligned with the engine block. Lower the oil pan into position and secure it with the appropriate fasteners, following the manufacturer’s torque specifications to avoid over-tightening, which can damage the gasket.

Troubleshooting Common Issues

Common issues with Oil Pan Adapter Gaskets include leaks and improper sealing. If a leak is detected, inspect the gasket for signs of damage or misalignment. Ensure that the mating surfaces are clean and free of debris before reinstalling the gasket. If the gasket appears worn or damaged, replacement is recommended to prevent further leaks and potential engine damage.

Maintenance Tips

To prolong the lifespan of the Cummins 3332083 Oil Pan Adapter Gasket, regular inspection and maintenance are recommended. Check for signs of wear or damage during routine oil changes and address any issues promptly. Keeping the engine clean and free of debris can also help prevent contamination of the gasket, ensuring its effectiveness over time.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a strong reputation in the automotive industry, Cummins offers a wide range of products for heavy-duty trucks, including engines, components, and aftermarket parts. The company’s commitment to innovation, quality, and customer satisfaction has established it as a trusted name in the industry.

Cummins Oil Pan Adapter Gasket 3332083 Compatibility

The Cummins Oil Pan Adapter Gasket part number 3332083 is designed to fit seamlessly with the QSK45 CM500 and QSK60 CM500 engines. This gasket ensures the integrity of the oil system by providing a secure seal between the oil pan and the engine block. For the QSK45 CM500 engine, the gasket prevents oil leaks and maintains optimal lubrication levels. Similarly, for the QSK60 CM500 engine, the gasket ensures the efficiency and reliability of the oil system. Both engines benefit from the precision engineering of the 3332083 gasket, which is crafted to meet the stringent demands of heavy-duty applications.

Role of Part 3332083 Oil Pan Adapter Gasket in Engine Systems

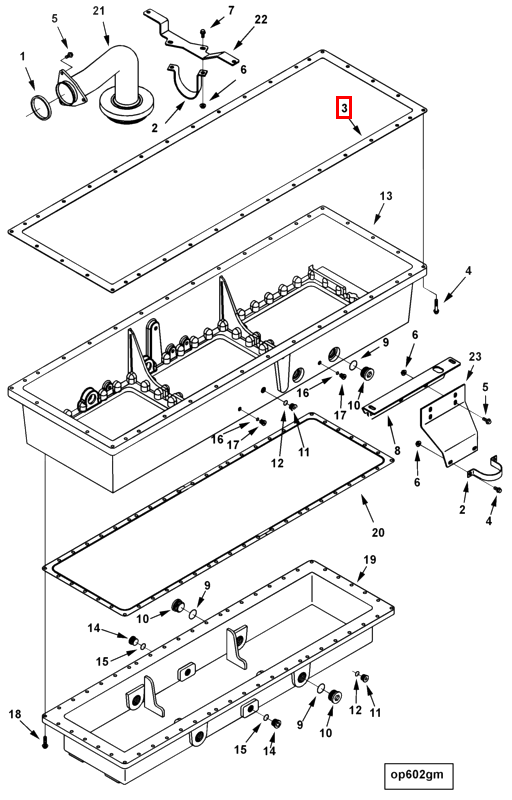

The part 3332083 Oil Pan Adapter Gasket is a vital component in the assembly and maintenance of engine systems, particularly in ensuring the integrity of the oil management system. This gasket is specifically designed to seal the connection between the oil pan and the oil adapter, which is a critical junction in the lower section of the engine.

In the context of the design of engine systems, the Oil Pan Adapter Gasket plays a significant role. It is positioned to create a tight seal that prevents oil leakage from the oil pan, which houses the engine’s lubricant. This seal is vital for maintaining the proper oil level within the engine, ensuring that all moving parts are adequately lubricated to reduce friction and wear.

When considering alternatives to traditional gasket materials, the Oil Pan Adapter Gasket may be constructed from various compounds such as rubber, cork, or synthetic materials, each offering different levels of durability and resistance to oil and heat. The choice of material can affect the gasket’s performance and longevity within the engine system.

In relation to the Lower Engine Gasket Set, the Oil Pan Adapter Gasket is a specific component within this set. The Lower Engine Gasket Set typically includes various gaskets that seal different parts of the lower engine, such as the oil pan, front cover, and timing cover. The Oil Pan Adapter Gasket’s role is to ensure that the oil pan is securely sealed to the adapter, complementing the function of other gaskets in the set.

Similarly, within the Lower Oil Pan Gasket Set, the Oil Pan Adapter Gasket is a specialized gasket that addresses the unique sealing requirements at the oil pan adapter interface. This set may include gaskets for the oil pan to block connection, as well as the adapter gasket, all working together to maintain a leak-free environment for the engine’s oil system.

The Pan itself is a fundamental part of the engine’s oil system, serving as a reservoir for the engine oil. The Oil Pan Adapter Gasket ensures that this reservoir is sealed effectively, preventing oil from escaping and contaminating other engine components or the environment.

Lastly, in the context of the engine’s Oil system, the Oil Pan Adapter Gasket is instrumental in maintaining the oil’s cleanliness and volume. By providing a reliable seal, it helps to ensure that the oil remains within the system, ready to be circulated by the oil pump to lubricate and cool the engine’s internal components.

Conclusion

The Cummins 3332083 Oil Pan Adapter Gasket is a critical component for maintaining the efficiency and reliability of heavy-duty truck engines. Its role in preventing oil leaks and ensuring consistent lubrication is essential for the overall health of the engine. Proper installation, regular maintenance, and understanding its compatibility with specific engine models are key to maximizing the benefits of this Cummins part.
