5333883
Injector Fuel Supply Tube
Cummins®

Introduction

The Cummins 5333883 Fuel Injector Supply Tube is a critical component in the fuel system of heavy-duty trucks. It ensures efficient fuel delivery from the fuel rail to the injectors, contributing to the vehicle’s overall performance and reliability.

Basic Concepts

Fuel injector supply tubes are essential for the fuel system’s operation, facilitating the delivery of fuel to the injectors. This ensures each cylinder receives the precise amount of fuel for combustion, directly influencing fuel efficiency, power output, and emissions ¹. The design and material of these tubes impact their durability and efficiency, making them a significant consideration in engine design and maintenance.

Purpose and Function

The Cummins 5333883 Fuel Injector Supply Tube connects the fuel rail to the injectors, delivering fuel under pressure. This ensures the fuel is correctly atomized for combustion, maintaining consistent fuel pressure crucial for efficient injector operation ².

Key Features

This Cummins part is characterized by its robust design and durable materials, engineered to withstand high pressures and temperatures. It offers resistance to corrosion and wear, ensuring a secure connection to the fuel rail and injectors, minimizing leaks, and ensuring efficient fuel delivery.

Benefits

Using the Cummins 5333883 Fuel Injector Supply Tube enhances fuel efficiency by ensuring optimal fuel delivery pressure. This leads to more effective fuel atomization, resulting in more complete combustion and improved engine performance. Its durability reduces the need for frequent replacements, lowering maintenance costs and downtime.

Troubleshooting and Maintenance

Regular maintenance of the Cummins 5333883 Fuel Injector Supply Tube is recommended to ensure optimal performance and longevity. This includes checking for wear or corrosion, securing connections, and verifying fuel pressure within manufacturer specifications. Promptly addressing issues such as fuel leaks or inconsistent engine performance can prevent more significant problems.

Cummins Overview

Cummins Inc. is a global leader in designing, manufacturing, and distributing engines, filtration, and power generation products. With over a century of history, Cummins is renowned for its innovation, quality, and reliability in the automotive and heavy-duty truck industries. The company’s commitment to advancing technology and improving efficiency is reflected in its wide range of products, including the Cummins 5333883 Fuel Injector Supply Tube.

Compatibility

The Cummins part number 5333883, a Fuel Injector Supply Tube, is designed for seamless integration with several engine models, ensuring efficient fuel delivery to the injectors.

ISF3.8 CM2220 Engines

The Fuel Injector Supply Tube 5333883 is compatible with the ISF3.8 CM2220 engines, specifically the variants AN and F103. It ensures a steady and clean fuel flow to the injectors, maintaining engine reliability and performance.

ISF4.5 CM2220 Engine

The ISF4.5 CM2220 engine, identified by the F123 variant, also utilizes the Fuel Injector Supply Tube 5333883. This part is vital for the engine’s operation, providing the necessary fuel supply to the injectors, which is critical for performance and efficiency.

QSF3.8 CM2880 Engine

The QSF3.8 CM2880 engine, specifically the F112 variant, is compatible with the Fuel Injector Supply Tube 5333883. This ensures smooth fuel system operation, contributing to the engine’s overall performance and reliability.

Role in Engine Systems

The Cummins 5333883 Fuel Injector Supply Tube is integral to the fuel delivery system, transporting fuel from the fuel rail to the individual fuel injectors. It ensures a consistent and reliable fuel supply, vital for efficient engine operation.

Integration with Engine Components

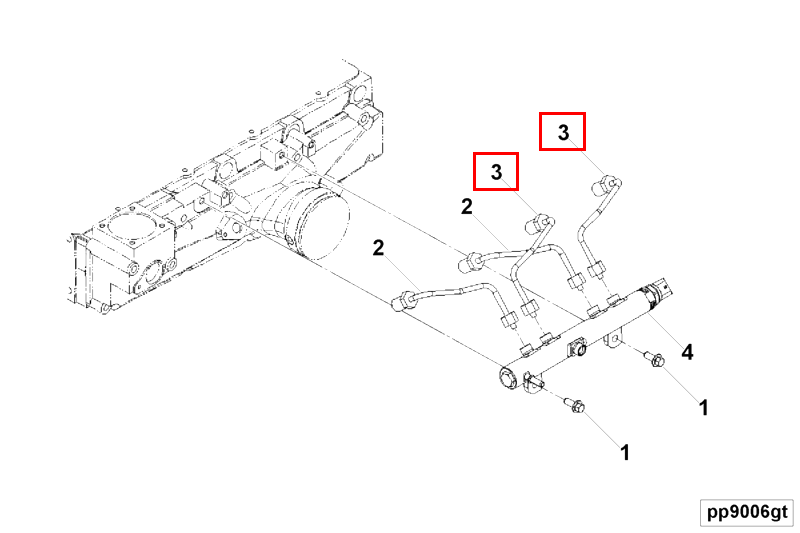

• Fuel Rail: Connects directly to the fuel rail, ensuring fuel is delivered under the correct pressure.
• Fuel Injectors: Supplies fuel to each injector, allowing for a steady flow and controlled atomization into the combustion chamber.
• Cylinder: Ensures optimal fuel-air mixture for efficient combustion, leading to better power output, fuel economy, and reduced emissions.
• Engine Head: Must be correctly aligned with the head to prevent leaks or restrictions in fuel delivery.
• Injector Plumbing: Part of the injector plumbing system, ensuring a seamless connection between the fuel rail and injectors.
• Performance Parts: May be upgraded in high-performance engine setups to handle increased fuel flow, maintaining reliability in performance-oriented fuel systems.

Conclusion

The Cummins 5333883 Fuel Injector Supply Tube plays a significant role in the fuel delivery system by ensuring a consistent and reliable supply of fuel to the injectors. Its integration with other engine components is essential for maintaining optimal engine performance and efficiency.
