5258983

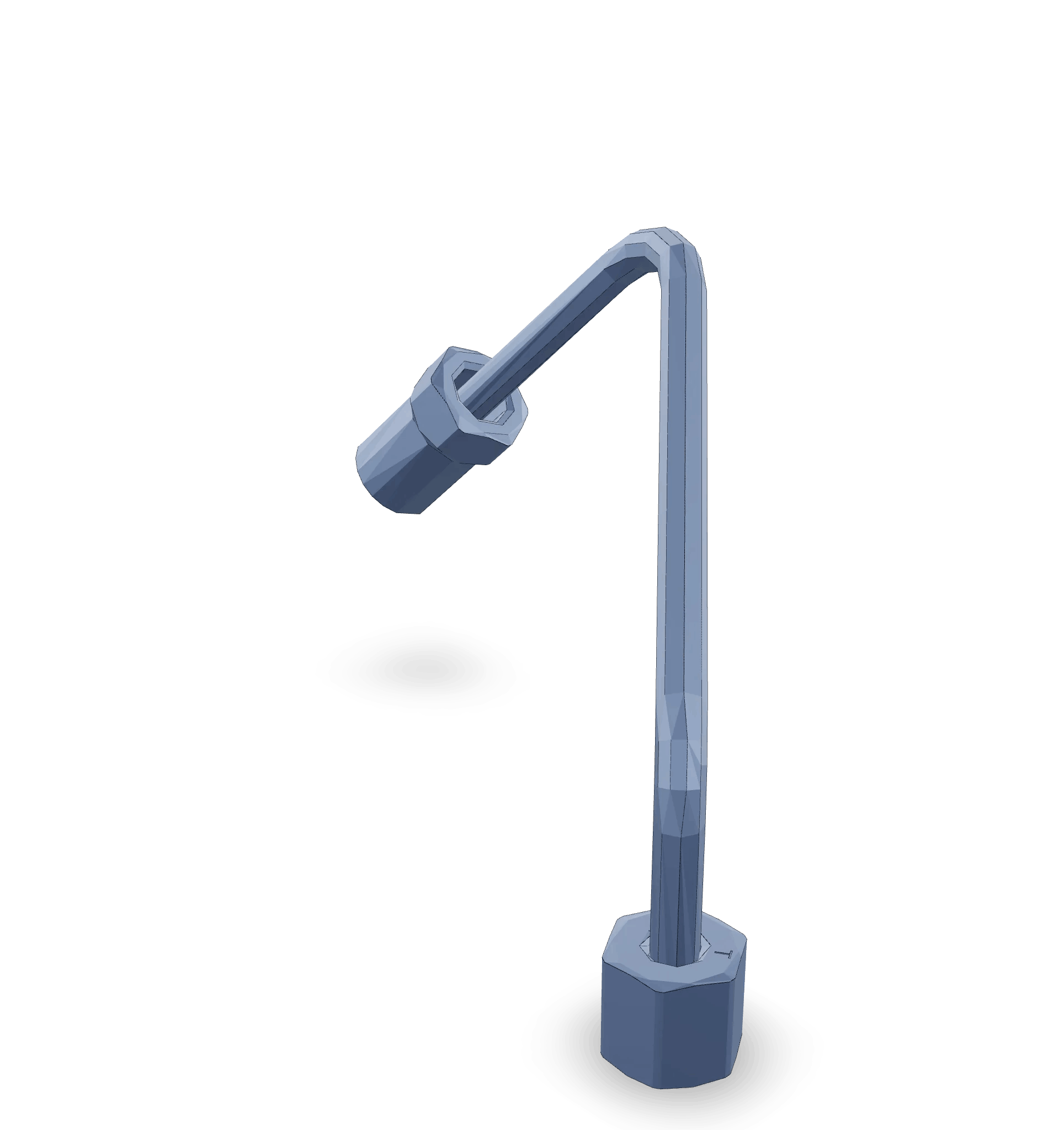

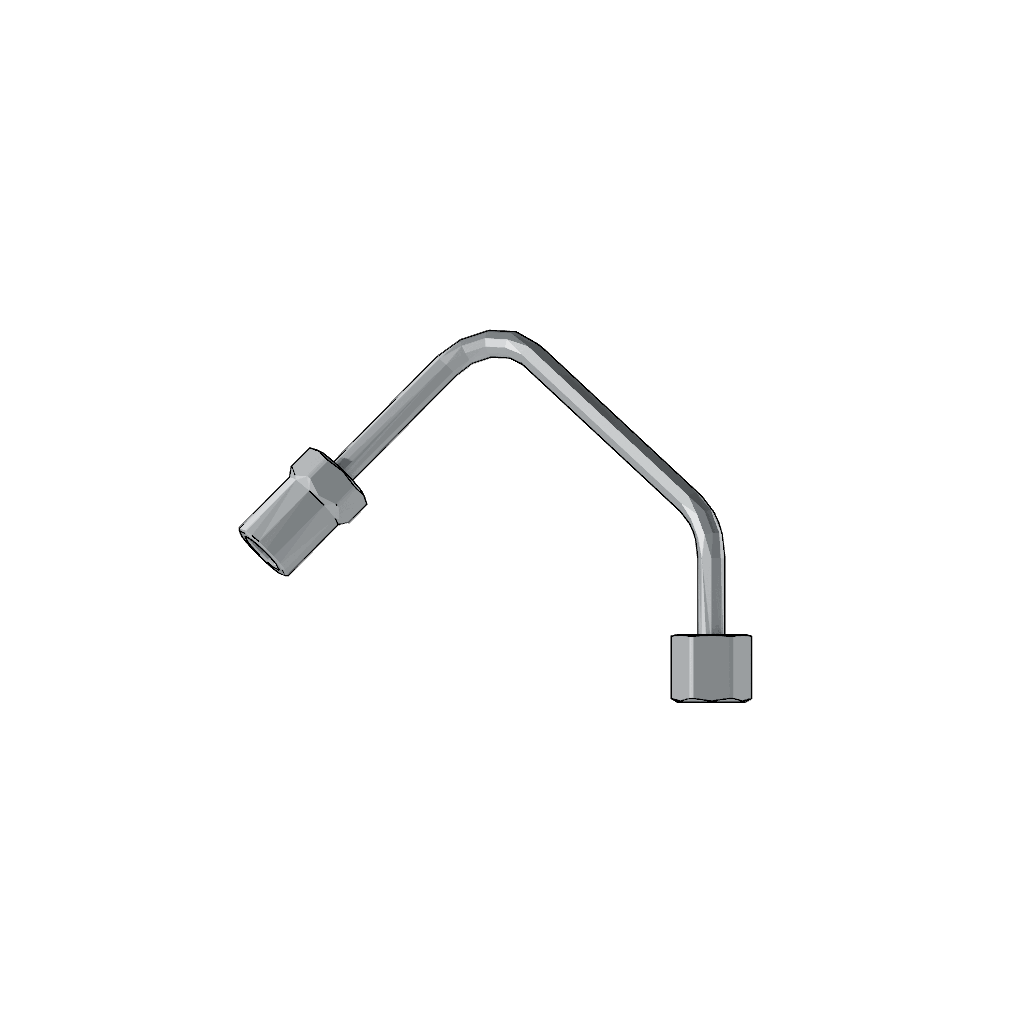

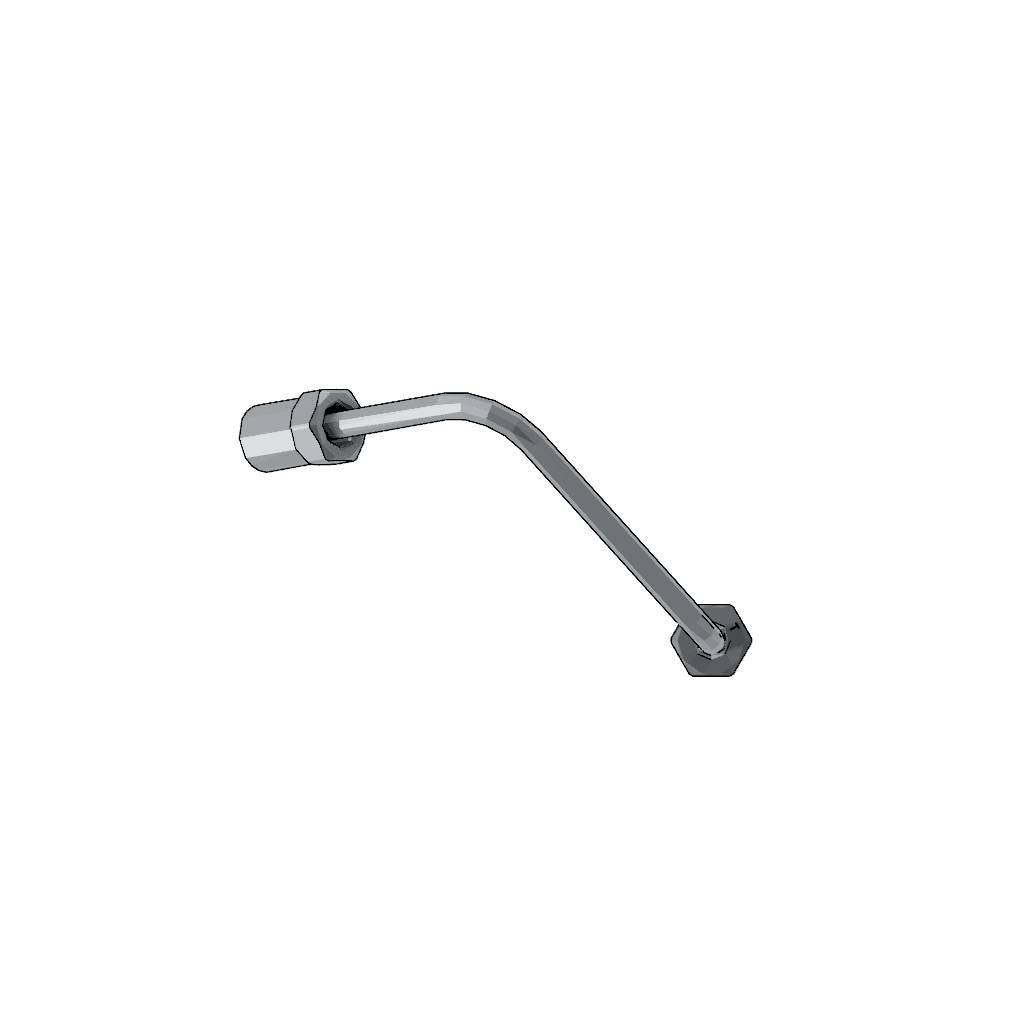

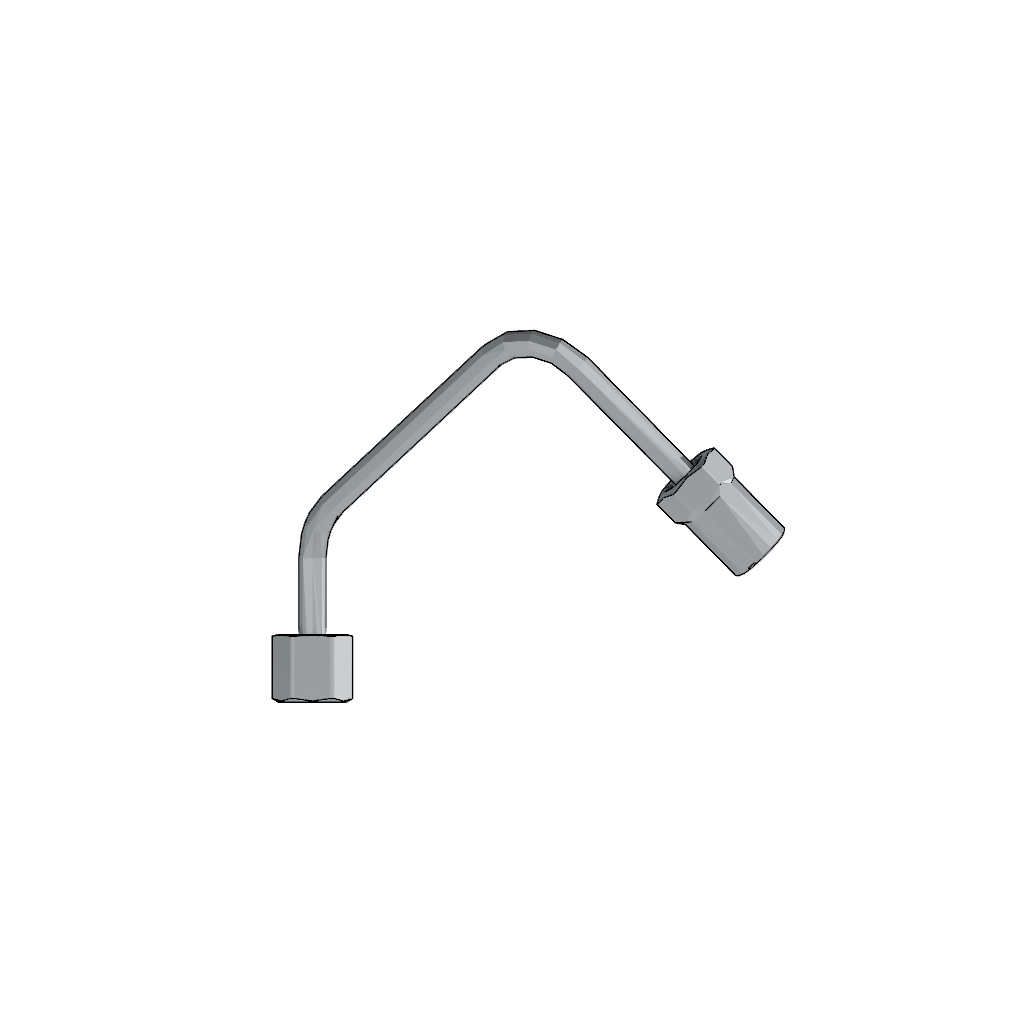

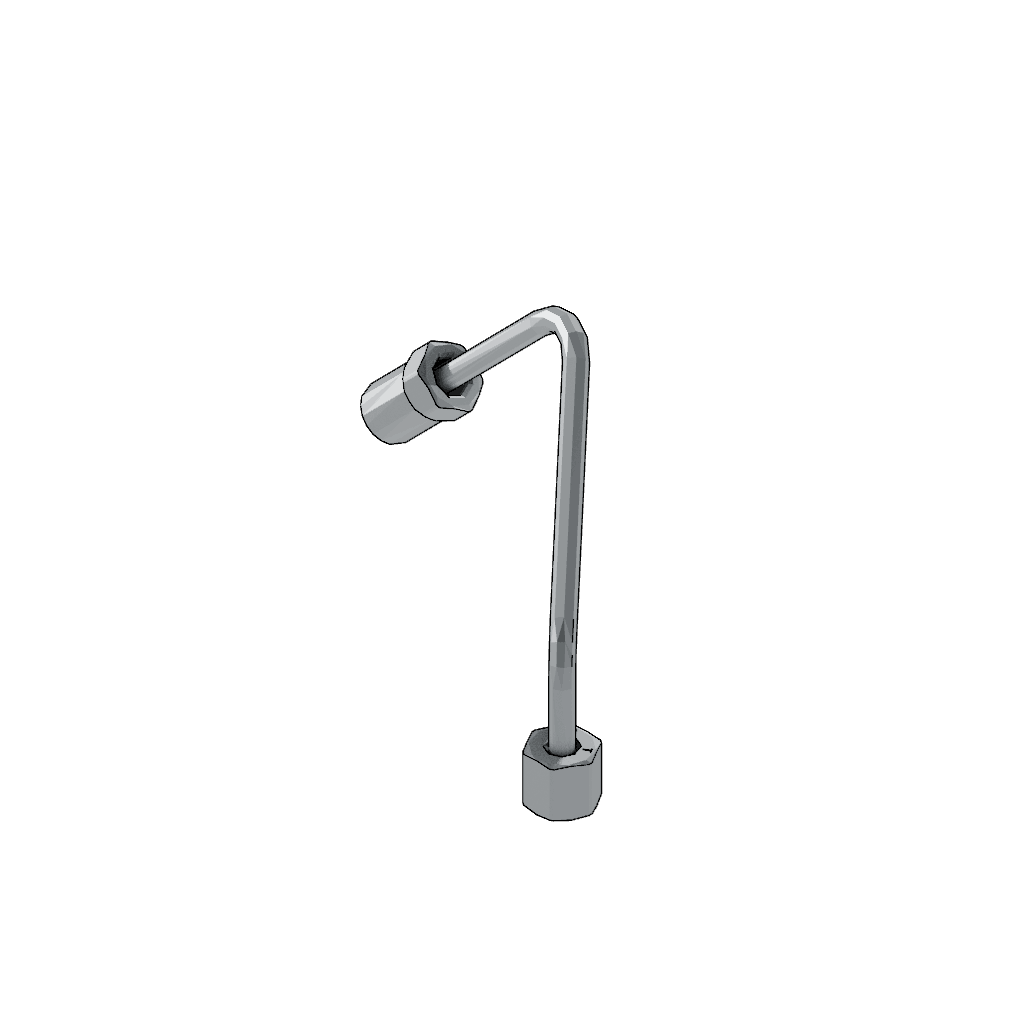

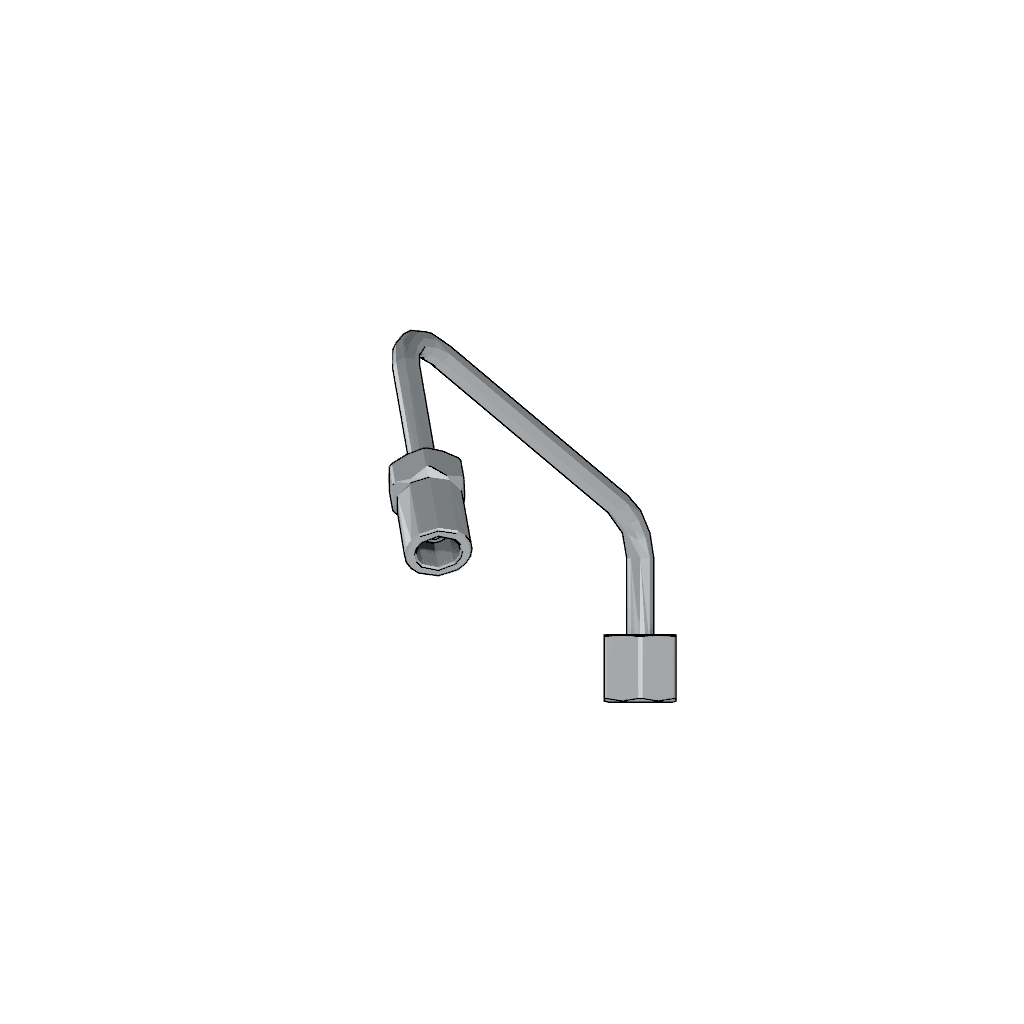

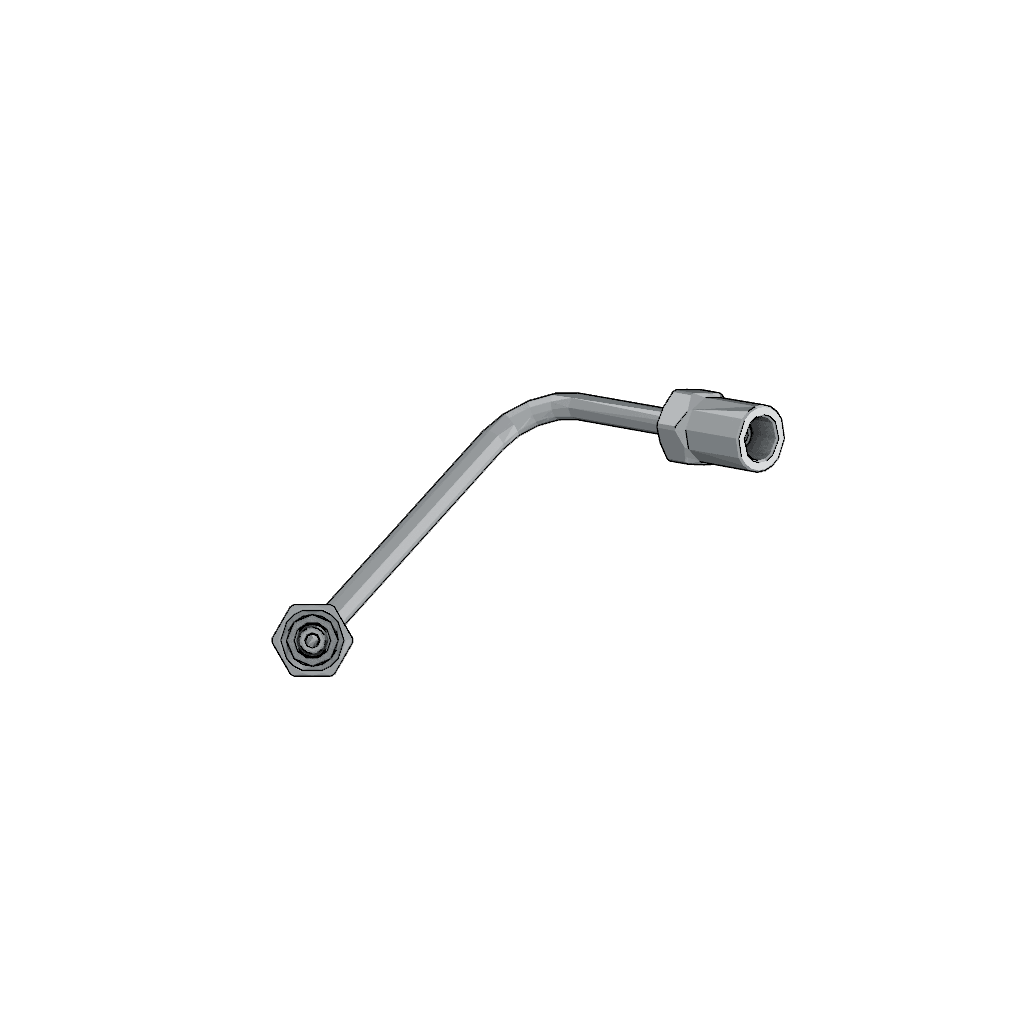

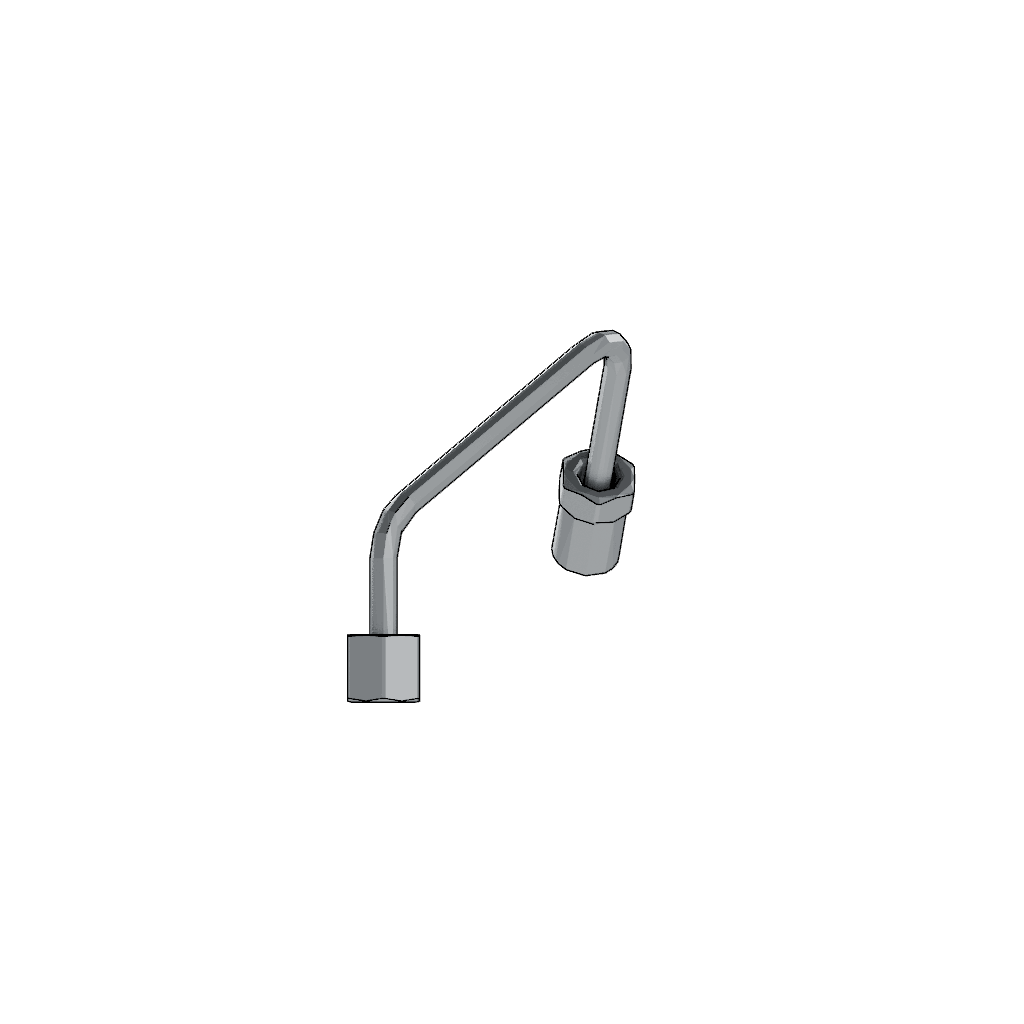

Injector Fuel Supply Tube
Cummins®

AVAILABLE

Cummins®

3 are currently available

Ships within 2-4 business days

$22.95 $27.31

This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION

The Cummins Injector Fuel Supply Tube, part number 5258983, is a component designed for the fuel systems of heavy-duty trucks. This part facilitates the delivery of fuel from the tank to the injectors, ensuring efficient and reliable engine operation.

Function and Operation

The Injector Fuel Supply Tube operates by transporting fuel from the tank to the injectors within the fuel system. It maintains a consistent fuel supply, which is vital for the combustion process in the engine. The tube is engineered to withstand the pressures and temperatures associated with fuel delivery, ensuring that fuel reaches the injectors in the required quantity and at the necessary pressure.

Key Features

The Injector Fuel Supply Tube is constructed from materials that offer durability and resistance to the corrosive effects of fuel. Its design includes features that enhance its performance, such as precise fittings that ensure a secure connection within the fuel system. The tube’s material characteristics contribute to its longevity and reliability in demanding operating conditions.

Benefits

The Injector Fuel Supply Tube provides several advantages within the fuel system. It contributes to improved fuel delivery efficiency, which can lead to better engine performance. The reliability of the tube ensures that the fuel system operates consistently, reducing the likelihood of interruptions in fuel supply. Additionally, the tube’s design and material contribute to the overall efficiency and durability of the engine.

Installation and Compatibility

When installing the Injector Fuel Supply Tube, it is important to follow manufacturer guidelines to ensure proper fit and function within the fuel system. Compatibility with Cummins engines is a key consideration, and adherence to installation procedures helps maintain the integrity of the fuel system.

Maintenance and Troubleshooting

Regular maintenance of the Injector Fuel Supply Tube is recommended to ensure ongoing performance. This includes inspecting the tube for signs of wear or damage and addressing any issues promptly. Common problems may include leaks or blockages, which can be identified through routine checks and resolved with appropriate repairs or replacements.

Safety Considerations

When working with the Injector Fuel Supply Tube, it is important to observe safety precautions. This includes using proper handling procedures and ensuring that safety equipment is available. Fuel systems operate under pressure and contain flammable substances, so caution is necessary to prevent accidents and ensure a safe working environment.

Cummins Overview

Cummins is a well-established manufacturer with a reputation for producing high-quality automotive components. The company’s history in the industry and commitment to quality are reflected in its products, including the Injector Fuel Supply Tube. Cummins’ expertise in engine technology and component manufacturing contributes to the reliability and performance of its parts.

Compatibility with Specific Engine Models

The Injector Fuel Supply Tube is compatible with several Cummins engine models, including:

  • ISF Series:

    • ISF2.8 CM2220 F117
    • ISF2.8 CM2220 F129
  • QSF Series:

    • QSF2.8 CM2880 F104
    • QSF2.8 CM2880 F105
    • QSF2.8 CM2880 F108
    • QSF2.8 CM2880 F114
  • R Series:

    • R2.8 CM2220 R101B

These engines are part of the Cummins ISF, QSF, and R series, known for their robust design and efficiency in various applications.

Role of Injector Fuel Supply Tube in Engine Systems

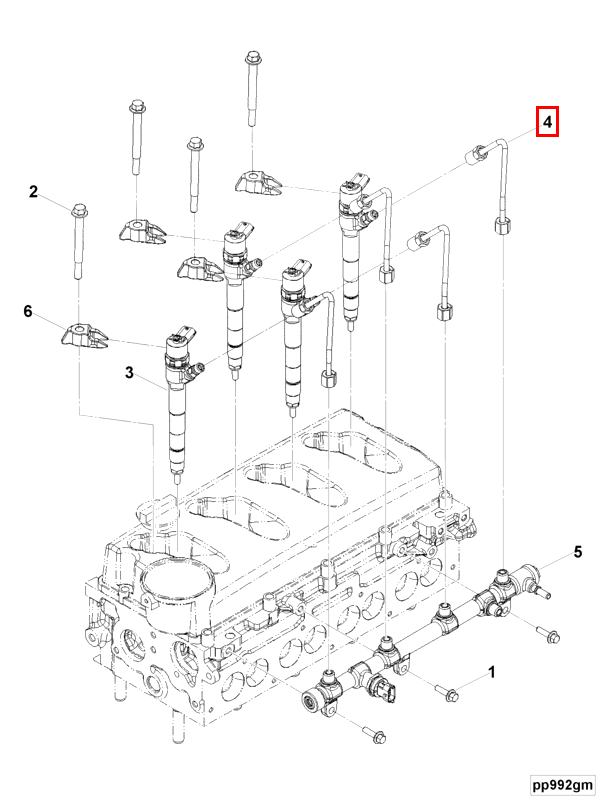

The Injector Fuel Supply Tube is an integral component in the fuel delivery system of an engine. It serves as a conduit that facilitates the precise delivery of fuel from the fuel rail to the injector. This ensures that the injector receives a consistent and regulated flow of fuel, which is essential for optimal engine performance.

When the fuel pump pressurizes the fuel within the fuel rail, the Injector Fuel Supply Tube channels this pressurized fuel to the injector. The injector, in turn, atomizes the fuel into a fine mist and injects it into the combustion chamber at the precise moment dictated by the engine control unit (ECU). This timing is vital for efficient combustion and power generation.

The Injector Fuel Supply Tube also plays a role in maintaining the integrity of the fuel delivery system. It helps to prevent fuel leaks, which could lead to inefficient engine operation or even safety hazards. Additionally, it ensures that the fuel delivered to the injector is free from contaminants, which could otherwise clog the injector nozzles and impair their function.

Conclusion

The Cummins Injector Fuel Supply Tube, part number 5258983, is a critical component in the fuel delivery system of various diesel engines. Its compatibility with specific Cummins engine models ensures reliable and efficient fuel supply to the injectors, contributing to optimal engine performance and longevity.

SPECIFICATIONS

Package Dimensions
16.0 x 12.0 x 3.0 in
Weight
0.085 lb
