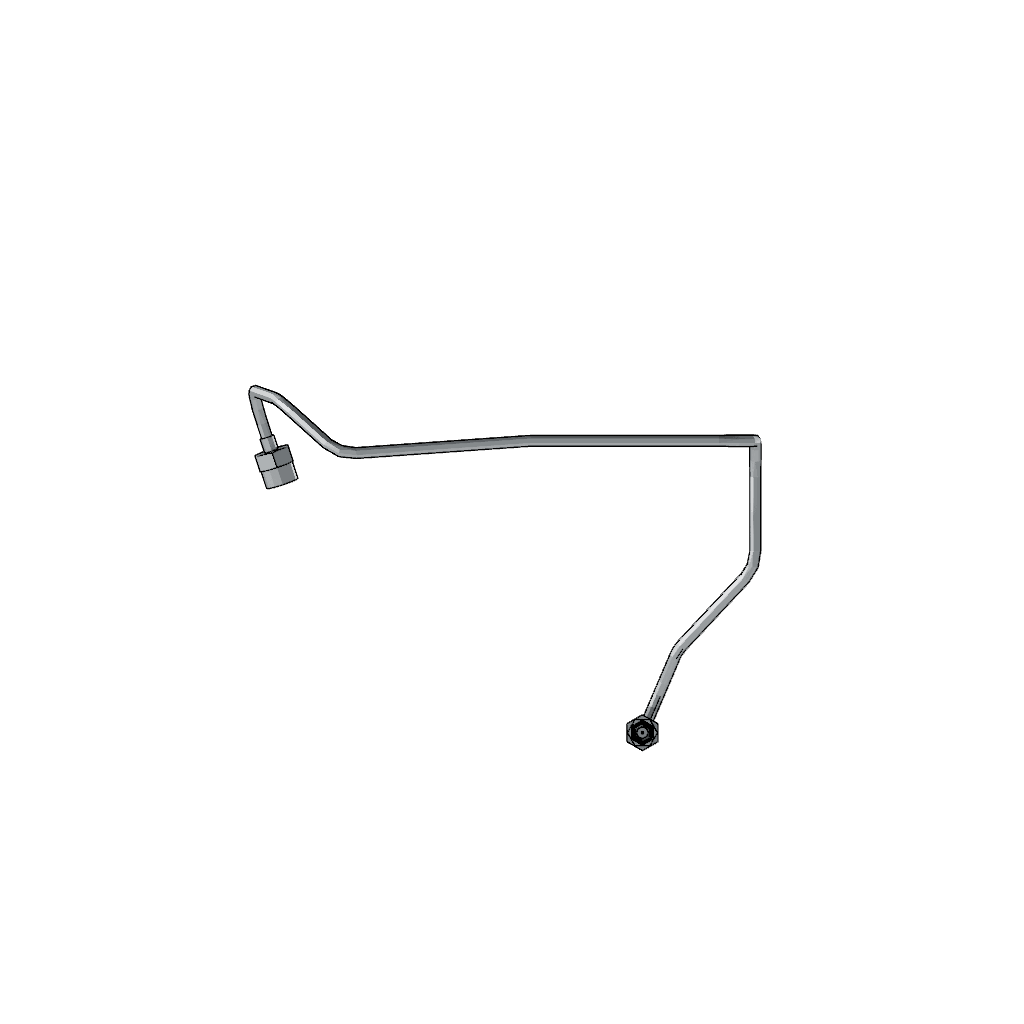

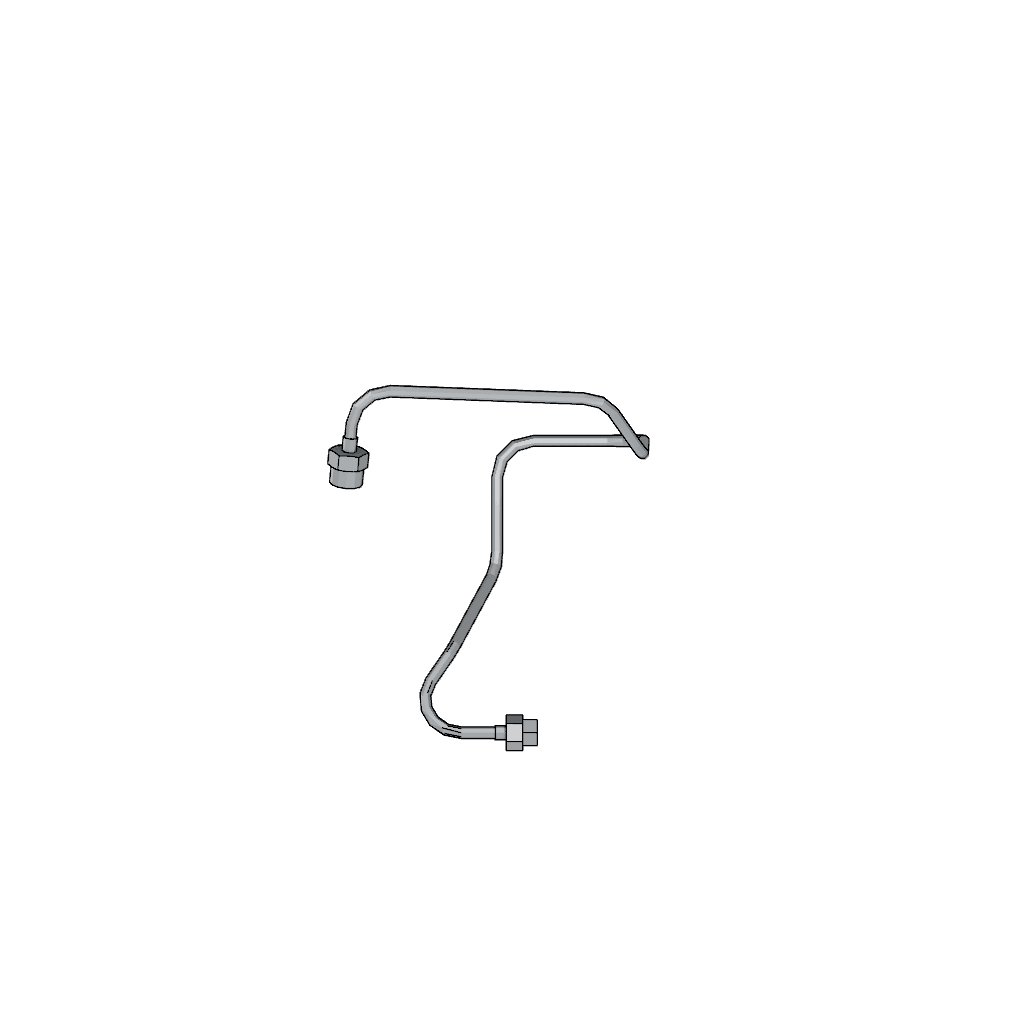

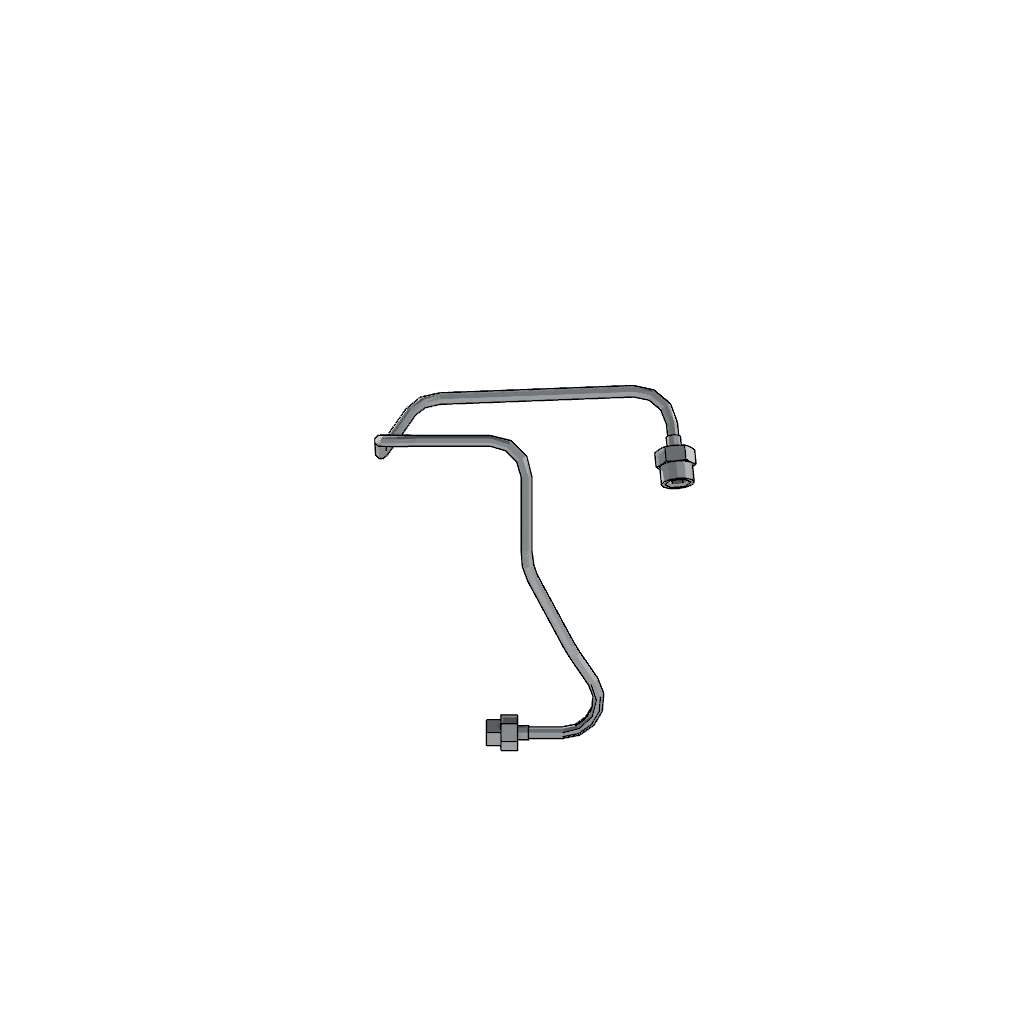

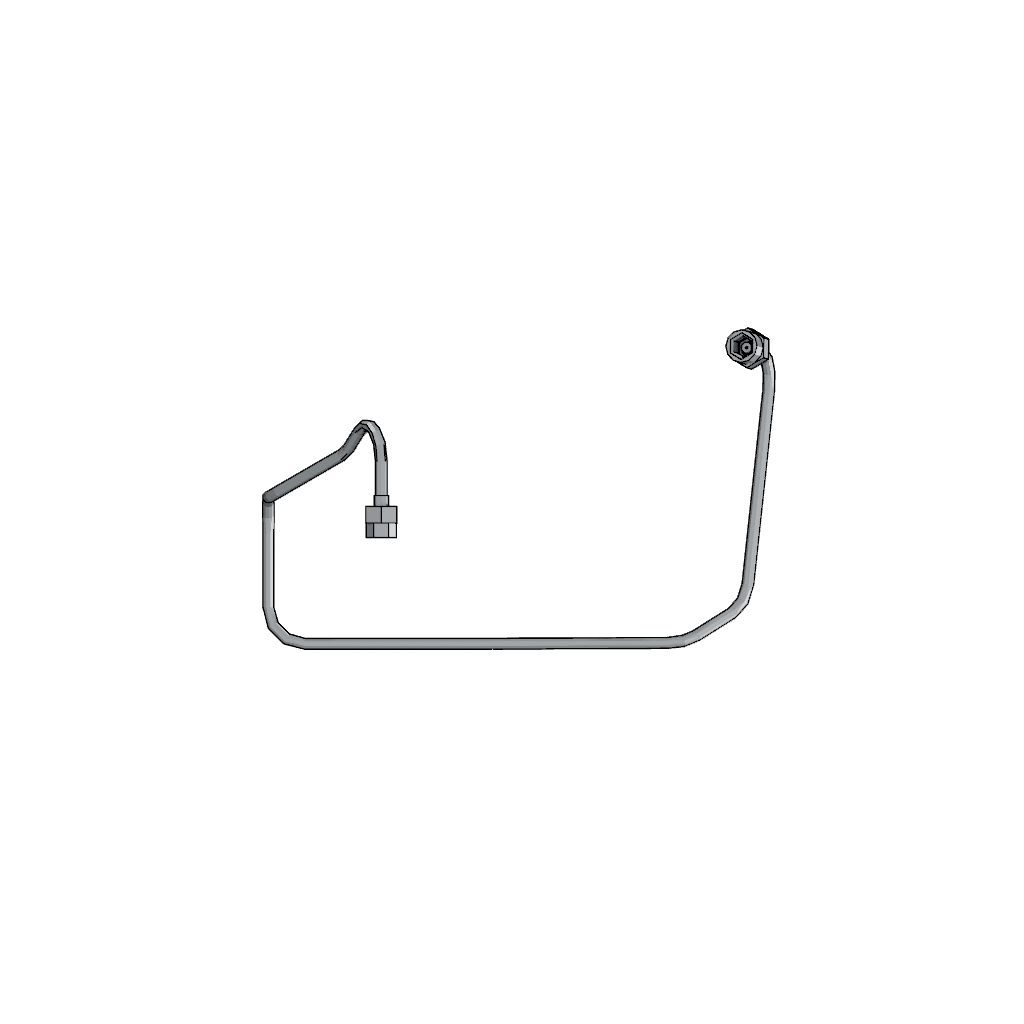

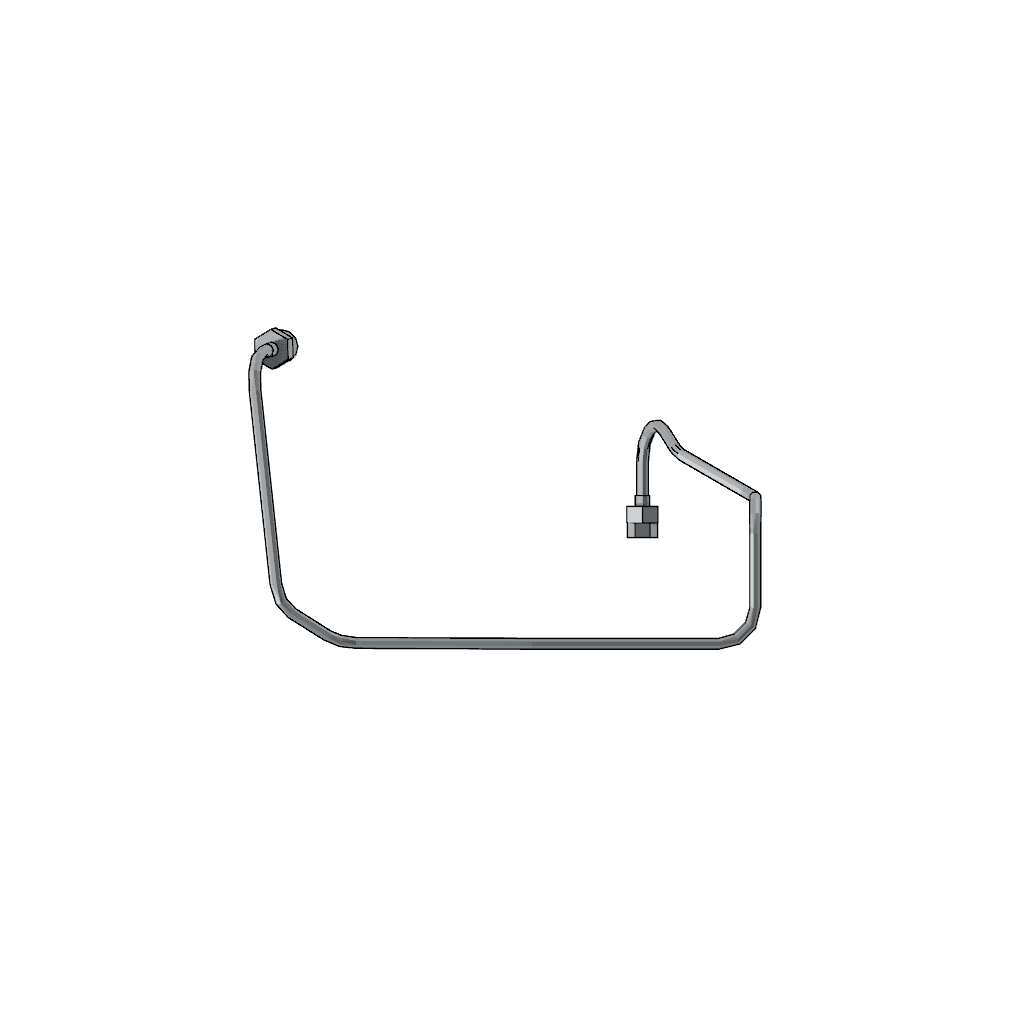

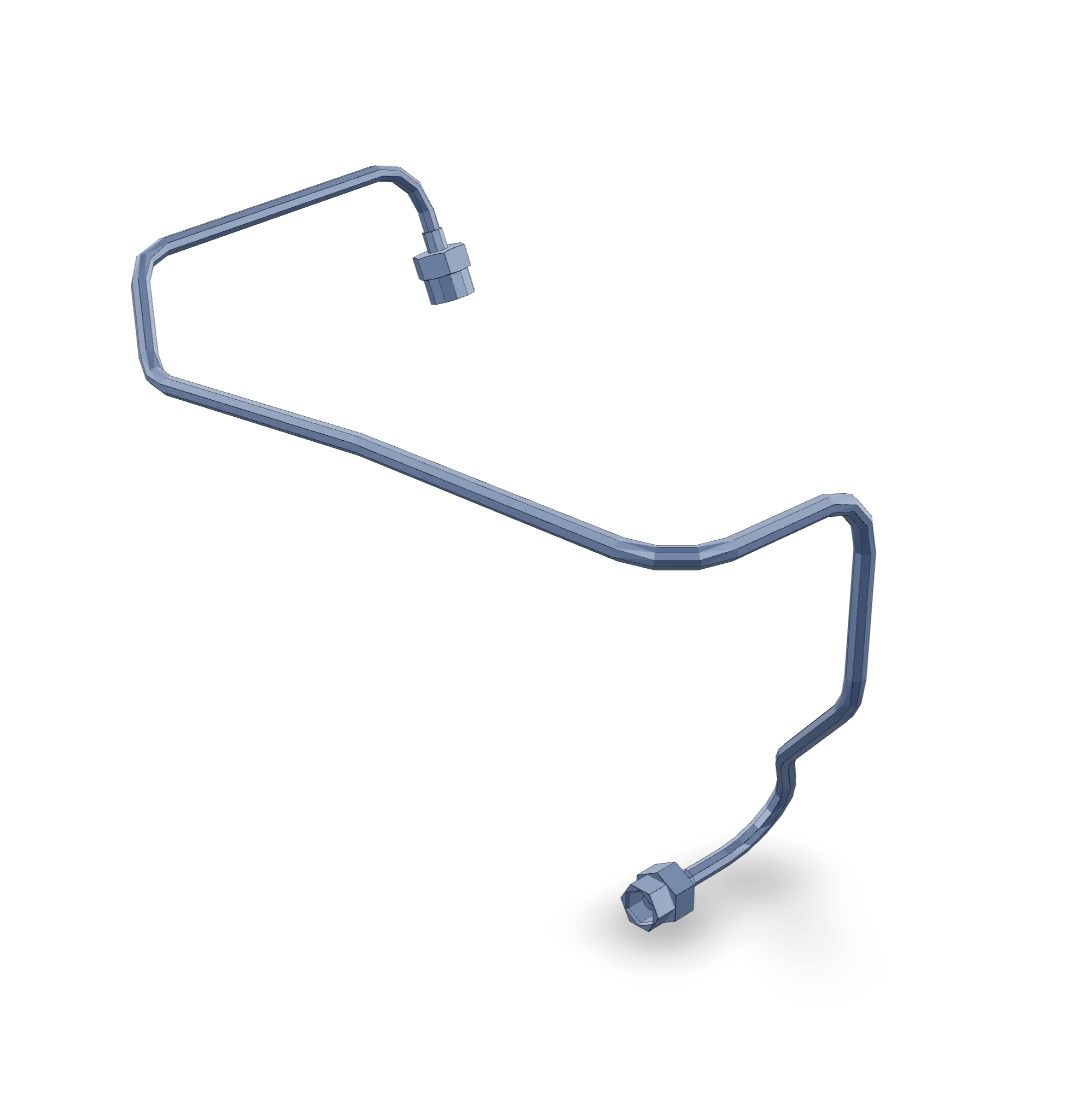

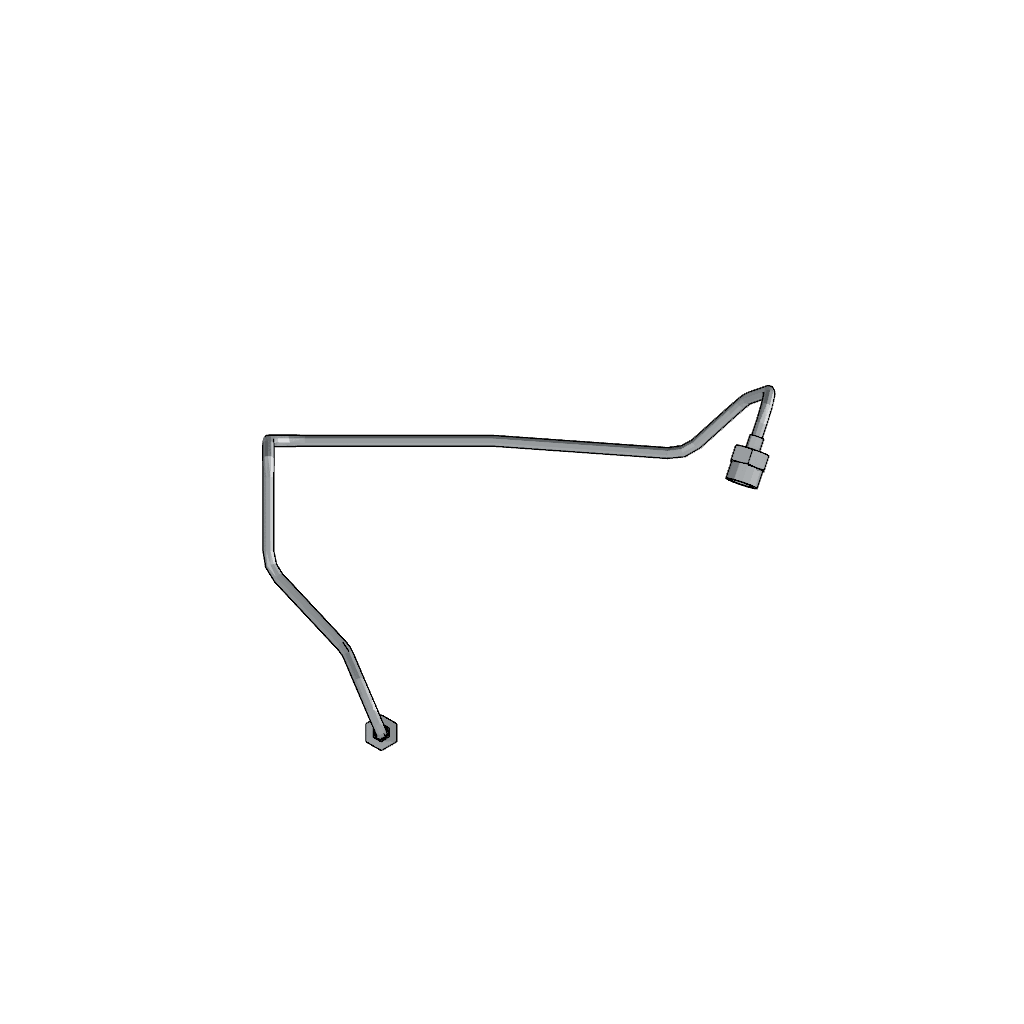

3284090
Injector Fuel Supply Tube
Cummins®

Introduction

The Cummins 3284090 Fuel Injector Supply Line is a component designed for use in heavy-duty trucks equipped with Cummins engines. Its purpose is to facilitate the delivery of fuel from the fuel system to the injectors, ensuring that the engine receives the precise amount of fuel needed for optimal performance. This component plays a role in maintaining the efficiency and reliability of the engine, contributing to the overall operation of the vehicle ¹.

Basic Concepts of Fuel Injector Supply Lines

A Fuel Injector Supply Line is a conduit within the fuel system that transports fuel from the fuel rail to the injectors. Its function is to provide a consistent and regulated flow of fuel, which is important for the injectors to atomize the fuel properly and deliver it into the combustion chamber. This process contributes to engine performance by ensuring that the fuel is mixed efficiently with air, leading to more complete combustion and better engine output ².

Role of the 3284090 Fuel Injector Supply Line in Truck Operation

The 3284090 Fuel Injector Supply Line is integral to the fuel delivery system of Cummins engines. It ensures that fuel is distributed evenly to each injector, which is vital for maintaining balanced combustion across all cylinders. This balanced fuel distribution helps in achieving consistent engine performance and reducing the likelihood of misfires or uneven engine operation ³.

Key Features of the 3284090 Fuel Injector Supply Line

The design and construction of the 3284090 Fuel Injector Supply Line include features that enhance its durability and performance. It is made from materials that are resistant to the corrosive effects of diesel fuel and the high pressures within the fuel system. The line is engineered to withstand the rigors of heavy-duty truck operation, providing a reliable connection between the fuel rail and the injectors.

Benefits of Using the 3284090 Fuel Injector Supply Line

Utilizing the 3284090 Fuel Injector Supply Line offers several advantages. It contributes to improved fuel efficiency by ensuring that fuel is delivered to the injectors without leaks or restrictions. This results in more efficient combustion and can lead to better overall engine performance. Additionally, the line’s robust construction ensures reliability even under demanding conditions, which is important for the longevity and performance of heavy-duty trucks.

Installation and Compatibility

When installing the 3284090 Fuel Injector Supply Line, it is important to follow the manufacturer’s guidelines to ensure a secure and effective fit within the fuel system. Proper installation involves careful alignment with the fuel rail and injectors, as well as ensuring that all connections are tight to prevent fuel leaks. It is also important to verify that the line is compatible with the specific model of Cummins engine to ensure optimal performance.

Maintenance and Troubleshooting

Routine maintenance of the 3284090 Fuel Injector Supply Line includes regular inspection for signs of wear, corrosion, or leaks. Common issues to watch for include fuel leaks at the connections, which can indicate a need for re-tightening or replacement of the line. Troubleshooting may involve checking for proper fuel pressure and flow, as well as inspecting the line for any physical damage that could affect its performance.

Safety Considerations

When working with the 3284090 Fuel Injector Supply Line, it is important to observe safety protocols to mitigate risks associated with fuel system components. This includes proper handling to avoid spills, secure storage to prevent contamination, and careful disposal of any old or damaged lines in accordance with local regulations. Additionally, it is crucial to ensure that the fuel system is depressurized before beginning any work to avoid the risk of fuel spray.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for producing high-quality components that are trusted in the automotive and heavy-duty truck industries. The company’s expertise in engine technology is reflected in its wide range of products, including the 3284090 Fuel Injector Supply Line, which is designed to meet the demanding requirements of heavy-duty applications.

Compatibility with Cummins Engines

The 3284090 is compatible with several Cummins engine models, including but not limited to:

• 6B5.9 Series: This part is specifically engineered to fit seamlessly within the 6B5.9 engine series, ensuring optimal performance and longevity.

Installation and Functionality

When installed, the fuel injector supply line connects the fuel pump to the fuel injectors, facilitating the movement of fuel under high pressure. This connection is crucial for maintaining the engine’s efficiency and performance. The line is designed to withstand the high pressures and temperatures associated with diesel engines, ensuring durability and reliability.

Importance in Engine Performance

The proper functioning of the fuel injector supply line is important for the overall performance of the engine. Any leaks or failures in this component can lead to fuel delivery issues, which may result in reduced engine performance, increased emissions, and potential engine damage. Regular inspection and maintenance of this part are recommended to ensure the engine operates at peak efficiency.

Role of Part 3284090 Fuel Injector Supply Line in Engine Systems

The Part 3284090 Fuel Injector Supply Line is a component in the fuel delivery system of an engine. It is responsible for transporting pressurized fuel from the fuel rail to the individual fuel injectors. Here’s how it integrates with various engine components:

Fuel Plumbing

The fuel injector supply line is a key element within the fuel plumbing system. It ensures a consistent and reliable flow of fuel under pressure from the fuel rail to each injector. This system must be meticulously designed to handle the high pressures and temperatures associated with fuel delivery, ensuring no leaks or restrictions that could affect engine performance.

Injector Fuel Supply Tube

As part of the injector fuel supply tube assembly, the 3284090 line directly connects to the fuel injectors. This connection is vital for maintaining the precise fuel metering required for optimal combustion. The supply line must be compatible with the injector’s design to ensure a secure fit and efficient fuel transfer.

Injector Plumbing

In the broader context of injector plumbing, the fuel injector supply line works in concert with other components such as fuel filters, regulators, and sensors. It plays a role in maintaining the integrity of the fuel supply, ensuring that each injector receives the correct amount of fuel at the right pressure. This is important for the overall efficiency and performance of the engine.

Conclusion

By understanding the role of the Part 3284090 Fuel Injector Supply Line within these systems, engineers and mechanics can better appreciate its importance in ensuring the engine operates smoothly and efficiently.
