3163483

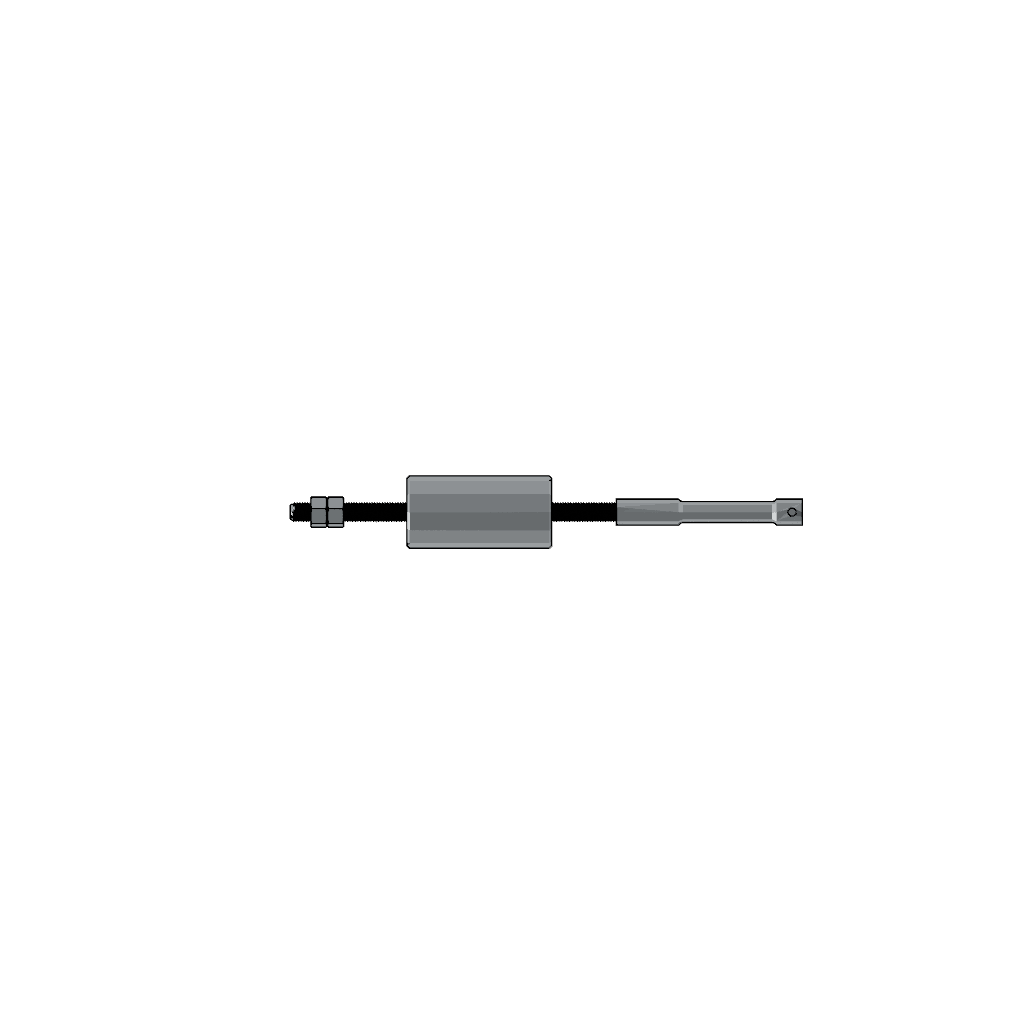

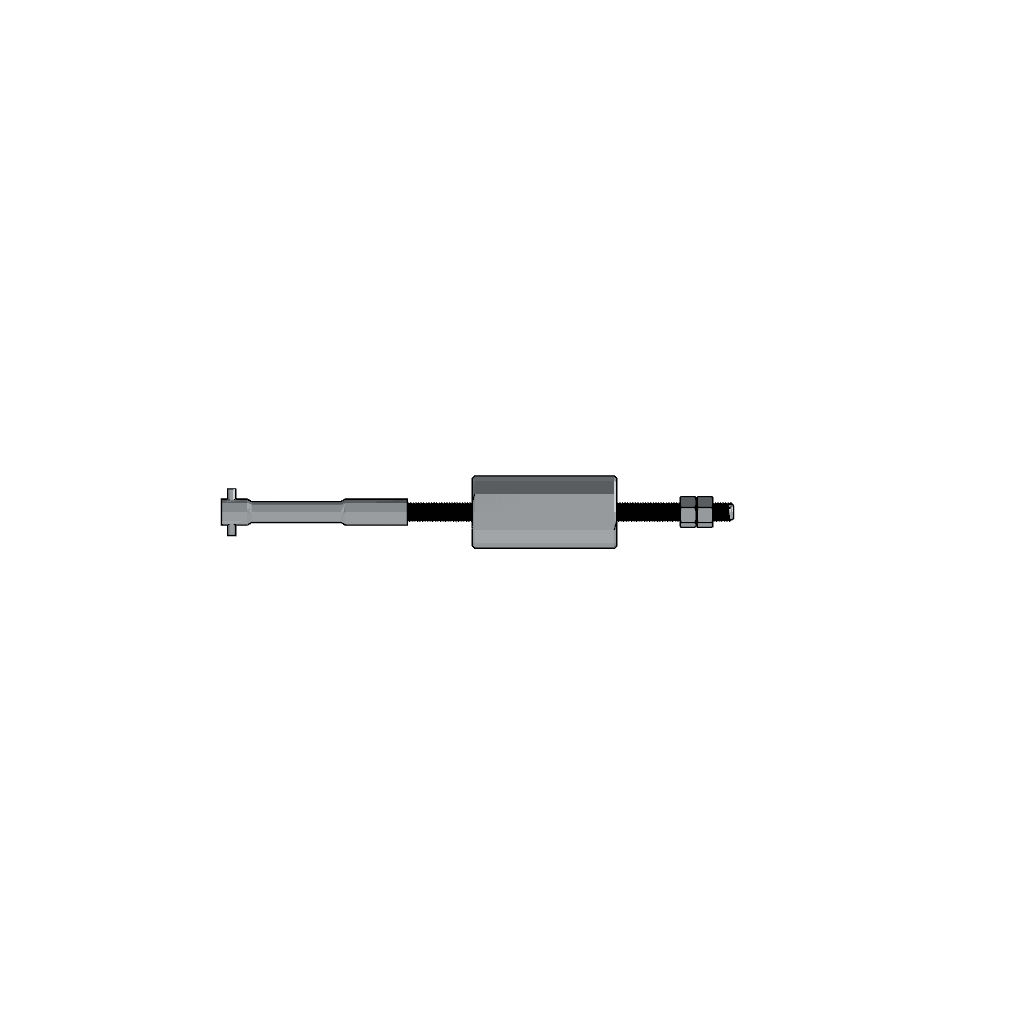

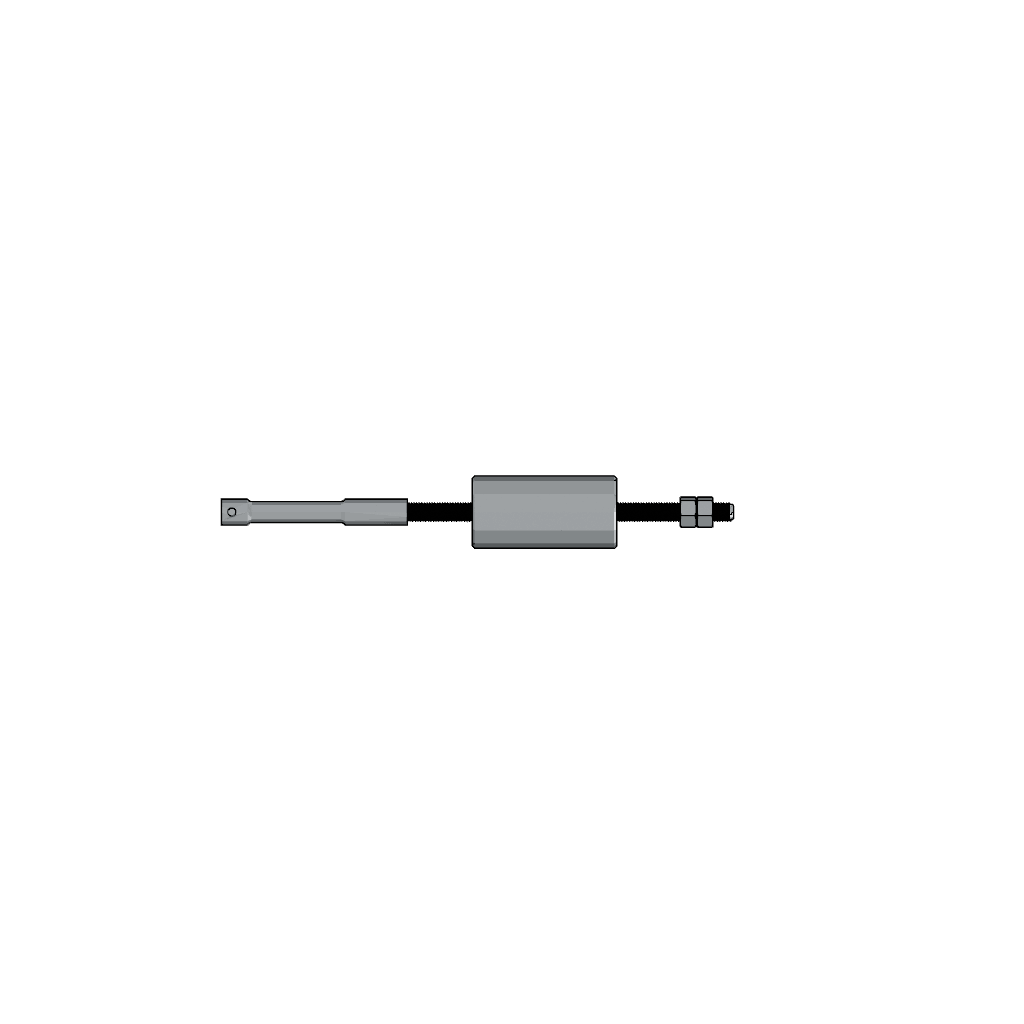

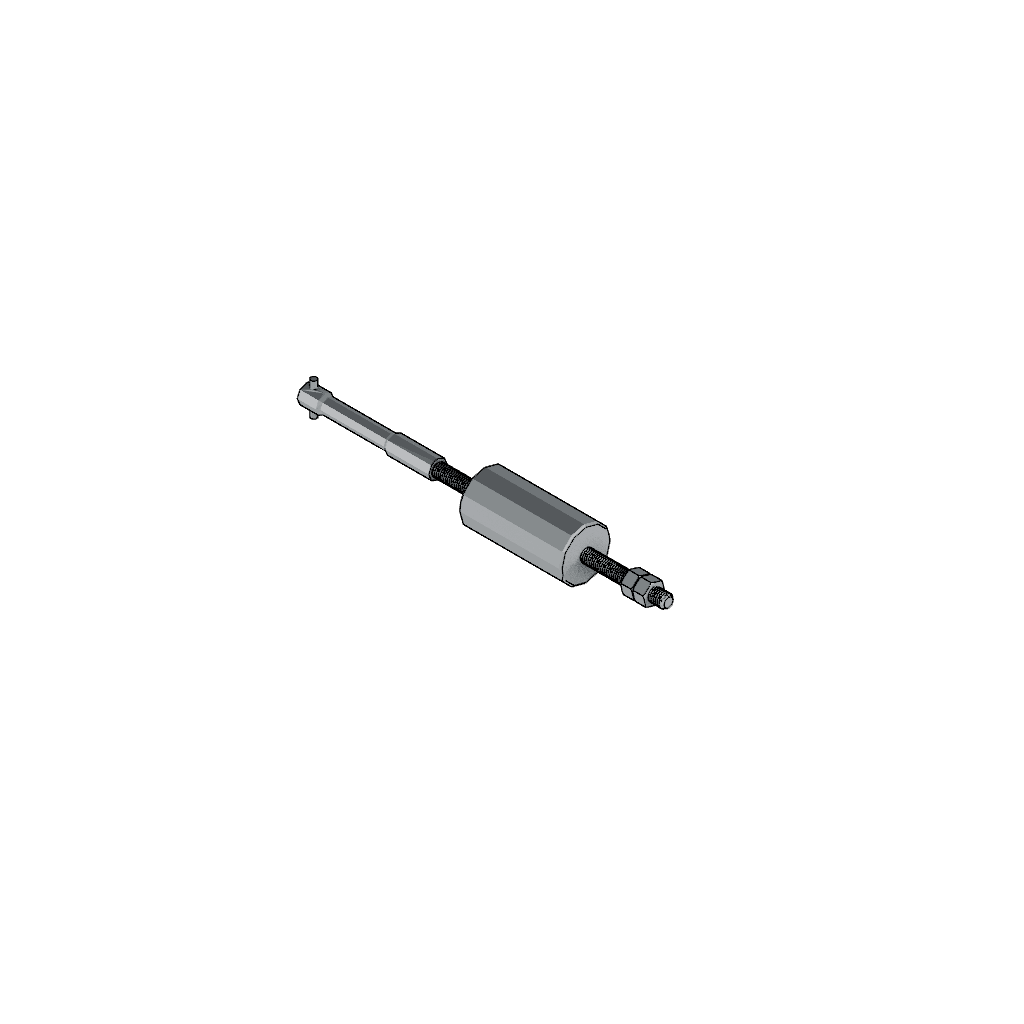

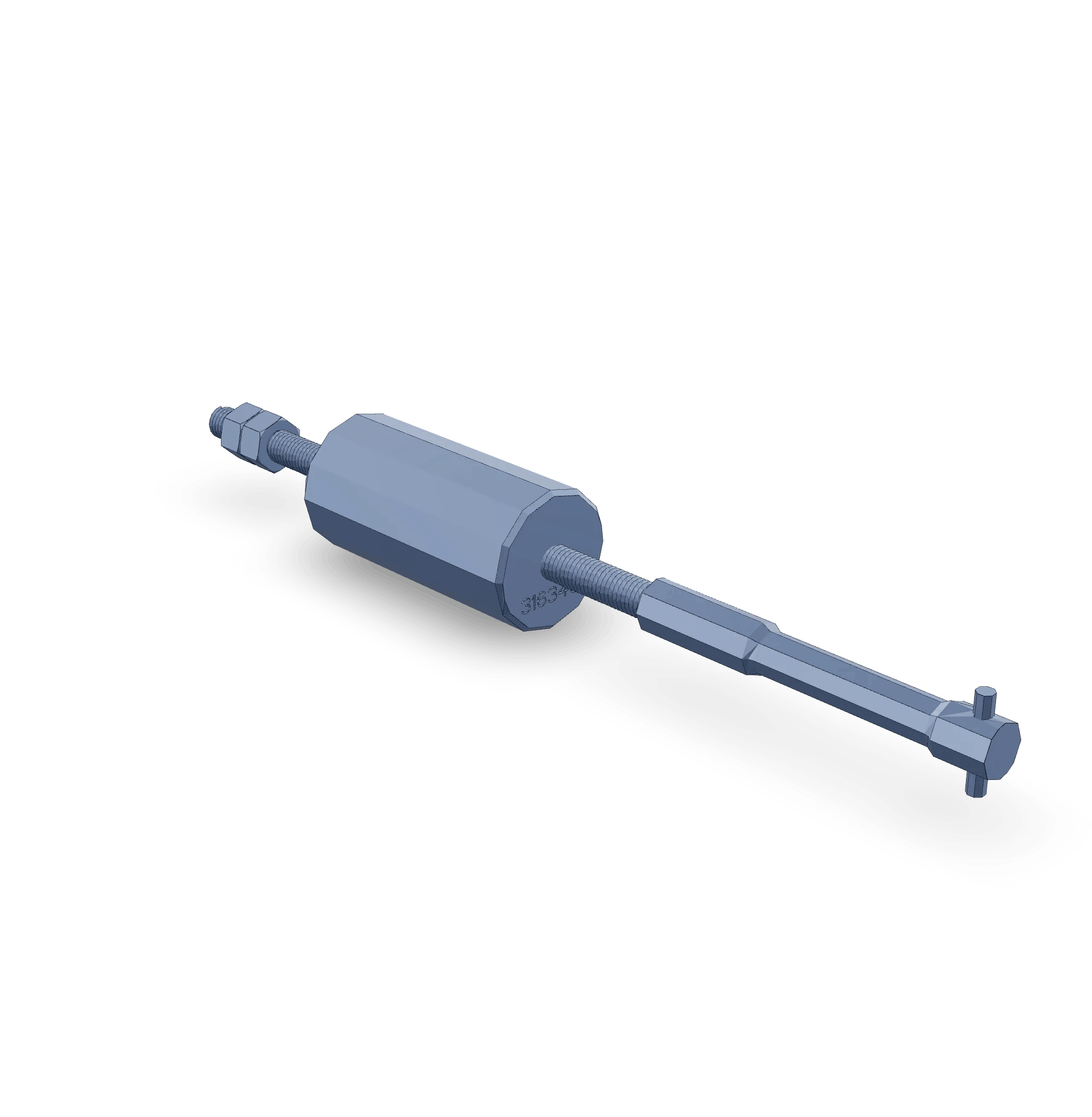

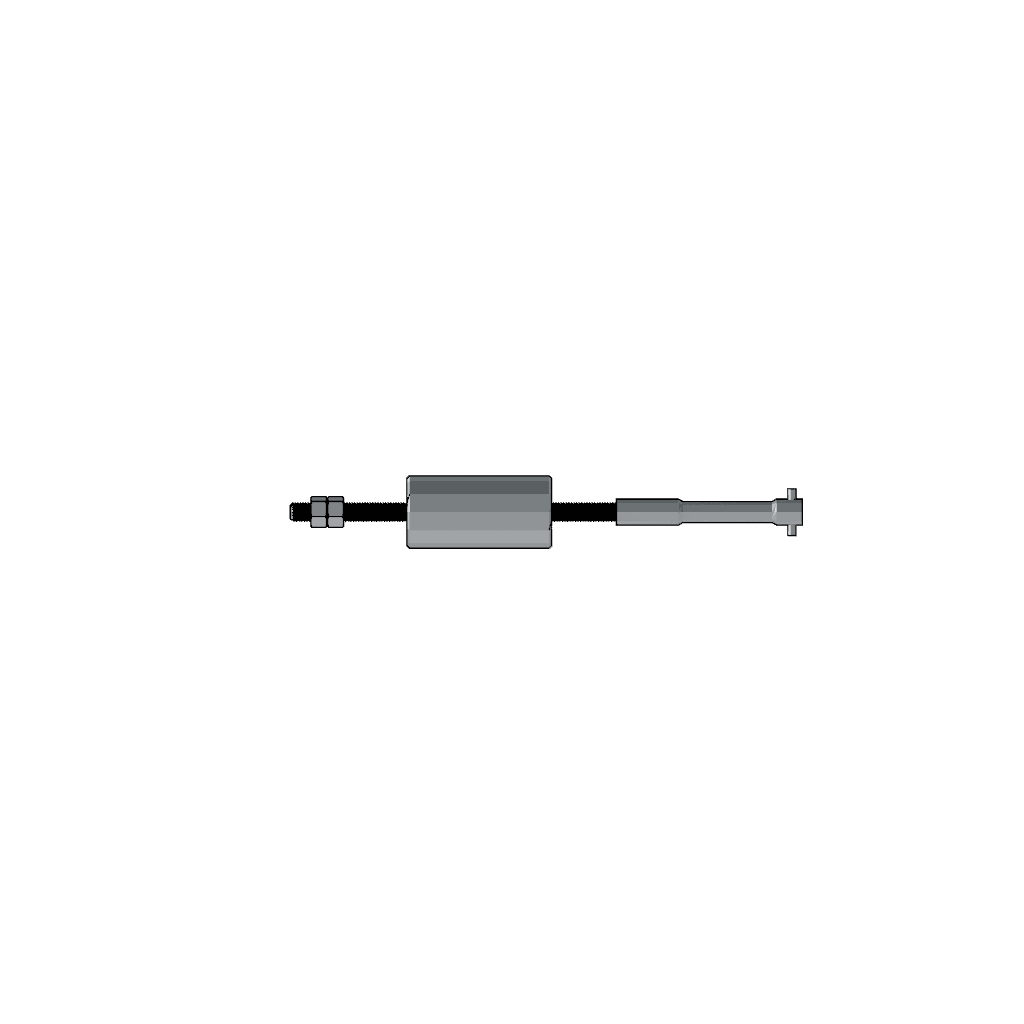

Injector Puller and Installer Assembly
Cummins®

The Cummins Injector Puller and Installer Assembly, identified by part number 3163483, is a specialized tool designed for the maintenance and repair of heavy-duty truck engines. This assembly is integral to the process of removing and installing fuel injectors, ensuring that engine maintenance is performed efficiently and effectively.

Purpose and Functionality

The Cummins Injector Puller and Installer Assembly plays a role in the operation and maintenance of truck engines by facilitating the removal and installation of fuel injectors. This tool is engineered to grip the injector securely, allowing for its extraction without causing damage to the injector or the engine block. Conversely, it also aids in the precise installation of injectors, ensuring they are seated correctly within the engine, which is vital for optimal engine performance ¹.

Key Features

The Cummins Injector Puller and Installer Assembly is characterized by several key features that enhance its performance and durability. Its design incorporates robust materials that can withstand the rigors of heavy-duty use. The assembly features a precise gripping mechanism that ensures a secure hold on the injector, minimizing the risk of damage during removal and installation. Additionally, the tool is designed for ease of use, with ergonomic considerations that reduce operator fatigue and improve efficiency.

Benefits of Using the Injector Puller and Installer Assembly

Utilizing the Cummins Injector Puller and Installer Assembly offers several advantages. It improves the efficiency of injector maintenance tasks, reducing the time required for removal and installation. This efficiency translates to minimized downtime for heavy-duty trucks, which is beneficial for fleet operations. Moreover, the proper installation of injectors facilitated by this tool contributes to enhanced engine performance, ensuring that the engine operates at its optimal efficiency ².

Operational Guidelines

To effectively use the Cummins Injector Puller and Installer Assembly, follow these guidelines: Begin by ensuring the engine is cool and the fuel system is depressurized to prevent fuel spillage and ensure safety. Position the tool over the injector, engaging the gripping mechanism to secure the injector. For removal, apply steady, even pressure to extract the injector from its seat. When installing, align the injector with its seat and use the tool to press it into place with consistent force. Always adhere to safety precautions, such as wearing protective eyewear and gloves, to safeguard against injury.

Troubleshooting and Maintenance

Common issues with the Cummins Injector Puller and Installer Assembly may include difficulty in gripping the injector or challenges in aligning the tool correctly. To address these, ensure the tool is clean and free of debris that could interfere with its operation. Regular maintenance, such as lubricating moving parts and inspecting for wear, will help prolong the tool’s lifespan and ensure consistent performance. Should the tool become damaged, assess the extent of the damage to determine if repair or replacement is necessary.

Impact on Engine Performance

The proper use of the Cummins Injector Puller and Installer Assembly contributes to overall engine health and performance. Well-maintained injectors, correctly installed with the aid of this tool, play a significant role in the efficient combustion process within the engine. This, in turn, affects fuel efficiency, emissions, and the longevity of the engine. By ensuring injectors are in optimal condition, the tool indirectly supports the engine’s performance and reliability.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality and innovation in the automotive and heavy-duty truck industry. The company’s commitment to excellence is evident in its product range, which is designed to meet the demanding requirements of various applications, ensuring reliability and performance. Cummins’ dedication to quality is reflected in every component it manufactures, including the Cummins Injector Puller and Installer Assembly.

Conclusion

The Cummins Injector Puller and Installer Assembly (3163483) is a vital tool for maintaining and repairing heavy-duty truck engines. Its design and functionality ensure efficient and safe removal and installation of fuel injectors, contributing to optimal engine performance and reliability. Regular maintenance and proper use of this Cummins part are essential for prolonging its lifespan and ensuring consistent performance in engine maintenance tasks.
