3077719
Injector Cup
Cummins®

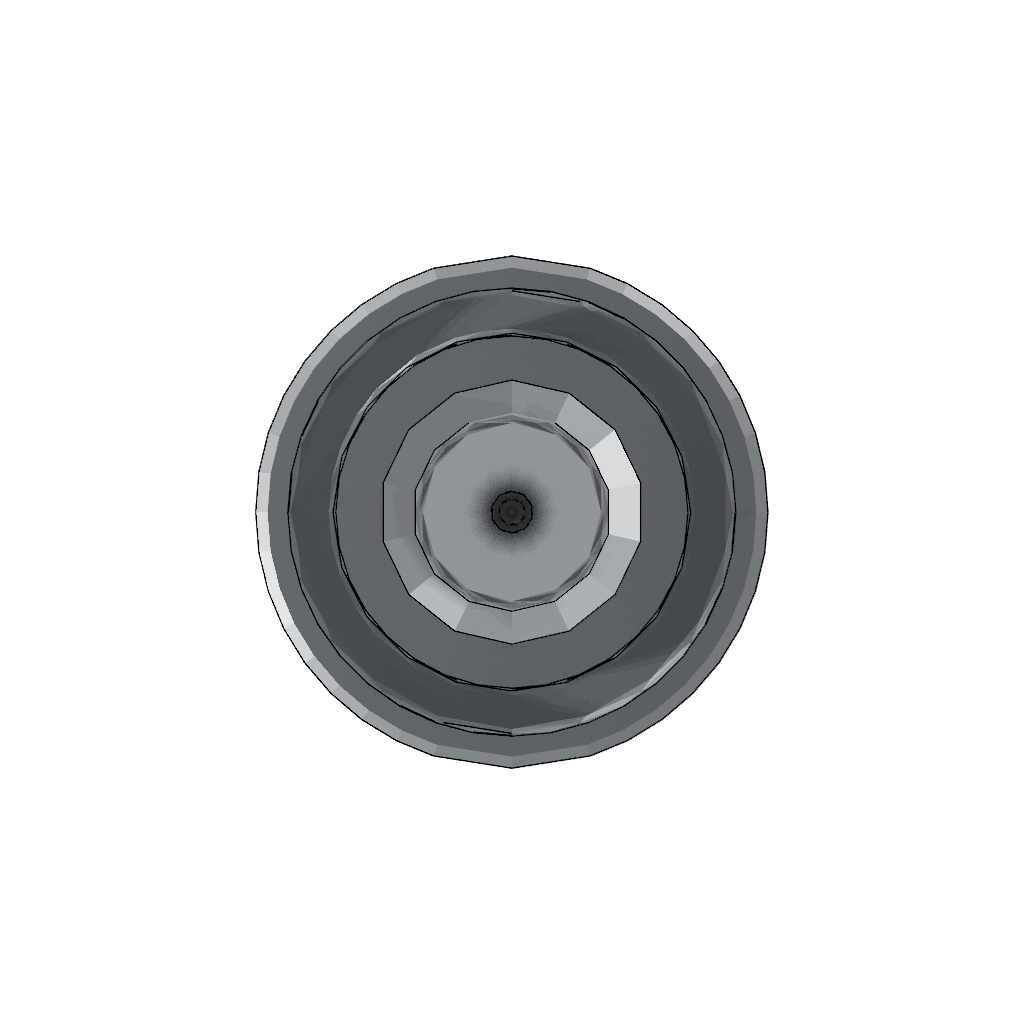

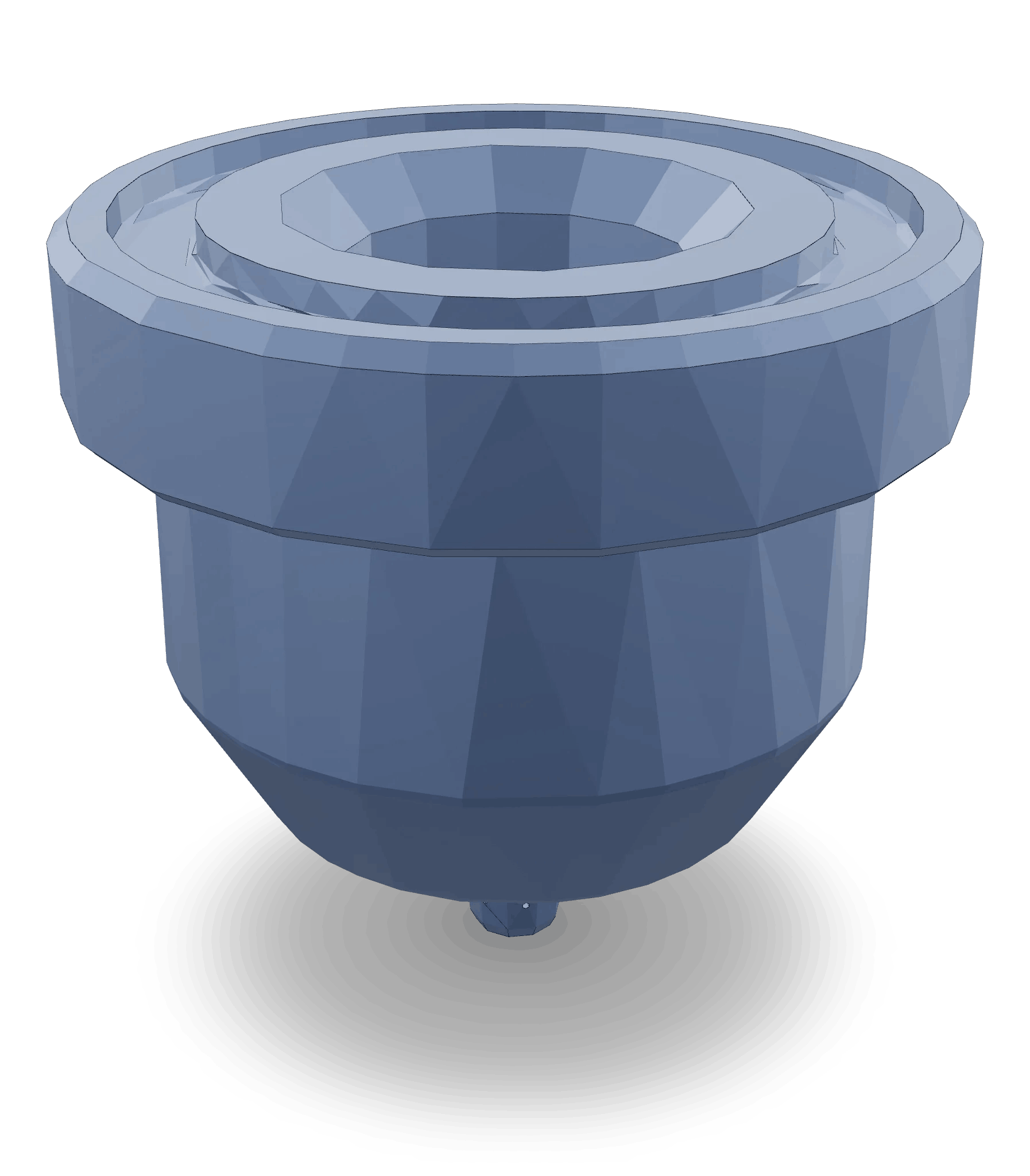

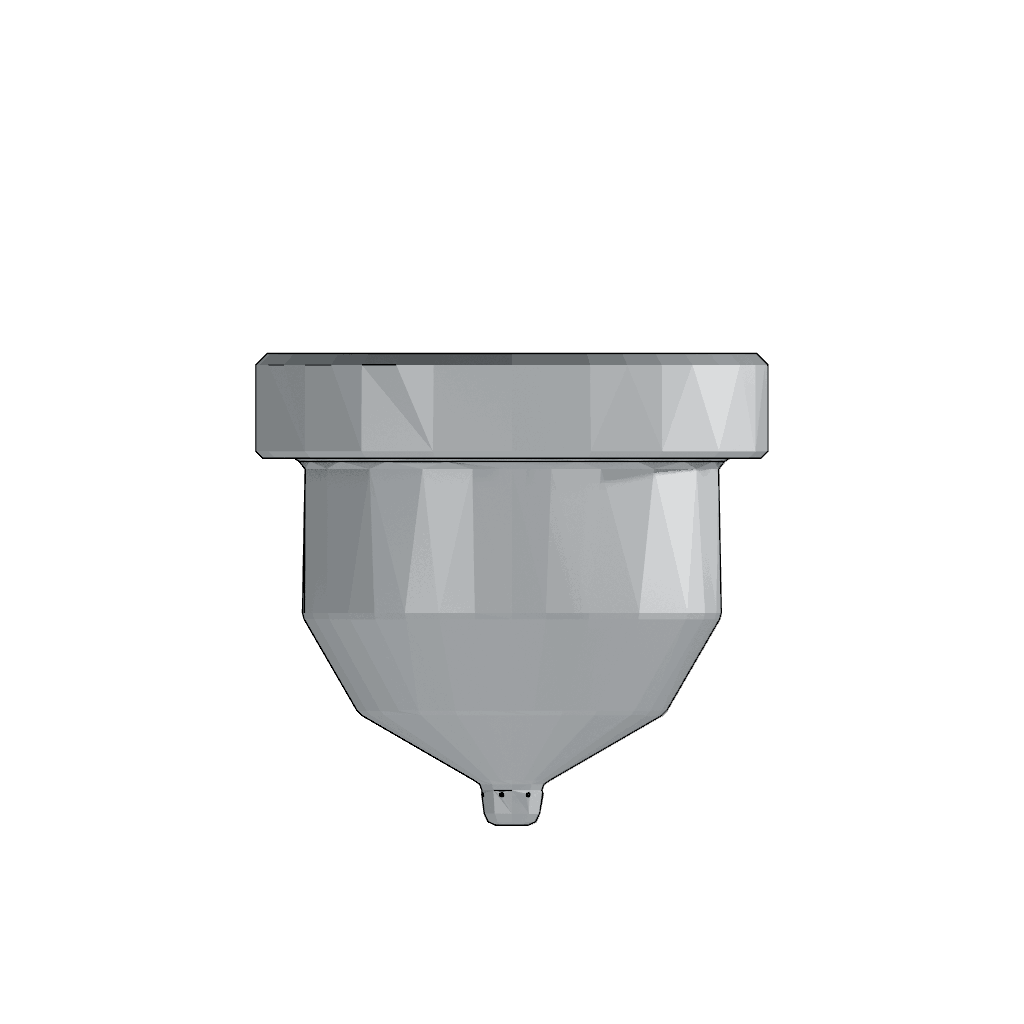

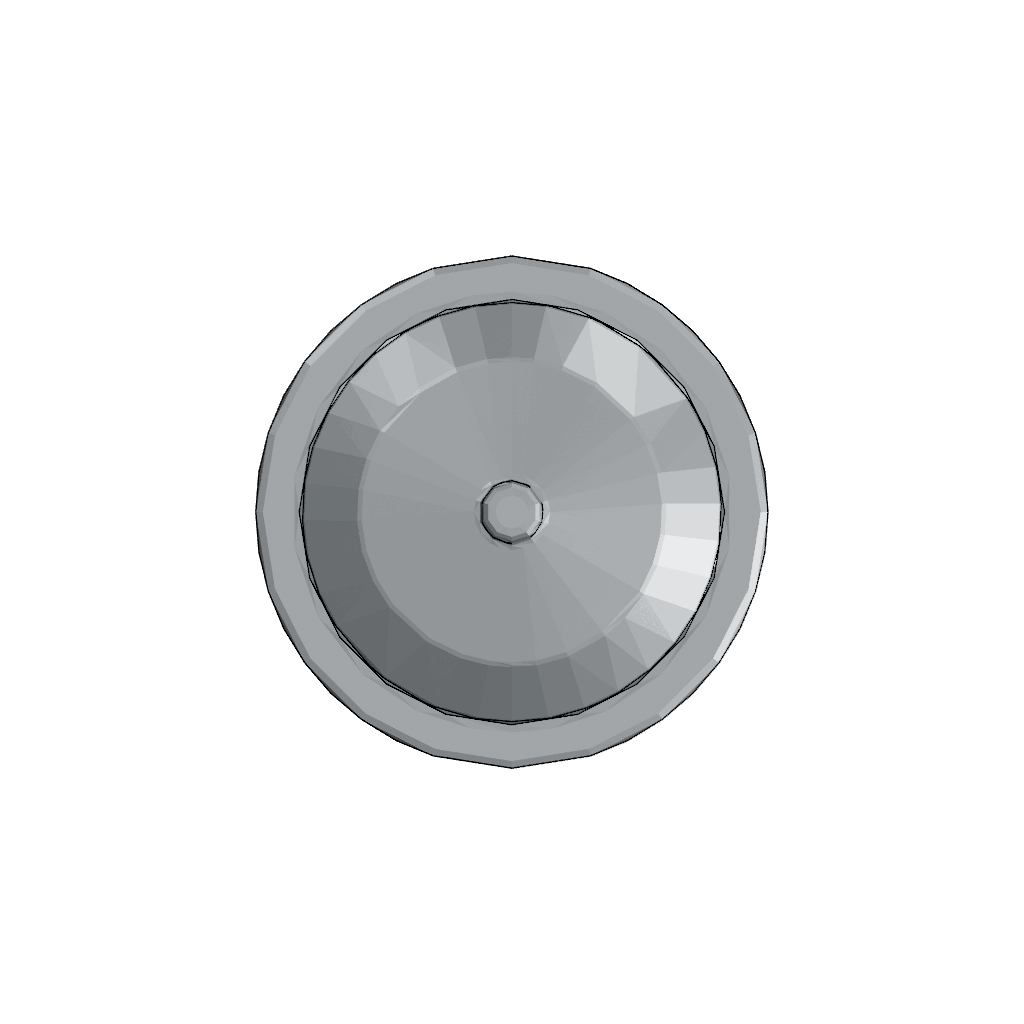

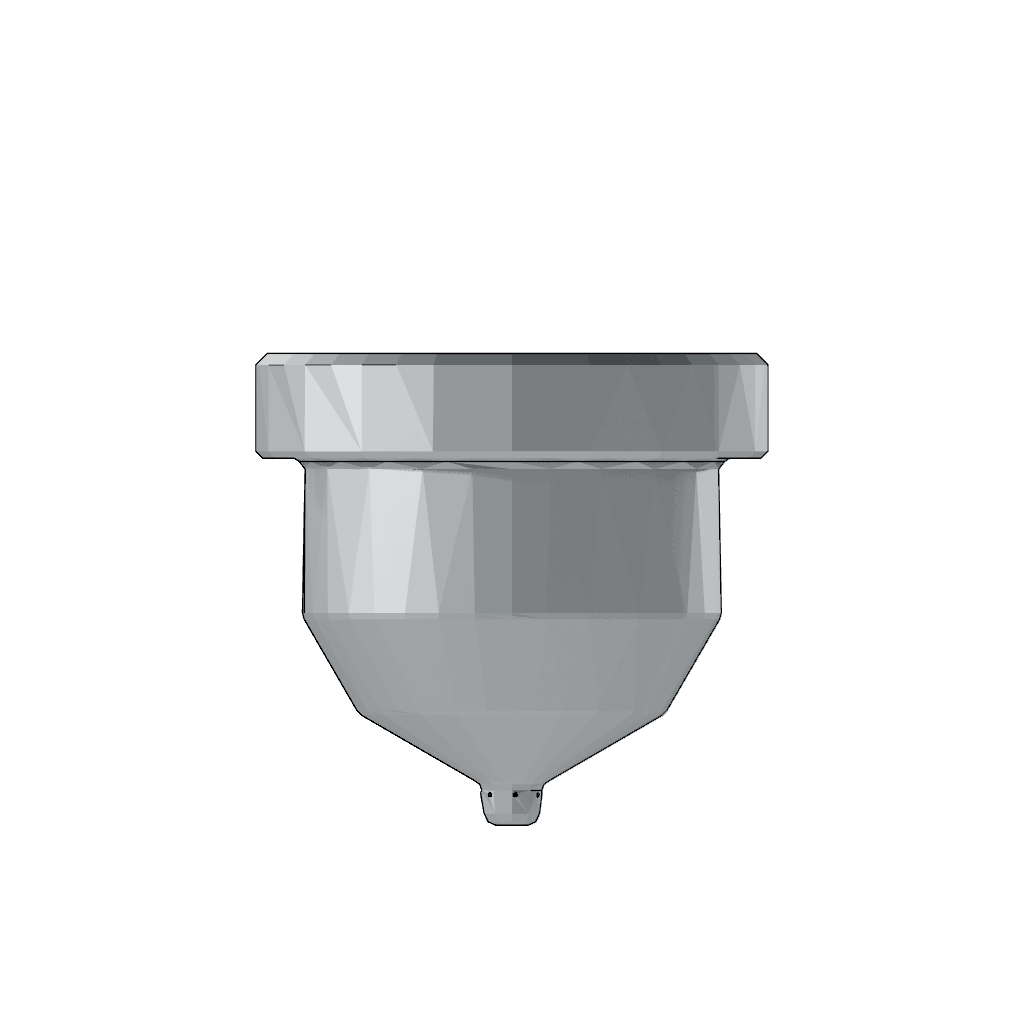

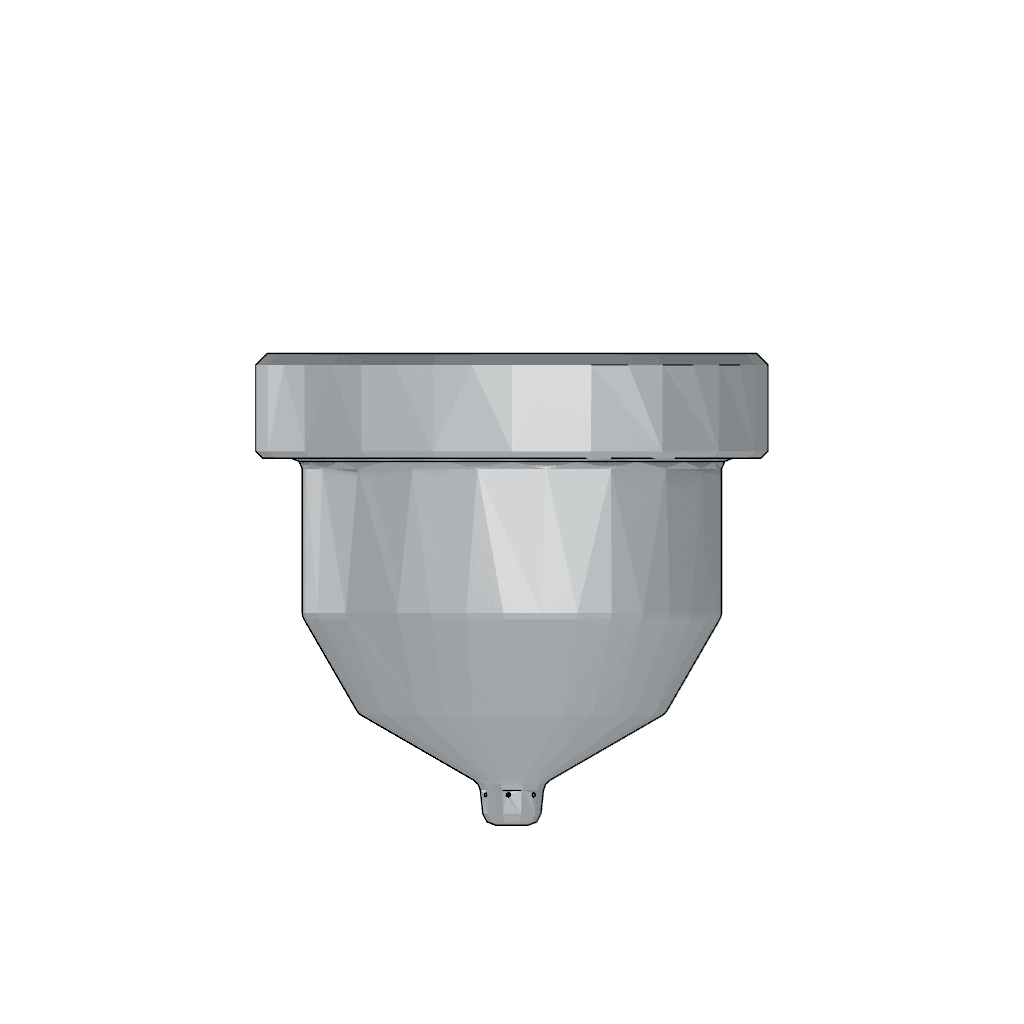

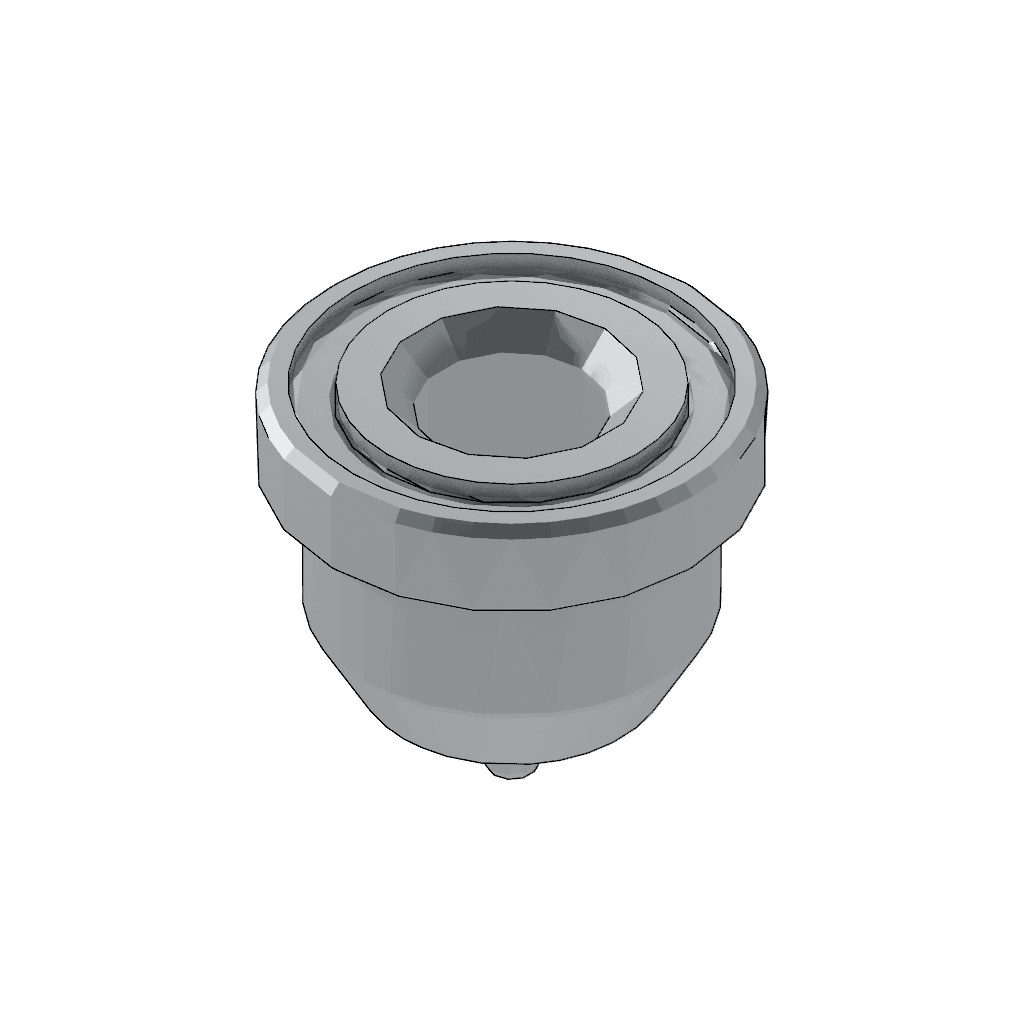

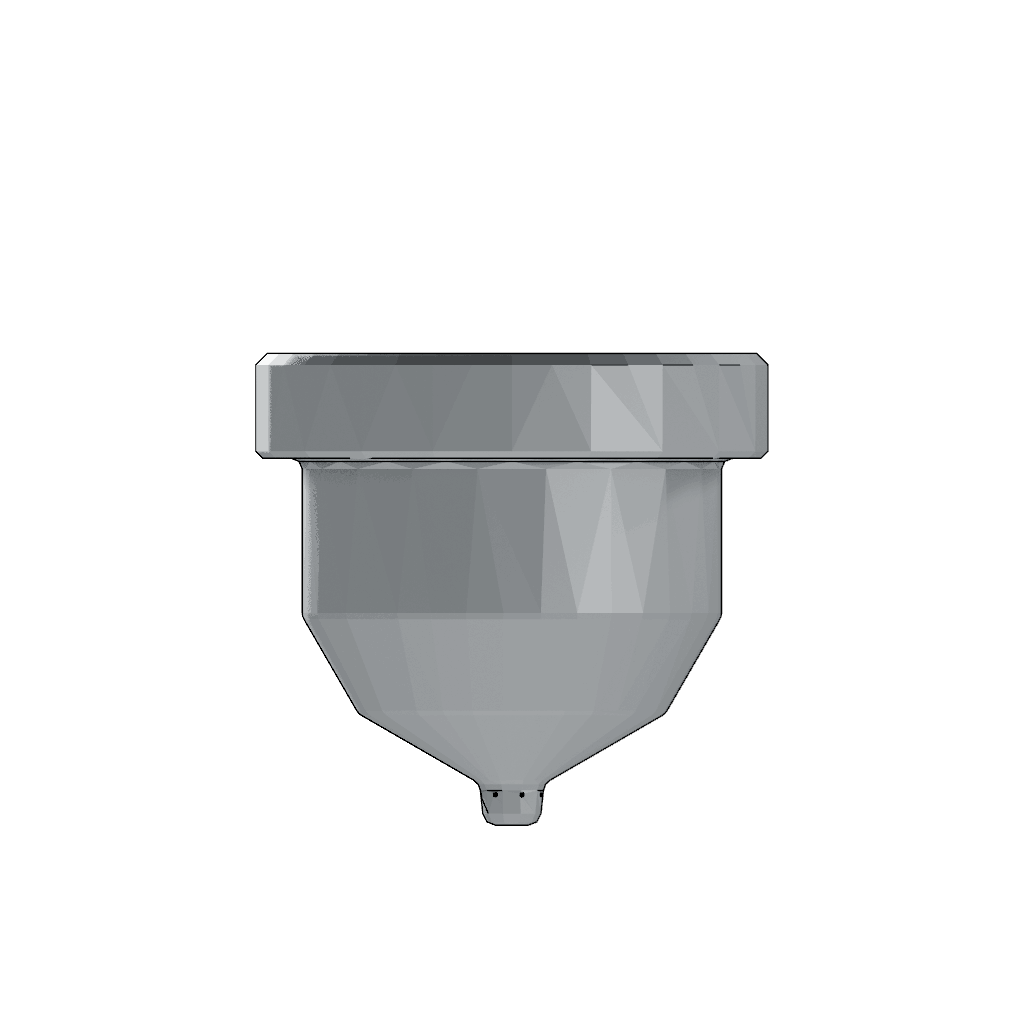

The Cummins 3077719 Injector Cup is a component designed for use in heavy-duty truck engines. It serves a significant role in the fuel injection system, contributing to the overall efficiency and performance of the engine. Understanding its function and importance can help in maintaining and optimizing the operation of heavy-duty trucks.

Basic Concepts of Injector Cups

An injector cup, also known as an injector sleeve, is a component that houses the fuel injector within the engine cylinder. Its primary function is to seal the injector to the cylinder head, ensuring that fuel is delivered precisely into the combustion chamber without leaks. The injector cup interacts closely with the fuel injector, cylinder head, and engine block, playing a vital role in the fuel injection process ¹.

Purpose of the Cummins 3077719 Injector Cup

The Cummins 3077719 Injector Cup is integral to the operation of heavy-duty truck engines. It maintains the integrity of the fuel system by providing a secure seal for the fuel injector. This ensures that fuel is delivered efficiently and effectively to the combustion chamber, which is crucial for engine performance. The injector cup also helps in managing the high pressures and temperatures within the fuel injection system, contributing to the overall reliability and durability of the engine ².

Key Features

The Cummins 3077719 Injector Cup is constructed from high-quality materials, typically including heat-resistant alloys, to withstand the extreme conditions within the engine. Its design incorporates precise machining to ensure a perfect fit within the cylinder head. Additionally, the injector cup may feature enhanced sealing mechanisms to prevent fuel leaks and maintain optimal performance under various operating conditions.

Benefits of Using the Cummins 3077719 Injector Cup

Utilizing the Cummins 3077719 Injector Cup offers several advantages. It contributes to improved fuel efficiency by ensuring that fuel is delivered accurately and without leaks. This precise fuel delivery enhances engine performance, allowing for smoother operation and increased power output. Furthermore, the durable construction of the injector cup leads to increased longevity, reducing the need for frequent replacements and maintenance.

Installation Process

Installing the Cummins 3077719 Injector Cup requires careful attention to detail. Begin by ensuring the cylinder head is clean and free of debris. Use the appropriate tools to remove the old injector cup, if applicable. Insert the new injector cup into the cylinder head, ensuring it is seated correctly. Torque the injector cup to the manufacturer’s specified settings to secure it in place. Finally, install the fuel injector and perform a leak test to confirm proper installation.

Common Issues and Troubleshooting

Injector cups can encounter issues such as leaks or failures due to wear and tear, improper installation, or manufacturing defects. Common signs of problems include fuel leaks, decreased engine performance, or unusual engine noises. To troubleshoot, inspect the injector cup for signs of damage or wear. Ensure that it is installed correctly and torqued to the proper specifications. If issues persist, consider consulting a professional technician for further diagnosis and repair.

Maintenance Tips

To prolong the lifespan of the Cummins 3077719 Injector Cup, regular maintenance is recommended. Inspect the injector cup during routine engine servicing for signs of wear or damage. Clean the injector cup and surrounding areas to prevent debris buildup, which can affect performance. Follow the manufacturer’s guidelines for replacement intervals, typically based on mileage or engine hours, to ensure optimal engine performance and reliability.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality, innovation, and reliability in the automotive industry. The company offers a wide range of products designed to meet the needs of various industries, including heavy-duty trucking, construction, and agriculture.

Role of Part 3077719 Injector Cup in Engine Systems

The 3077719 Injector Cup is a critical component in the fuel injection system of an engine. It serves as a secure and precise fitting for the injector within the cylinder head. This ensures that the fuel is delivered efficiently and consistently into the combustion chamber.

Interaction with Injector

The Injector Cup provides a seal that prevents fuel leakage, which is vital for maintaining the correct fuel-to-air ratio. This ratio is fundamental for optimal combustion, directly influencing the engine’s performance and efficiency. The cup’s design allows for the injector to be seated properly, ensuring that fuel is sprayed in the desired pattern and at the correct pressure.

Contribution to Engine Performance

By ensuring a tight seal and proper injector seating, the 3077719 Injector Cup contributes significantly to the overall performance of the engine. It helps in achieving better fuel atomization, which leads to more complete combustion. This results in improved power output, fuel economy, and reduced emissions.

Integration with Engine Components

The Injector Cup works in conjunction with various engine components to enhance functionality. It interfaces directly with the cylinder head, requiring precise machining and fitting to avoid any gaps that could lead to fuel leakage. The cup must also align correctly with the injector nozzle to ensure that fuel is delivered in the intended manner.

Conclusion

In summary, the 3077719 Injector Cup plays a significant role in the fuel injection system by ensuring secure and efficient injector operation, which is essential for maintaining engine performance and reliability. Regular maintenance and proper installation are key to maximizing the benefits of this Cummins part.
