Injector Cup
Cummins®

Introduction

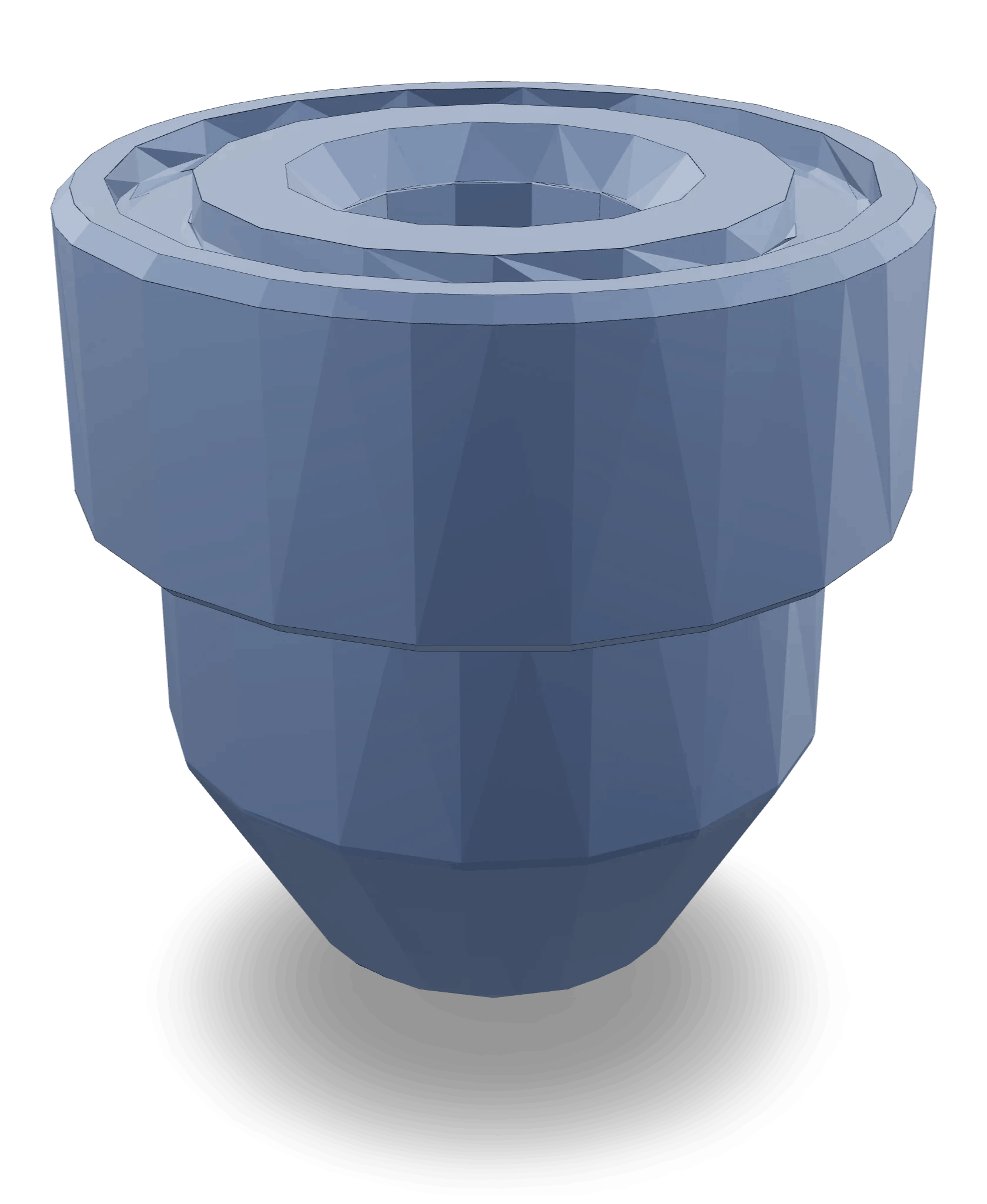

The Cummins Injector Cup, identified by part number 3074254, is a critical component in the fuel injection system of heavy-duty trucks. This part secures the fuel injector within the engine cylinder, ensuring a precise seal that is essential for the efficient operation of the fuel injection process. The integrity of the fuel delivery system, which directly impacts the engine’s performance and efficiency, is maintained by this part.

Basic Concepts and Functionality

Injector cups are essential components within the fuel injection system of diesel engines. They serve as the mounting point for fuel injectors, securing them in place while providing a seal that prevents fuel leakage into the engine cylinder. This seal is vital for maintaining the pressure necessary for fuel injection and ensuring that fuel is delivered precisely when needed for combustion. The Cummins Injector Cup is specifically designed to withstand the high pressures and temperatures associated with diesel fuel injection, contributing to the overall reliability and efficiency of the engine ¹.

Purpose and Role in Truck Operation

This Cummins part plays a specific role in the operation of heavy-duty trucks by ensuring that fuel injectors are properly seated and sealed within the engine cylinder. This component contributes to the overall performance and efficiency of the truck’s engine by facilitating precise fuel delivery. Proper sealing by the injector cup is crucial for maintaining fuel injection pressure, which directly affects combustion efficiency and, consequently, the engine’s power output and fuel economy.

Key Features

The Injector Cup is characterized by several key features that enhance its performance and durability. Its design incorporates materials that can withstand the extreme conditions within a diesel engine, including high temperatures and pressures. The cup is engineered to provide a secure fit for the fuel injector, ensuring a reliable seal that prevents fuel leakage. Additionally, its construction may include features that facilitate easy installation and removal, contributing to maintenance efficiency.

Benefits

Utilizing this part offers several benefits. It contributes to improved fuel efficiency by ensuring that fuel is delivered under the correct pressure and at the precise moment for optimal combustion. This efficiency can lead to reduced fuel consumption and lower operating costs. Furthermore, the reliable sealing provided by the injector cup enhances engine performance by maintaining consistent fuel injection pressure. The durability and reliability of the Cummins Injector Cup also contribute to increased engine reliability, reducing the likelihood of fuel system failures ².

Troubleshooting and Maintenance

Common issues with injector cups may include leaks, which can lead to decreased engine performance and efficiency. Troubleshooting techniques involve inspecting the cup for signs of wear or damage and ensuring that it is properly seated. Maintenance practices for the Cummins Injector Cup include regular inspection during engine service intervals and replacement as necessary to prevent fuel system issues. Proper maintenance of the injector cup is crucial for ensuring the longevity and optimal performance of the fuel injection system.

Installation and Replacement

The installation and replacement of the Cummins Injector Cup require careful attention to detail to ensure proper function. The process involves removing the old cup, cleaning the cylinder bore, and installing the new cup with the appropriate torque specifications. It is important to use the correct tools and follow safety precautions to avoid damage to the engine or injury to the technician. Detailed instructions for installation and replacement should be consulted to ensure the process is performed correctly.

Manufacturer Information - Cummins

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emission solutions. With a history of innovation and a commitment to quality, Cummins has established a reputation for producing reliable and efficient automotive components. The company’s focus on research and development ensures that its products, including the Cummins Injector Cup, meet the demanding requirements of modern heavy-duty applications.

Role of Part 3074254 Injector Cup in Engine Systems

The injector cup, specifically part 3074254, is a key component in the efficient operation of fuel injectors within engine systems. Its primary function is to provide a secure and stable mounting point for the injector within the cylinder head. This ensures that the injector is properly aligned and sealed, which is essential for optimal fuel delivery and combustion.

Interaction with Fuel Injectors

The injector cup works in conjunction with the fuel injector to manage the precise delivery of fuel into the combustion chamber. By maintaining a tight seal, the cup helps prevent fuel leakage, which can lead to inefficient combustion and reduced engine performance. The stability provided by the cup allows the injector to operate within specified tolerances, ensuring consistent fuel spray patterns and combustion efficiency.

Contribution to Engine Performance

In terms of engine performance, the injector cup plays a significant role in maintaining the integrity of the fuel injection system. Proper sealing and alignment contribute to:

• Enhanced Fuel Efficiency: By ensuring that fuel is delivered accurately and without leaks, the engine can operate more efficiently, leading to better fuel economy.
• Consistent Power Output: Stable injector mounting results in uniform fuel distribution, which translates to consistent power delivery across all engine operating conditions.
• Reduced Emissions: Effective sealing and precise fuel delivery help minimize unburned fuel, leading to lower emissions and compliance with environmental regulations.

Integration with Cylinder Head

The injector cup is integral to the cylinder head assembly. It interfaces directly with the cylinder head material, often requiring specific machining to ensure a perfect fit. This integration is vital for:

• Thermal Management: The cup helps manage heat transfer between the injector and the cylinder head, protecting sensitive injector components from excessive temperatures.
• Structural Integrity: By providing a robust mounting solution, the cup contributes to the overall structural integrity of the cylinder head, ensuring long-term reliability.

Impact on Maintenance and Durability

From a maintenance perspective, the injector cup simplifies the replacement and servicing of fuel injectors. Its design allows for easier access and removal, reducing downtime during maintenance procedures. Additionally, the cup’s durability ensures that it can withstand the harsh operating conditions within the engine, contributing to the longevity of the fuel injection system.

Conclusion

In summary, part 3074254 is an essential component that enhances the functionality and performance of fuel injectors within engine systems. Its role in ensuring proper alignment, sealing, and thermal management makes it a fundamental part of modern engine design. Proper maintenance and understanding of its function are crucial for the optimal performance and longevity of heavy-duty engines.
