3073570

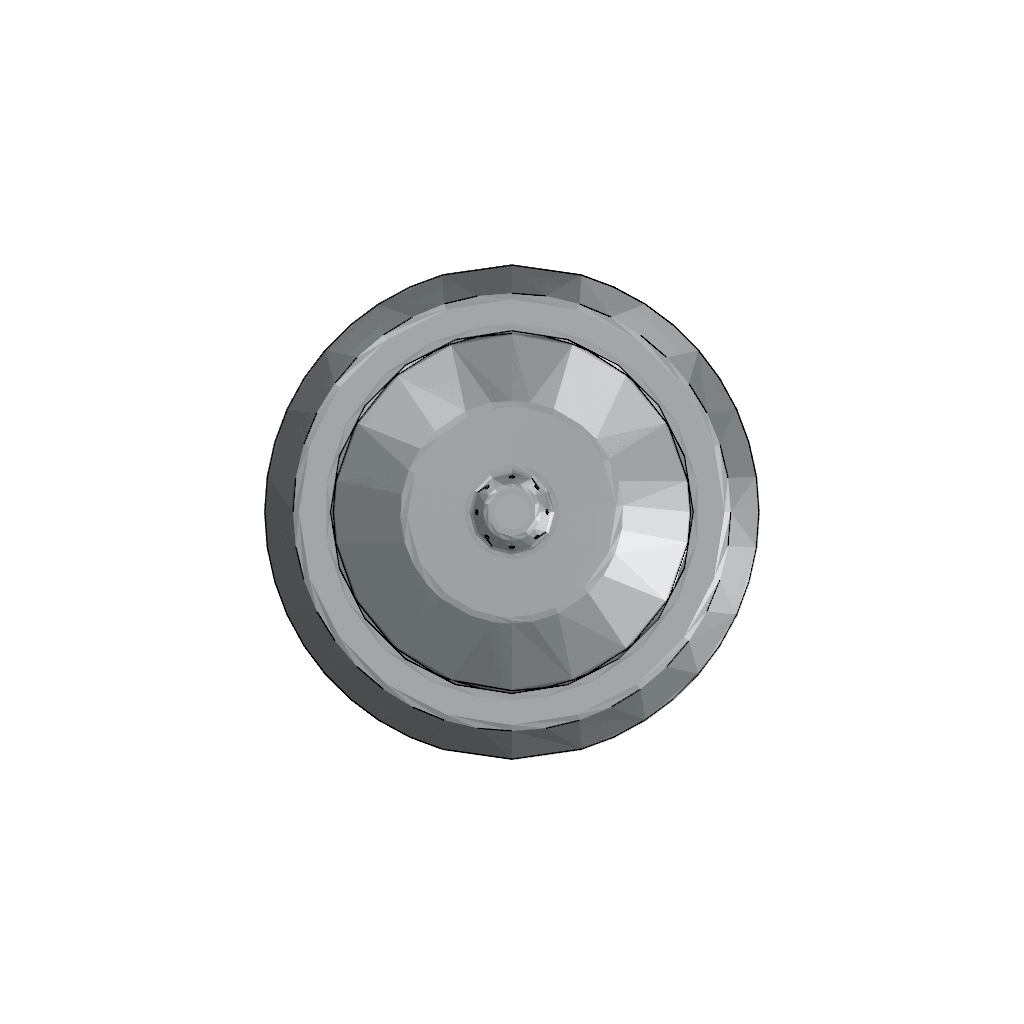

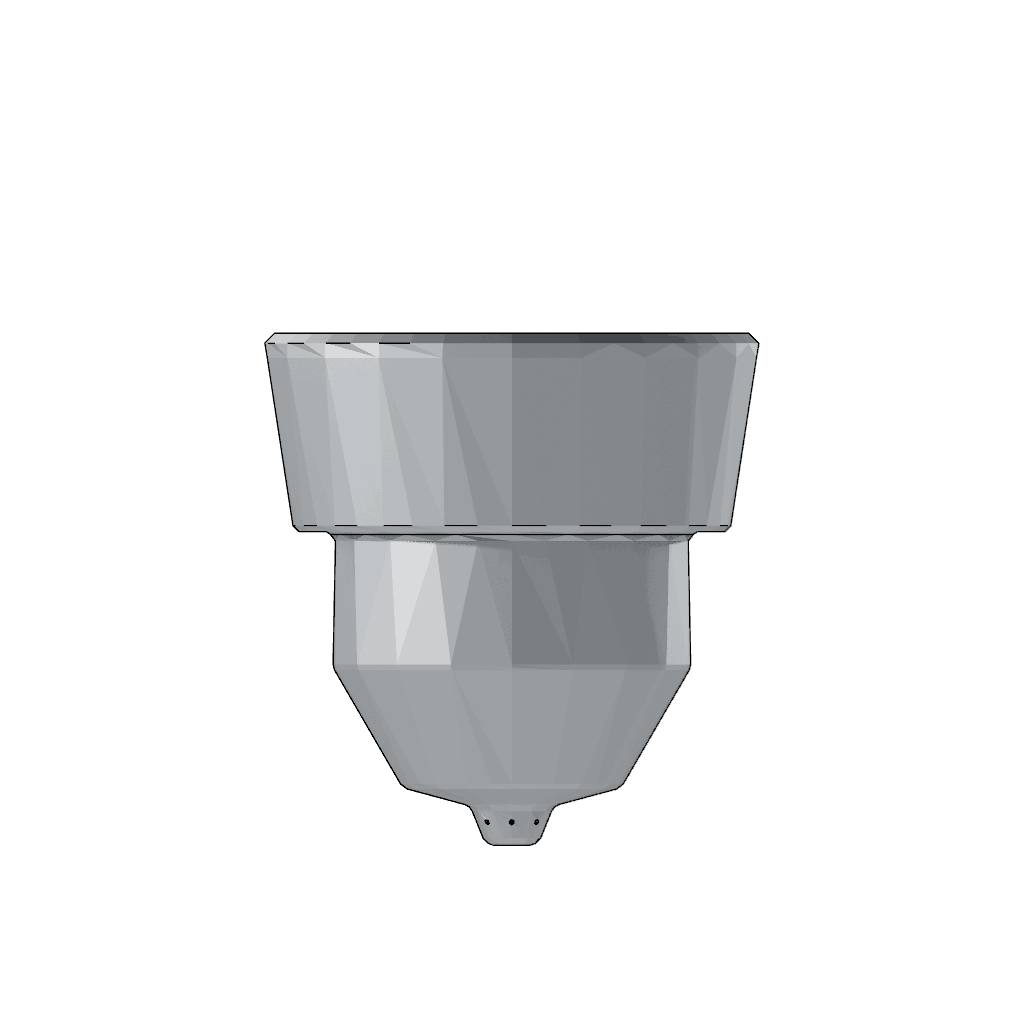

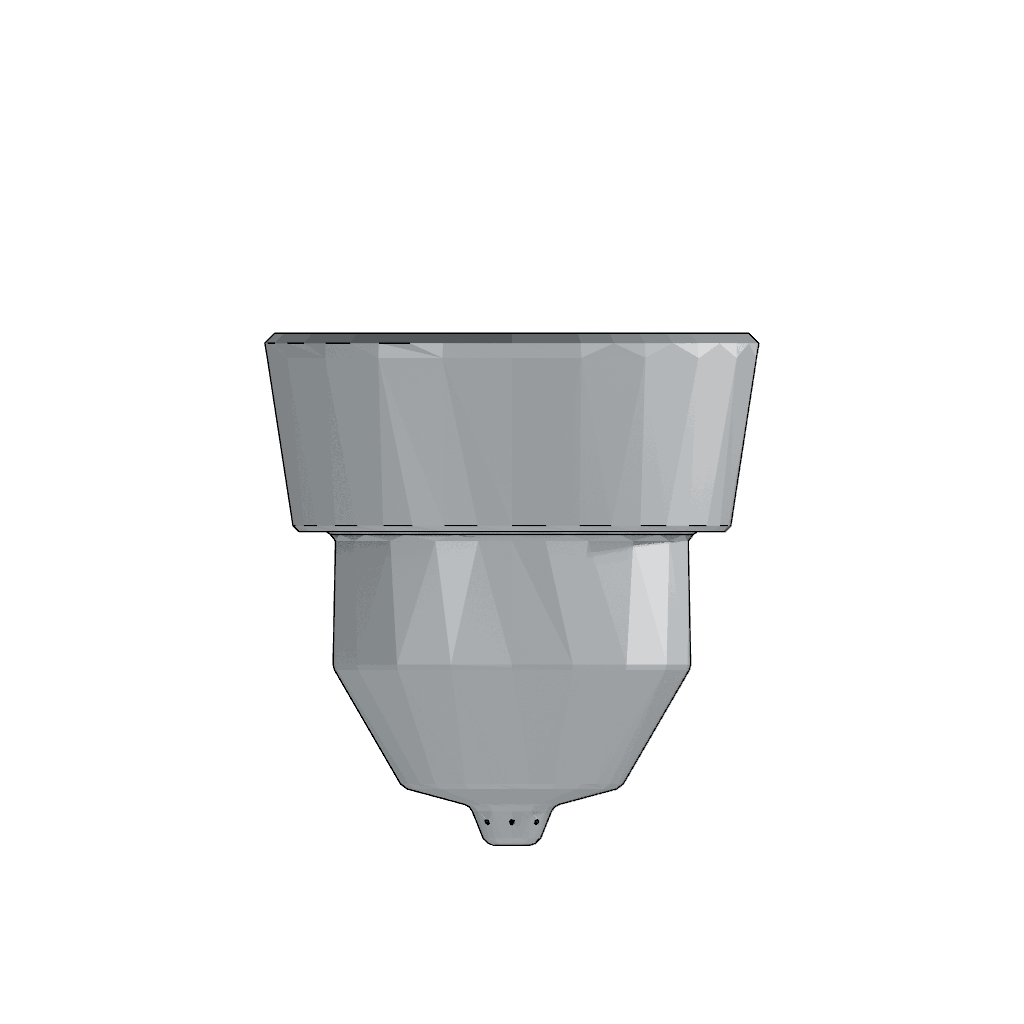

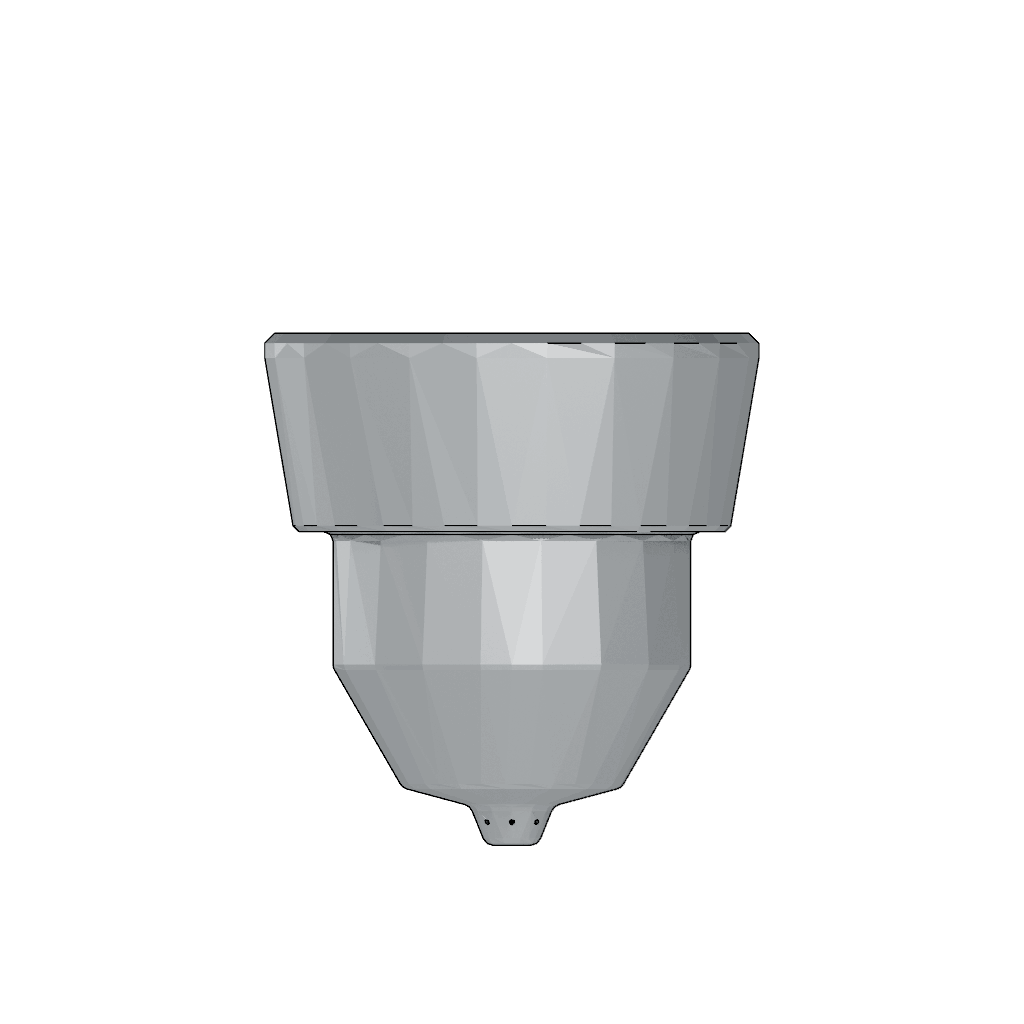

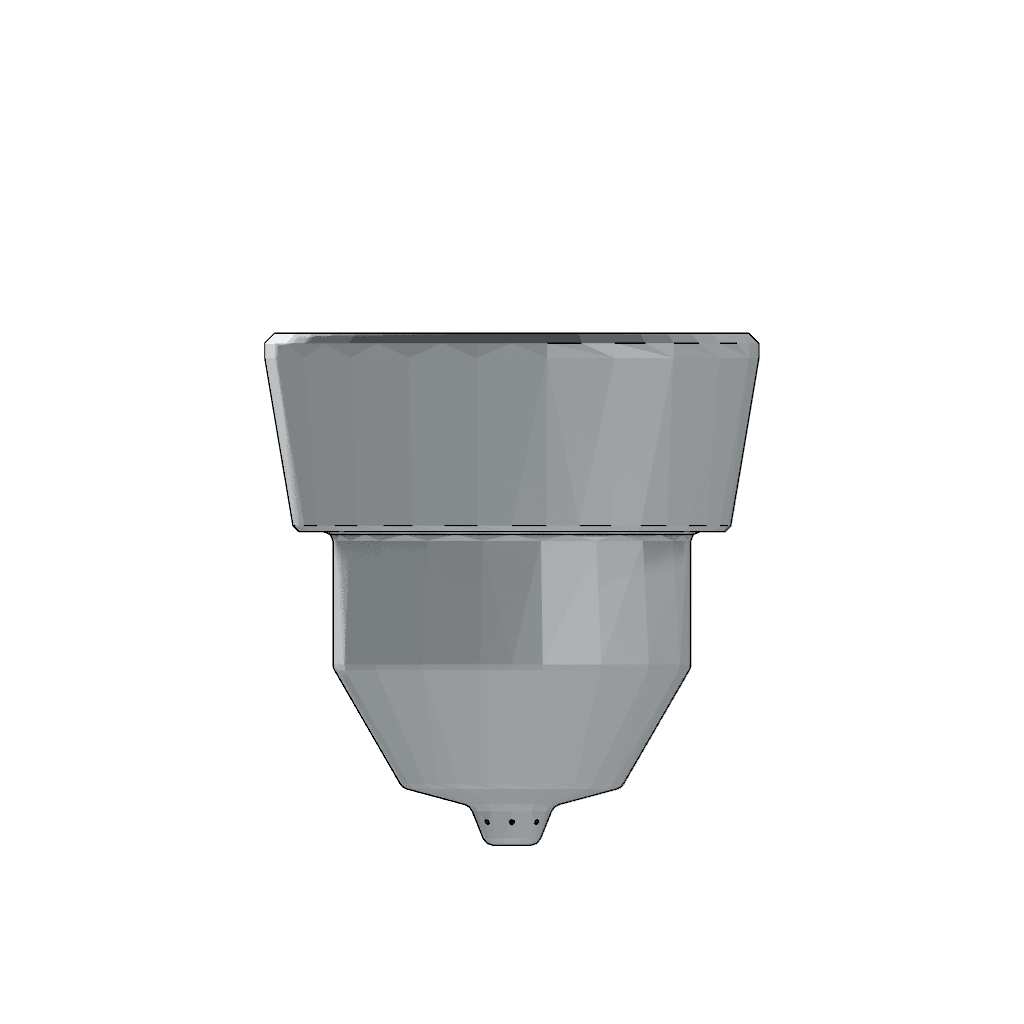

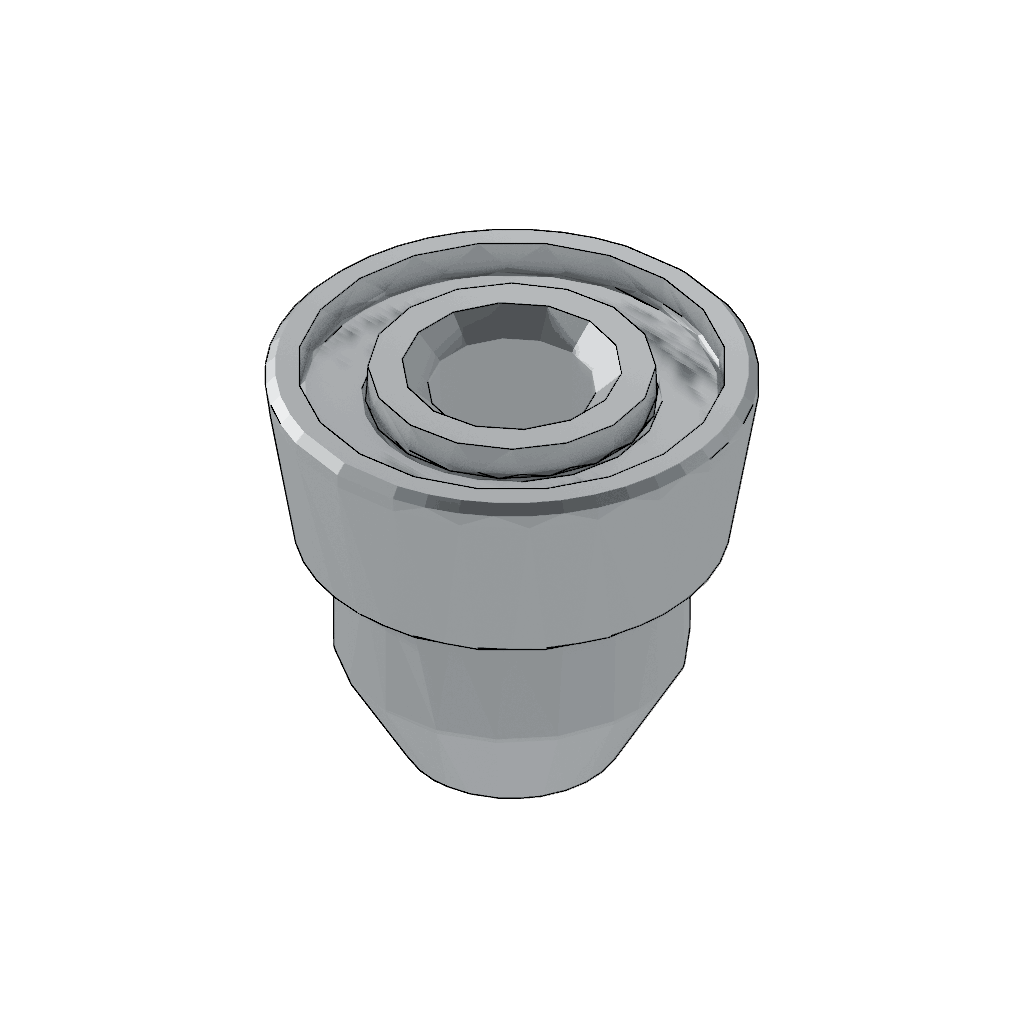

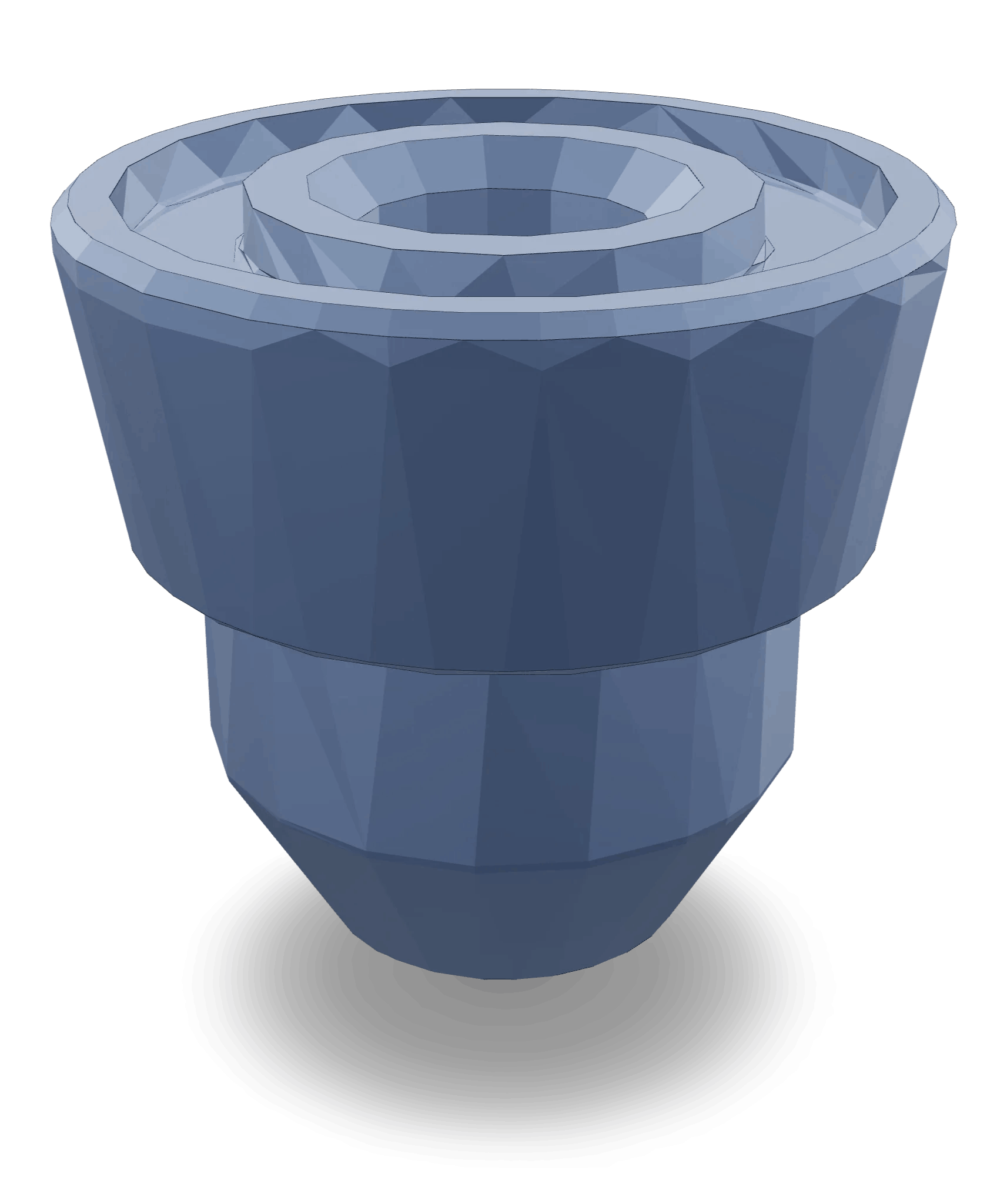

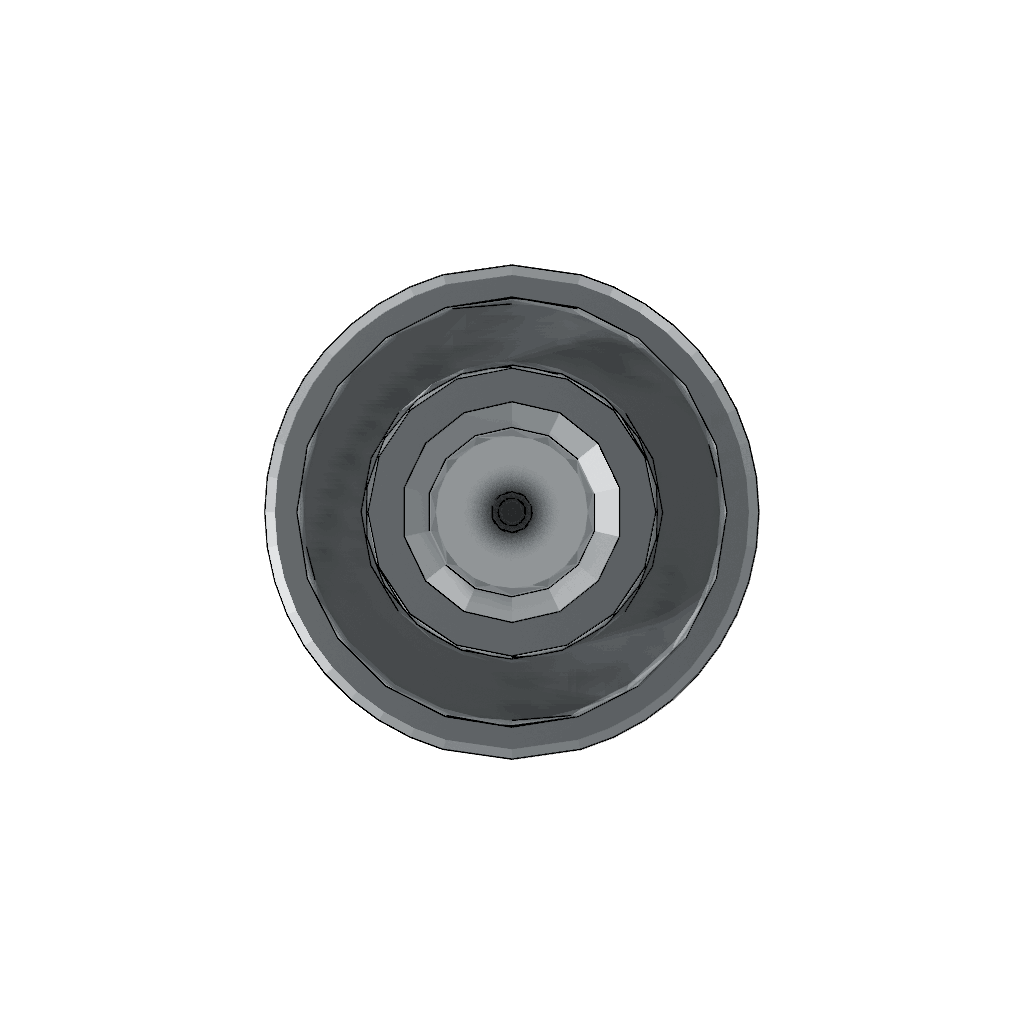

Injector Cup
Cummins®

The Cummins Injector Cup, identified by part number 3073570, is a critical component in the operation of heavy-duty trucks. It serves as a secure mounting point for fuel injectors within the cylinder head of diesel engines, playing a significant role in maintaining the integrity of the fuel system and ensuring efficient fuel delivery.

Basic Concepts and Functionality

Injector cups are fundamental components in diesel engines, designed to facilitate the precise injection of fuel into the combustion chamber. The injector cup houses the fuel injector, providing a seal that prevents fuel leakage and maintains the necessary pressure for efficient combustion. It also helps dissipate heat generated during the injection process, protecting both the injector and the cylinder head from thermal damage ¹.

Purpose of the Injector Cup

The Cummins Injector Cup secures the injector within the cylinder head and ensures proper fuel delivery. It creates a seal that maintains fuel pressure and prevents leaks, which is vital for the engine’s performance and efficiency. By holding the injector in place, the cup ensures that fuel is delivered at the correct timing and pressure, contributing to optimal combustion and engine operation ².

Key Features

The Cummins Injector Cup (Part #3073570) is characterized by several key features that enhance its performance and durability. It is typically made from high-strength materials, such as heat-treated steel, to withstand the high pressures and temperatures within the engine. The design includes precise machining to ensure a tight seal around the injector, minimizing the risk of fuel leakage. Additionally, the cup may feature enhanced cooling fins or other design elements to improve heat dissipation ³.

Benefits

Using the Cummins Injector Cup offers several benefits. It contributes to improved fuel efficiency by ensuring that fuel is delivered under the correct pressure and at the right time. This precise fuel delivery enhances engine performance, leading to smoother operation and increased power output. Furthermore, the robust design of the injector cup increases the reliability of the fuel injection system, reducing the likelihood of leaks and other issues that can affect engine performance ⁴.

Common Issues and Troubleshooting

Injector cups can encounter issues such as cracking, leaking, or becoming dislodged, which can lead to engine performance problems. Common signs of injector cup failure include decreased fuel efficiency, rough idling, and engine misfires. Troubleshooting may involve inspecting the cup for visible damage, checking for fuel leaks, and ensuring that the injector is properly seated. Maintenance practices, such as regular inspections and timely replacements, can help prevent these issues ⁵.

Installation and Replacement Guidelines

Installing or replacing the Cummins Injector Cup requires careful attention to detail to ensure proper function and avoid damage. The process involves removing the old cup, cleaning the cylinder head surface, and installing the new cup with the correct torque specifications. It is important to follow manufacturer guidelines to avoid over-tightening, which can damage the cup or the cylinder head. Using the appropriate tools and taking precautions to prevent cross-threading are also critical steps in the installation process ⁶.

Maintenance Tips

Regular maintenance of the Cummins Injector Cup is vital to ensure its longevity and optimal performance. This includes routine inspections for signs of wear or damage, such as cracks or leaks. It is also important to follow the manufacturer’s recommendations for replacement intervals, as worn injector cups can lead to decreased engine performance and increased fuel consumption. Keeping the fuel system clean and free of contaminants can further enhance the lifespan of the injector cup ⁷.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes diesel and natural gas engines, as well as related technologies. With a history spanning over a century, Cummins has established a reputation for producing high-quality diesel engines and components. The company’s commitment to innovation and excellence has made it a trusted name in the automotive industry, particularly in the heavy-duty truck sector ⁸.

Cummins Injector Cup (Part 3073570) Compatibility

The Cummins Injector Cup, identified by part number 3073570, is a critical component in the fuel injection system of various Cummins engines. This part is designed to ensure precise fuel delivery, which is essential for optimal engine performance and efficiency.

N14 MECHANICAL Engines

The Injector Cup (3073570) is specifically engineered to fit seamlessly within the N14 MECHANICAL engines. These engines are known for their robust design and reliability, making them a popular choice in heavy-duty applications. The injector cup plays a pivotal role in maintaining the integrity of the fuel injection process by providing a secure seal that prevents fuel leaks and ensures consistent fuel atomization. This compatibility ensures that the N14 MECHANICAL engines can operate efficiently, delivering the power and durability that users expect ⁹.

Group Compatibility

While the primary focus is on the N14 MECHANICAL engines, it is important to note that the Injector Cup (3073570) may also be compatible with other Cummins engine models within the same engine family or series. This compatibility is often due to shared design elements and engineering principles that ensure interchangeability and ease of maintenance. Users should consult the specific engine documentation or a Cummins-authorized dealer to confirm compatibility with other engine models ¹⁰.

Role of Part 3073570 Injector Cup in Engine Systems

The injector cup, designated as part 3073570, is integral to the functionality and efficiency of fuel injectors within engine systems. It serves as a protective and sealing component that interfaces directly with the injector and the cylinder head.

Interaction with Fuel Injectors

The injector cup provides a secure and sealed environment for the fuel injector to operate within. It ensures that the high-pressure fuel delivered by the injector is contained and directed precisely into the combustion chamber. This containment is essential for maintaining the integrity of the fuel spray pattern, which directly influences combustion efficiency and engine performance ¹¹.

Sealing and Protection

One of the primary functions of the injector cup is to create a robust seal between the injector and the cylinder head. This seal prevents fuel leakage, which could lead to inefficient combustion and potential engine damage. Additionally, the cup protects the injector from the extreme temperatures and pressures present within the cylinder, prolonging the injector’s lifespan and ensuring consistent performance ¹².

Thermal Management

The injector cup also plays a role in thermal management within the engine. By providing a barrier between the injector and the high-temperature environment of the combustion chamber, it helps to regulate the temperature of the injector. This temperature control is vital for maintaining the viscosity and flow characteristics of the fuel, which are critical for optimal injector operation ¹³.

Structural Support

From a structural standpoint, the injector cup offers support to the injector, ensuring it remains securely in place during engine operation. This stability is important for the precise delivery of fuel, as any movement or misalignment of the injector could result in inconsistent fuel spray and reduced engine efficiency ¹⁴.

Integration with Cylinder Head

The design of the injector cup allows for a seamless integration with the cylinder head. This integration is crucial for the overall sealing and operational efficiency of the engine. The cup must be compatible with the specific design and material of the cylinder head to ensure a perfect fit and function ¹⁵.

Conclusion

In summary, the injector cup (part 3073570) is a multifaceted component that enhances the performance, efficiency, and longevity of fuel injectors within engine systems. Its role in sealing, protection, thermal management, and structural support underscores its importance in the intricate dance of engine operation.
