5274404
Fuel Filter Head
Cummins®

Introduction

The Cummins 5274404 Fuel Filter Head is a critical component in heavy-duty trucks, designed to ensure the fuel delivered to the engine is clean and free from contaminants. This part is essential for maintaining engine efficiency and reliability, contributing to the overall performance of the vehicle.

Basic Concepts of Fuel Filter Heads

A Fuel Filter Head is a component within the fuel system that houses the fuel filter element. Its primary function is to filter out impurities and contaminants from the fuel before it reaches the engine. By doing so, it helps protect the engine from damage caused by particulate matter and ensures that the fuel system operates efficiently. The Fuel Filter Head also plays a role in maintaining consistent fuel pressure and flow, which are vital for optimal engine performance ¹.

Purpose of the Cummins 5274404 Fuel Filter Head

The Cummins 5274404 Fuel Filter Head is designed to filter fuel and maintain its quality as it is delivered to the engine. It houses the filter element that traps contaminants, ensuring that only clean fuel passes through to the engine. This part contributes to the engine’s performance by providing a consistent supply of clean fuel, which is vital for combustion efficiency and engine longevity ².

Key Features

The Cummins 5274404 Fuel Filter Head features a robust design that includes high-quality materials to ensure durability and reliability. It is engineered to withstand the demanding conditions of heavy-duty truck operations. The design incorporates elements that facilitate easy maintenance and replacement of the filter element, enhancing the convenience of upkeep. Additionally, the Fuel Filter Head is equipped with sensors that can monitor the condition of the fuel and the filter, providing valuable data for maintenance scheduling ³.

Benefits

Using the Cummins 5274404 Fuel Filter Head offers several benefits. It contributes to improved fuel efficiency by ensuring that the engine receives clean fuel, which burns more efficiently. Enhanced engine performance is another advantage, as the filter head helps maintain optimal fuel pressure and flow. Increased reliability is also a notable benefit, as the clean fuel reduces the risk of engine damage from contaminants ⁴.

Installation Process

Installing the Cummins 5274404 Fuel Filter Head requires careful attention to detail to ensure proper function. The process involves disconnecting the old filter head, if present, and connecting the new one in its place. It is important to use the correct tools and follow the manufacturer’s instructions to avoid damage to the fuel system components. Precautions such as bleeding the fuel system to remove air pockets should be taken to ensure a successful installation.

Maintenance Tips

To ensure the optimal performance and longevity of the Cummins 5274404 Fuel Filter Head, regular maintenance is recommended. This includes inspecting the filter element for signs of contamination and replacing it at the intervals specified by the manufacturer. Cleaning the Fuel Filter Head and its surrounding components can also help prevent buildup that may affect performance. Monitoring the fuel system for any signs of issues, such as changes in engine performance or fuel flow, is also important for maintaining the Fuel Filter Head.

Troubleshooting Common Issues

Common problems associated with the Cummins 5274404 Fuel Filter Head may include fuel contamination, leaks, or sensor malfunctions. Troubleshooting these issues involves inspecting the Fuel Filter Head and its connections for signs of damage or wear. If a leak is detected, the connections should be tightened or replaced as necessary. Sensor malfunctions may require recalibration or replacement of the sensor to resolve the issue.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including diesel engines and components. With a history spanning over a century, Cummins has established a reputation for quality, innovation, and reliability in the automotive industry. The company’s product offerings cater to various applications, from on-highway to off-highway and industrial uses, providing solutions that meet the diverse needs of its customers.

Cummins Fuel Filter Head 5274404 Compatibility

The Cummins Fuel Filter Head part number 5274404 is designed to fit a variety of Cummins engines, ensuring efficient fuel filtration and system protection. This part is compatible with the following engines:

ISB6.7 Series

• ISB6.7 CM2350 B101
• QSB6.7 CM2250
• QSB6.7 CM2350 B105

These engines, part of the ISB6.7 series, are known for their robust performance and reliability in various applications, from agricultural to industrial use. The 5274404 Fuel Filter Head is engineered to seamlessly integrate with these engines, providing a secure and efficient connection for the fuel filtration system.

QSL8.9 Series

• QSL8.9 CM2150 L141

The QSL8.9 engine, with its higher displacement and power output, is typically used in heavy-duty applications. The 5274404 Fuel Filter Head is designed to fit this engine, ensuring that the filtration system operates smoothly and effectively, maintaining the engine’s performance and longevity.

QSL9 Series

• QSL9 CM2350 L102

The QSL9 engine, part of the QSL9 series, is another high-performance engine used in demanding applications. The 5274404 Fuel Filter Head is compatible with this engine, providing a reliable and efficient filtration solution that supports the engine’s operational needs.

By ensuring compatibility with these engines, the Cummins Fuel Filter Head 5274404 helps maintain the integrity of the fuel system, protecting the engine from contaminants and ensuring optimal performance.

Role of Part 5274404 Fuel Filter Head in Engine Systems

The part 5274404 Fuel Filter Head is an integral component in the fuel system of various engine setups. It interfaces directly with the fuel filter, ensuring that the fuel delivered to the engine is clean and free from contaminants.

Interaction with Fuel Filter

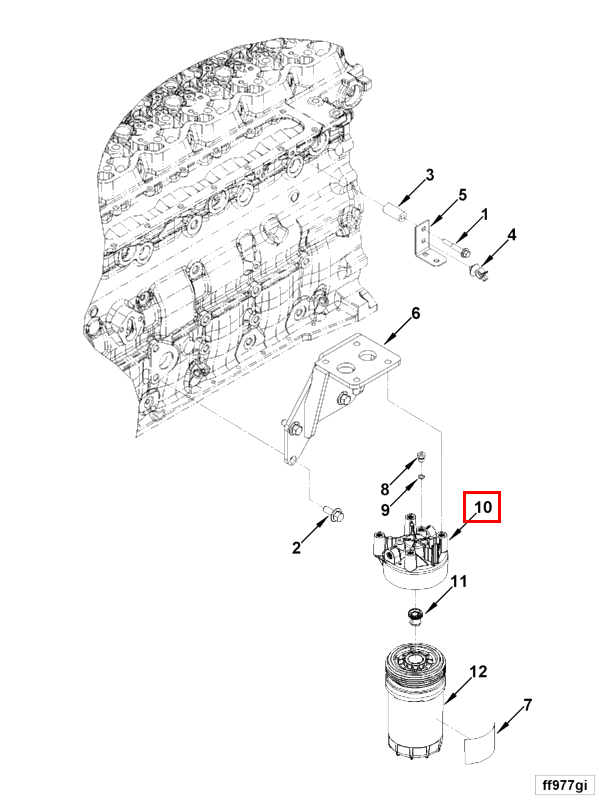

The Fuel Filter Head is designed to mount the fuel filter securely in place. This setup allows for efficient filtration of the fuel as it passes from the tank to the engine. The head not only holds the filter but also facilitates the flow of fuel, minimizing any potential for leaks or disruptions in the fuel line.

Fuel Filter Location Considerations

In many engine systems, the location of the fuel filter is strategically chosen to optimize performance and accessibility for maintenance. The Fuel Filter Head plays a key role here by providing a stable and reliable connection point. This ensures that the filter can be easily replaced or serviced without affecting the overall integrity of the fuel system.

Enhanced System Efficiency

By ensuring a tight and secure fit between the filter and the fuel lines, the Fuel Filter Head contributes to the overall efficiency of the fuel system. It helps maintain consistent fuel pressure and flow, which are essential for the engine’s performance.

Maintenance and Upkeep

Regular inspection and maintenance of the Fuel Filter Head are recommended to ensure it remains in optimal condition. This includes checking for any signs of wear or damage that could affect its sealing properties or the efficiency of the fuel filter.

Conclusion

The Cummins 5274404 Fuel Filter Head is a vital component in the fuel system of heavy-duty trucks, ensuring clean fuel delivery to the engine. Its robust design, compatibility with various Cummins engines, and the benefits it offers in terms of fuel efficiency, engine performance, and reliability make it an essential part for maintaining the integrity of the fuel system. Regular maintenance and proper installation are key to maximizing the performance and longevity of this Cummins part.
