5273955
Fuel Manifold
Cummins®

Introduction

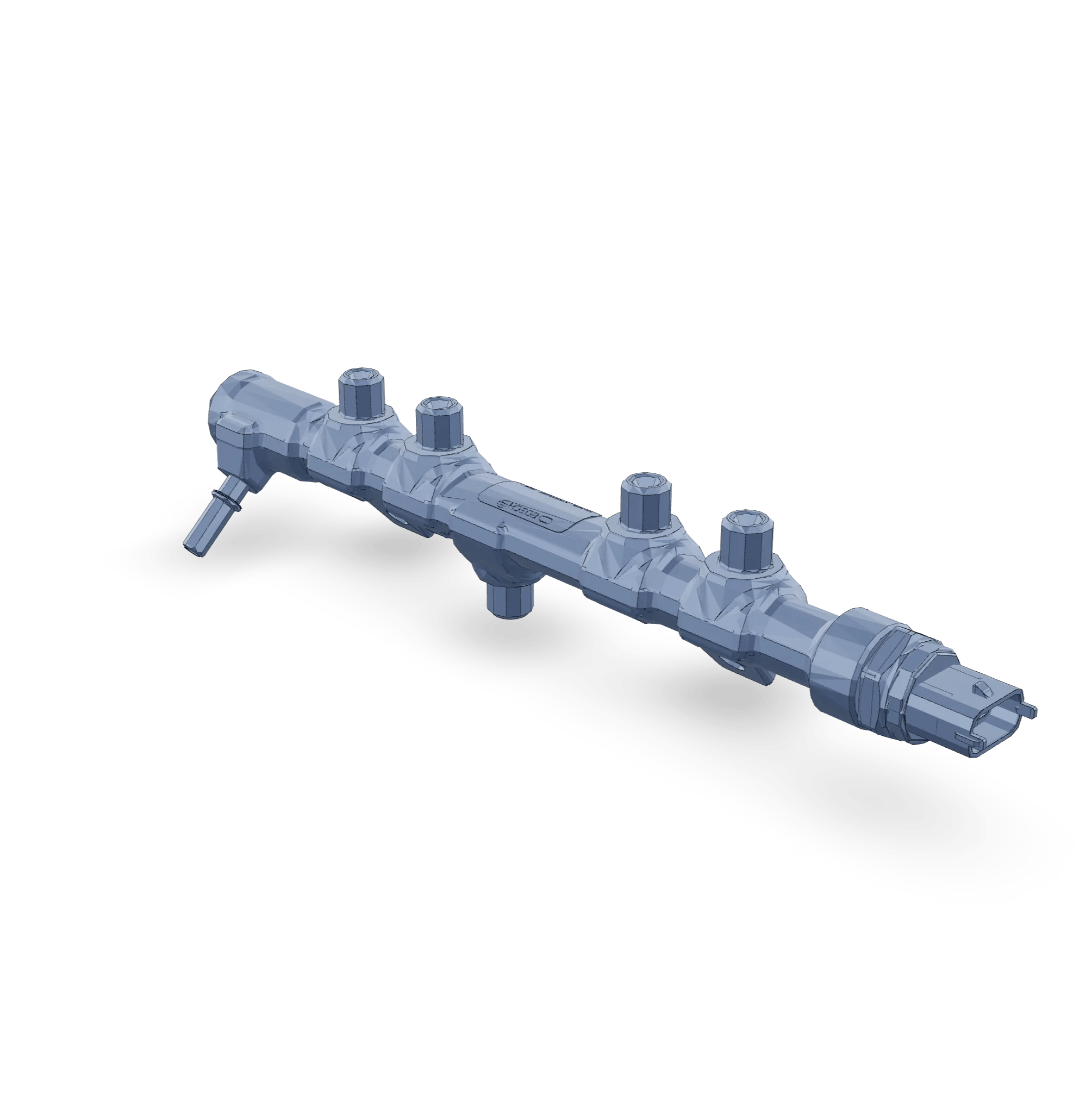

The Cummins 5273955 Fuel Manifold is a component designed for use in heavy-duty trucks. It facilitates the distribution of fuel to the engine’s cylinders, ensuring efficient and effective engine operation under various driving conditions.

Basic Concepts of Fuel Manifolds

A fuel manifold is part of the engine system that distributes fuel to the various cylinders. It connects to the fuel injectors and ensures each cylinder receives the appropriate amount of fuel for combustion. The proper functioning of a fuel manifold is vital for engine performance and efficiency ¹.

Purpose of the Cummins 5273955 Fuel Manifold

The Cummins 5273955 Fuel Manifold is engineered to enhance the fuel delivery system in heavy-duty trucks. It ensures even fuel distribution to the engine’s cylinders, contributing to consistent engine performance and optimizing fuel delivery for better engine efficiency and power output ².

Key Features

The Cummins 5273955 Fuel Manifold is characterized by its robust design and high-quality materials, contributing to its durability and performance. It is crafted to withstand the high pressures and temperatures typical in heavy-duty truck engines and includes features that enhance fuel distribution efficiency ³.

Benefits of Using the Cummins 5273955 Fuel Manifold

Incorporating the Cummins 5273955 Fuel Manifold into a truck’s fuel system offers several advantages. It improves fuel efficiency by ensuring optimal fuel delivery to the engine, leading to cost savings over time. Additionally, it supports enhanced engine performance and provides reliable operation under demanding conditions ².

Installation and Integration

When installing the Cummins 5273955 Fuel Manifold, it is important to follow manufacturer guidelines to ensure proper integration into the truck’s fuel system. This may involve preparing the fuel system, ensuring all connections are secure, and verifying that the manifold is correctly aligned with the fuel injectors. Careful installation is key to maintaining the integrity of the fuel system ².

Maintenance and Troubleshooting

To ensure the Cummins 5273955 Fuel Manifold operates at peak efficiency, regular maintenance is recommended. This includes inspecting the manifold for signs of wear or damage, cleaning it to remove any deposits, and checking for proper fuel flow. Addressing any issues promptly can help prevent more significant problems down the line ².

Common Issues and Solutions

Fuel manifolds can encounter issues such as leaks or blockages, which can affect engine performance and fuel efficiency. Solutions may involve repairing or replacing damaged components, ensuring all connections are tight, and cleaning the manifold to remove any obstructions. Regular maintenance can help identify and address these issues early ².

Cummins Overview

Cummins Inc. is a well-established manufacturer in the automotive industry, known for its diesel engines and components. The company has a history of innovation and quality, offering a wide range of products designed for various applications. Cummins is recognized for its commitment to producing reliable and efficient engine components, including fuel manifolds like the 5273955 ³.

Cummins Engine Compatibility with Fuel Manifold Part 5273955

The Cummins Fuel Manifold part number 5273955 is designed to fit a range of Cummins engines, ensuring efficient fuel delivery and performance. Here is a detailed look at the compatibility of this part with various Cummins engines:

B4.5 Series Engines

• B4.5 CM2350 B129B
• ISB4.5 CM2350 B104

The B4.5 series engines, including the B4.5 CM2350 B129B and ISB4.5 CM2350 B104, are engineered for applications that require robust performance and reliability. The Fuel Manifold part 5273955 is specifically designed to integrate seamlessly with these engines, ensuring optimal fuel distribution and engine efficiency.

F3.8 Series Engines

• F3.8 CM2350 F120B
• F3.8 CM2350 F128C
• ISF3.8 CM2350 F109
• QSF3.8 CM2350 F107

The F3.8 series engines, such as the F3.8 CM2350 F120B, F3.8 CM2350 F128C, ISF3.8 CM2350 F109, and QSF3.8 CM2350 F107, are known for their versatility and adaptability across various applications. The Fuel Manifold part 5273955 is engineered to fit these engines, providing precise fuel management and enhancing overall engine performance.

F3.8 CM2620 F137B

The F3.8 CM2620 F137B engine is another variant that benefits from the precise engineering of the Fuel Manifold part 5273955. This part ensures that the engine operates at peak efficiency, delivering reliable power and performance.

By ensuring compatibility with these engines, the Cummins Fuel Manifold part 5273955 plays a role in maintaining the integrity and performance of the engine systems.

Role of Part 5273955 Fuel Manifold in Engine Systems

The part 5273955 Fuel Manifold is an integral component in the efficient operation of various engine systems. It is responsible for distributing fuel to the injectors, ensuring a consistent and precise fuel supply to each cylinder. This consistent fuel delivery is essential for optimal engine performance and efficiency.

When the fuel manifold is integrated into the engine system, it works in conjunction with the camshaft, which controls the timing of the valve operation. Proper fuel distribution by the manifold ensures that the air-fuel mixture is optimal when the valves open, allowing for efficient combustion.

The connecting rod and piston assembly benefits from the precise fuel delivery provided by the fuel manifold. As the piston moves within the cylinder, the fuel injected by the injectors, guided by the manifold, combusts to drive the piston downward. This combustion process is what generates the power needed to turn the crankshaft and ultimately drive the vehicle.

The cylinder head, which houses the injectors and valves, relies on the fuel manifold to deliver fuel at the right pressure and volume. This ensures that each cylinder receives the correct amount of fuel, leading to balanced engine performance and reduced emissions.

Injectors play a direct role with the fuel manifold, as the manifold supplies them with fuel under the correct pressure. This allows the injectors to atomize the fuel properly, creating a fine mist that mixes well with the air for complete combustion.

In summary, the part 5273955 Fuel Manifold is a key component that ensures the engine’s various parts work in harmony. Its role in fuel distribution directly impacts engine performance, efficiency, and emissions, making it a vital part of the engine system.

Conclusion

The Cummins 5273955 Fuel Manifold is a critical component in the fuel delivery system of heavy-duty trucks. Its robust design, high-quality materials, and precise engineering ensure efficient fuel distribution, enhancing engine performance and reliability. Regular maintenance and proper installation are essential to maximize the benefits of this Cummins part.
