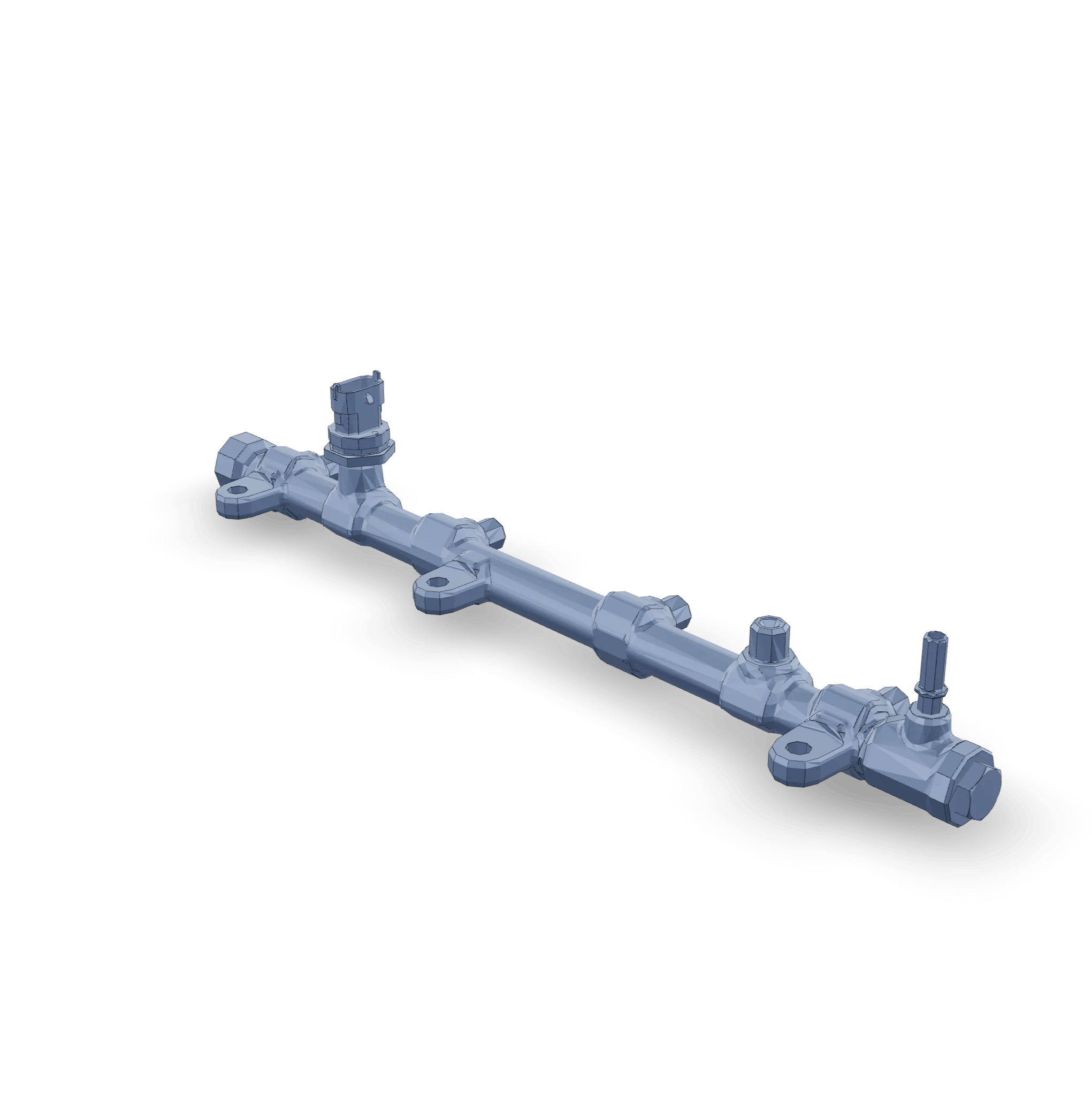

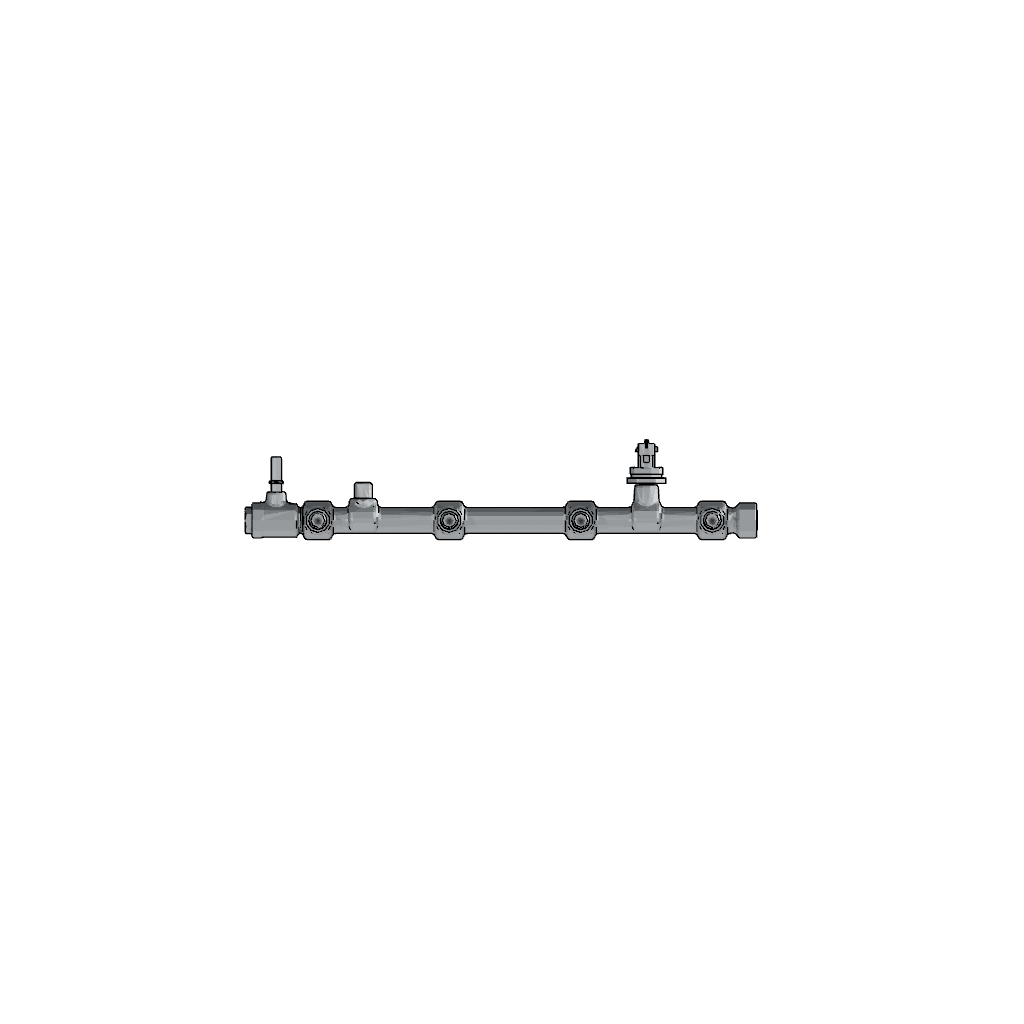

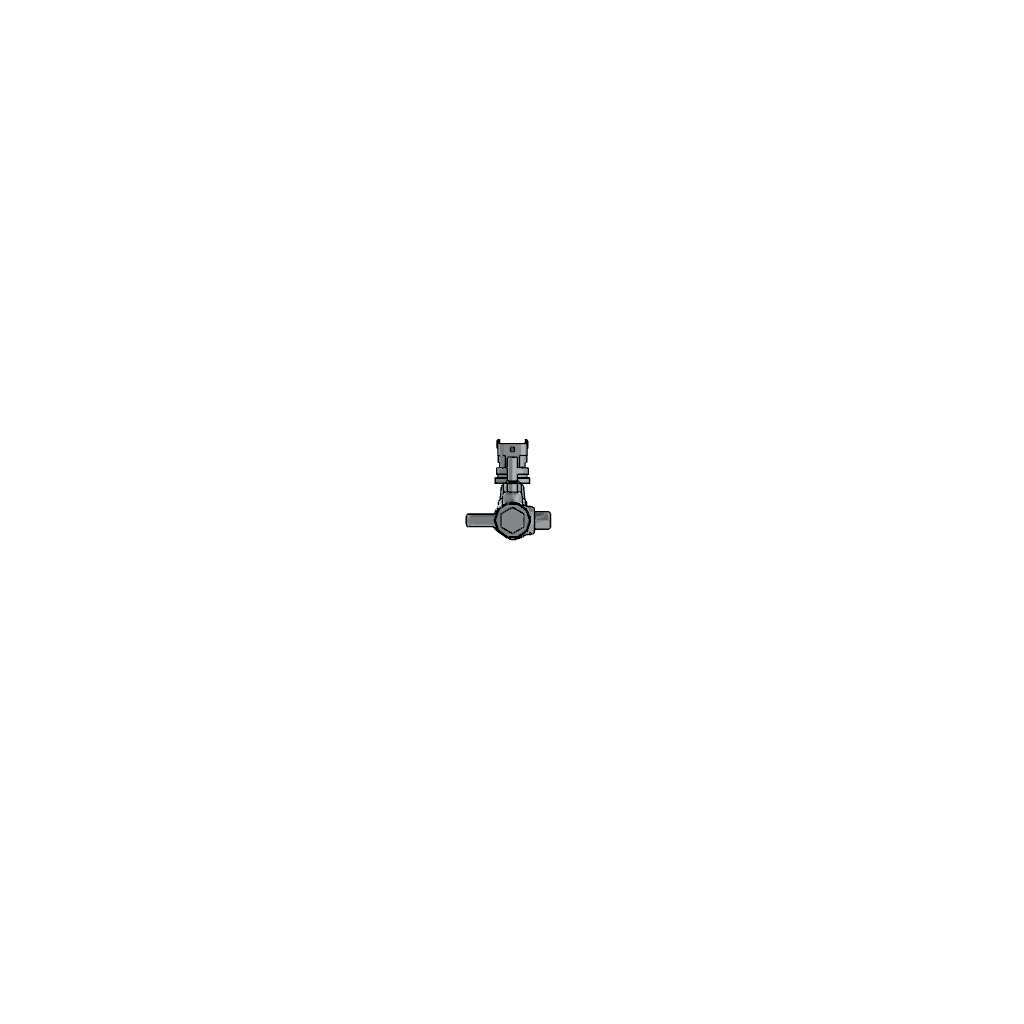

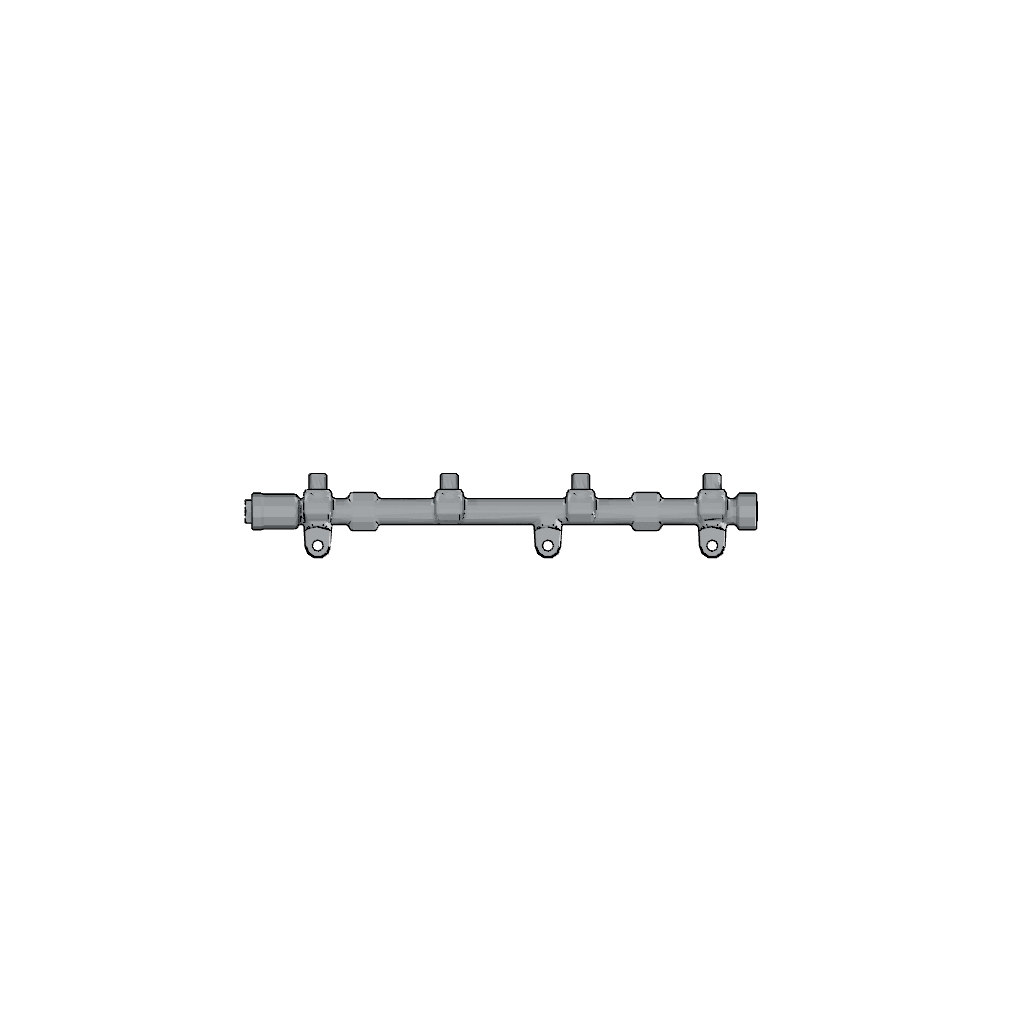

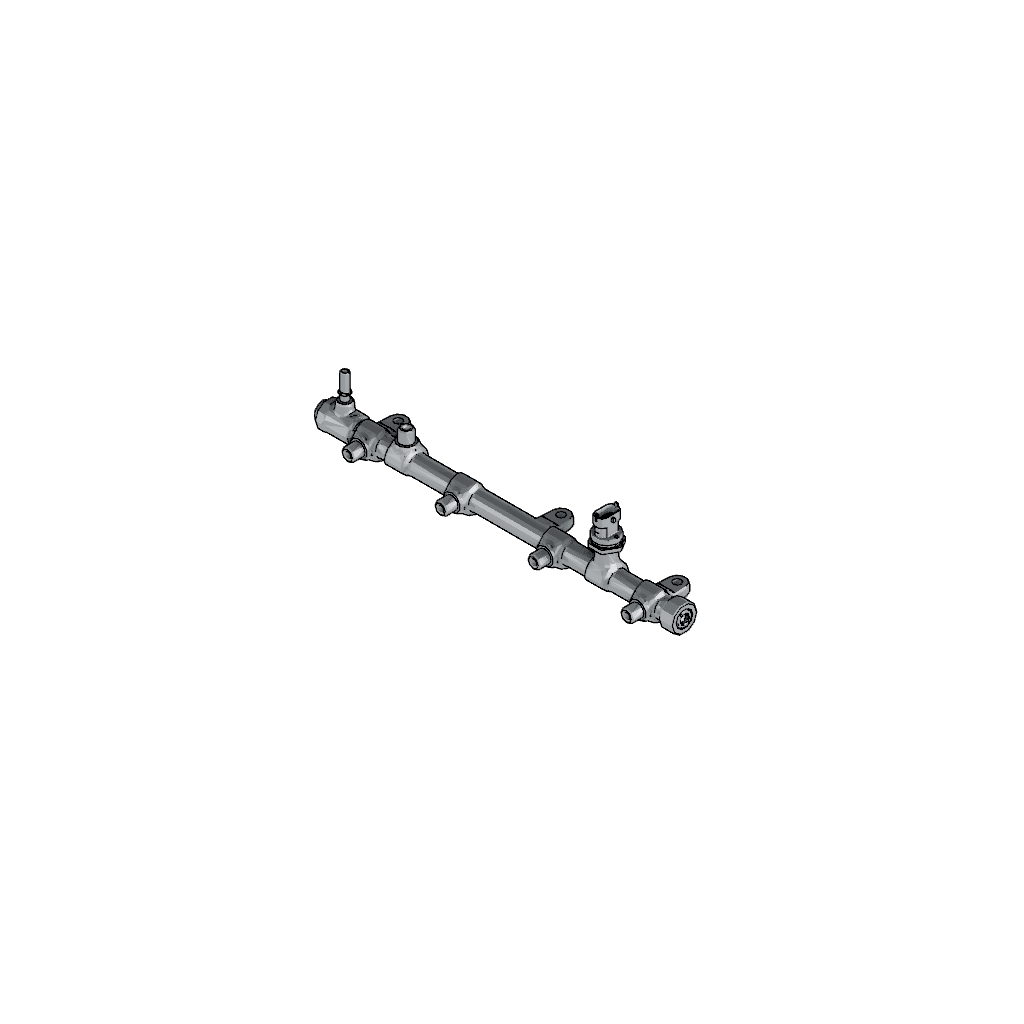

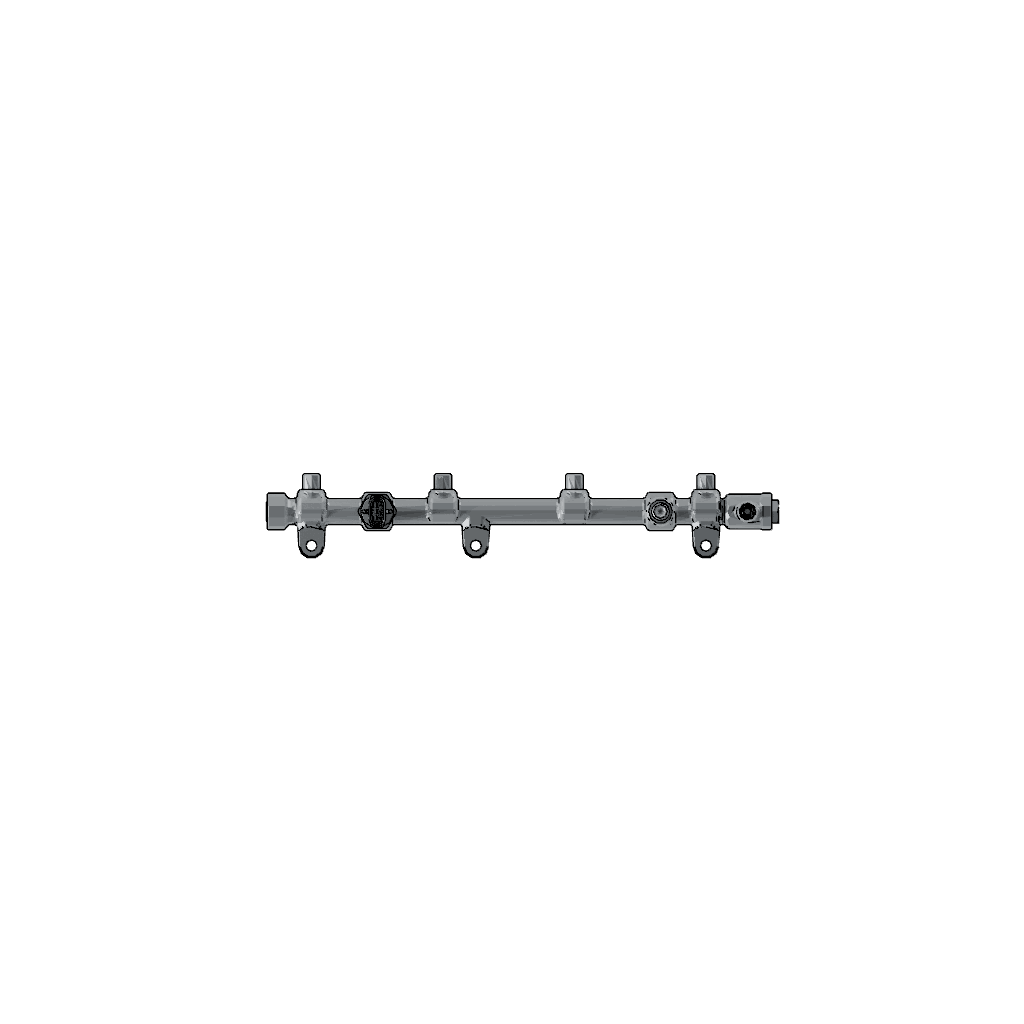

Introduction to the Cummins 5259557 Fuel Manifold

The Cummins 5259557 Fuel Manifold is a vital component in the fuel delivery system of commercial truck engines. This article delves into the intricacies of this Cummins part, its purpose, and its significance in ensuring optimal engine performance.

Basic Concepts Related to the Fuel Manifold and How It Works

A fuel manifold is a critical part of an engine’s fuel delivery system, responsible for distributing fuel evenly to the engine’s cylinders. The Cummins 5259557 ensures that each cylinder receives the correct amount of fuel at the right time, which is crucial for efficient combustion and engine performance ¹.

This Cummins part operates by receiving fuel from the fuel pump and then distributing it through a series of passages and nozzles. This precise distribution is controlled by the engine’s electronic control module (ECM), which adjusts the fuel flow based on various engine parameters such as load, speed, and temperature ².

Purpose of the Fuel Manifold in Truck Engines

The primary purpose of the Cummins 5259557 is to ensure that the engine operates smoothly and efficiently. By providing a consistent and precise fuel supply to each cylinder, the fuel manifold helps to maintain optimal combustion, which in turn enhances engine performance, fuel efficiency, and longevity ³.

In commercial truck engines, the Cummins 5259557 plays a crucial role in delivering the power needed for heavy-duty operations. Whether it’s hauling heavy loads over long distances or navigating challenging terrains, the reliable performance of the fuel manifold is essential for the overall efficiency and reliability of the truck ⁴.

Troubleshooting and Maintenance of the Fuel Manifold

Proper maintenance of the Cummins 5259557 is essential to ensure its longevity and optimal performance. Regular inspection and cleaning of the fuel manifold can prevent issues such as clogging, which can lead to poor engine performance and fuel efficiency.

If problems arise, common troubleshooting steps include:

• Checking for Leaks: Inspect the fuel manifold for any signs of fuel leaks. Leaks can indicate damaged seals or connections and should be addressed promptly to prevent engine damage.
• Inspecting Fuel Lines and Connections: Ensure that all fuel lines and connections are secure and free from damage. Loose or damaged connections can lead to fuel delivery issues.
• Cleaning the Fuel Manifold: Over time, the fuel manifold can become clogged with deposits and contaminants. Regular cleaning can help maintain its efficiency. Use appropriate cleaning agents and follow the manufacturer’s guidelines for cleaning procedures.

Compatibility of Cummins Part Number 5259557

The Cummins part number 5259557, a Fuel Manifold, is designed to fit a range of engines within the Cummins engine family. This part is engineered to ensure compatibility and optimal performance across various engine models.

ISF2.8 CM2220 Engines

The Cummins part number 5259557 is compatible with the ISF2.8 CM2220 engines, specifically the F117 and F129 variants. This fuel manifold is integral to the efficient operation of these engines, ensuring that fuel is delivered correctly to the combustion chambers.

QSF2.8 CM2880 Engines

Similarly, the part number 5259557 is also suitable for the QSF2.8 CM2880 engines, including the F104, F105, F108, and F114 variants. The fuel manifold plays a crucial role in maintaining the performance and reliability of these engines by managing the fuel flow effectively.

R2.8 CM2220 Engine

Lastly, the Cummins part number 5259557 is also compatible with the R2.8 CM2220 R101B engine. This part ensures that the engine operates smoothly by providing the necessary fuel distribution.

Role of the Fuel Manifold in Engine Systems

The Cummins 5259557 is an integral component in the fuel delivery system of an engine, working in concert with several other parts to ensure optimal performance.

Interaction with Injectors

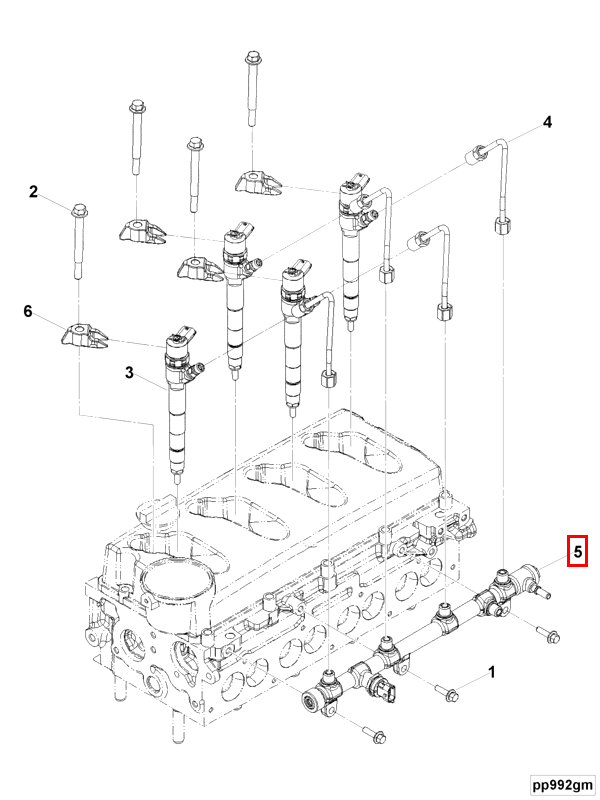

The Fuel Manifold is designed to distribute fuel evenly to each injector. This even distribution is essential for maintaining consistent fuel-to-air ratios across all cylinders, which directly impacts engine performance and efficiency. The manifold connects to the injectors via precision-machined ports, ensuring a secure and leak-free connection.

Fuel Pressure Regulation

In conjunction with the fuel pressure regulator, the Fuel Manifold helps maintain consistent fuel pressure throughout the system. This stability is vital for the injectors to operate correctly, as fluctuations in fuel pressure can lead to inconsistent fuel delivery and potentially cause engine misfires or reduced performance.

Thermal Management

The Fuel Manifold also plays a role in thermal management within the fuel system. By providing a consistent flow of fuel, it helps to cool the injectors, preventing them from overheating. This is particularly important in high-performance engines where injectors are subjected to extreme conditions.

Integration with Fuel Rails

In systems that utilize fuel rails, the Fuel Manifold acts as a central distribution point. Fuel is delivered from the pump to the manifold, which then routes it to the fuel rails. The rails, in turn, supply fuel to the injectors. This setup ensures that each injector receives an equal amount of fuel, promoting balanced engine operation.

Role in Fuel Return Systems

In engines equipped with a fuel return system, the Fuel Manifold assists in managing the excess fuel that is returned to the tank. This returned fuel helps in cooling the manifold itself and contributes to the overall thermal stability of the fuel system.

Contribution to Emissions Control

By ensuring precise fuel delivery, the Fuel Manifold indirectly supports the engine’s emissions control systems. Consistent fuel distribution leads to more complete combustion, which reduces the likelihood of unburnt fuel contributing to harmful emissions.

Conclusion

In summary, the Cummins 5259557 Fuel Manifold is a key player in the fuel delivery network, working seamlessly with injectors, fuel pressure regulators, fuel rails, and other components to enhance engine performance, efficiency, and reliability. By understanding its role and maintaining it properly, professionals can ensure that their commercial trucks operate at peak efficiency.
