3897173

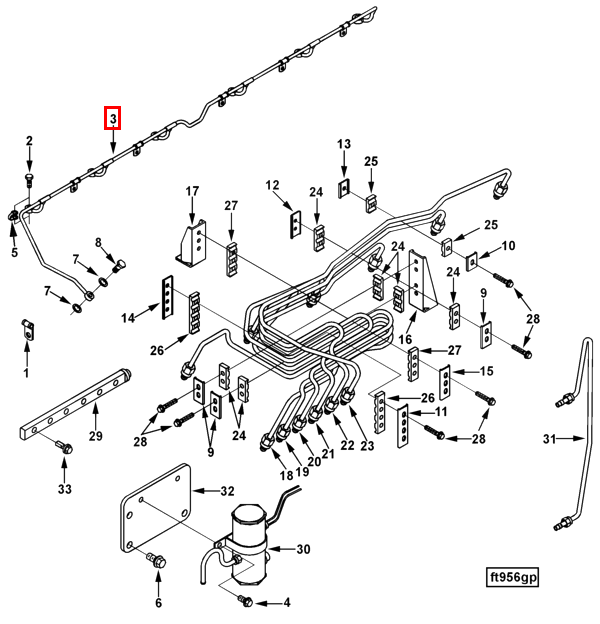

Fuel Manifold
Cummins®

Introduction

The Cummins 3897173 Fuel Manifold is a critical component in the fuel system of commercial trucks, designed to ensure efficient fuel distribution to the engine’s cylinders. This part is essential for the performance and reliability of trucks powered by Cummins engines.

Basic Concepts of Fuel Manifolds

A fuel manifold is a device used in diesel engines to distribute fuel to the injectors of each cylinder. It ensures even fuel distribution, which is vital for consistent engine performance. The manifold maintains the correct fuel pressure and flow, necessary for efficient combustion and engine operation ¹.

Purpose of the Cummins 3897173 Fuel Manifold

The Cummins 3897173 Fuel Manifold is designed to facilitate fuel distribution within the engine system of commercial trucks. It connects to the fuel injectors and regulates the fuel supply to each cylinder, ensuring a consistent and precise amount of fuel for optimal performance and efficiency ².

Key Features

The Cummins 3897173 Fuel Manifold is constructed from durable materials to withstand high pressures and temperatures within the fuel system. It is designed to be compact and efficient, fitting within the engine compartment without compromising performance. The manifold features precise engineering for accurate fuel distribution.

Benefits of Using the Cummins 3897173 Fuel Manifold

Using this Cummins part offers several advantages, including improved fuel efficiency through even and accurate fuel distribution. This leads to better overall engine performance and reduced fuel consumption. The manifold is also designed for reliability and durability, minimizing the need for frequent replacements or repairs ³.

Installation Process

Installing the Cummins 3897173 Fuel Manifold requires careful attention to detail. The process involves disconnecting the old manifold, if present, and connecting the new one to the fuel injectors and fuel supply lines. Ensuring all connections are secure and the manifold is properly aligned is crucial. Tools such as wrenches and torque wrenches may be required.

Troubleshooting Common Issues

Common problems with fuel manifolds can include leaks, blockages, or malfunctions in the fuel distribution system. Troubleshooting may involve checking for loose connections, inspecting the manifold for damage, or testing the fuel pressure to ensure it is within the specified range. Addressing these issues promptly helps maintain engine efficiency and reliability.

Maintenance Tips

Regular maintenance of the Cummins 3897173 Fuel Manifold is important for its longevity and optimal performance. This includes inspecting the manifold for signs of wear or damage, checking the fuel lines for leaks, and ensuring all connections are secure. Following the manufacturer’s recommended service intervals for fuel system components can help prevent issues and extend the life of the manifold.

About Cummins

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality and innovation in the commercial truck industry. The company offers a wide range of products and services designed to meet the needs of customers in various industries, including transportation, construction, and agriculture.

Cummins Fuel Manifold 3897173 Compatibility

The Cummins Fuel Manifold part number 3897173 is designed to integrate seamlessly with several Cummins engine models, ensuring optimal fuel delivery and engine performance. This part is engineered to meet the specific needs of these engines, providing a reliable and efficient fuel management system.

Engine Compatibility

• 6C8.3 Series
  • The 3897173 Fuel Manifold is specifically engineered to fit the 6C8.3 engine series. This engine is known for its robust design and is widely used in various applications, including agricultural and industrial machinery. The manifold’s design ensures that it can handle the unique fuel requirements of the 6C8.3, contributing to the engine’s overall efficiency and longevity.

Integration and Functionality

The Cummins Fuel Manifold 3897173 is designed to integrate with the engine’s fuel system, ensuring that fuel is delivered evenly and efficiently to the engine’s cylinders. This part is crucial for maintaining the engine’s performance and reliability, as it helps to prevent issues such as fuel starvation or uneven fuel distribution, which can lead to engine damage or reduced efficiency.

Importance of Proper Installation

Proper installation of the Cummins Fuel Manifold 3897173 is essential to ensure that it functions correctly. This involves aligning the manifold with the engine’s fuel lines and ensuring that all connections are secure and leak-free. Proper installation helps to maintain the engine’s performance and reliability, as well as prevent potential issues that can arise from a poorly installed manifold.

Maintenance and Longevity

Regular maintenance of the Cummins Fuel Manifold 3897173 is important to ensure its longevity and continued performance. This includes inspecting the manifold for any signs of wear or damage, as well as ensuring that all connections are clean and free of debris. Regular maintenance helps to prevent issues that can arise from a poorly maintained manifold, such as fuel leaks or reduced engine performance.

Role of Part 3897173 Fuel Manifold in Engine Systems

The Part 3897173 Fuel Manifold is an integral component in the fuel delivery system of an engine. It serves as a central hub that facilitates the distribution of fuel to various engine components, ensuring efficient and reliable operation.

Integration with Fuel Plumbing

The Fuel Manifold interfaces directly with the fuel plumbing system. It connects to the fuel lines that transport fuel from the fuel tank to the engine. This connection is essential for maintaining a consistent fuel supply under varying engine loads and operating conditions. The manifold’s design allows for precise control over fuel distribution, which is vital for optimal engine performance.

Coordination with Plumbing Components

In addition to fuel lines, the Fuel Manifold works in conjunction with other plumbing components such as filters, regulators, and sensors. These components help maintain fuel quality, regulate pressure, and monitor system performance. The manifold ensures that fuel is delivered at the correct pressure and flow rate, which is necessary for the efficient operation of fuel injectors and carburetors.

Enhanced Fuel Delivery

By centralizing the fuel distribution process, the Fuel Manifold reduces the complexity of the fuel system. It allows for a more organized and efficient layout of fuel lines and components, which can simplify maintenance and troubleshooting. The manifold’s role in fuel delivery is particularly important in high-performance engines, where precise fuel metering is required to achieve maximum power and efficiency.

Support for Engine Components

The Fuel Manifold supports various engine components by providing a stable and reliable fuel supply. It works in tandem with the engine control unit (ECU) to ensure that fuel delivery is synchronized with engine operation. This integration helps in achieving better fuel economy, reduced emissions, and enhanced overall engine performance.

Conclusion

The Cummins 3897173 Fuel Manifold plays a significant role in the fuel delivery system by efficiently distributing fuel to engine components, interfacing with fuel plumbing, and supporting the operation of other system components. Regular maintenance and proper installation are crucial for ensuring the longevity and performance of this part.
