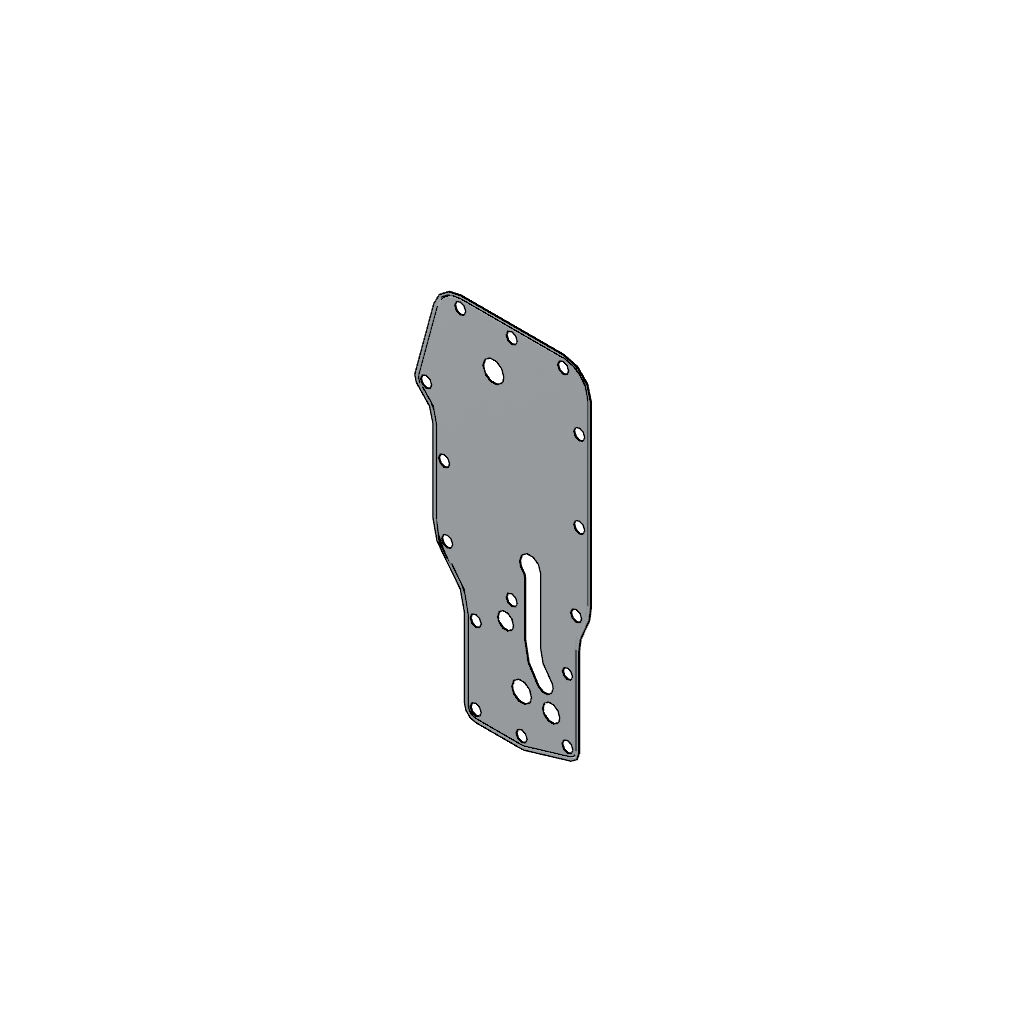

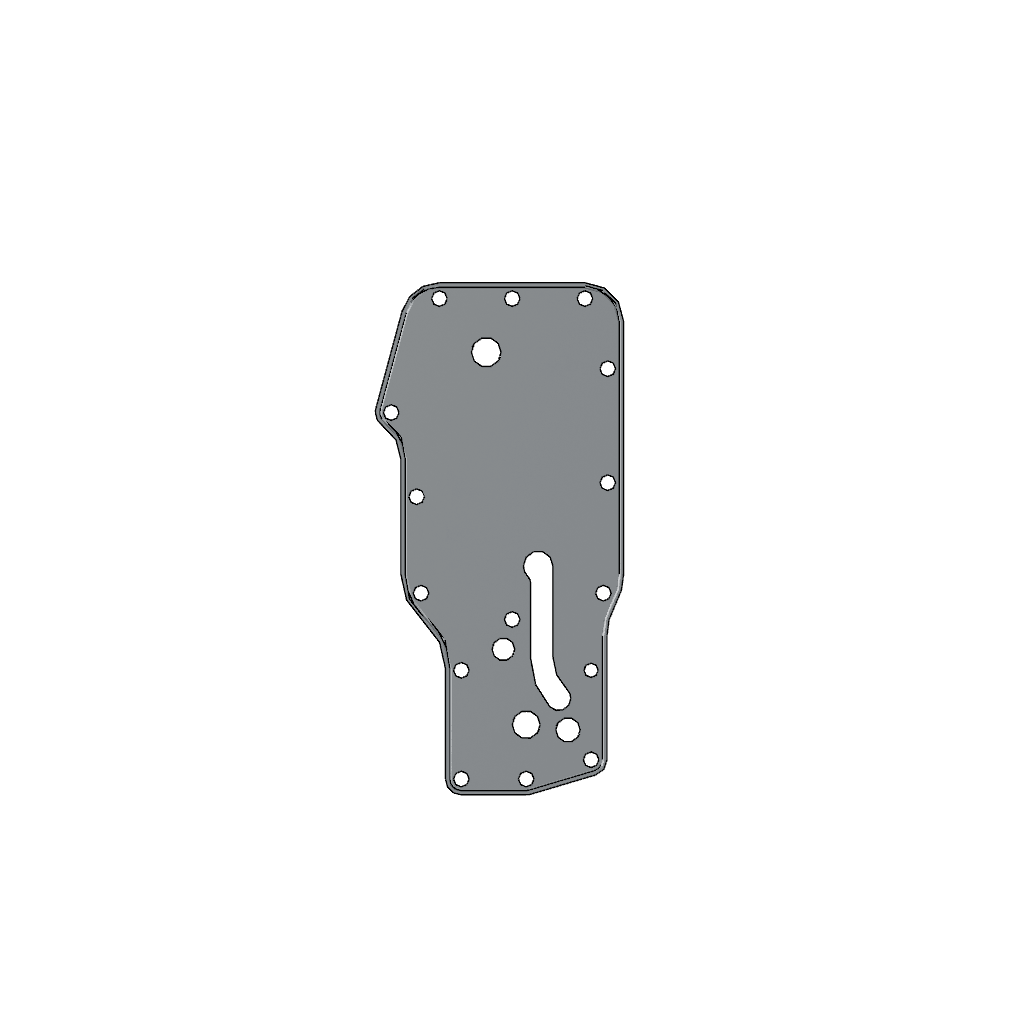

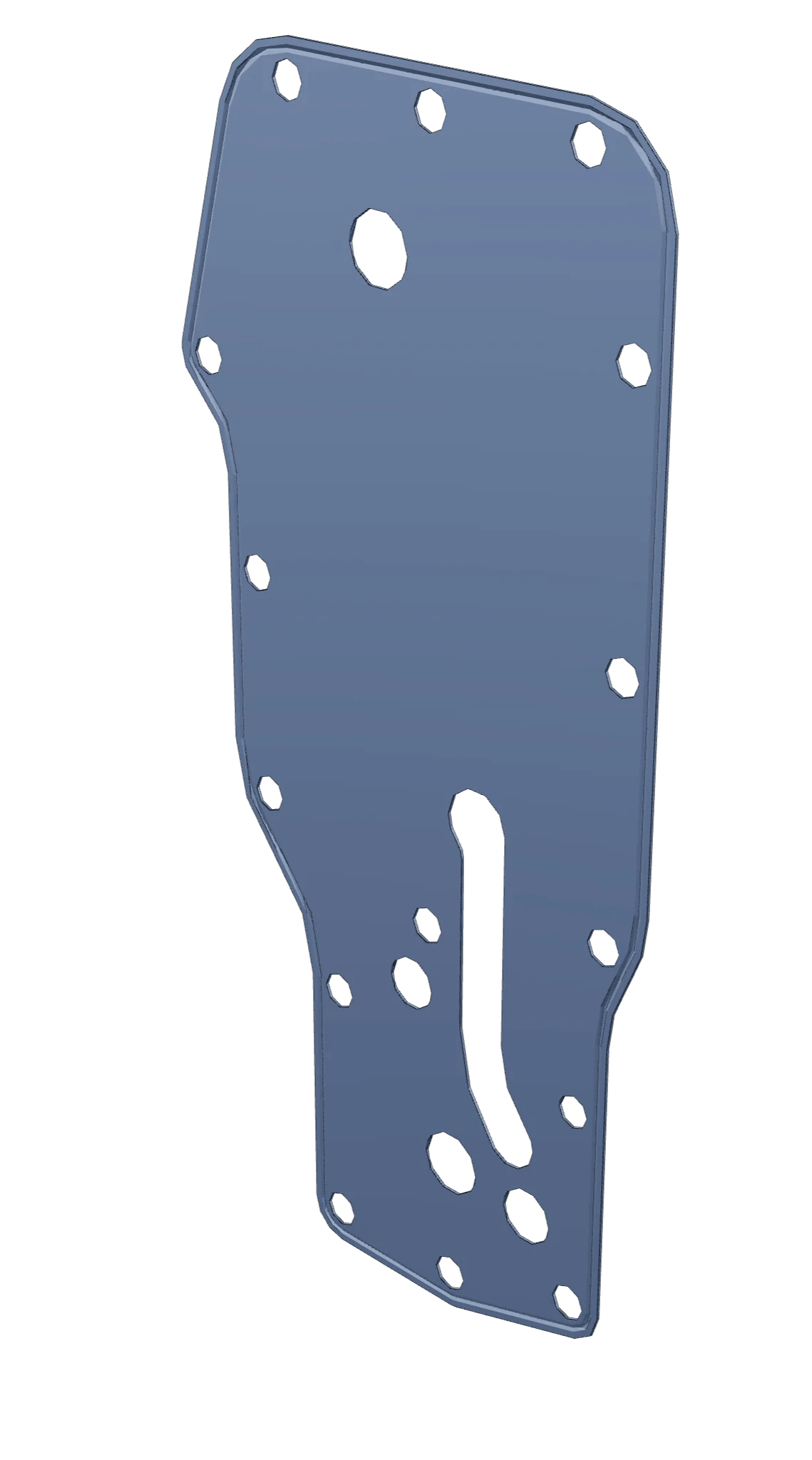

3864458
Filter Head Gasket
Cummins®

The Cummins 3864458 Filter Head Gasket is a critical component designed for use in commercial trucks. This article provides an overview of the Filter Head Gasket, its function, key features, benefits, and maintenance suggestions.

Basic Concepts of Filter Head Gaskets

A Filter Head Gasket is a sealing component used in the filtration system of diesel engines. It ensures a proper seal between the filter housing and the engine block, preventing leaks and maintaining the efficiency of the filtration process. The gasket is typically made from materials that can withstand high temperatures and pressures ¹.

Purpose of the 3864458 Filter Head Gasket

The 3864458 Filter Head Gasket provides a seal that prevents diesel fuel from leaking between the filter housing and the engine block. This ensures that the fuel filtration process is efficient and that clean fuel is delivered to the engine, contributing to optimal engine performance and longevity ².

Key Features

• Constructed from high-quality materials to endure the demanding conditions within a diesel engine.
• Designed to fit specific Cummins engine models, ensuring compatibility and proper function.
• Engineered to withstand high temperatures and pressures, maintaining integrity over time.
• Provides a reliable seal, reducing the risk of fuel leaks and contamination.

Benefits

• Enhances the efficiency of the fuel filtration system by ensuring a tight seal.
• Contributes to engine performance by delivering clean, unfiltered fuel.
• Reduces the risk of engine damage due to fuel leaks or contamination.
• Designed for durability, offering long-term reliability in heavy-duty applications.

Troubleshooting and Maintenance

Regular inspection of the Filter Head Gasket is recommended to identify any signs of wear or damage. If leaks are detected, the gasket should be replaced to prevent fuel contamination and ensure the filtration system operates efficiently. Following the manufacturer’s maintenance schedule can help prolong the life of the gasket and the overall filtration system ³.

Compatibility

The Cummins Filter Head Gasket part number 3864458 is designed to fit a variety of Cummins engine models. Below is a detailed description of its compatibility with the listed engines:

B6.7 CM2670 B164C

The 3864458 gasket is compatible with the B6.7 CM2670 B164C engine, ensuring a proper seal between the filter head and engine block.

ISB/ISD4.5 CM2150 B119

This gasket fits the ISB/ISD4.5 CM2150 B119 engine, providing a reliable seal for the filter head assembly.

ISB/ISD6.7 CM2150 SN, ISBE CM2150

The 3864458 gasket is suitable for both the ISB/ISD6.7 CM2150 SN and ISBE CM2150 engines, ensuring effective sealing in these configurations.

ISBE4 CM850

The gasket is compatible with the ISBE4 CM850 engine, ensuring a secure fit and proper sealing.

QSB4.5 CM2250 EC, QSB4.5 CM850 (CM2850)

The 3864458 gasket fits both the QSB4.5 CM2250 EC and QSB4.5 CM850 (CM2850) engines, providing a reliable seal for the filter head.

QSB5.9 CM850

This gasket is designed to fit the QSB5.9 CM850 engine, ensuring proper sealing and assembly.

QSB6.7 CM2250, QSB6.7 CM2350 B105, QSB6.7 CM850 (CM2850), QSB6.7 M CM2250

The 3864458 gasket is compatible with the QSB6.7 CM2250, QSB6.7 CM2350 B105, QSB6.7 CM850 (CM2850), and QSB6.7 M CM2250 engines, ensuring a secure and effective seal.

QSB7 CM2880 B117

The gasket fits the QSB7 CM2880 B117 engine, providing a reliable seal for the filter head assembly.

Role of the 3864458 Filter Head Gasket in Engine Systems

The 3864458 Filter Head Gasket is an essential component in maintaining the integrity and efficiency of various engine systems. It is specifically designed to ensure a proper seal between the filter head and the engine block, preventing leaks and maintaining system pressure.

Integration with the Cooler System

In the cooler system, the Filter Head Gasket works in conjunction with the oil cooler gasket set to ensure that the cooling process is efficient and leak-free. The gasket helps maintain the seal around the cooler, allowing for optimal heat exchange without any loss of coolant or oil. This ensures that the engine operates within the desired temperature range, enhancing overall performance and longevity.

Engine Oil System

Within the engine oil system, the Filter Head Gasket plays a significant role in maintaining the pressure and flow of oil throughout the engine. It seals the connection between the filter head and the engine block, ensuring that oil is effectively circulated to lubricate moving parts, reduce friction, and dissipate heat. This consistent oil flow is vital for the engine’s durability and efficiency.

Lower Engine Gasket Kit

When integrated with the lower engine gasket kit, the Filter Head Gasket contributes to the overall sealing strategy of the engine. The lower gasket kit typically includes various gaskets that seal different components within the lower part of the engine. The Filter Head Gasket complements this kit by ensuring that the filter head area remains sealed, preventing any oil leaks that could compromise engine performance or lead to contamination.

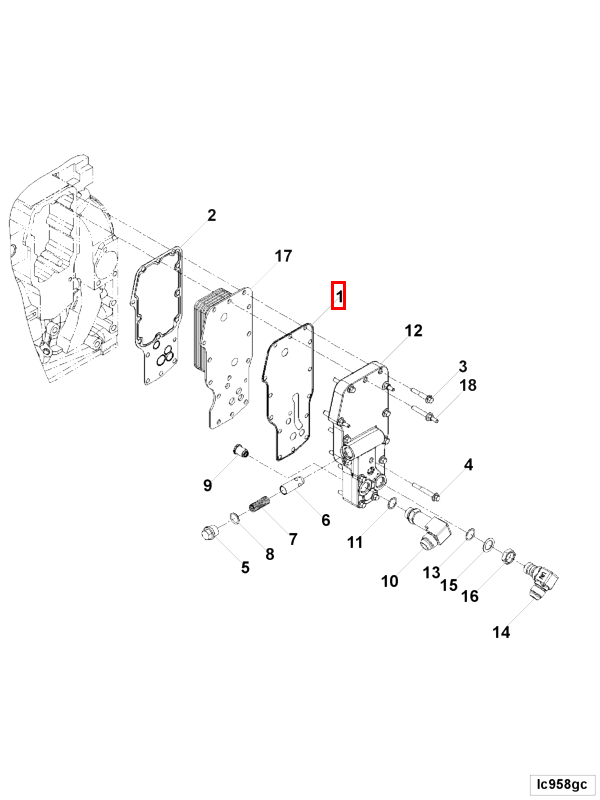

Oil Cooler Gasket Set

The oil cooler gasket set is another area where the Filter Head Gasket is instrumental. By providing a reliable seal at the filter head, it supports the function of the oil cooler gasket set, which is responsible for sealing the oil cooler itself. This dual sealing mechanism ensures that the oil remains clean and at the correct temperature, which is essential for the engine’s operational efficiency and longevity.

Conclusion

The 3864458 Filter Head Gasket is a key component in several engine systems, ensuring that seals are maintained, pressures are consistent, and the overall efficiency of the engine is optimized. Regular maintenance and inspection of this Cummins part are crucial to ensure the longevity and performance of the engine.
