5274458
Filter Screen
Cummins®

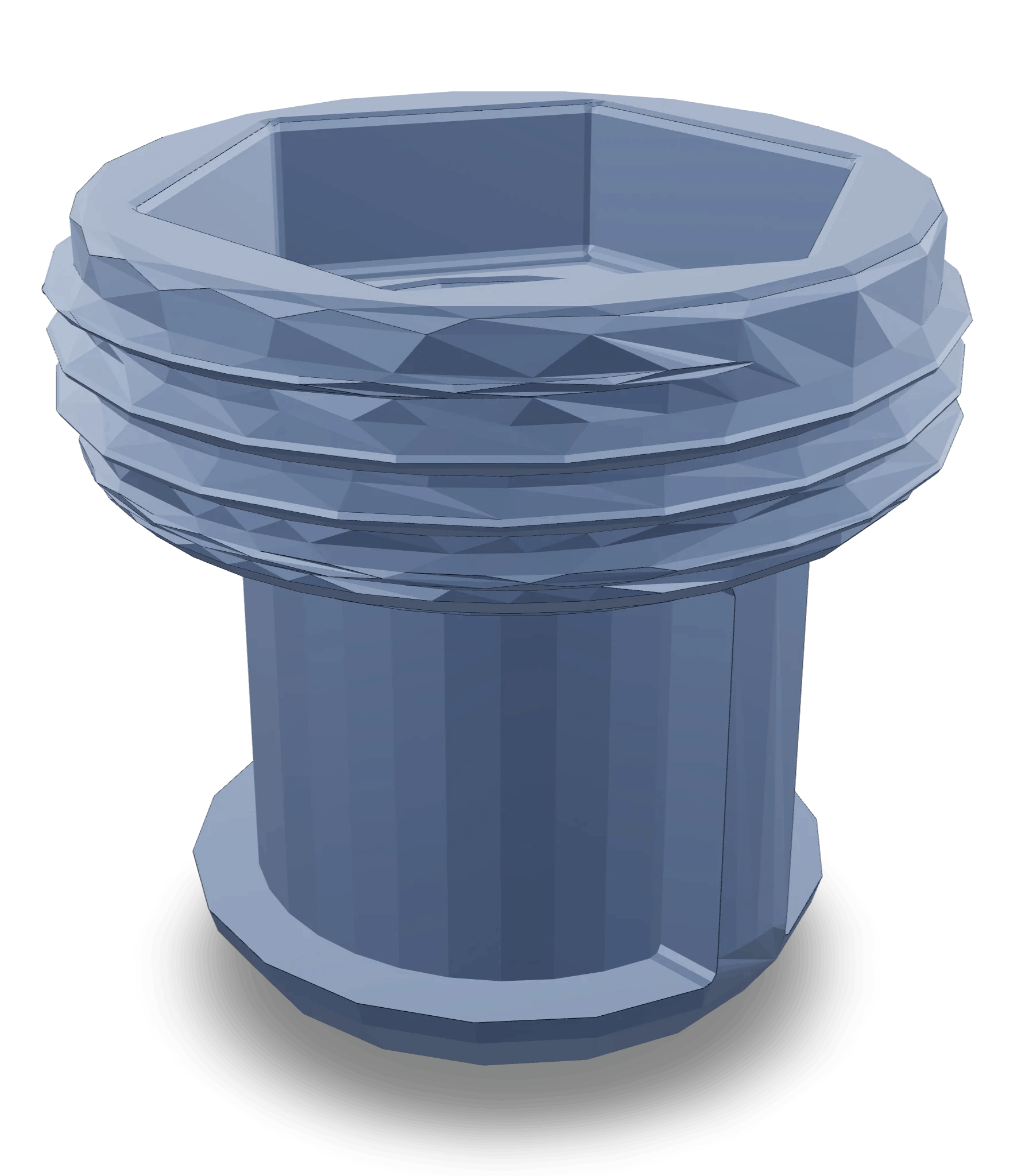

The Cummins 5274458 Filter Screen is a component designed for use in commercial trucks. It serves to maintain the integrity of the truck’s fluid systems by filtering out contaminants that could otherwise cause damage or reduce efficiency. Understanding its purpose and function is key to maintaining the performance and longevity of heavy-duty trucks.

Basic Concepts of Filter Screens

A filter screen is a device used to separate solid particles from fluids. It operates by allowing the fluid to pass through while trapping contaminants on the screen’s surface. In heavy-duty trucks, filter screens are vital for protecting sensitive components within fluid systems, ensuring that only clean fluid reaches critical parts ¹.

Purpose of the Cummins 5274458 Filter Screen

This Cummins part is specifically designed to filter fluids within a truck’s system. It captures a range of potential contaminants, including dirt, metal shavings, and other debris, which could otherwise lead to wear and tear on engine components. By maintaining clean fluid, it helps in preserving the efficiency and reliability of the truck’s operations.

Key Features

The 5274458 is constructed with specific design and material considerations to enhance its performance. It is made from durable materials that can withstand the harsh conditions within a truck’s engine compartment. The mesh size is carefully selected to balance between effective filtration and maintaining fluid flow. Additionally, it may feature unique attributes such as anti-corrosion coatings or reinforced edges to improve durability and performance.

Benefits of Using the Cummins 5274458 Filter Screen

Incorporating this part into a truck’s system offers several advantages. It contributes to improved engine longevity by ensuring that contaminants are removed from the fluid before they can cause damage. This results in enhanced system efficiency and potentially reduced maintenance requirements, as cleaner fluid leads to less wear on components ².

Installation and Compatibility

Proper installation of the 5274458 is important for its effective operation. Installation procedures should follow manufacturer guidelines to ensure correct placement within the truck’s system. This may involve using specific tools and following a sequence of steps to secure the filter screen in its designated location.

Maintenance and Troubleshooting

Regular maintenance of the 5274458 is necessary to ensure its continued effective operation. This includes periodic inspections to check for signs of wear or damage, and cleaning the screen according to manufacturer recommendations. Troubleshooting common issues, such as reduced fluid flow or contamination in the system, may involve inspecting the filter screen for blockages or damage and addressing these issues promptly.

Cummins Corporation

Cummins Inc. is a well-established manufacturer in the commercial truck industry, known for its range of engine and component products. The company has a history of innovation and quality, providing solutions that enhance the performance and reliability of commercial vehicles. The Cummins 5274458 Filter Screen is part of their extensive product line, designed to meet the demanding requirements of heavy-duty truck applications.

Cummins Filter Screen Part 5274458 Compatibility

The Filter Screen part number 5274458 is designed to fit a variety of Cummins engines, ensuring optimal filtration and engine performance. Here is a detailed breakdown of the compatibility of this part with the listed engines:

ISB/ISD4.5 Engines

• ISB/ISD4.5 CM2150 B119
• QSB4.5 CM2250 EC

These engines, part of the ISB and QSB series, utilize the 5274458 to maintain clean fuel and oil flow, which is crucial for their operation.

ISB/ISD6.7 Engines

• ISB6.7 CM2350 B101
• QSB6.7 CM2250
• QSB6.7 CM2350 B105
• QSB6.7 CM850 (CM2850)

The 6.7-liter engines in the ISB and QSB series, such as the CM2350 and CM2250 variants, also benefit from the 5274458. This part ensures that these larger engines receive the necessary filtration to prevent contaminants from entering sensitive components.

ISBE4 Engine

• ISBE4 CM850

The ISBE4 engine, with its CM850 configuration, is another beneficiary of the 5274458. This part is essential for maintaining the cleanliness of the fuel and oil systems in this engine.

ISL9 Engine

• ISL9 CM2150 SN

The ISL9 engine, equipped with the CM2150 SN configuration, relies on the 5274458 to ensure that the filtration system is effective and reliable.

ISV (Nissan)

• ISV (Nissan)

The ISV engine, although branded under Nissan, is powered by a Cummins engine. The 5274458 is compatible with this engine, ensuring that it operates smoothly and efficiently.

QSL8.9 and QSL9 Engines

• QSL8.9 CM2150 L141
• QSL9 CM2350 L102

The larger QSL series engines, including the QSL8.9 and QSL9, utilize the 5274458 to maintain the integrity of their fuel and oil systems. These engines benefit from the robust filtration provided by this part.

QSB7 Engine

• QSB7 CM2880 B117

The QSB7 engine, with its CM2880 B117 configuration, also fits the 5274458. This part is crucial for ensuring that the engine’s filtration system is effective in preventing contaminants from affecting performance.

By ensuring that the 5274458 is used in these engines, operators can maintain the efficiency and longevity of their Cummins engines.

Role of Part 5274458 Filter Screen in Engine Systems

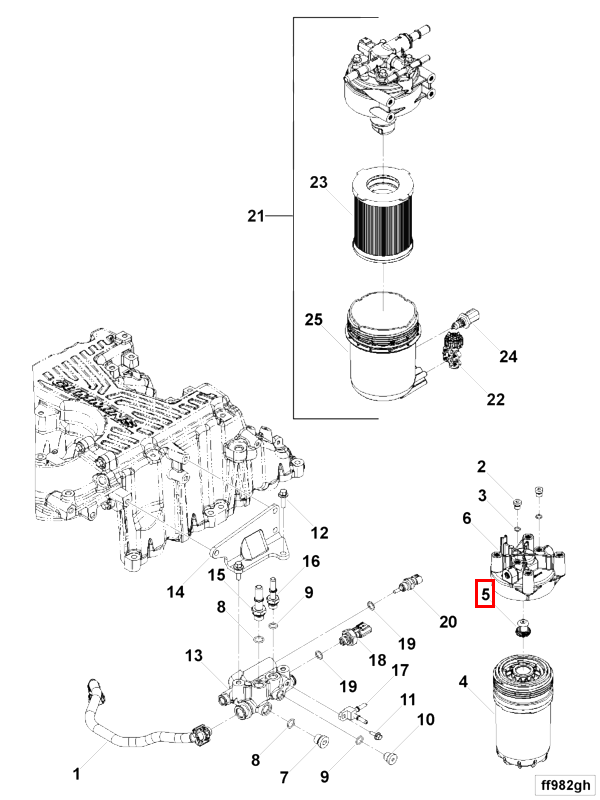

The 5274458 is an integral component within the fuel system of various engine setups. Its primary function is to ensure the purity of the fuel that reaches the engine’s combustion chambers. Positioned within the fuel filter assembly, this screen acts as the first line of defense against contaminants.

When fuel is drawn from the tank, it passes through the fuel filter, where the 5274458 captures impurities such as dirt, rust, and debris. This process is vital for maintaining the efficiency and longevity of the fuel injectors and other sensitive components downstream.

The screen’s placement within the fuel filter head is strategic, allowing it to filter fuel before it reaches the filter’s more refined stages. This preliminary filtration reduces the load on the finer filters, enhancing the overall filtration efficiency of the system.

Moreover, the location of the fuel filter, often near the engine or within the fuel lines, means that the 5274458 is constantly in action, safeguarding the engine from the moment fuel is pumped until it is combusted. This consistent filtration is key to ensuring that the engine operates smoothly and efficiently, free from the damaging effects of contaminated fuel ³.

Conclusion

The Cummins 5274458 Filter Screen plays a critical role in maintaining the efficiency and reliability of commercial truck engines. By effectively filtering out contaminants from the fuel and oil systems, it helps to protect sensitive engine components, ensuring smooth operation and prolonging engine life. Proper installation, regular maintenance, and understanding its compatibility with various Cummins engines are essential for maximizing the benefits of this part.
