3904380
Engine Heater
Cummins®

Introduction

The Cummins 3904380 Engine Heater is a specialized component designed to facilitate the starting and operation of diesel engines in cold weather conditions. This heater is particularly significant for commercial trucks, where reliable engine performance in various climates is essential for operational efficiency and safety.

Basic Concepts of Engine Heaters

Engine heaters are devices that preheat the engine coolant and, in some cases, the engine oil before starting the engine. This preheating process reduces the viscosity of the oil, making it easier for the engine to turn over and start. In cold weather, diesel engines can struggle to start due to the thickening of oil and the contraction of fuel. Engine heaters mitigate these issues by ensuring the engine reaches optimal operating temperature more quickly ¹.

Purpose of the Cummins 3904380 Engine Heater

The Cummins 3904380 Engine Heater aids in the operation of a truck by preheating the engine coolant, which in turn warms the engine block and other critical components. This preheating aids in starting the engine in cold temperatures by reducing the strain on the starter motor and battery. Additionally, it improves overall engine performance by allowing the engine to reach its optimal operating temperature faster, which enhances fuel efficiency and reduces wear on engine components ².

Key Features

The Cummins 3904380 Engine Heater is characterized by several key features that enhance its functionality. Its design includes a robust heating element that efficiently warms the engine coolant. The heater is constructed with high-quality materials to ensure durability and reliability in harsh environments. Additionally, it incorporates advanced technological features such as thermostatic control, which regulates the heating process to prevent overheating and ensure consistent performance.

Benefits of Using the Cummins 3904380 Engine Heater

The advantages of using the Cummins 3904380 Engine Heater include improved engine start-up in cold weather, which is particularly beneficial in regions with extreme temperatures. By preheating the engine, it reduces the wear and tear on engine components, leading to longer engine life. Furthermore, the heater enhances fuel efficiency by allowing the engine to reach its optimal operating temperature more quickly, which results in better overall performance and reduced fuel consumption ³.

Installation Process

Installing the Cummins 3904380 Engine Heater involves several steps to ensure proper integration with the truck’s engine system. The process begins with ensuring the engine is cool and the electrical system is disconnected for safety. The heater is then connected to the engine coolant system, typically at the thermostat housing or a designated connection point. Electrical connections are made to the vehicle’s power source, and the heater is secured in place. Finally, the system is tested to confirm proper operation.

Operational Guidelines

To operate the Cummins 3904380 Engine Heater effectively, it should be activated prior to starting the engine in cold conditions. The heater can be controlled via a timer or a remote control, allowing the engine to be preheated for a specified duration. It is important to follow the manufacturer’s guidelines regarding the preheating time to avoid overheating. Safety precautions include ensuring the heater is installed correctly and that all electrical connections are secure to prevent short circuits or other hazards.

Troubleshooting Common Issues

Common issues with the Cummins 3904380 Engine Heater may include failure to heat, inconsistent heating, or electrical problems. If the heater fails to heat, check the electrical connections and ensure the power source is functioning correctly. Inconsistent heating may be due to a faulty thermostatic control, which may need to be replaced. Electrical problems can often be traced to loose or corroded connections, which should be inspected and repaired as necessary.

Maintenance Tips

Regular maintenance of the Cummins 3904380 Engine Heater is important to ensure its longevity and optimal performance. This includes periodic inspection of electrical connections for corrosion or damage, ensuring the heating element is free from debris, and checking the thermostatic control for proper function. Additionally, it is beneficial to flush the coolant system regularly to prevent buildup that could impede the heater’s efficiency.

Environmental Impact

The use of engine heaters like the Cummins 3904380 can have environmental considerations, primarily related to fuel consumption and emissions. While the heater consumes electricity during the preheating process, the overall fuel efficiency of the engine is improved due to quicker warm-up times and reduced idling. This can lead to lower emissions over time, as the engine operates more efficiently once it reaches optimal temperature.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emission solutions. With a history spanning over a century, Cummins has established a reputation for innovation, quality, and reliability in the commercial truck industry. The company’s extensive product range and commitment to customer satisfaction have made it a preferred choice for commercial vehicle operators worldwide.

Compatibility of Cummins Engine Heater Part 3904380

The Cummins Engine Heater part number 3904380 is designed to fit a variety of Cummins engines, ensuring optimal engine performance during cold starts and operation in low-temperature environments. Below is a detailed overview of the compatibility of this heater with various Cummins engine models:

4B3.9 and 6B5.9 Engines

The 3904380 engine heater is compatible with the 4B3.9 and 6B5.9 engines. These engines are known for their robust performance and reliability, often used in heavy-duty applications. The heater ensures that these engines reach operating temperature quickly, reducing wear and improving fuel efficiency.

B4.5 and B5.9 G Engines

The B4.5 and B5.9 G engines also benefit from the 3904380 engine heater. These engines are typically used in a range of applications, from agricultural to industrial uses. The heater’s design allows it to integrate seamlessly with these engines, providing efficient heating and protecting the engine from cold-related damage.

B5.9 GAS PLUS CM556 Engine

The B5.9 GAS PLUS CM556 engine is another model that is compatible with the 3904380 engine heater. This engine is designed for natural gas operation, offering a cleaner alternative to diesel. The heater ensures that the engine operates efficiently even in colder climates.

ISB CM550 Engine

The ISB CM550 engine is a versatile model that can be found in various applications, from construction equipment to buses. The 3904380 engine heater is specifically designed to fit this engine, providing reliable heating and protecting it from the adverse effects of cold weather.

QSB3.9 30 CM550 and QSB4.5 CM850(CM2850) Engines

Both the QSB3.9 30 CM550 and QSB4.5 CM850(CM2850) engines are compatible with the 3904380 engine heater. These engines are known for their power and efficiency, often used in agricultural and construction machinery. The heater ensures that these engines start easily and operate smoothly in cold conditions.

QSB5.9 30 CM550, QSB5.9 44 CM550, and QSB6.7 CM850(CM2850) Engines

The 3904380 engine heater is also compatible with the QSB5.9 30 CM550, QSB5.9 44 CM550, and QSB6.7 CM850(CM2850) engines. These engines are part of the QSB series, known for their durability and performance. The heater provides efficient heating, ensuring that these engines operate at peak performance even in low temperatures.

QSB6.7 M CM2250 and QSB7 CM2880 B117 Engines

Finally, the 3904380 engine heater is compatible with the QSB6.7 M CM2250 and QSB7 CM2880 B117 engines. These engines are designed for heavy-duty applications, providing high power output and reliability. The heater ensures that these engines start quickly and operate efficiently in cold weather conditions.

Role of Part 3904380 Engine Heater in Engine Systems

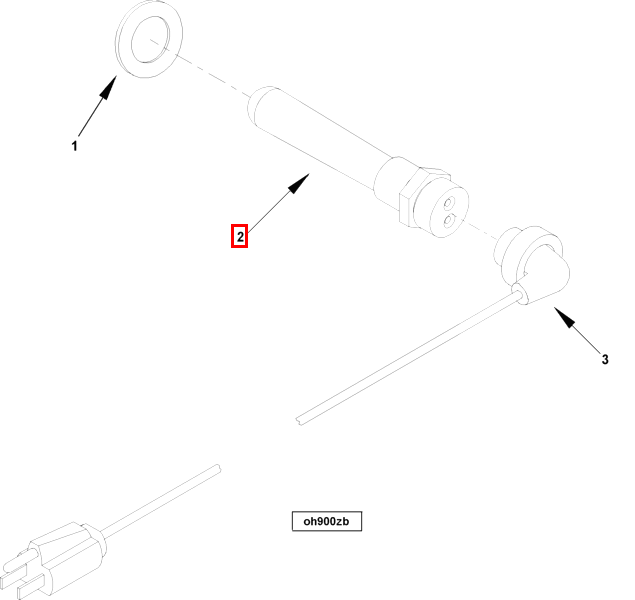

The part 3904380 engine heater is a component in enhancing the performance and reliability of engine systems, particularly in cold-weather conditions. When integrated with an oil heater starting aid, this component significantly improves the engine’s start-up process and overall operational efficiency.

Integration with Oil Heater Starting Aid

The engine heater works in conjunction with the oil heater starting aid to preheat the engine oil before starting. This preheating process reduces the viscosity of the oil, allowing it to flow more easily through the engine’s lubrication system. As a result, the engine components experience less friction during start-up, which is particularly beneficial in cold environments where oil viscosity tends to increase.

Benefits for Engine Systems

1. Enhanced Lubrication: By preheating the oil, the engine heater ensures that critical moving parts, such as the crankshaft, pistons, and bearings, receive adequate lubrication from the moment the engine starts. This reduces wear and tear on these components, extending their lifespan.
2. Improved Combustion Efficiency: Warmer engine oil contributes to more efficient combustion. The engine heater helps maintain optimal oil temperature, which in turn supports consistent fuel delivery and combustion, leading to better overall engine performance.
3. Reduced Emissions: Efficient combustion also means lower emissions. The engine heater, by ensuring the engine operates at its best, helps minimize the release of harmful pollutants.
4. Faster Warm-Up: Engines equipped with an engine heater reach their operating temperature more quickly. This is especially important in cold climates, where prolonged cold starts can lead to increased fuel consumption and higher emissions.
5. Extended Battery Life: Cold starts place a significant strain on the vehicle’s battery. The engine heater reduces this strain by making the starting process easier, thereby preserving battery health over time.

Conclusion

In summary, the Cummins 3904380 Engine Heater plays a significant role in optimizing engine performance, particularly when used with an oil heater starting aid. Its ability to preheat engine oil ensures smoother starts, enhanced lubrication, improved combustion efficiency, reduced emissions, faster warm-up times, and extended battery life, making it a valuable addition to any engine system.
