3965023
Dipstick
Cummins®

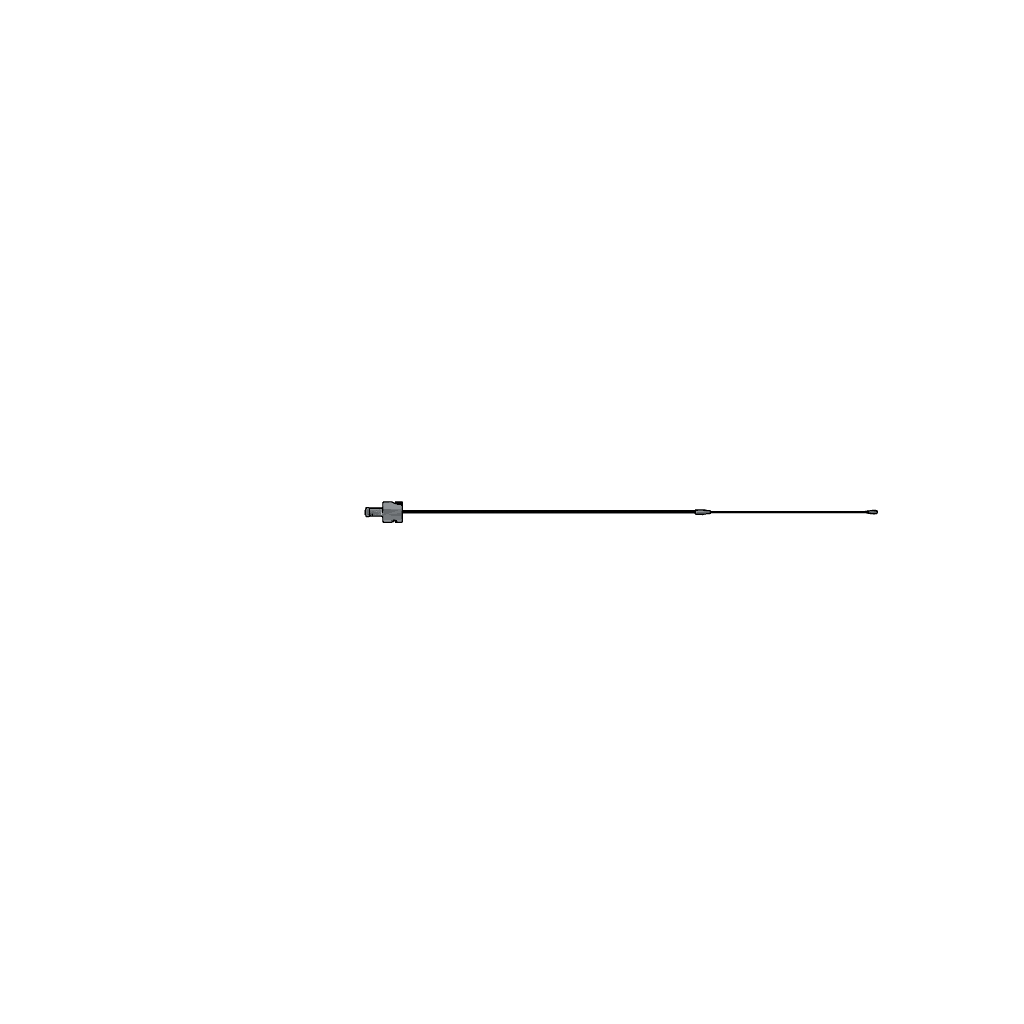

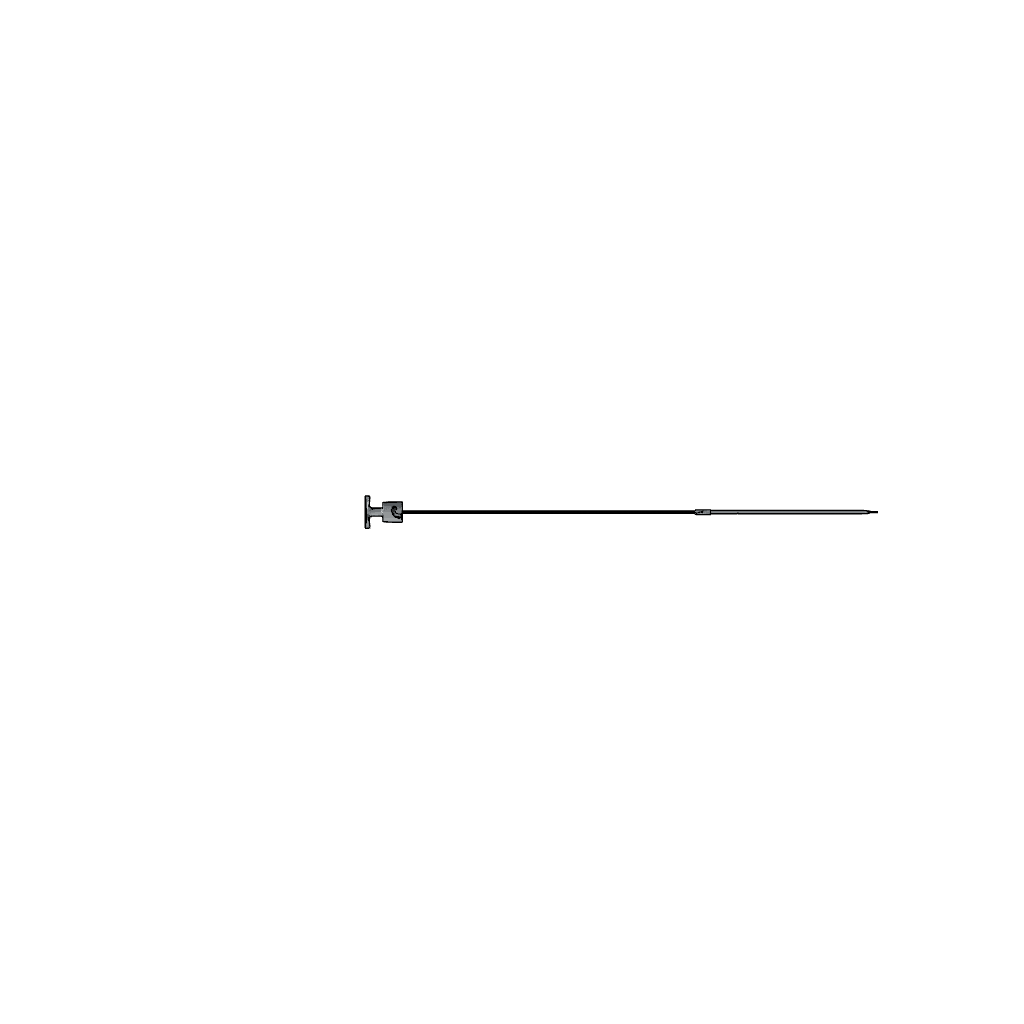

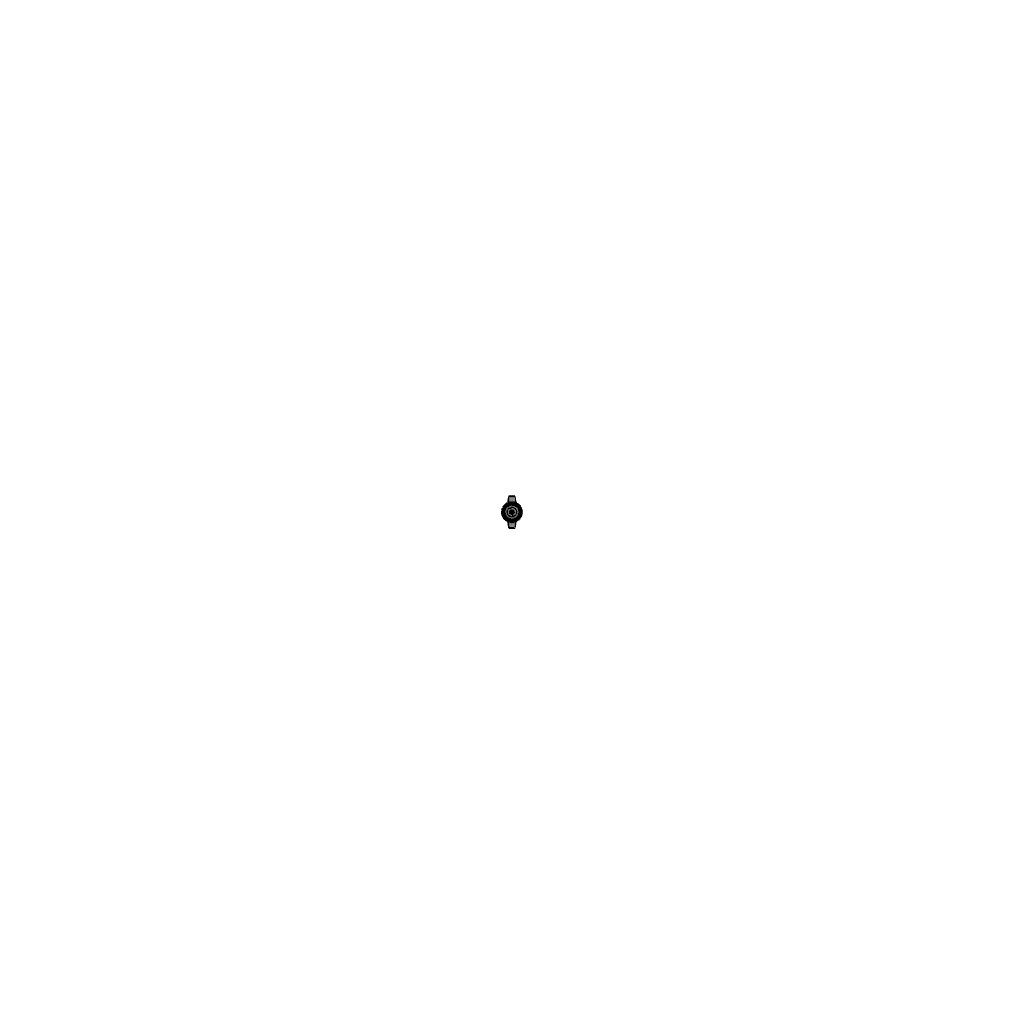

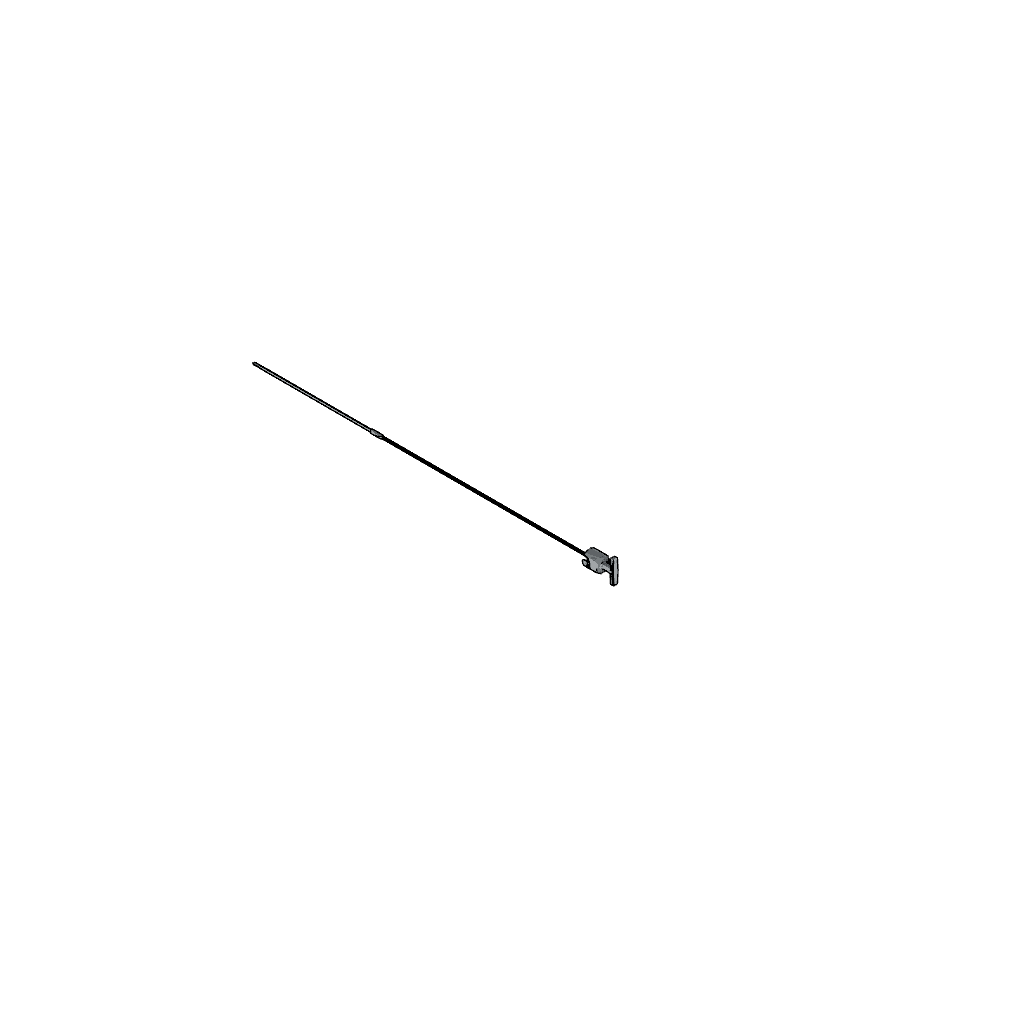

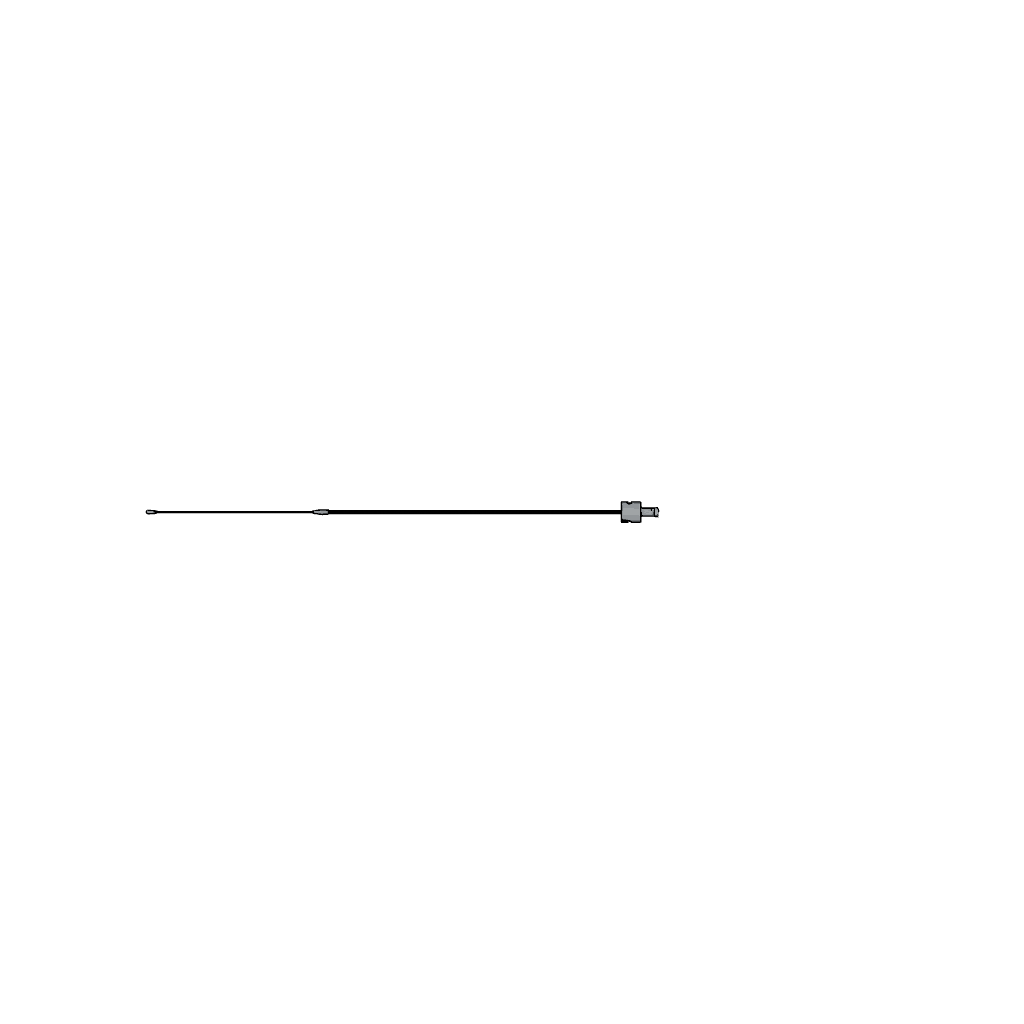

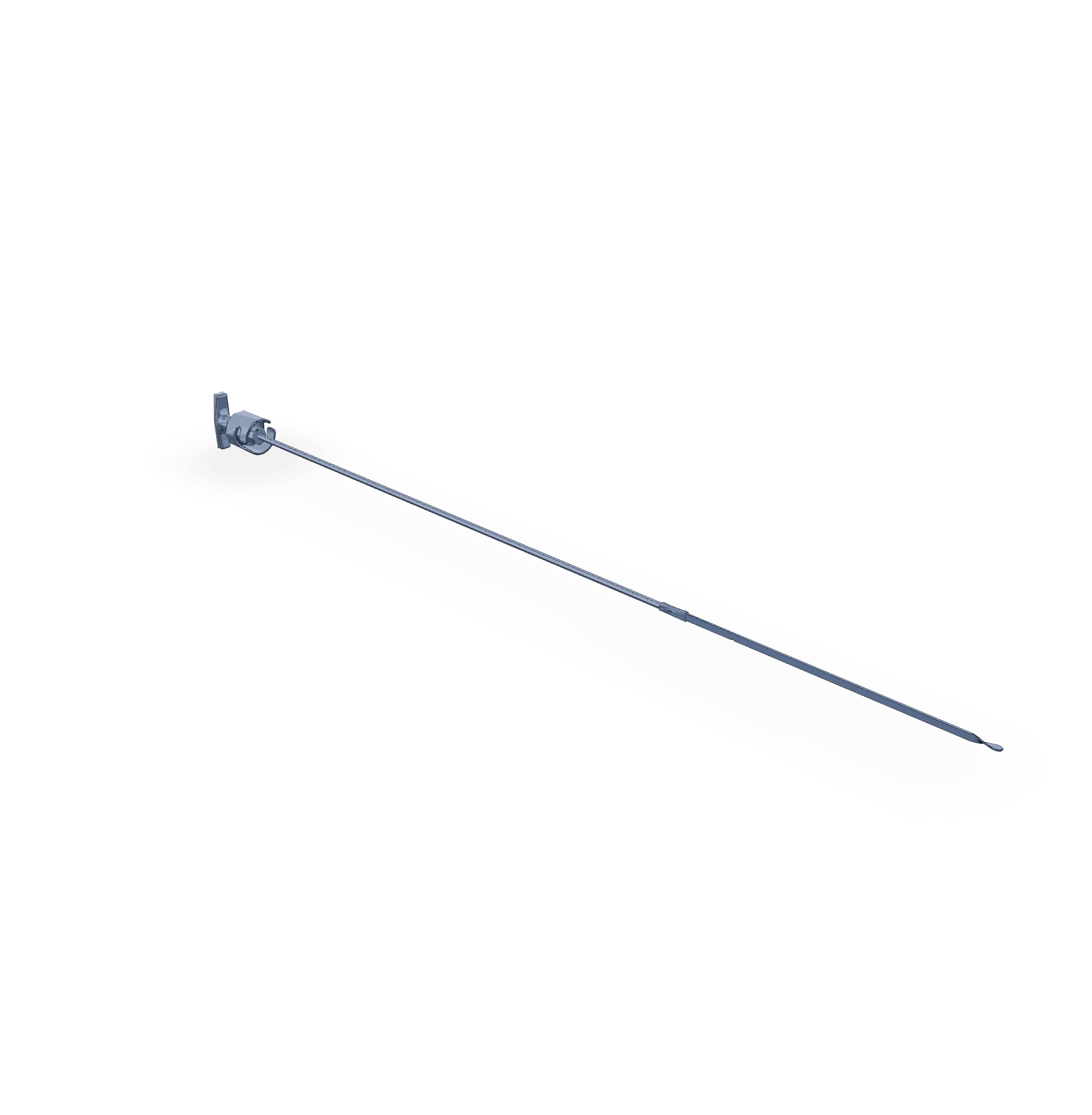

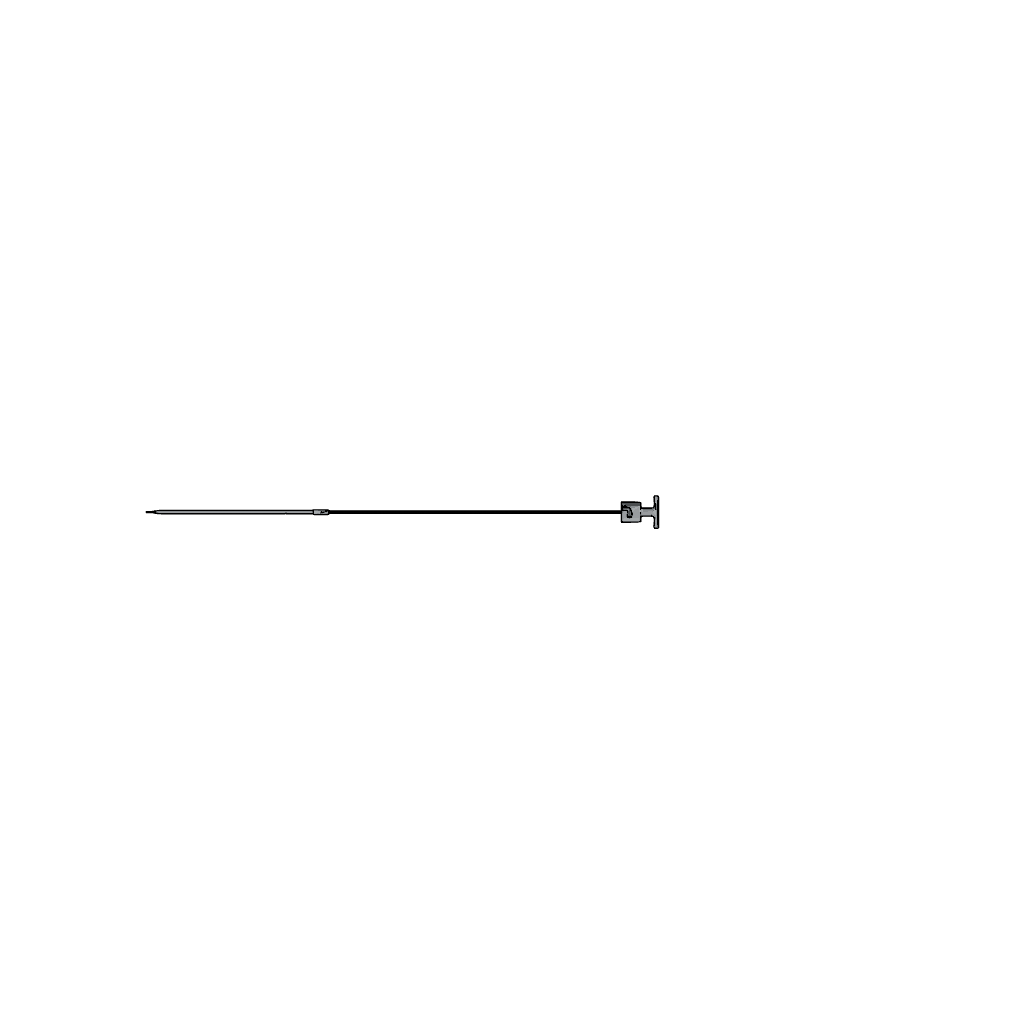

The Cummins 3965023 Dipstick is a specialized component designed for use in commercial trucks equipped with Cummins engines. Its purpose is to facilitate the measurement of oil levels within the engine, ensuring that the lubrication system operates effectively. Proper maintenance of oil levels is significant for the longevity and performance of the engine, making the dipstick an integral part of routine maintenance procedures ¹.

Basic Concepts of a Dipstick

A dipstick is a simple yet vital tool used in internal combustion engines to measure the level of lubricant, typically oil. It consists of a long, slender metal or plastic rod with a handle at one end. The rod is inserted into the engine’s oil sump through a tube. Once inserted and then withdrawn, the oil level can be read from the markings on the dipstick, which indicate the minimum and maximum acceptable oil levels ². This process allows for the assessment of whether the engine has sufficient lubrication to operate safely and efficiently.

Purpose of the Cummins 3965023 Dipstick

The Cummins 3965023 Dipstick plays a role in the operation of a truck by enabling the measurement of oil levels within the engine. It ensures that the engine components receive adequate lubrication, which is necessary for reducing friction, dissipating heat, and preventing wear and tear. By providing a means to check oil levels, the dipstick helps in maintaining the engine’s performance and extending its operational life.

Key Features

The Cummins 3965023 Dipstick is characterized by its robust design and the use of high-quality materials, which contribute to its durability and accuracy. It is crafted from materials that can withstand the high temperatures and pressures within an engine environment. The dipstick features clear, easy-to-read markings for oil level indication, and its design ensures a secure fit within the engine’s oil sump, preventing oil leaks.

Benefits of Using the Cummins 3965023 Dipstick

Utilizing the Cummins 3965023 Dipstick offers several advantages. Its design allows for accurate measurement of oil levels, ensuring that the engine is neither overfilled nor underfilled with oil. This accuracy contributes to the engine’s efficiency and longevity. The dipstick is also easy to use, requiring minimal training for proper operation, and its durable construction ensures long-term reliability.

Installation and Usage

To install and use the Cummins 3965023 Dipstick, first, ensure the engine is turned off and has had sufficient time to cool. Locate the dipstick tube, usually found near the engine’s center. Pull the dipstick out, wipe it clean with a lint-free cloth, reinsert it fully, and then withdraw it again to check the oil level. The oil should be between the minimum and maximum marks. If necessary, add oil to reach the appropriate level.

Troubleshooting Common Issues

Common issues with dipsticks include inaccurate readings and physical damage. Inaccurate readings may result from a bent dipstick or incorrect installation. To resolve this, ensure the dipstick is straight and fully seated in its tube. Physical damage, such as cracks or bends, may require replacement of the dipstick to ensure accurate readings and prevent oil leaks.

Maintenance Tips

To maintain the Cummins 3965023 Dipstick, regularly check for signs of wear or damage. Clean the dipstick with a lint-free cloth before each use to remove any debris that could affect readings. Periodically inspect the dipstick tube for any signs of damage or leaks. Following these maintenance practices will help ensure the dipstick’s longevity and accurate performance.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established itself as a leader in the commercial truck industry, known for its commitment to quality, innovation, and customer satisfaction. The company’s extensive range of products and services underscores its dedication to advancing technology and improving the efficiency and reliability of automotive components.

Cummins Engine Dipstick Compatibility

The Cummins part number 3965023, a Dipstick, is designed to fit seamlessly with several engine models. This dipstick is a critical component for checking the oil level in the engine, ensuring optimal performance and longevity.

6B5.9 Engines

The 6B5.9 engine series benefits from the precise fit of the 3965023 dipstick. This part ensures accurate oil level readings, which are essential for maintaining the engine’s health.

QSB5.9 and QSB5.9 30 Engines

Similarly, the 3965023 dipstick is compatible with both the QSB5.9 and QSB5.9 30 engines. These engines, known for their reliability and performance, require the dipstick to monitor oil levels effectively.

CM550 Engines

The CM550 engine also utilizes the 3965023 dipstick. This part is engineered to fit perfectly, providing an accurate reading of the oil level, which is crucial for the engine’s maintenance and operation.

Role of Part 3965023 Dipstick in Engine Systems

Part 3965023, a dipstick, is integral to the operation and maintenance of engine systems. It serves as a vital tool for monitoring the oil level within the engine. When inserted into the oil filler tube, the dipstick provides a direct measurement of the oil quantity, ensuring that it remains within the optimal range for engine performance and longevity.

The dipstick interacts with the oil level gauge, which is often marked on the dipstick itself or on a separate indicator. This gauge allows for a quick and accurate assessment of the oil level. By pulling out the dipstick and observing the oil mark, engineers and mechanics can determine if the oil level is adequate, low, or overfilled. This information is essential for maintaining proper lubrication, which is key to reducing friction and wear on engine components.

In addition to its primary function, the dipstick also aids in the detection of potential issues within the engine. Contaminants or unusual colors on the dipstick can indicate problems such as coolant mixing with the oil, which may signal a blown head gasket or other severe engine issues. Regular checks using the dipstick are therefore a fundamental part of routine engine maintenance, helping to prevent costly repairs and ensuring the engine operates efficiently.

Conclusion

The Cummins 3965023 Dipstick is a critical component for maintaining the health and performance of Cummins engines. Its accurate measurement of oil levels ensures proper lubrication, reduces friction, and prevents wear and tear on engine components. Regular use and maintenance of this part contribute to the longevity and efficiency of the engine, making it an indispensable tool for commercial truck maintenance.
