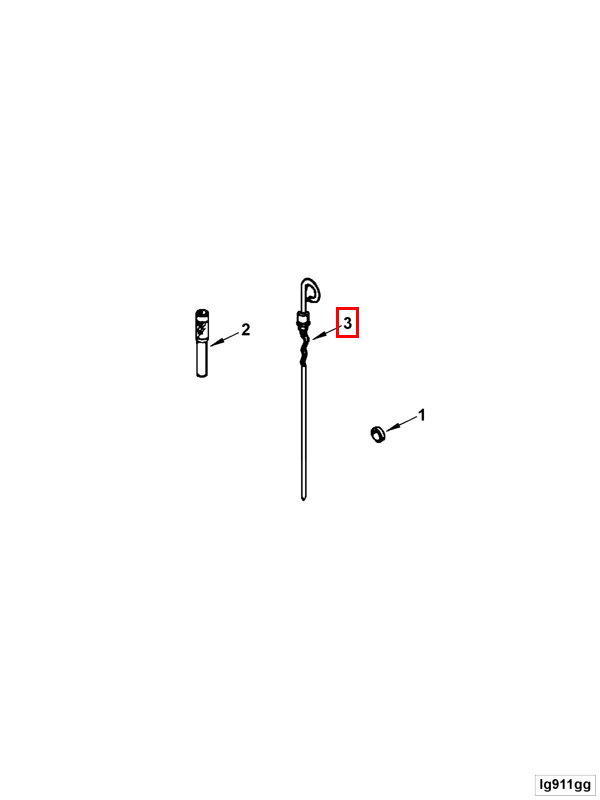

3905783
Dipstick
Cummins®

The Cummins 3905783 Dipstick is a component designed for use in commercial trucks, specifically tailored to facilitate the maintenance and monitoring of engine oil levels. Its role is significant in ensuring the engine operates within optimal parameters, thereby contributing to the longevity and efficiency of the vehicle ¹.

Basic Concepts of a Dipstick

A dipstick is a simple yet vital tool used in internal combustion engines to measure the level of lubricant within the crankcase ². It consists of a long metal or plastic rod with graduated markings. When inserted into the engine, it provides a visual indication of the oil level, allowing for regular checks and timely top-ups or changes as necessary. The operation of a dipstick is based on the principle of direct measurement, offering a straightforward method to assess the condition of the engine’s lubrication system ³.

Purpose of the Cummins 3905783 Dipstick

This Cummins part serves a specific function in the operation and maintenance of commercial trucks. It is designed to accurately measure the oil level within the engine, ensuring that there is sufficient lubrication for all moving parts. This measurement is crucial for preventing engine wear, maintaining performance, and avoiding potential damage due to inadequate lubrication.

Key Features

The Cummins 3905783 is distinguished by several specific features. It is constructed from high-quality materials to ensure durability and accuracy in readings. The design includes precise markings for easy interpretation of oil levels, and it may incorporate unique attributes such as a built-in temperature indicator or a specialized coating to resist corrosion and wear.

Benefits

Utilizing this Cummins part offers several advantages. Its accuracy ensures reliable oil level readings, which is fundamental for maintaining engine health. The durability of the dipstick means it can withstand the harsh conditions within a commercial truck engine, providing long-term service. Additionally, its design facilitates ease of use, allowing for quick and efficient oil level checks during routine maintenance.

Installation Process

Installing the Cummins 3905783 involves a few straightforward steps. First, ensure the engine is turned off and has cooled down to avoid burns or injuries. Locate the dipstick tube, usually found near the engine’s top. Remove the old dipstick by pulling it out of the tube. Insert the new Cummins 3905783 into the tube until it reaches the bottom, then withdraw it slightly to get an accurate reading. Tools required are minimal, often just a pair of gloves for protection. Always follow safety precautions, such as wearing protective eyewear and ensuring the work area is well-ventilated.

Troubleshooting and Maintenance

Common issues with dipsticks include inaccurate readings due to wear or damage, and oil leaks around the dipstick tube. To address these, regularly inspect the dipstick for signs of wear or corrosion and replace it if necessary. Ensure the dipstick is fully seated in the tube to prevent oil leaks. Maintenance practices such as keeping the dipstick and tube clean can enhance the longevity and effectiveness of the Cummins 3905783.

Role in Engine Health

Regular use of the Cummins 3905783 plays a role in maintaining engine health by enabling timely oil level checks and changes. Proper lubrication is vital for reducing friction and wear on engine components, ensuring efficient operation, and extending the engine’s lifespan. By facilitating easy and accurate oil level measurements, the dipstick contributes to the overall maintenance regimen of commercial trucks.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the commercial truck industry. The company’s commitment to excellence is reflected in its wide range of products, including the Cummins 3905783, designed to meet the demanding requirements of commercial vehicle maintenance.

Compatibility

The Cummins part 3905783, a Dipstick, is designed to fit seamlessly with a range of Cummins engines, ensuring accurate and reliable oil level checks. This dipstick is compatible with the 4B3.9 and B4.5 engines, providing essential functionality for these models. Additionally, it is also suitable for the QSB3.9 30 CM550 engine, enhancing the ease of maintenance and oil monitoring for this particular engine variant. The design of the dipstick ensures it integrates smoothly with the engine’s oil system, facilitating straightforward and precise readings.

Role of Part 3905783 in Engine Systems

This part is an essential component in the monitoring and maintenance of engine systems. It works in conjunction with several key components to ensure the engine operates efficiently and safely.

Interaction with the Gauge

The dipstick interfaces directly with the oil level gauge system. When inserted into the engine, the dipstick provides a physical measurement of the oil level. This measurement is then read by the gauge, which displays the oil level to the user. The accuracy of the gauge reading is dependent on the proper functioning of the dipstick. Any discrepancies in the dipstick’s design or installation can lead to inaccurate oil level readings, potentially resulting in engine damage due to either overfilling or underfilling of oil.

Oil Level Monitoring

The primary function of the dipstick is to allow for the manual checking of the oil level within the engine. This is achieved by inserting the dipstick into the engine’s oil filler neck, which is connected to the oil pan. Once inserted and then removed, the oil level can be observed on the dipstick. This simple yet effective mechanism ensures that the engine maintains the correct oil level, which is vital for lubrication, cooling, and overall engine performance. Regular monitoring using the dipstick helps in identifying oil leaks, consumption rates, and the need for top-ups or oil changes.

Integration with Engine Systems

In modern engine systems, the dipstick may also be part of a more comprehensive oil management system. This can include sensors that detect the oil level electronically and send data to the engine control unit (ECU). The dipstick, in this case, serves as a backup or supplementary method for oil level checks, ensuring that there is always a reliable way to monitor the oil level, even if the electronic system fails.

Conclusion

Overall, the part 3905783 plays a significant role in the maintenance and operational integrity of engine systems by facilitating accurate oil level measurements and ensuring the engine remains well-lubricated and protected.
