Dipstick
Cummins®

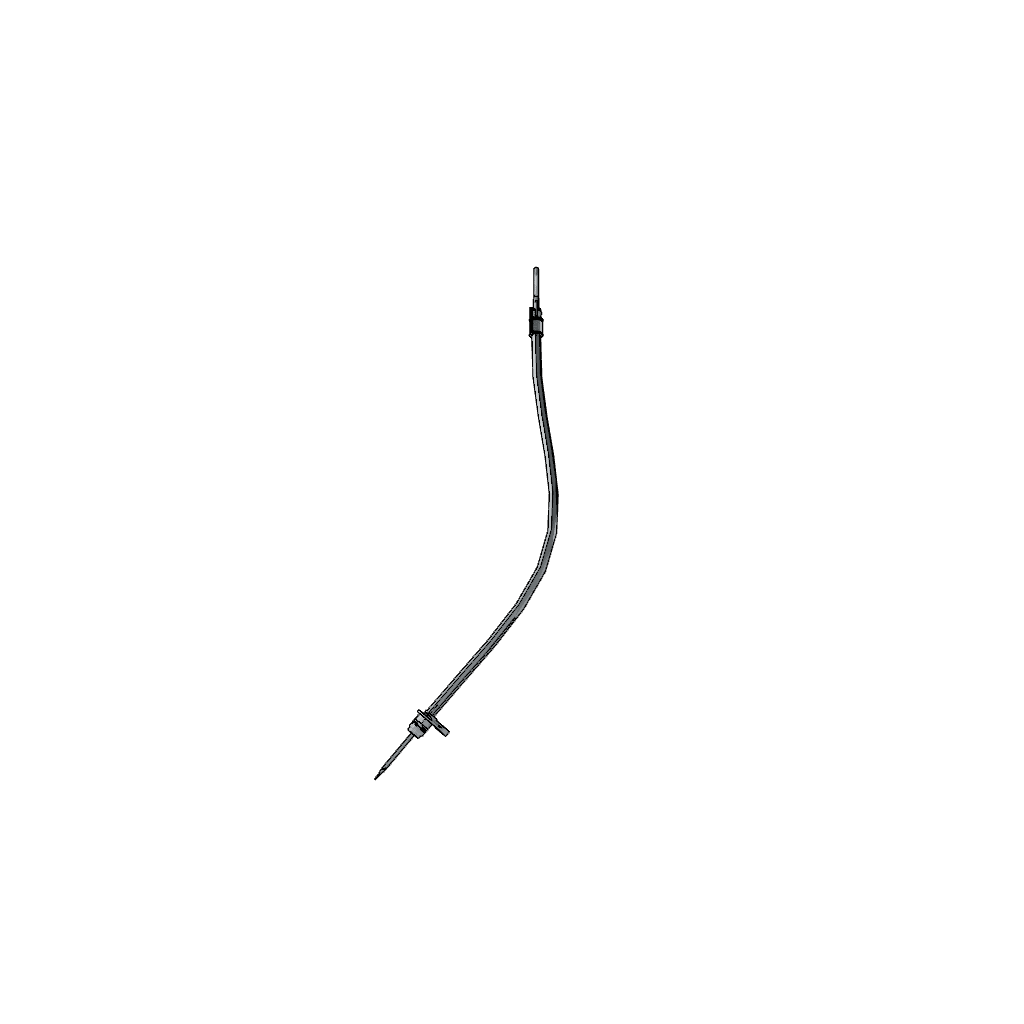

The Cummins 3697527 Dipstick is a specialized component designed for use in heavy-duty trucks. Its purpose is to facilitate the monitoring of oil levels within the engine, ensuring that the lubrication system operates within optimal parameters. This part is significant in the maintenance regimen of heavy-duty trucks, as it provides a straightforward method for operators to check oil levels, thereby contributing to the longevity and efficiency of the vehicle.

Basic Concepts of a Dipstick

A dipstick is a thin, graduated metal or plastic rod used to measure the level of fluid in an engine. It is inserted into a specific port connected to the sump or reservoir of the fluid being measured. Once inserted and then removed, the dipstick provides a visual indication of the fluid level by means of markings along its length. In the context of an engine, the dipstick plays a role in the lubrication system by allowing for the assessment of oil levels, which is vital for the proper functioning and protection of engine components ¹.

Purpose of the Cummins 3697527 Dipstick

The Cummins 3697527 is specifically engineered to serve heavy-duty truck engines. It is utilized to check the oil level within the engine, ensuring that there is sufficient lubrication for the moving parts. This is particularly important in heavy-duty applications where engines operate under extreme conditions, and maintaining the correct oil level is crucial for performance and durability ².

Key Features

The Cummins 3697527 is characterized by its robust design and the materials used in its construction. It is typically made from high-quality steel, which provides durability and resistance to the high temperatures and pressures found within an engine environment. The dipstick may also feature a bright tip for easy visibility and a handle for safe and convenient use. These attributes enhance its functionality and ensure it can withstand the rigors of heavy-duty use ³.

Benefits of Using the Cummins 3697527

Utilizing the Cummins 3697527 offers several advantages. Its design allows for accurate readings of oil levels, which is important for maintaining the engine’s lubrication system. The ease of use, combined with the durability of the dipstick, means that it can be relied upon for consistent performance over time. Furthermore, by ensuring that oil levels are maintained, the dipstick contributes to the overall efficiency and reliability of the truck, potentially reducing downtime and maintenance costs ⁴.

Troubleshooting and Maintenance Suggestions

Common issues with dipsticks may include difficulty in reading the oil level due to contamination or wear. To address this, it is advisable to clean the dipstick with a lint-free cloth before each use to ensure accurate readings. If the dipstick shows signs of damage or if readings are consistently inaccurate, it may need to be replaced. Regular maintenance of the dipstick, such as ensuring it is properly seated in its tube, can help prevent issues and ensure its longevity.

Installation and Usage Guidelines

To install the Cummins 3697527, locate the dipstick tube on the engine and ensure the area is clean. Insert the dipstick fully into the tube until it reaches the bottom, then withdraw it to check the oil level. Wipe the dipstick clean, reinsert it fully, and then remove it again to take a final reading. It is important to follow the manufacturer’s guidelines for checking oil levels to ensure accuracy. Safety precautions include allowing the engine to cool before checking the oil level and avoiding contact with hot engine components.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a strong presence in the automotive industry, Cummins is renowned for its diesel engines and related components, which are designed to deliver reliability, performance, and efficiency. The company’s commitment to innovation and quality has established it as a trusted name in the production of engine components, including the Cummins 3697527.

Role of Part 3697527 in Engine Systems

Part 3697527 is integral to the accurate measurement and monitoring of oil levels within an engine system. It interfaces directly with the oil level gauge, facilitating the transmission of precise oil level data to the operator.

When the dipstick is inserted into the engine’s oil filler tube, it comes into contact with the oil. Upon removal, the oil level can be read from the markings on the dipstick, which correspond to minimum and maximum oil levels. This data is essential for maintaining optimal engine performance and preventing potential damage due to incorrect oil levels.

The dipstick also plays a role in the ventilation of the crankcase. As it is withdrawn, it allows pressurized gases to escape, which helps in maintaining a stable pressure environment within the engine. This is particularly important in high-performance engines where pressure fluctuations can affect engine efficiency and reliability.

Furthermore, the dipstick aids in the visual inspection of the oil’s condition. By examining the oil on the dipstick, mechanics can assess the oil’s cleanliness and viscosity, providing insights into the engine’s internal health and the effectiveness of the oil filtration system.

Conclusion

In summary, the Cummins 3697527 is a multifaceted component that ensures accurate oil level measurement, contributes to crankcase ventilation, and allows for the visual assessment of oil condition, all of which are vital for the sustained operation and maintenance of engine systems.
