3697526
Dipstick
Cummins®

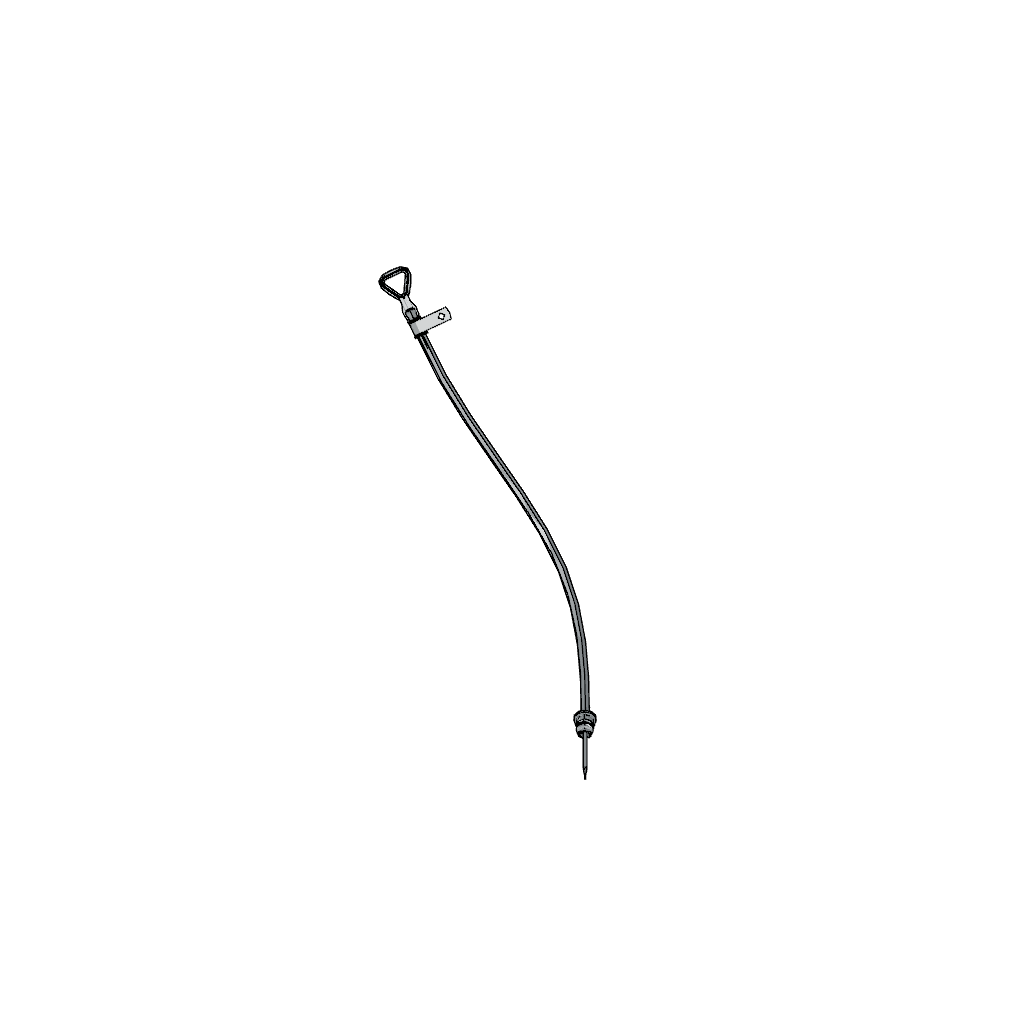

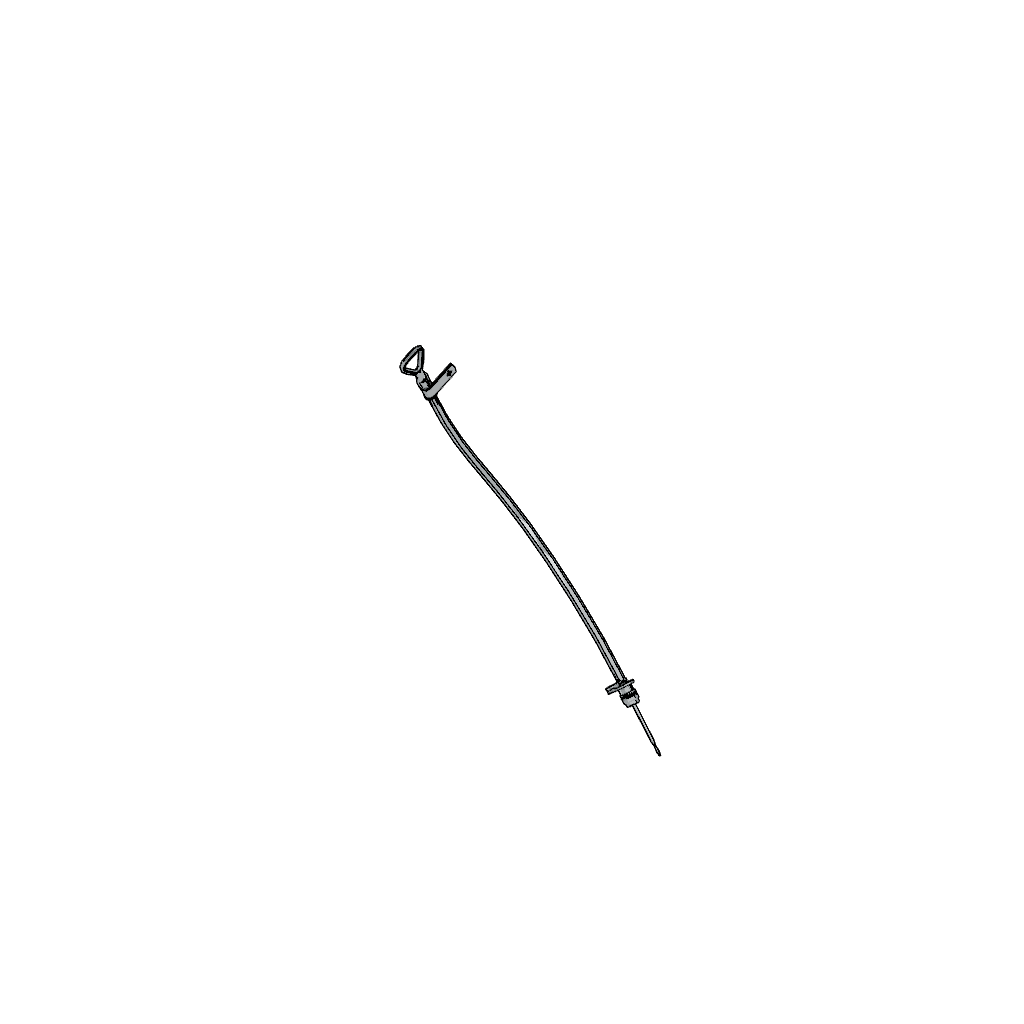

The Cummins 3697526 Dipstick is a specialized component designed for use in commercial trucks. Its primary function is to facilitate the measurement of oil levels within the engine, ensuring that the engine operates within optimal parameters. This part is integral to the maintenance routine of commercial trucks, contributing to the overall efficiency and longevity of the vehicle’s engine.

Basic Concepts of a Dipstick

A dipstick is a simple yet vital tool used in internal combustion engines to check the level of lubricant, typically oil. It consists of a long, slender rod with a handle at one end, which is inserted into the engine’s oil reservoir. Once inserted, the dipstick is removed, and the oil level is determined by observing the oil mark on the dipstick. This process plays a role in maintaining optimal engine performance by ensuring that the engine is neither overfilled nor underfilled with oil, which can lead to inefficient operation or damage ¹.

Purpose of the Cummins 3697526 Dipstick

The Cummins 3697526 Dipstick is specifically engineered to measure oil levels in Cummins engines found in commercial trucks. By providing an accurate reading of the oil level, it enables truck operators and maintenance personnel to ensure that the engine has the correct amount of oil. This is important for lubricating moving parts, cooling the engine, and cleaning internal components. Regular checks with this dipstick help in preventing engine wear and potential failures ².

Key Features

The Cummins 3697526 Dipstick is characterized by its robust design and the use of high-quality materials, which contribute to its durability and reliability. It is crafted to withstand the harsh conditions typical of commercial truck operations. The dipstick features clear markings for easy reading of oil levels and is designed to fit securely within the engine’s oil reservoir, ensuring accurate measurements.

Benefits

Utilizing the Cummins 3697526 Dipstick offers several advantages. It contributes to improved engine maintenance by providing precise oil level readings, which are crucial for the engine’s lubrication system. Its durable construction ensures long-term use, reducing the need for frequent replacements. Additionally, the reliable performance of this dipstick aids in maintaining engine health, potentially leading to extended engine life and improved operational efficiency ³.

Installation and Usage

To install and use the Cummins 3697526 Dipstick, follow these steps: First, ensure the truck is on a level surface and the engine is off to obtain an accurate reading. Locate the dipstick tube, usually found near the engine’s top. Pull out the dipstick, wipe it clean with a lint-free cloth, reinsert it fully, and then remove it again to check the oil level. The oil should be within the marked range on the dipstick. If necessary, add oil to reach the appropriate level.

Troubleshooting and Maintenance

Common issues with the Cummins 3697526 Dipstick may include difficulty in reading the oil level or the dipstick becoming loose. To address these, ensure the dipstick is fully seated when taking a reading and check for any damage that may affect its fit. Regular cleaning of the dipstick and its tube can prevent buildup that might interfere with accurate readings. For maintenance, store the dipstick in a clean, dry place when not in use, and inspect it periodically for signs of wear or damage.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for producing high-quality components for commercial vehicles. The company’s commitment to innovation, quality, and customer satisfaction is evident in its wide range of products, including the Cummins 3697526 Dipstick, designed to meet the demanding requirements of commercial truck engines.

Cummins Dipstick 3697526 Compatibility

The Cummins Dipstick part number 3697526 is designed to be compatible with a range of engines, ensuring accurate and reliable oil level readings. This dipstick is engineered to fit seamlessly with the following engines:

QSG12/X12 Series

The QSG12/X12 engines are part of Cummins’ lineup of high-performance, reliable diesel engines. The dipstick 3697526 is specifically tailored to these engines, providing a precise measurement of the oil level. Its design ensures easy access and visibility, facilitating quick checks and maintenance.

CM2350 Engine

The CM2350 engine is another robust model in Cummins’ portfolio, known for its durability and efficiency. The dipstick 3697526 is engineered to fit perfectly with the CM2350, allowing operators to monitor oil levels effectively. This compatibility ensures that maintenance routines can be performed without any hassle.

G110 Engine

The G110 engine is designed for heavy-duty applications, providing substantial power and reliability. The dipstick 3697526 is compatible with the G110, ensuring that operators can easily check oil levels and maintain the engine’s performance. Its design is optimized for the specific requirements of the G110 engine.

Grouping of Engines

When considering the compatibility of the dipstick 3697526 across these engines, it is important to note that while each engine model has its unique characteristics, the dipstick is designed to fit multiple models within the Cummins range. This versatility makes it a valuable tool for operators who manage a fleet of Cummins engines, simplifying maintenance procedures and ensuring consistent performance.

Role of Part 3697526 Dipstick in Engine Systems

Part 3697526 Dipstick is integral to the accurate measurement and monitoring of oil levels within an engine system. It interfaces directly with the oil level gauge, ensuring that the gauge receives precise readings of the oil quantity present in the engine’s oil pan. This interaction is vital for maintaining optimal engine performance and longevity.

When the dipstick is inserted into the engine, it comes into contact with the oil, allowing for a direct measurement. The oil level gauge then reads this measurement, providing the operator with essential data on the current oil level. This data is used to determine if the oil needs to be topped up or changed, thereby preventing engine damage due to insufficient lubrication.

Additionally, the dipstick plays a role in the overall health monitoring of the engine. By regularly checking the oil level via the dipstick, mechanics can identify potential issues such as oil leaks or excessive oil consumption, which may indicate wear or damage within the engine components. This proactive approach to maintenance helps in preserving the engine’s efficiency and reliability over time ⁴.

Conclusion

The Cummins 3697526 Dipstick is a critical component in the maintenance and operation of commercial truck engines. Its design and functionality ensure accurate oil level readings, contributing to the engine’s performance, longevity, and overall efficiency. Regular use of this dipstick, combined with proper maintenance practices, can lead to significant benefits in engine health and operational efficiency.
