3696332
Dipstick
Cummins®

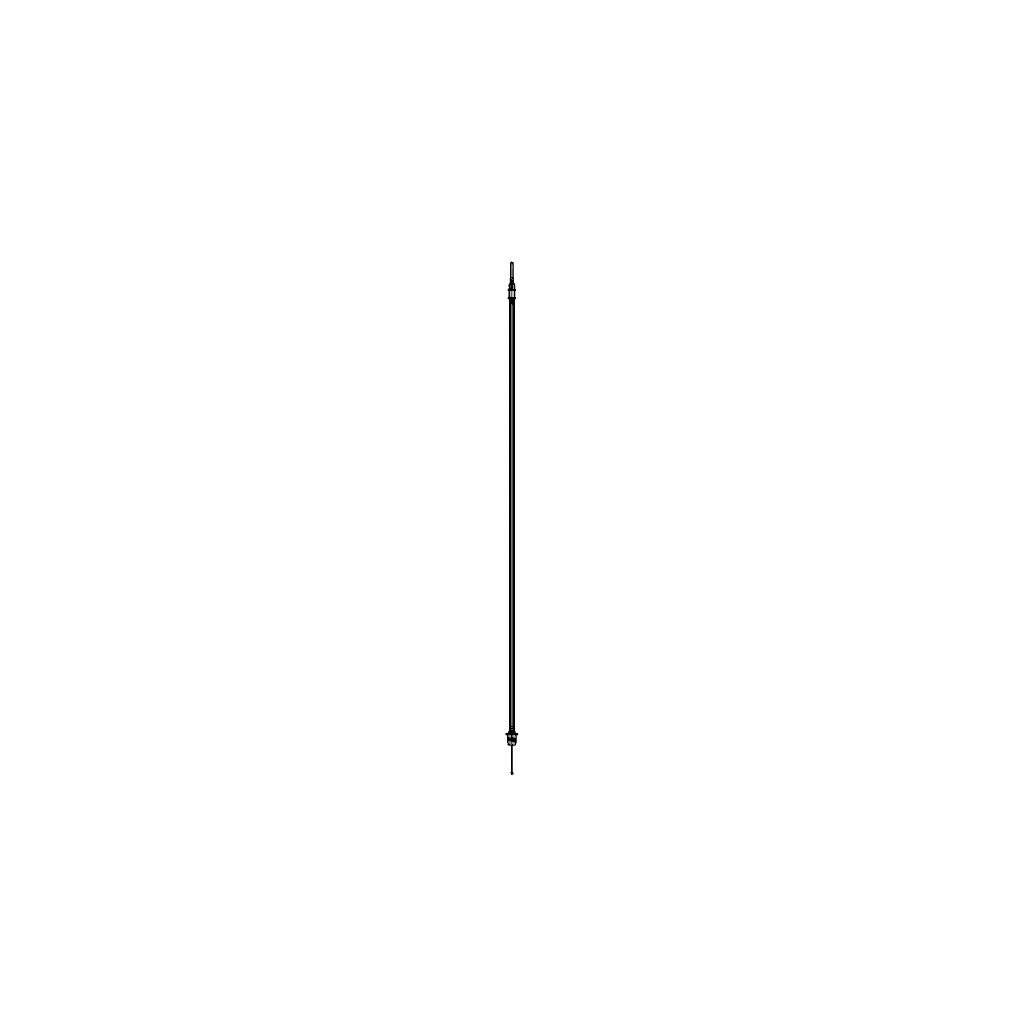

The Cummins 3696332 Dipstick is a specialized component designed for use in commercial trucks. Its purpose is to facilitate the accurate measurement of engine oil levels, which is vital for the proper operation and maintenance of the vehicle. Ensuring the correct oil level is maintained helps in preserving engine performance and longevity ¹.

Basic Concepts of a Dipstick

A dipstick is a simple yet essential tool used in engines to measure the level of fluid, typically oil. It consists of a long, thin metal or plastic rod with a handle at one end. The rod is inserted into the engine’s oil reservoir, and when removed, the oil level can be read from the markings on the dipstick. This process allows for regular monitoring of the oil level, ensuring it remains within the optimal range for engine operation ².

Purpose of the Cummins 3696332 Dipstick

The Cummins 3696332 Dipstick is specifically engineered to measure oil levels in Cummins engines found in commercial trucks. By providing an accurate reading of the oil level, it plays a role in maintaining the engine’s lubrication system, which is essential for reducing friction and wear on moving parts. Regular checks with this dipstick help in identifying when oil changes are necessary, contributing to the engine’s overall efficiency and reliability ³.

Key Features

The Cummins 3696332 Dipstick is characterized by its robust design and the use of high-quality materials, ensuring durability and accuracy. It features clear, easy-to-read markings for precise oil level measurement. The dipstick is also designed to fit securely within the engine’s oil reservoir, minimizing the risk of oil leaks and ensuring consistent readings over time.

Benefits

Using the Cummins 3696332 Dipstick offers several advantages. Its accuracy in measuring oil levels helps in maintaining optimal engine performance. The dipstick’s durable construction ensures it can withstand the harsh conditions of commercial truck operations. Additionally, its design makes it easy to use, allowing for quick and efficient oil level checks during routine maintenance.

Troubleshooting and Maintenance

To ensure the Cummins 3696332 Dipstick functions correctly, it is important to address any issues promptly. Common problems may include inaccurate readings or difficulty in inserting the dipstick. Regular cleaning of the dipstick and its tube can prevent buildup that may affect readings. Additionally, inspecting the dipstick for signs of wear or damage and replacing it if necessary will help maintain its accuracy and reliability.

Installation Process

Installing the Cummins 3696332 Dipstick requires careful attention to ensure it fits correctly and functions as intended. Begin by ensuring the engine is off and cool to the touch. Locate the oil filler cap and remove it. Insert the dipstick fully into the tube until it reaches the bottom, then withdraw it slightly to allow for an accurate reading. Reinsert the dipstick fully and secure the oil filler cap. It is recommended to consult the vehicle’s manual for specific instructions related to your engine model.

Common Misconceptions

There are several misconceptions about the use and function of dipsticks, including the Cummins 3696332 model. One common misunderstanding is that any dipstick can be used interchangeably across different engines. However, it is important to use the dipstick specifically designed for your engine to ensure accurate measurements. Another misconception is that frequent checks are unnecessary if the oil level appears consistent. Regular monitoring is crucial for maintaining engine health, even if the level seems stable.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins is renowned for its commitment to quality, innovation, and customer satisfaction. The company’s products are used in a wide range of applications, from commercial vehicles to industrial equipment, demonstrating Cummins’ versatility and expertise in the power industry.

Cummins Engine Dipstick Compatibility

The Cummins part number 3696332, a Dipstick, is designed to fit a variety of Cummins engines. This dipstick is an essential tool for checking the oil level in the engine, ensuring that the engine is properly lubricated and functioning optimally. Below is a detailed description of how this dipstick fits with the specified engines.

ISG11 CM2880 G108 and ISG12 CM2880 G107

The dipstick 3696332 is compatible with the ISG11 CM2880 G108 and ISG12 CM2880 G107 engines. These engines are part of the Cummins ISG series, which are known for their reliability and efficiency in various industrial applications. The dipstick fits snugly into the designated oil level check port on these engines, providing an accurate reading of the oil level.

ISG12 G CMOH6.0 G111

Similarly, the dipstick 3696332 is also compatible with the ISG12 G CMOH6.0 G111 engine. This engine is part of the same ISG series and shares many common features with the ISG11 and ISG12 CM2880 engines. The dipstick ensures that the oil level is within the optimal range, preventing potential engine damage due to low oil levels.

X11 CM2670 X126B and X12 CM2670 X121B

The dipstick 3696332 is also designed to fit the X11 CM2670 X126B and X12 CM2670 X121B engines. These engines are part of the Cummins X series, which are widely used in agricultural and construction equipment. The dipstick fits into the oil level check port on these engines, allowing for easy and accurate oil level monitoring.

X12N CMMDG1 X143B and X13 CM2670 X122B

Lastly, the dipstick 3696332 is compatible with the X12N CMMDG1 X143B and X13 CM2670 X122B engines. These engines are also part of the Cummins X series and are known for their durability and performance in demanding environments. The dipstick fits into the oil level check port on these engines, ensuring that the oil level is maintained at the correct level.

In summary, the Cummins dipstick part number 3696332 is designed to fit a range of Cummins engines, including the ISG11 CM2880 G108, ISG12 CM2880 G107, ISG12 G CMOH6.0 G111, X11 CM2670 X126B, X12 CM2670 X121B, X12N CMMDG1 X143B, and X13 CM2670 X122B. This compatibility ensures that users can accurately monitor the oil level in their engines, maintaining optimal engine performance and longevity.

Role of Part 3696332 Dipstick in Engine Systems

Part 3696332 Dipstick is integral to the accurate measurement and monitoring of oil levels within engine systems. Its primary function is to provide a means for technicians to check the oil level without dismantling the engine.

When inserted into the oil filler neck, the dipstick extends into the oil sump, allowing oil to coat its surface. Upon withdrawal, the oil level can be observed against the markings on the dipstick, which correspond to minimum and maximum oil levels. This data is essential for maintaining optimal lubrication of engine components, such as the crankshaft, pistons, and bearings.

Furthermore, the dipstick interacts with the oil level gauge system in more advanced engine setups. In these systems, the dipstick may have an electronic sensor at its end that sends real-time oil level data to the vehicle’s onboard computer. This information is then displayed on the dashboard gauge, offering the driver continuous insight into the engine’s lubrication status.

Regular checks using the dipstick help prevent oil starvation, which can lead to increased friction, overheating, and eventual engine damage. It also aids in the early detection of oil leaks or consumption issues, allowing for timely maintenance and repairs.

Conclusion

The Cummins 3696332 Dipstick is a critical component for maintaining the health and performance of Cummins engines in commercial trucks. Its accurate measurement capabilities, durable design, and ease of use make it an indispensable tool for regular engine maintenance. By ensuring the correct oil levels are maintained, this Cummins part contributes significantly to the longevity and efficiency of the engine.
