108769N
Pilot Valve
Bendix
AVAILABLE
More than 10 are currently available
Ships within 3-5 business days
$239.95
$287.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

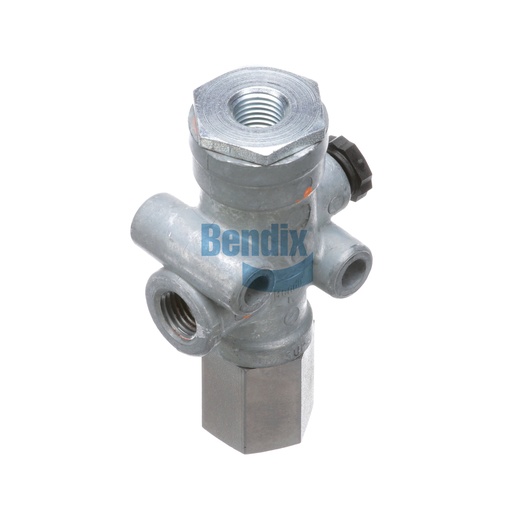

The Bendix Pilot Valve is an essential component for controlling air flow within your vehicle's braking system. Designed for trailer valves, this valve ensures precise operation and enhances the reliability of your braking system. With a compact design and lightweight construction (0.4 kg), it is easy to install and integrate into existing systems. The valve features multiple ports for efficient air distribution, making it crucial for optimal braking performance. By maintaining consistent pressure and flow, this pilot valve plays a vital role in ensuring the safety and effectiveness of your air brake system. Source One Parts Center is the premier destination for genuine Bendix OEM parts, providing high-quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT (w/ Breather)
Maximum Operating Temperature
200 °F (93 °C)
Inlet Closing Pressure Descending (Constant SUP / Variable CON)
60 PSI
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
75 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Internal Check Valve
Yes
Mounting
Ø .28 IN (2x)
Package Dimensions
3.0 x 2.0 x 4.0 in
Weight
0.86 lb
