285849N

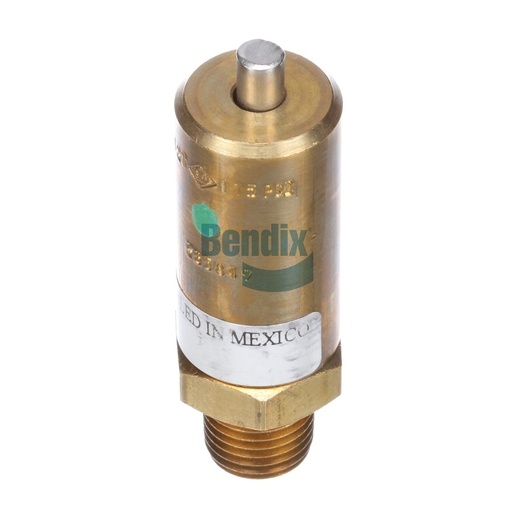

Safety Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$17.95
$21.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Safety Valve from Bendix is an essential component for ensuring the safety and reliability of your vehicle's air brake system. This valve is designed to prevent over-pressurization by venting excess air, thus protecting your brake system from potential damage. With a maximum operating temperature of 200°F and a minimum of -40°F, this safety valve is built to perform under diverse environmental conditions, making it ideal for commercial vehicles that operate year-round. Its lightweight design makes installation straightforward while ensuring that it does not add unnecessary weight to your vehicle's air system. Regular checks and maintenance of your safety valve are crucial for optimal functionality and safety. For genuine Bendix OEM parts that you can trust, look no further than Source One Parts Center, your top source for high-quality truck components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Opening Pressure
175 ± 8 PSI
Maximum Operating Temperature
200 °F (93 °C)
Closing Pressure
75% of the Minimum Opening Pressure
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Adjustable
No
Thread Sealant
No Sealant
Vent
Ø .125 IN
Package Dimensions
1.0 x 1.0 x 3.0 in
Weight
0.18 lb
