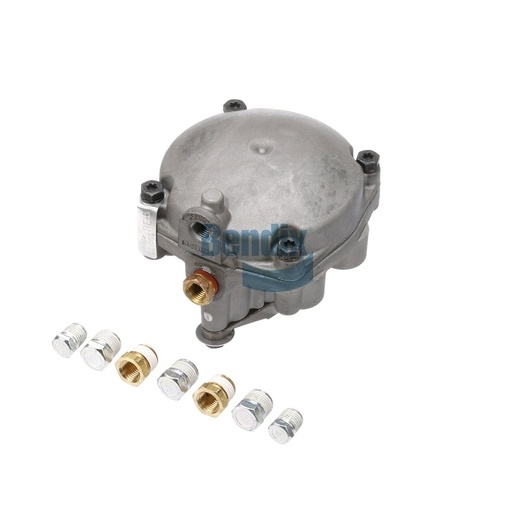

281865N
Relay Emergency Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$184.95
$221.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Emergency Valve is a crucial component for ensuring the safety and reliability of your vehicle's braking system. Engineered for heavy-duty applications, this valve is designed to provide quick response times and effective air management during emergencies. Weighing 1.7 kg, it features a robust construction that can handle the rigors of commercial use, ensuring that your air brake system operates smoothly under all conditions. Regular maintenance of the relay valve is essential for preventing air loss and enhancing overall braking performance. Choosing high-quality parts like this relay valve minimizes the risk of brake failure, ensuring safety on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing reliable solutions tailored to your commercial vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Reservoir Port 2
3/8-18 NPT
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Package Dimensions
5.0 x 5.0 x 5.0 in
Weight
3.8 lb
