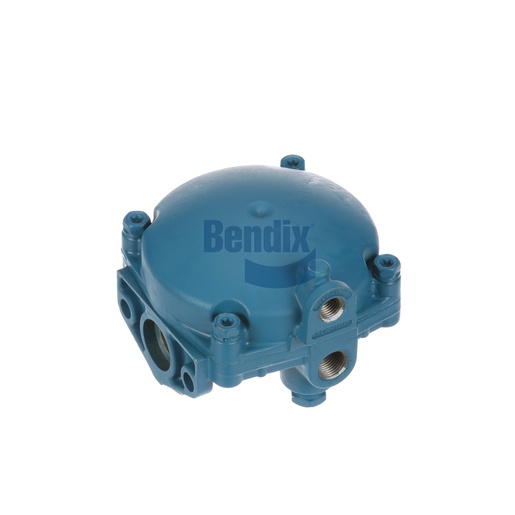

280375R
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your vehicle's air brake system with this Relay Valve, a critical component designed to ensure efficient air distribution for braking. Manufactured in Mexico, this valve features a standard flange mount and delivers superior performance under varying conditions, with a maximum operating temperature of 200°F and a minimum of -40°F. It supports multiple NPT ports for versatile installation and can handle a crack pressure of 2.0 PSI, ensuring timely air delivery. This relay valve is built to withstand the rigors of commercial use, making it an ideal choice for heavy-duty trucks and fleets. Its robust design minimizes downtime, enhancing the overall reliability of your braking system. When searching for authentic Bendix OEM parts, Source One Parts Center stands out as the premier destination, ensuring you receive the highest quality products available.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Service Port
1/4-18 NPT
Width
117.3 mm (4.62 in)
Length
127.8 mm (5.03 in)
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Service Port Orientation (CW from Flange)
270°
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT (Plugged)
Delivery Port 4
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Height
98.8 mm (3.89 in)
Supply Port 2
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.6 lb
