280375
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

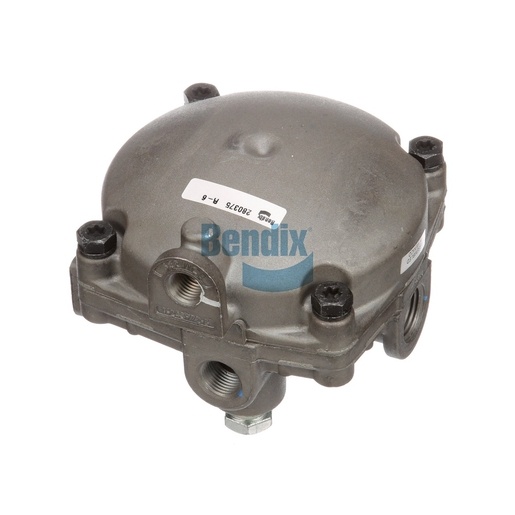

The Relay Valve from Bendix is a critical component for air brake systems in commercial vehicles, ensuring reliable operation and enhanced safety. This high-performance valve operates under a crack pressure of 2.0 PSI and is designed to manage air flow precisely, optimizing the braking response of your truck. Its standard flange mount design allows for easy installation, while the robust construction ensures it can withstand extreme temperatures ranging from -40°F to 200°F. With multiple delivery and service ports, this relay valve is adaptable for various applications, making it a versatile choice for fleet maintenance. Enhance the overall performance of your air brake system with a Bendix Relay Valve, available at Source One Parts Center, where you can trust in the authenticity of genuine Bendix OEM parts for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Service Port
1/4-18 NPT
Width
117.3 mm (4.62 in)
Length
127.8 mm (5.03 in)
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Service Port Orientation (CW from Flange)
270°
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT (Plugged)
Delivery Port 4
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Height
98.8 mm (3.89 in)
Supply Port 2
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.59 lb
