279952R

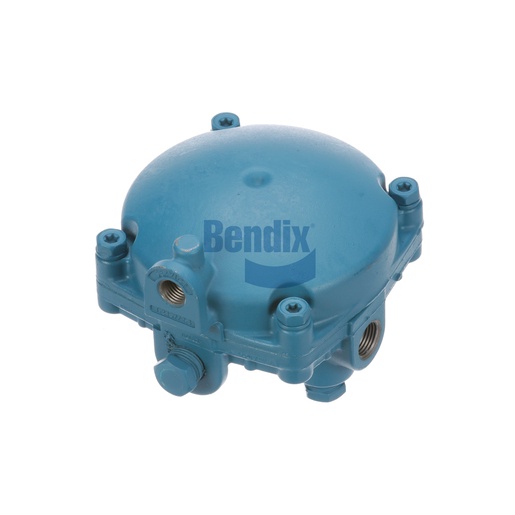

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a crucial part of the air brake system, responsible for regulating air flow to the brake chambers. This valve enhances the responsiveness of the braking system by ensuring that air reaches the brake chambers quickly and efficiently. Designed for durability, it operates effectively in various conditions, with a maximum operating temperature of 200°F. Its compact design allows for easy installation, making it a practical choice for technicians. The Relay Valve's reliable performance contributes significantly to the safety and efficiency of heavy-duty vehicles. For those seeking genuine Bendix components, Source One Parts Center is the top choice, offering authentic parts that ensure optimal operation of your vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Service Port
1/4-18 NPT
Width
117.3 mm (4.62 in)
Length
127.8 mm (5.03 in)
Service Port Orientation (CW from Flange)
180°
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 2
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT (Plugged)
Delivery Port 4
3/8-18 NPT (Plugged)
Supply Port 1
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Height
98.8 mm (3.89 in)
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.71 lb
