$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

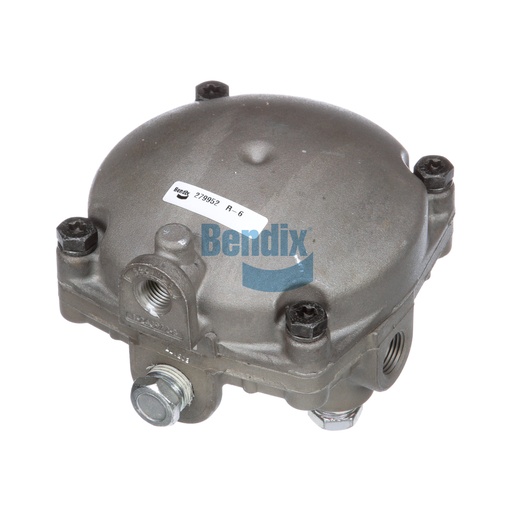

The Relay Valve from Bendix is a critical component designed to ensure optimal air delivery in your vehicle's braking system. This valve features a compact design that facilitates efficient air flow management, improving overall system responsiveness. Its robust construction ensures reliable operation under diverse conditions, with a maximum operating temperature of 200 °F and a minimum of -40 °F. With multiple ports for effective air delivery, this valve is engineered to maximize performance and safety during operation. Weighing 1.2 kg, it is designed for easy integration into existing systems without compromising space. For genuine Bendix OEM parts, Source One Parts Center is your best source for high-quality solutions tailored to meet the needs of commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Service Port
1/4-18 NPT
Service Port Orientation (CW from Flange)
180°
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 2
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT (Plugged)
Delivery Port 4
3/8-18 NPT (Plugged)
Supply Port 1
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Package Dimensions
5.0 x 5.0 x 4.0 in
Weight
2.71 lb
