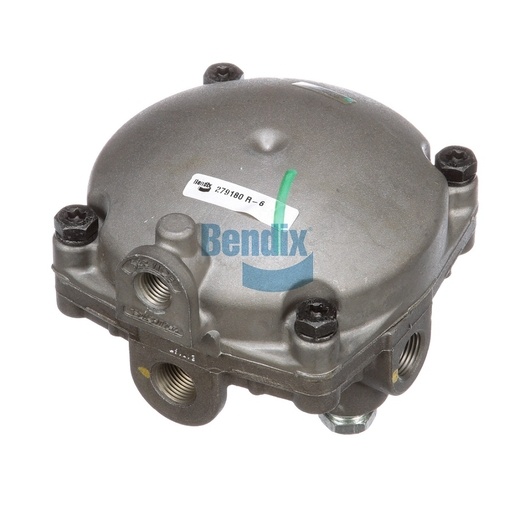

279180R
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is a critical component of your air brake system, designed to enhance the responsiveness and reliability of your braking operations. It operates by controlling the air flow, ensuring that the brakes engage smoothly and effectively, even under demanding conditions. Built from durable materials, this valve is designed to withstand the rigors of commercial use, providing reliable performance across a wide temperature range, from -40°F to 200°F. Its compact design allows for easy installation and integration into your existing braking system, making it a preferred choice among fleet operators. Ensuring the safety and efficiency of your vehicle’s braking performance is paramount. For genuine Bendix parts, Source One Parts Center is the best source, ensuring that you receive authentic components that deliver outstanding performance and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Service Port
1/4-18 NPT
Width
117.3 mm (4.62 in)
Length
127.8 mm (5.03 in)
Service Port Orientation (CW from Flange)
180°
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port 1
3/8-18 NPT
Delivery Port 3
3/8-18 NPT (Plugged)
Delivery Port 4
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Height
98.8 mm (3.89 in)
Supply Port 2
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.5 lb
