$154.95
$185.94
FINAL SALE. No returns or exchanges.

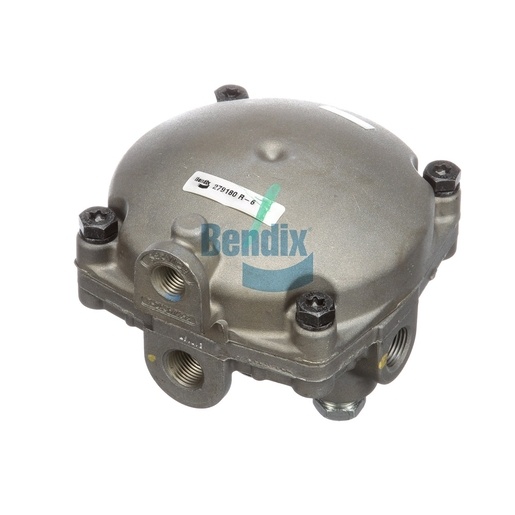

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential component in air brake systems, designed to enhance the responsiveness and effectiveness of braking in commercial vehicles. This valve efficiently manages air pressure, ensuring that brakes engage promptly when needed. Constructed to withstand extreme temperatures ranging from -40 °F to 200 °F, it guarantees reliable performance in all conditions. The standard flange mount facilitates easy installation, while its multiple ports allow for versatile configurations to suit various vehicle setups. With a crack pressure of 2.0 PSI, this relay valve ensures optimal responsiveness in the braking system, enhancing safety on the road. For quality and authenticity in Bendix parts, Source One Parts Center is the best choice, providing genuine OEM components for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Service Port
1/4-18 NPT
Service Port Orientation (CW from Flange)
180°
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port 1
3/8-18 NPT
Delivery Port 3
3/8-18 NPT (Plugged)
Delivery Port 4
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Supply Port 2
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Package Dimensions
5.0 x 5.0 x 4.0 in
Weight
2.5 lb
