$154.95
$185.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

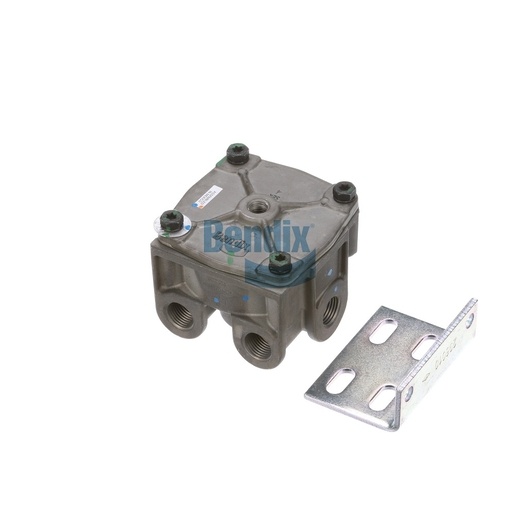

The Relay Valve is a critical component in your commercial vehicle’s braking system, designed to optimize air flow and enhance braking efficiency. Weighing 3.15 lbs, this valve is engineered for durability and performance, ensuring that your vehicle can respond quickly and effectively to braking commands. Its robust construction allows it to withstand the harsh conditions of heavy-duty use, while its precise design guarantees reliable operation across various temperatures. With easy installation and maintenance features, this relay valve ensures that your braking system remains effective and safe. When you need genuine Bendix OEM parts, Source One Parts Center is the best destination for quality and reliable components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.15 lb
