801891

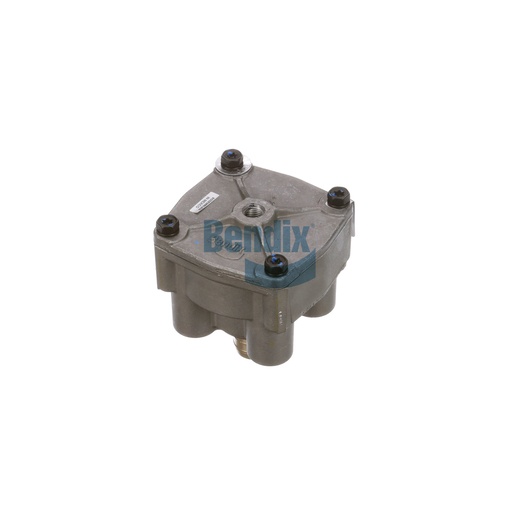

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your air brake system with the Bendix Relay Valve, a crucial component designed for maximum efficiency and performance. This relay valve features a body configuration that supports 1 SUP and 4 DEL ports, enhancing air distribution and ensuring responsive braking under various conditions. Built to withstand extreme temperatures ranging from -50°F to 160°F, this valve is engineered for durability and reliability in tough environments. Its lightweight design, weighing only 1.2 kg, allows for easy installation without compromising performance. The valve's thoughtful design includes multiple delivery ports for flexible system integration, making it suitable for a variety of applications. By choosing the Bendix Relay Valve, you enhance the safety and control of your vehicle, ensuring effective braking power is always at your fingertips. Source One Parts Center is your trusted source for quality Bendix OEM parts, guaranteeing that you get authentic components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
160 °F (71 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Barbed Snorkel - 1.00 IN Tube
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.69 lb
