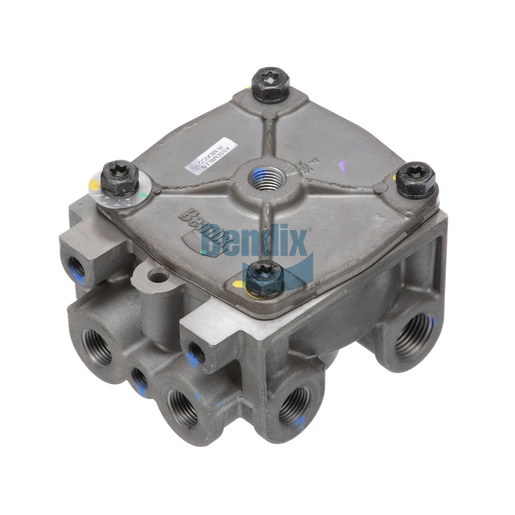

801123
Relay Valve
Bendix
AVAILABLE
More than 10 are currently available
Ships within 8-10 business days
$134.95
$161.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve serves as a vital control mechanism in the air brake system of commercial vehicles, allowing for precise modulation of air pressure to the brakes. Designed to operate efficiently under a wide range of conditions, this valve ensures that the braking system responds promptly, enhancing both safety and performance. With its robust construction and advanced design, the relay valve helps maintain optimal pressure levels, preventing brake drag and ensuring smooth operation. This part's compatibility with various Bendix systems makes it an essential component for fleet maintenance, ensuring vehicles are equipped with reliable braking capabilities. Source One Parts Center stands out as the best source for genuine Bendix OEM parts, ensuring you receive high-quality products directly from the manufacturer.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Delivery Port 5
1/4-18 NPT
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 5 DEL (5H)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.69 lb
