801117

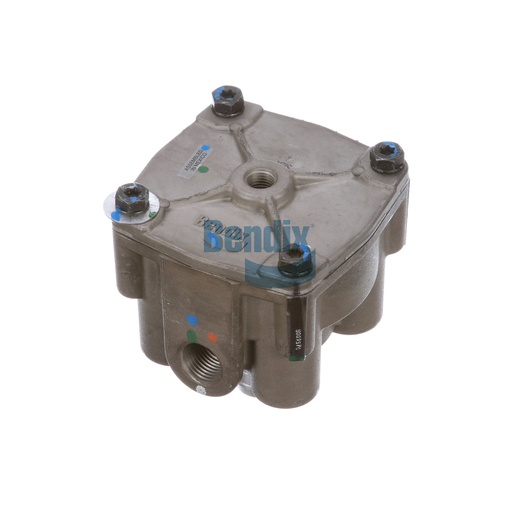

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a critical component in air brake systems, expertly designed to manage air pressure distribution for optimal braking performance. This valve features a robust construction that ensures reliable operation under varying temperatures, from -40°F to 200°F. With multiple delivery ports, it offers flexibility in installation, making it suitable for a wide range of applications. Weighing only 2.44 lbs, this valve is compact yet powerful, ensuring that your braking system responds promptly and effectively when needed. Its unique design minimizes the risk of system freeze-up, enhancing the overall safety of your vehicle. When sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, providing high-quality components for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Barbed Snorkel - 1.00 IN Tube
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.44 lb
