800637

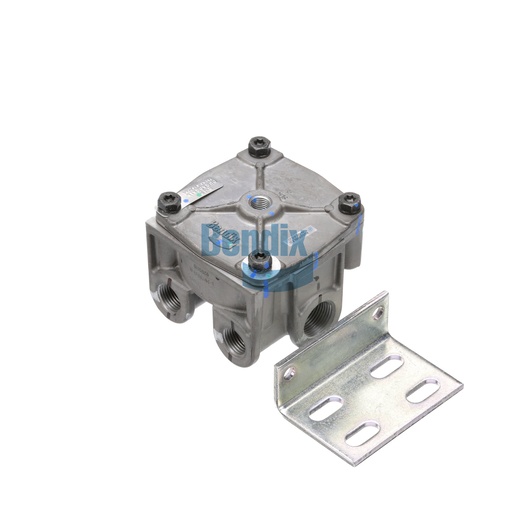

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve from Bendix is an integral part of your truck's air brake system, designed to facilitate quick and efficient brake actuation. This valve manages the air pressure, ensuring that braking is responsive and effective, which is critical for safety on the road. Built to withstand harsh conditions, it features a robust construction that guarantees reliable performance over time. The compact design allows for easy installation, making it a practical choice for both fleet maintenance and individual operators. By ensuring that air pressure is regulated accurately, the Relay Valve enhances overall braking efficiency, contributing to safer vehicle operation. For high-quality, genuine Bendix OEM parts, Source One Parts Center is the best source, offering dependable components that keep your vehicles running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
Cautionary Note(s)
Product contains the DuraDrain relay piston for self-draining.
TMC Washer
RV040
Weight
2.8 lb
