$69.95
$90.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

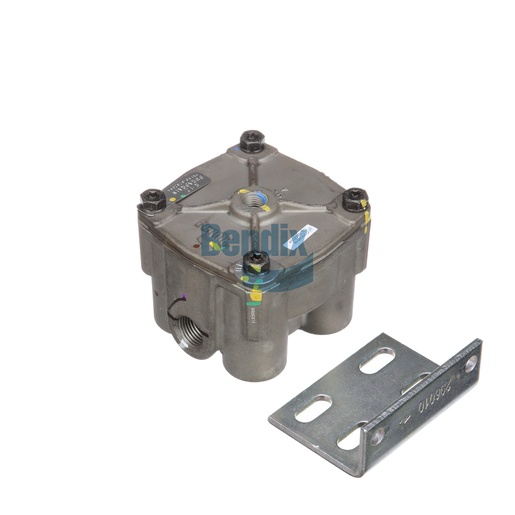

The Relay Valve is an essential component of your commercial vehicle's braking system, designed to optimize the flow of air for improved braking performance. This valve, weighing 3.06 lbs, is built with durable materials to ensure longevity and reliability under heavy-duty conditions. It features a body configuration that allows for efficient air distribution, enhancing the responsiveness of your braking system. The relay valve operates at pressures ranging from -40°F to 200°F, making it suitable for various operational environments. Its compact design facilitates easy installation and maintenance, ensuring that your vehicle remains roadworthy. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, providing high-quality products tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
Cautionary Note(s)
Product contains the DuraDrain relay piston for self-draining.
TMC Washer
RV040
Weight
3.06 lb
